Heavy Duty Steel Beam Scaffold Concrete Formwork Systems

The purpose of the heavy duty Waler Beam is to be used for both horizontal and vertical shoring solutions. It may also be used as a diagonal brace for heavy-duty shoring systems. Its simplicity in design allows it to adapt to the most demanding challenges and environments.

Key Features

High loading capacities considerably reduce the number of components required, improving assembly and dismantling times.
Ten different lengths available, from 3.5in (90mm) to 212.6in (3600mm), for maximum flexibility.
Fully compatible with standard accessories and clamps for improved work efficiency.

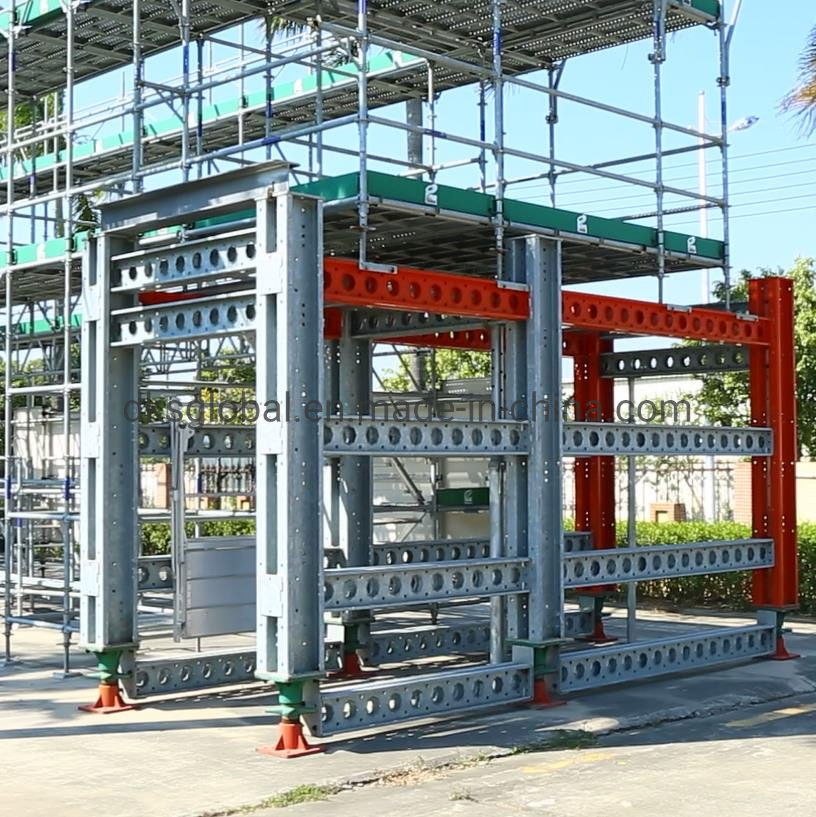

Complete freedom to create optimum designs for gantries, shoring structures, and formwork tables.

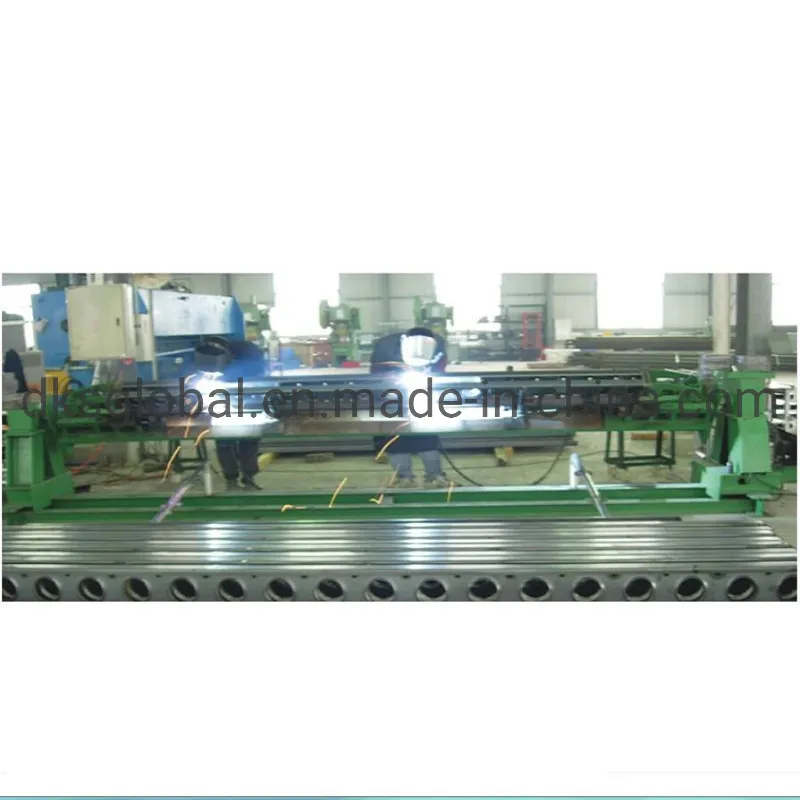

Manufactured from high-yield steel using accurate welding jigs for durability.
Hot dip galvanized (HDG) finish eliminates corrosion and minimizes maintenance.

Applications

Facade retention
Back-propping and support system
Wall formwork panels
Structural Propping

Bridge propping and jacking
Spanning beams
Vertical, horizontal and raking shores
Propping and needing systems

Technical Dimensions

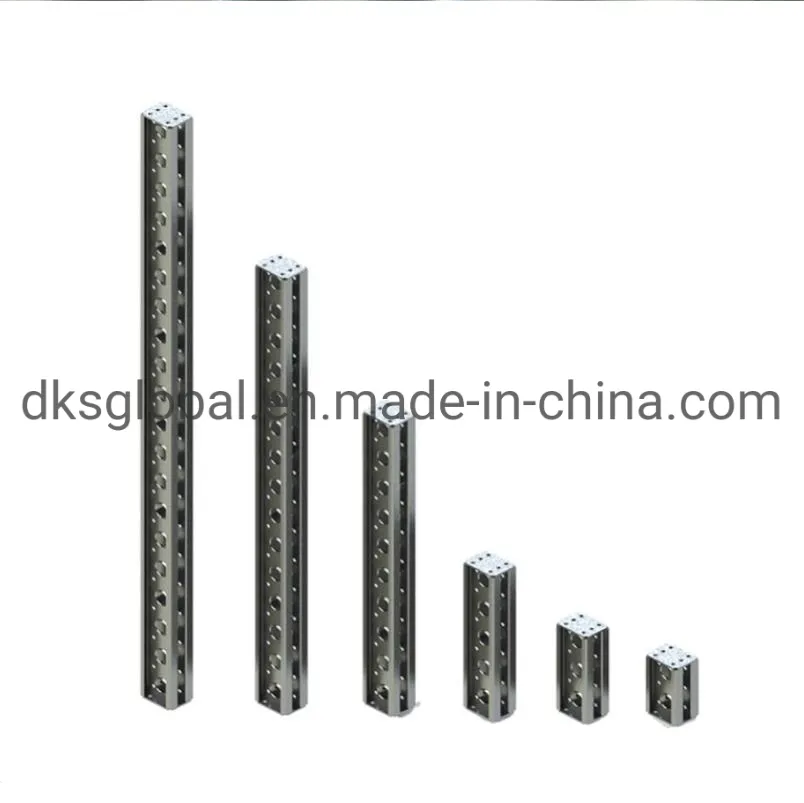

1. Waler Beam 225

Code	Length (in)	Description	Weight (lb)	Weight (kg)
DWB2236	141.7in	WB 3600MM	160.9 lb	73.0 kg
DWB2227	106.3in	WB 2700MM	121.3 lb	55.0 kg
DWB2218	70.9in	WB 1800MM	88.2 lb	40.0 kg
DWB2212	49.6in	WB 1260MM	77.2 lb	35.0 kg
DWB2209	35.4in	WB 900MM	48.7 lb	22.1 kg
DWB2207	28.3in	WB 720MM	44.1 lb	20.0 kg
DWB2205	21.3in	WB 540MM	35.3 lb	16.0 kg
DWB2203	14.2in	WB 360MM	27.3 lb	12.4 kg
DWB2201	7.1in	WB 180MM	24.3 lb	11.0 kg
DWB2200	3.5in	WB 90MM	21.2 lb	9.6 kg

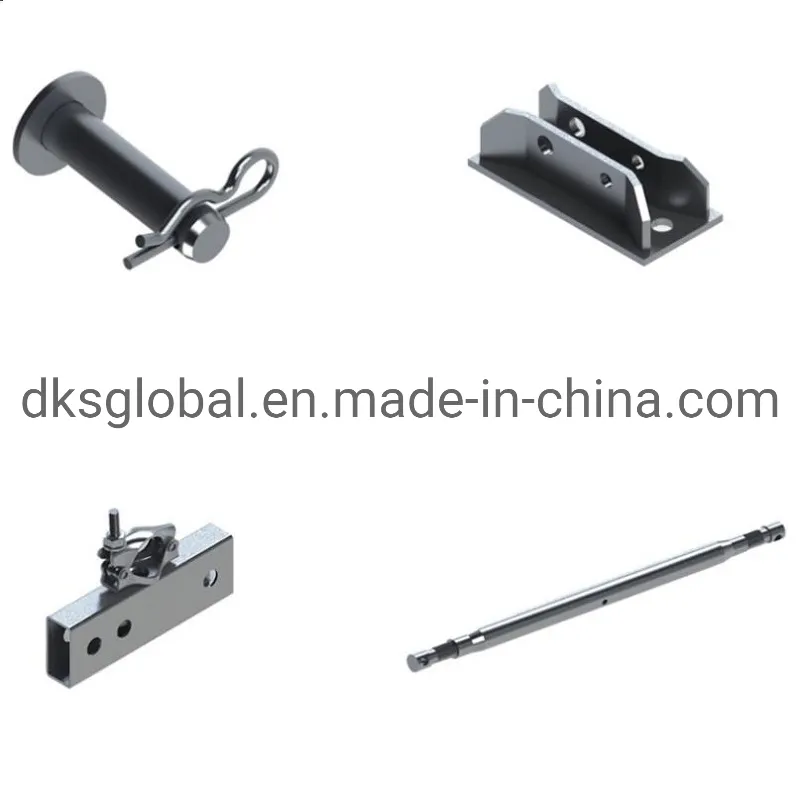

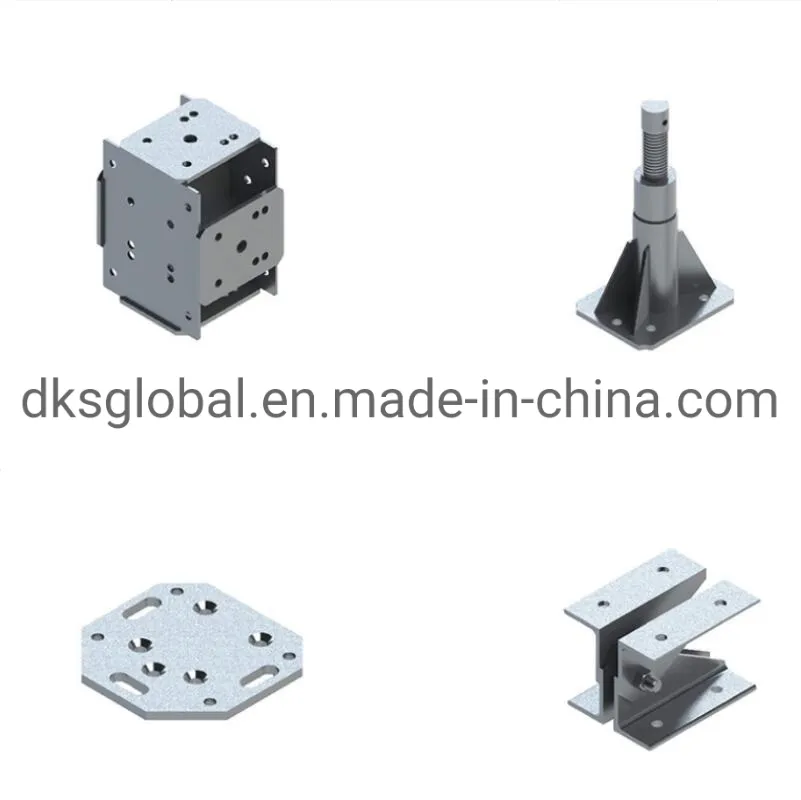

2. Components & Accessories

Component Type	Code	Description	Weight (lb/kg)
6 Way Connector	DWB0001	WB 6 WAY CONNECTOR	55.1 lb / 25 kg
Waler Beam Jacks	DWB0002	WB6 WALER BEAM(LH&RH)	28.2 lb / 12.8 kg
Anchor Plate	DWB0003	WB ANCHOR PLATE	16.3 lb / 7.4 kg
Pivot Cleat Set	DWB0004	WB PIVOT CLEAT SET	19.4 lb / 8.8 kg
Connecting Pin	DWB0005	WB Connect pin & clip	0.53 lb / 0.24 kg
Tilt Plate	DWB0006	WB TILT PLATE	13.3 lb / 6.0 kg
Bracing Connector	DWB0007	WB BRACING CONNECTOR	4.6 lb / 2.1 kg
Turn-Buckles	DWB0008	WB TURNBUCKLES 914-1160	18.5 lb / 8.4 kg

Product Display & Manufacturing

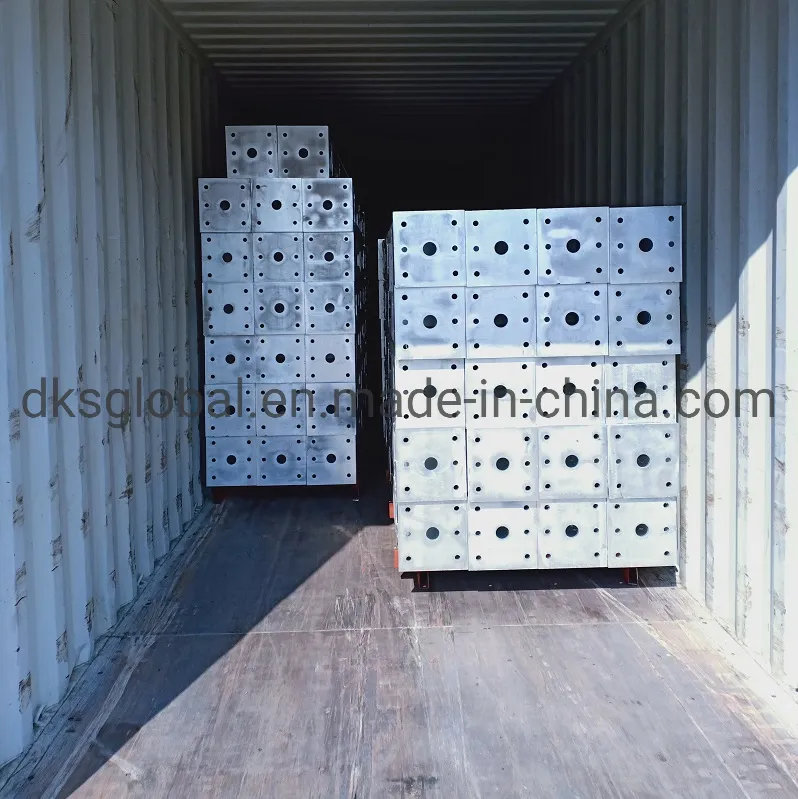

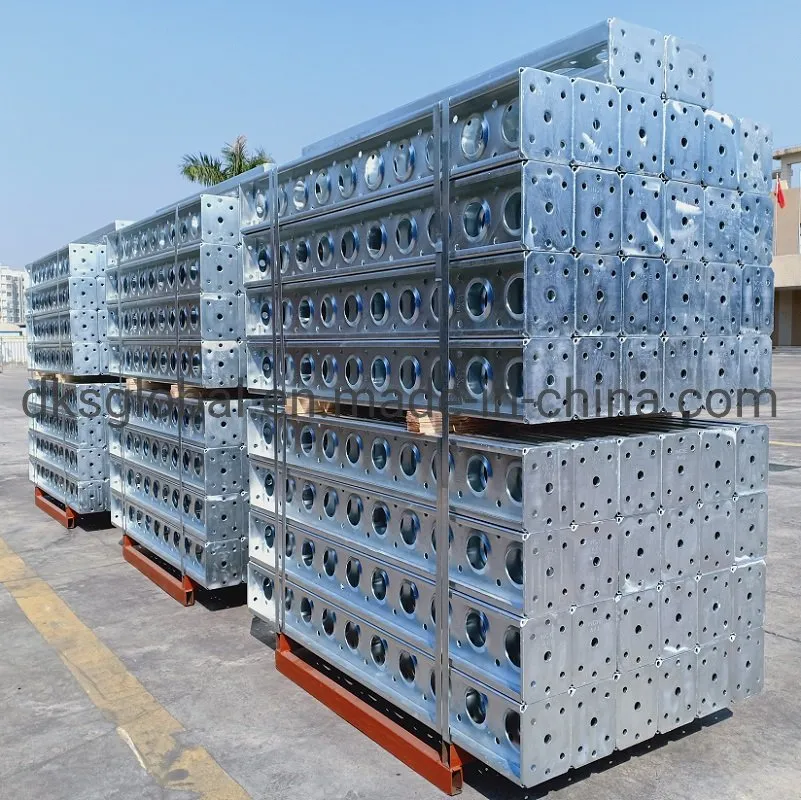

Package and Delivery

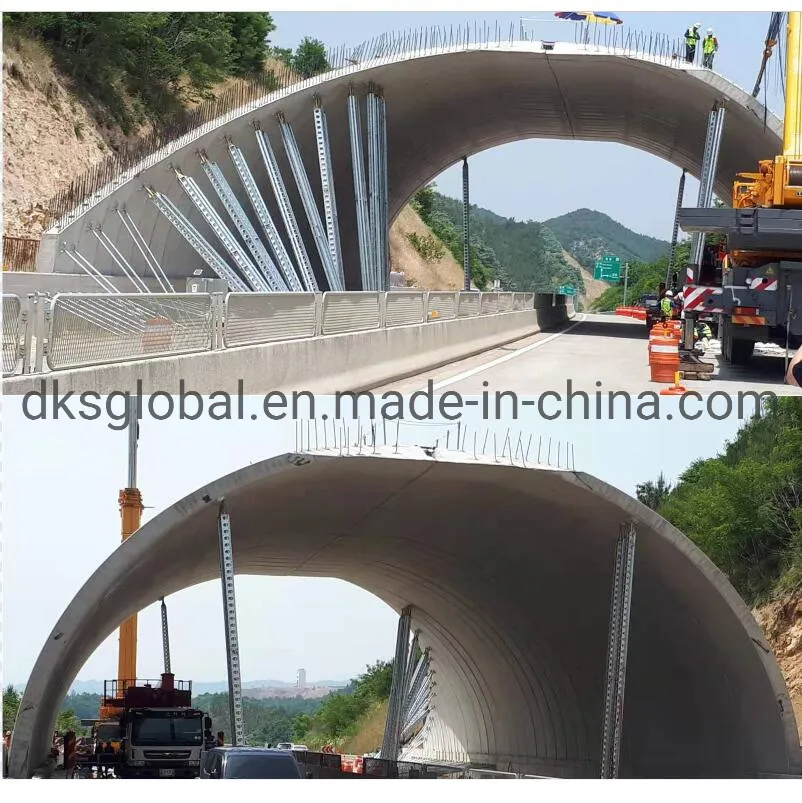

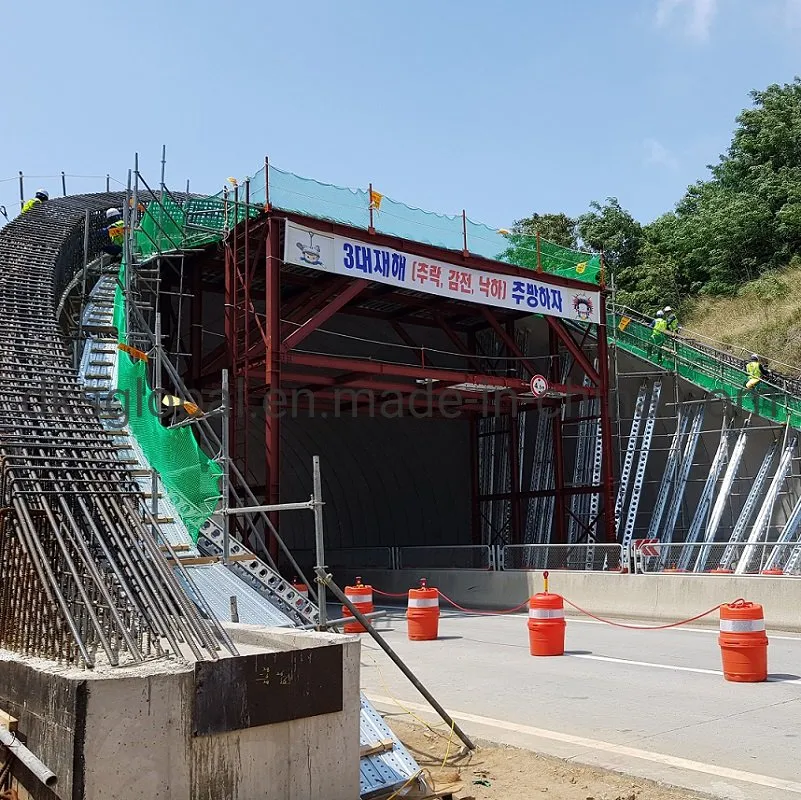

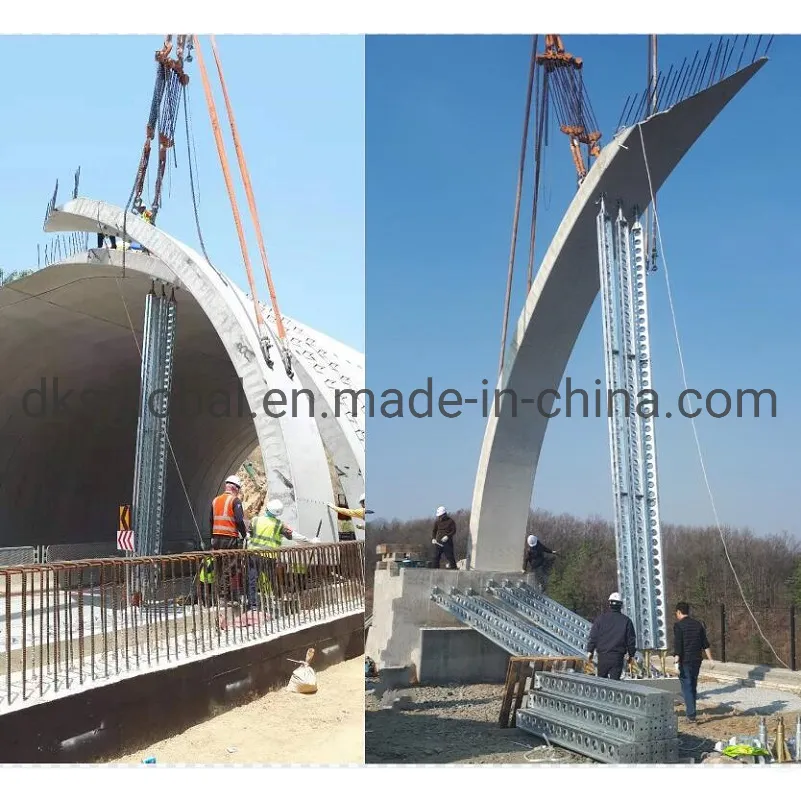

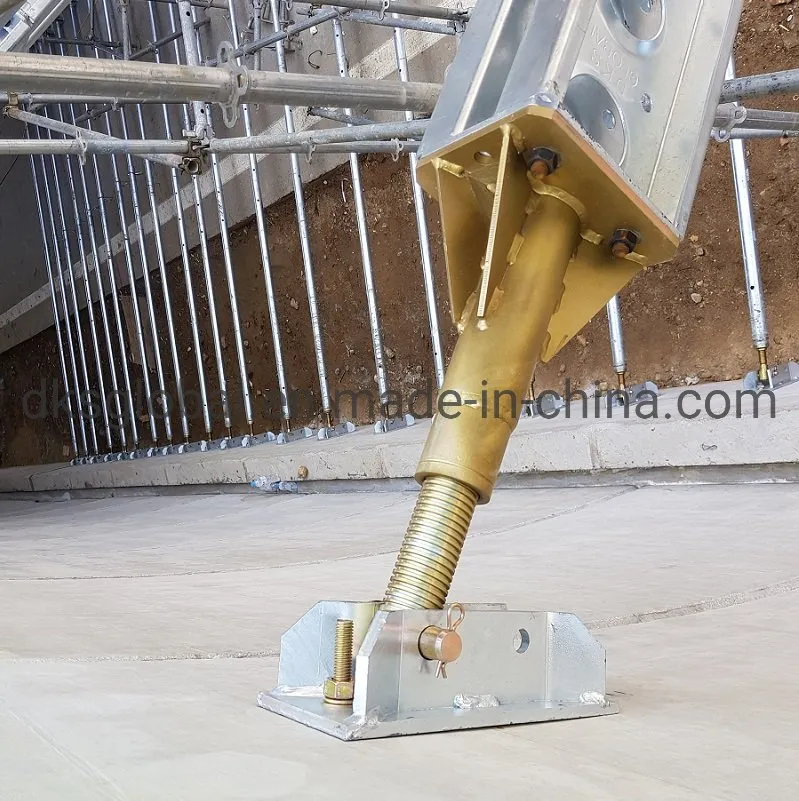

Project Cases

Manufacturing Facility

The factory covers an area of 16,528 M2 and is specialized in the production of shoring and safety systems. Equipped with modern and high-performance production tools, the facility is ISO 9001 certified. Our products, including shoring systems, scaffolding, and formwork, are exported globally to countries such as Japan, the United States, Canada, Germany, and Spain.
