Engineered for versatility and durability, the Ring Frame is ideal for structures with complex shapes, plans and heights. Whether as a scaffold or a shoring system, it is the perfect choice when angular flexibility is essential.
At the core of the Ring Frame System is the rosette design. This unique plate has eight apertures that can link up to eight horizontal and diagonal to each rosette. In other words, the Ring Frame System offers virtually unlimited angular fitting and design, making it the perfect scaffold for triangular, polygonal and curved structures.
All Ring Frame System components are galvanized and therefore offer excellent anti-corrosion resistance. This protection reduces maintenance costs, extends lifespan and therefore enables longer utilization.
The Ring Frame system uses a wedge shaped system to ensure a safe and reliable connection (e.g. cannot be accidentally dislodged) between standards, ledgers and diagonal braces.

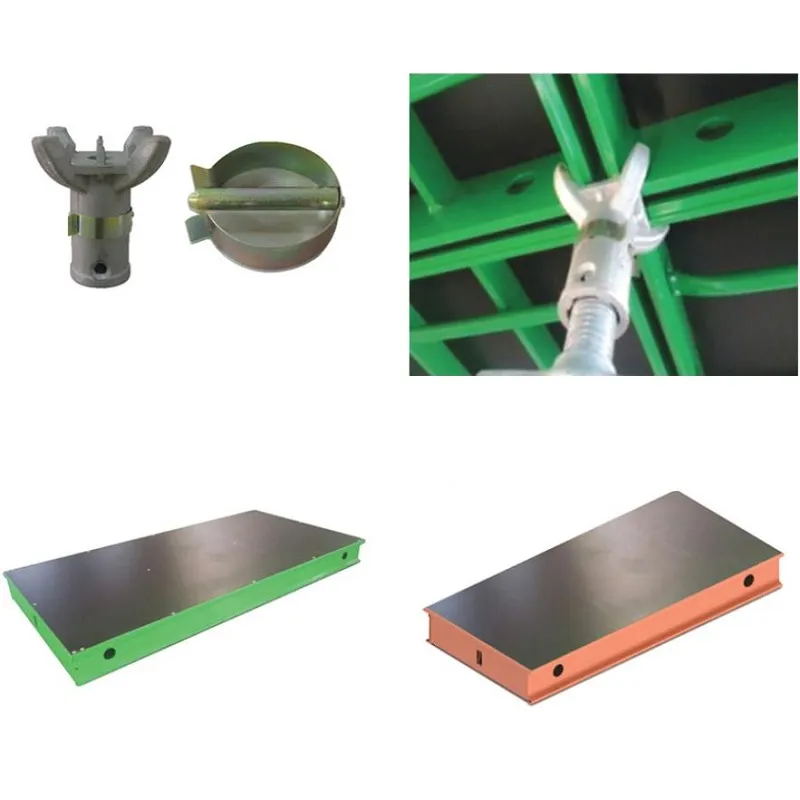

As a versatile manufacturer and inventor of modular scaffolding systems, we also provide a complete range of components such as panels, crowns and supports.

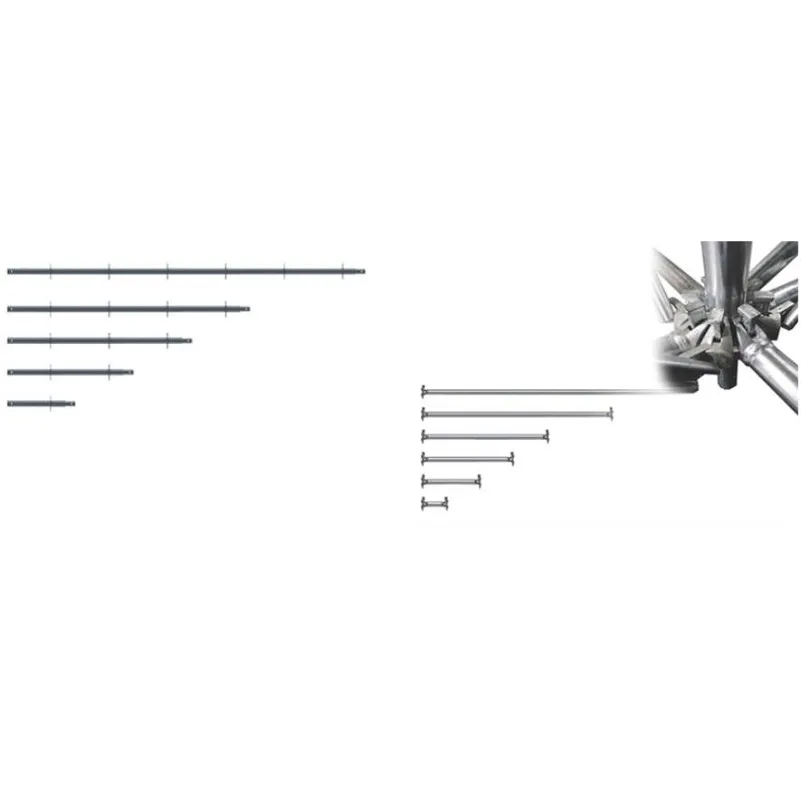

| Code | Description (in) | Description (mm) | Tube size & Weight (1.9in) | Tube size & Weight (2.4in) |
|---|---|---|---|---|
| DRF-S-3000 | 118.1 in | RF Standard 3000mm | 1.9(in)x3.2t & 29.5lb 13.37kg | 2.4(in)x3.2t & 35.7lb 16.2kg |
| DRF-S-2500 | 98.4 in | RF Standard 2500mm | 1.9(in)x3.2t & 24.6lb 11.14kg | 2.4(in)x3.2t & 29.8lb 13.5kg |
| DRF-S-2000 | 78.7 in | RF Standard 2000mm | 1.9(in)x3.2t & 19.7lb 8.92kg | 2.4(in)x3.2t & 23.8lb 10.8kg |
| DRF-S-1500 | 59.1 in | RF Standard 1500mm | 1.9(in)x3.2t & 14.7lb 6.69kg | 2.4(in)x3.2t & 17.9lb 8.1kg |
| Code | Length (in) | Description | Weight (lb) | Weight (kg) |
|---|---|---|---|---|
| DRF-L-2440 | 96.1 in | RF Ledgers 2440mm | 20.9 lb | 9.50 kg |
| DRF-L-1830 | 72.0 in | RF Ledgers 1830mm | 15.4 lb | 7.00 kg |
| DRF-L-1220 | 48.0 in | RF Ledgers 1220mm | 11.01 lb | 5.00 kg |
| Code | Size (in) | Size (mm) | Weight (lb) | Weight (kg) |
|---|---|---|---|---|
| DRF-MP-1809 | 70.9 X 35.4in | 1800 x 900mm | 87.5 lb | 39.7kg |
| DRF-MP-1806 | 70.9 X 23.6in | 1800 x 600mm | 57.3 lb | 36.0kg |
Located in Guangdong, the factory covers an area of 16,528 M2 and is specialized in the production of shoring and safety systems. The facility is equipped with modern and high-performance production tools and is ISO 9001 certified.
Our products, including shoring systems, scaffolding systems, and formwork systems, are exported to Japan, the United States, Canada, Germany, Spain, and many other countries.
A: The system is primarily constructed from high-quality steel for the frame and components, with specific panels made from AL6082-T6 or AL6061-T6 aluminum alloy for durability and weight efficiency.
A: The core rosette design features eight apertures, allowing for link-ups at various angles. This provides unlimited flexibility for triangular, polygonal, and curved structures.
A: Yes, all components are galvanized to provide excellent anti-corrosion resistance, which extends the lifespan and reduces maintenance costs.
A: The system utilizes a wedge-shaped locking mechanism that ensures a safe and reliable connection between standards, ledgers, and braces, preventing accidental dislodgment.
A: Our factory is ISO 9001 certified with a production capacity of approximately 50 tons per month, ensuring consistent quality and supply for large-scale projects.
A: Yes, we offer both Mega Panels (AL6082-T6) and Light Panels (AL6061-T6) in various dimensions to suit different load requirements and construction needs.
