INTRODUCTION:

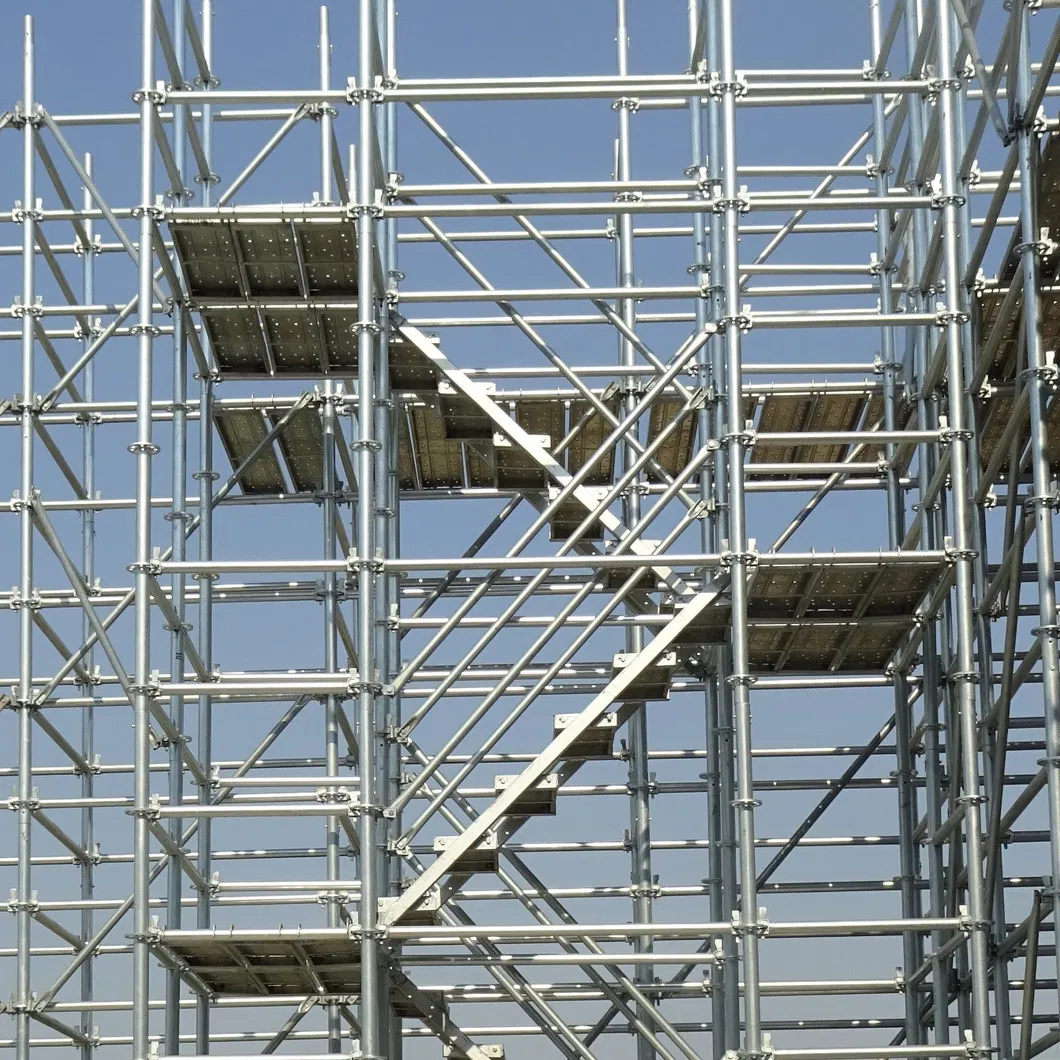

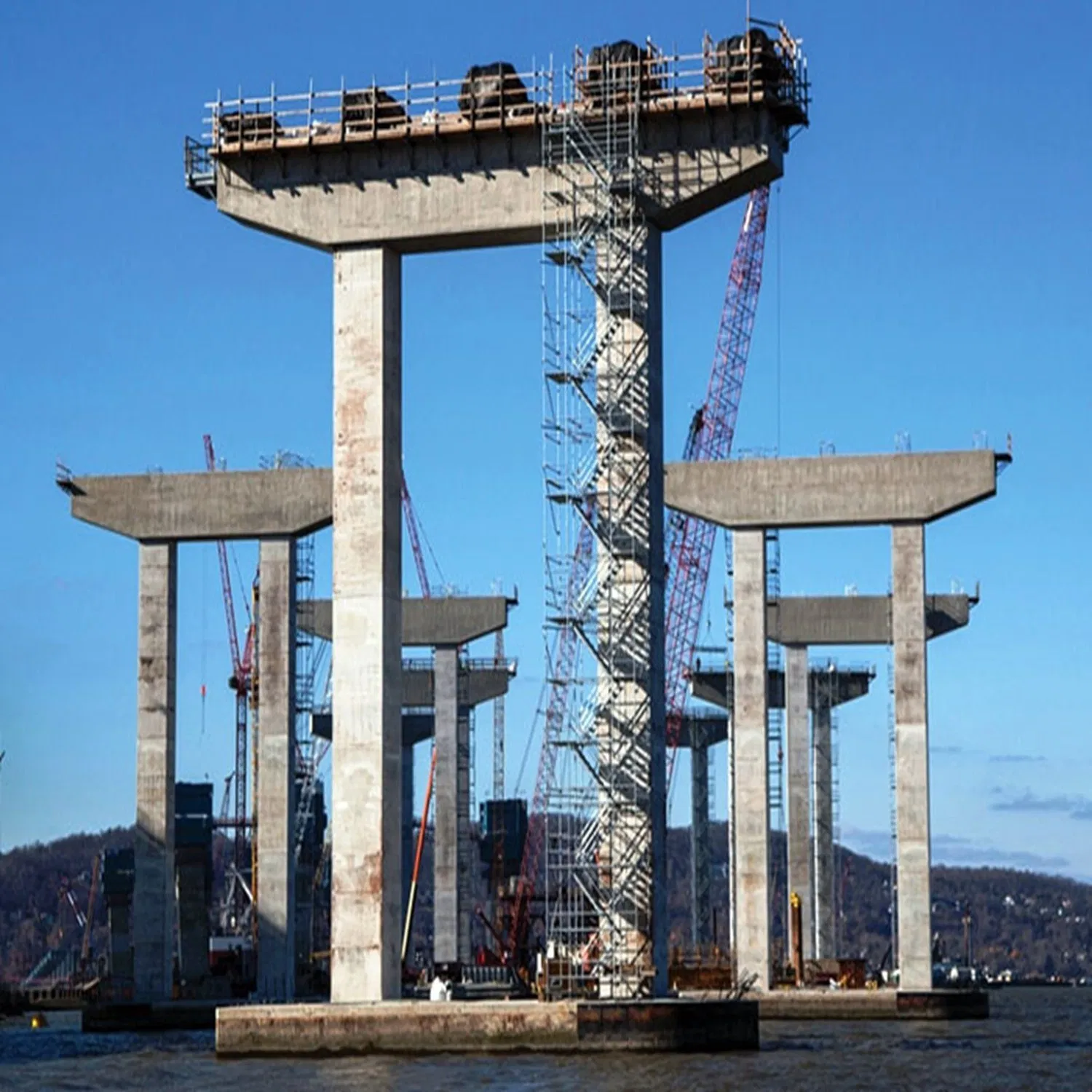

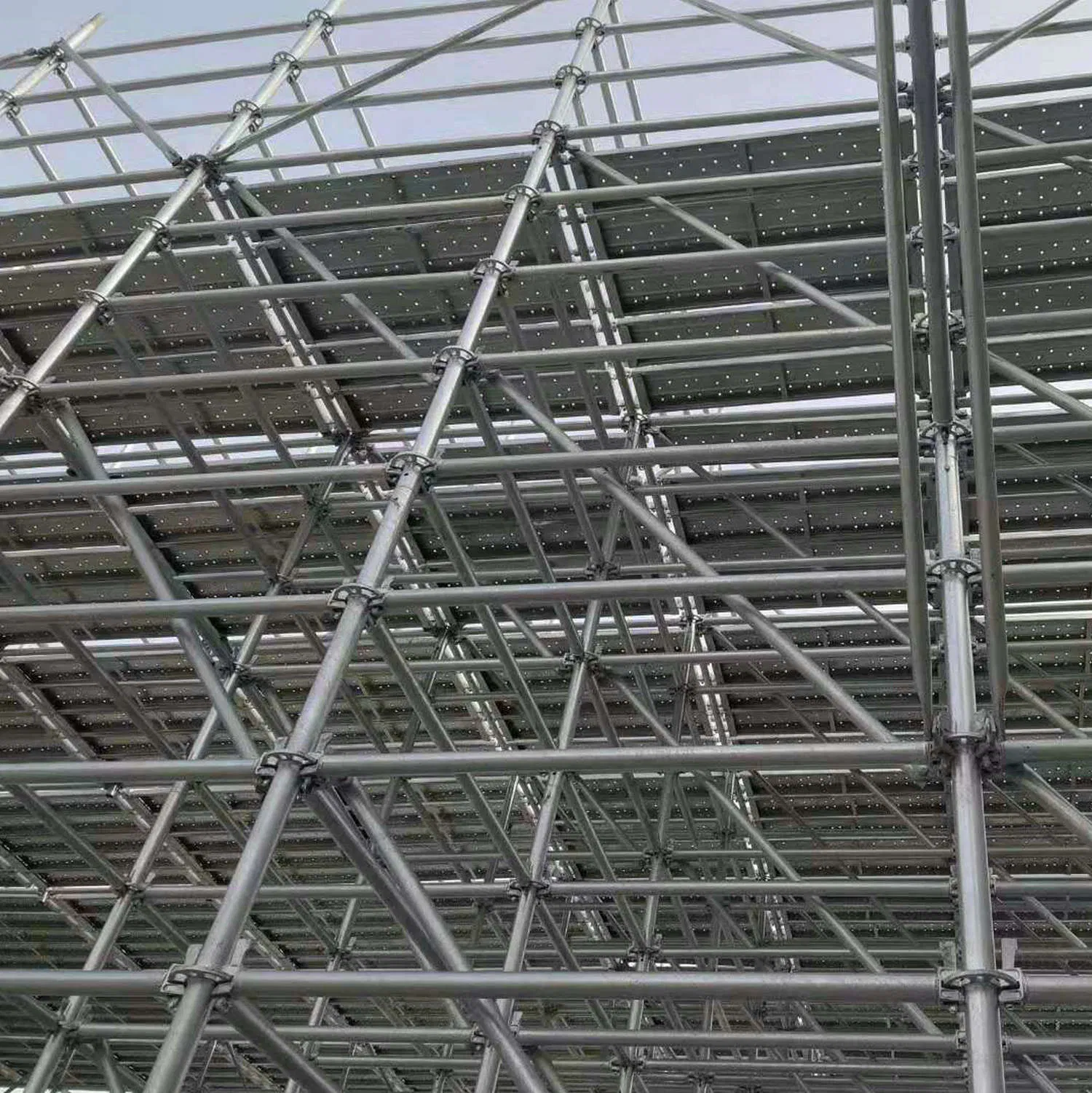

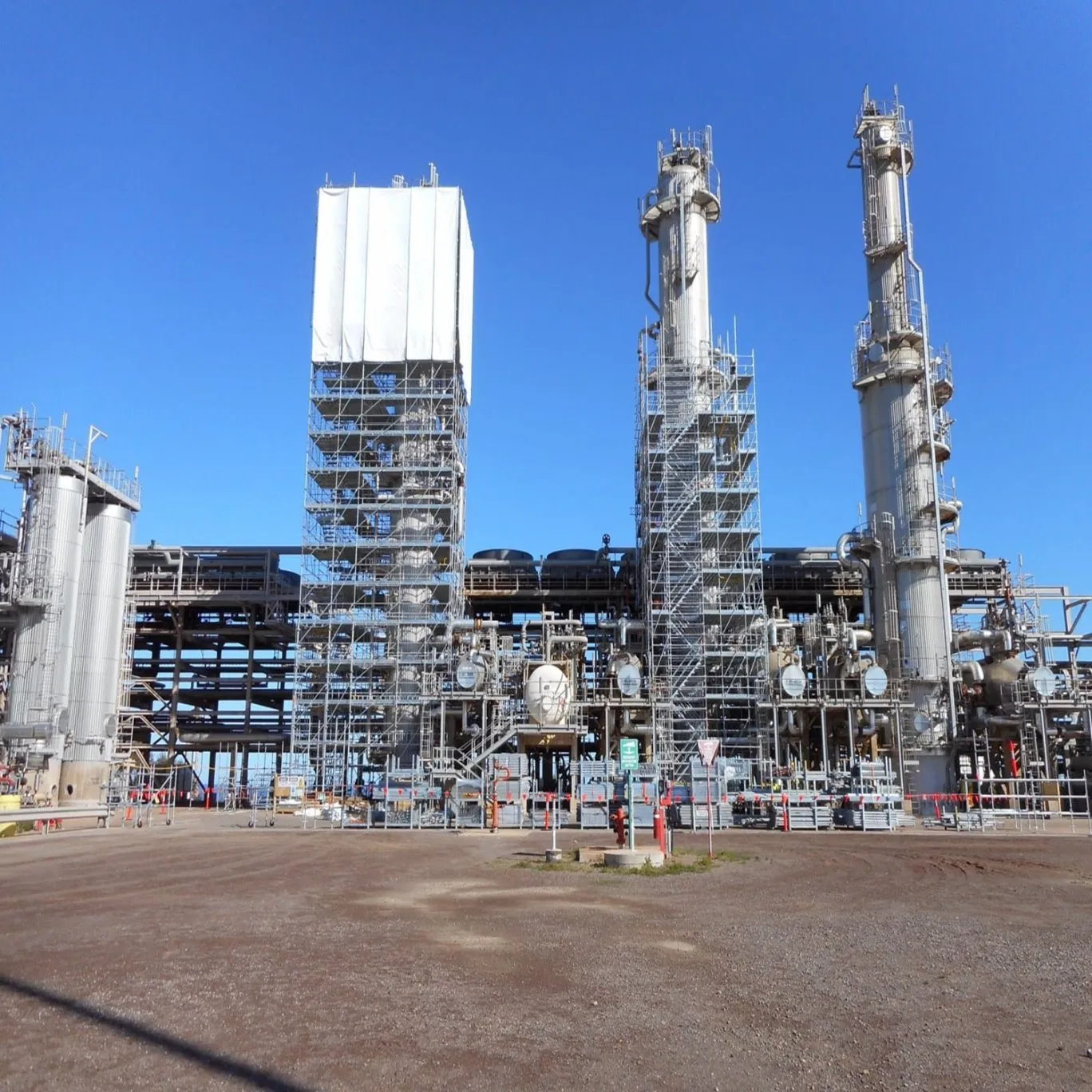

Ringlock scaffolding is one of the most popular types of scaffolding systems in the world. As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspended. Ringlock scaffolding can also be erected in a stationary or rolling tower configuration, which makes it perfect for safe work at height.
We produce all types of ringlock scaffolding include layher allround scaffolding types, USA type scaffolding, New Zealand Types of Ringlock Scaffolding and Spanish type multidirectional scaffolding, etc. All types of ringlock scaffolding are made from OD48.3mm scaffold tube and OD60.3mm scaffold tube for shoring heavy duty.
| Place of Origin | China |
| Size of Tube | 48.3 * 3.25mm |
| Material Standard | Q235 /Q345/Q355 carbon steel |
| Surface Treatment | Hot Dipped Galvanization |

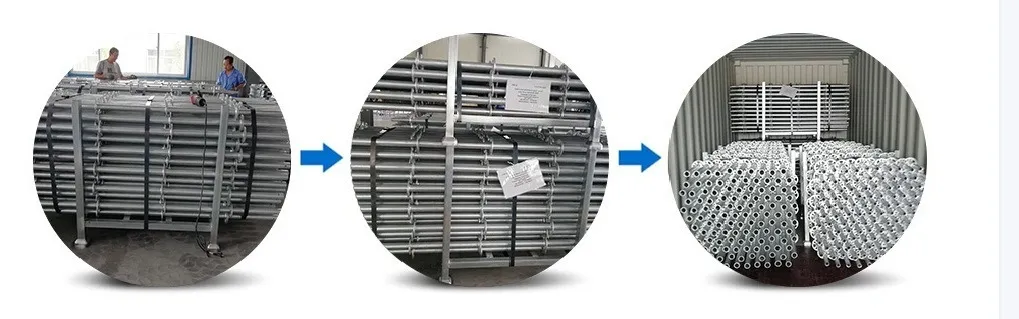

| Packaging Detail | Steel Pallet, or packed in bundle |
| Delivery Detail | 20-30 days after deposit. |

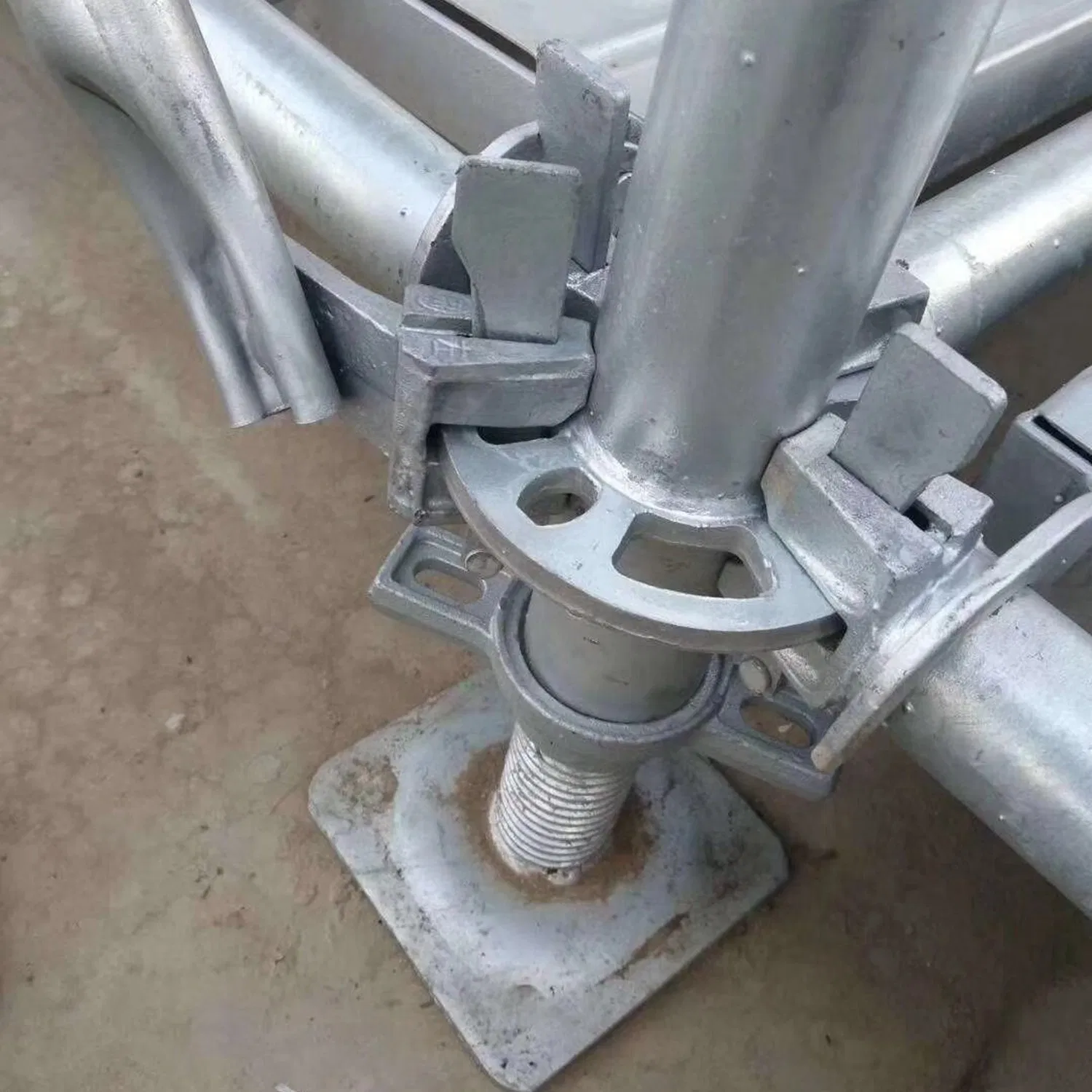

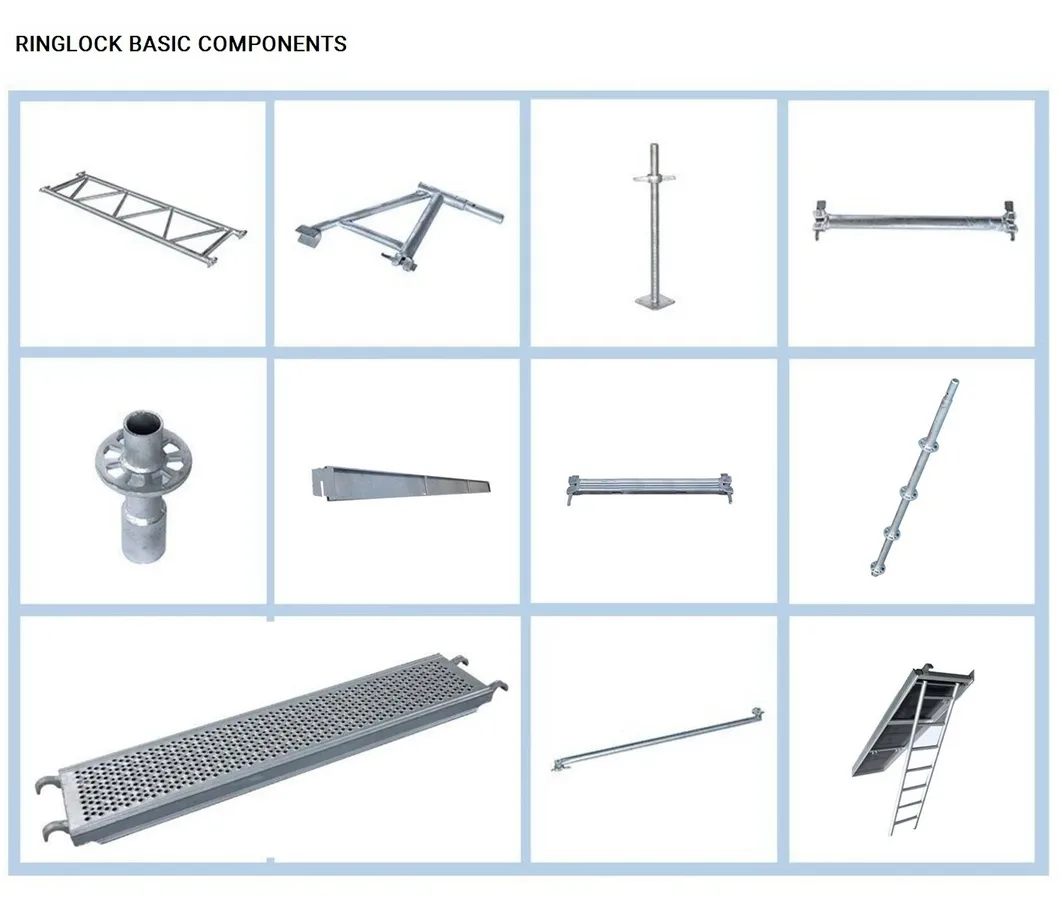

| Basic Components | vertical, ledger, diagonal brace, double ledger, side bracket, lattice girder, steel plank, toe board, steel stair, stairway handrail, U transom, U ledger beam, base collar, adjustable base jack. |

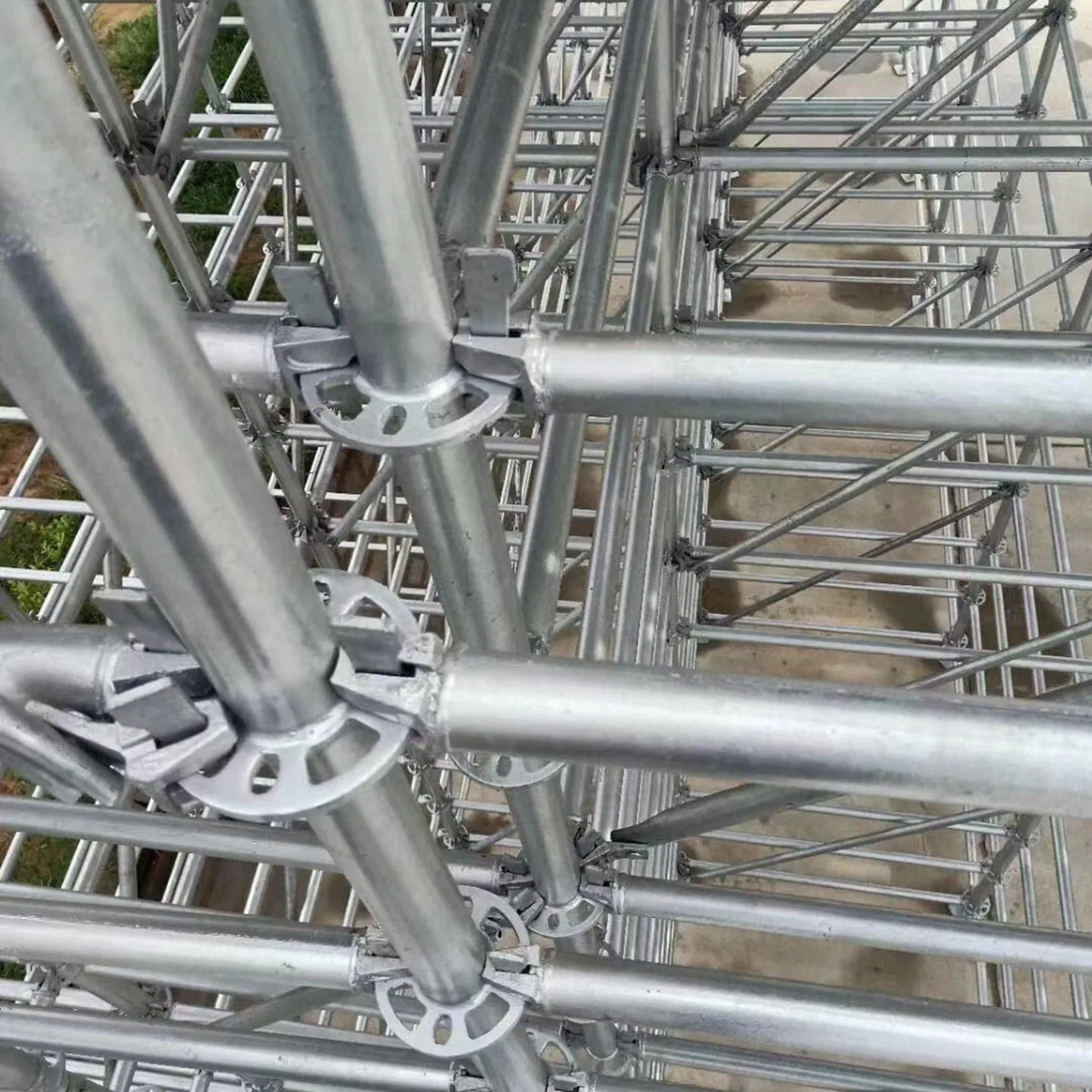

1) Ringlock Vertical Standard
| Size | Item No. | Weight (kgs/pc) |
|---|---|---|
| 48.3x3.2x500mm | 10050 | 3.20 |
| 48.3x3.2x1000mm | 10100 | 5.70 |
| 48.3x3.2x2000mm | 10200 | 10.50 |
| 48.3x3.2x3000mm | 10300 | 15.40 |
2) Ringlock Horizontal Ledger
| Size | Item No. | Weight (kgs/pc) |
|---|---|---|
| 48.3x3.2x730mm | 11073 | 3.45 |
| 48.3x3.2x1570mm | 11157 | 6.62 |
| 48.3x3.2x2070mm | 11207 | 8.50 |
| 48.3x3.2x3070mm | 11307 | 12.28 |
