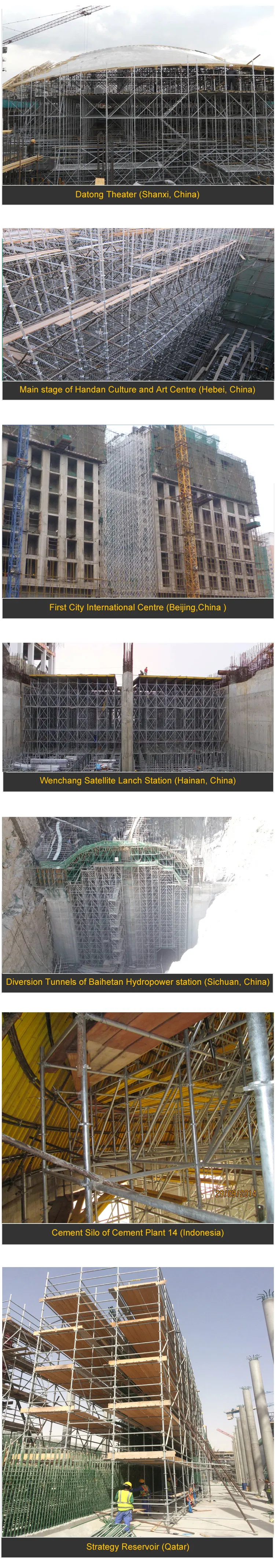

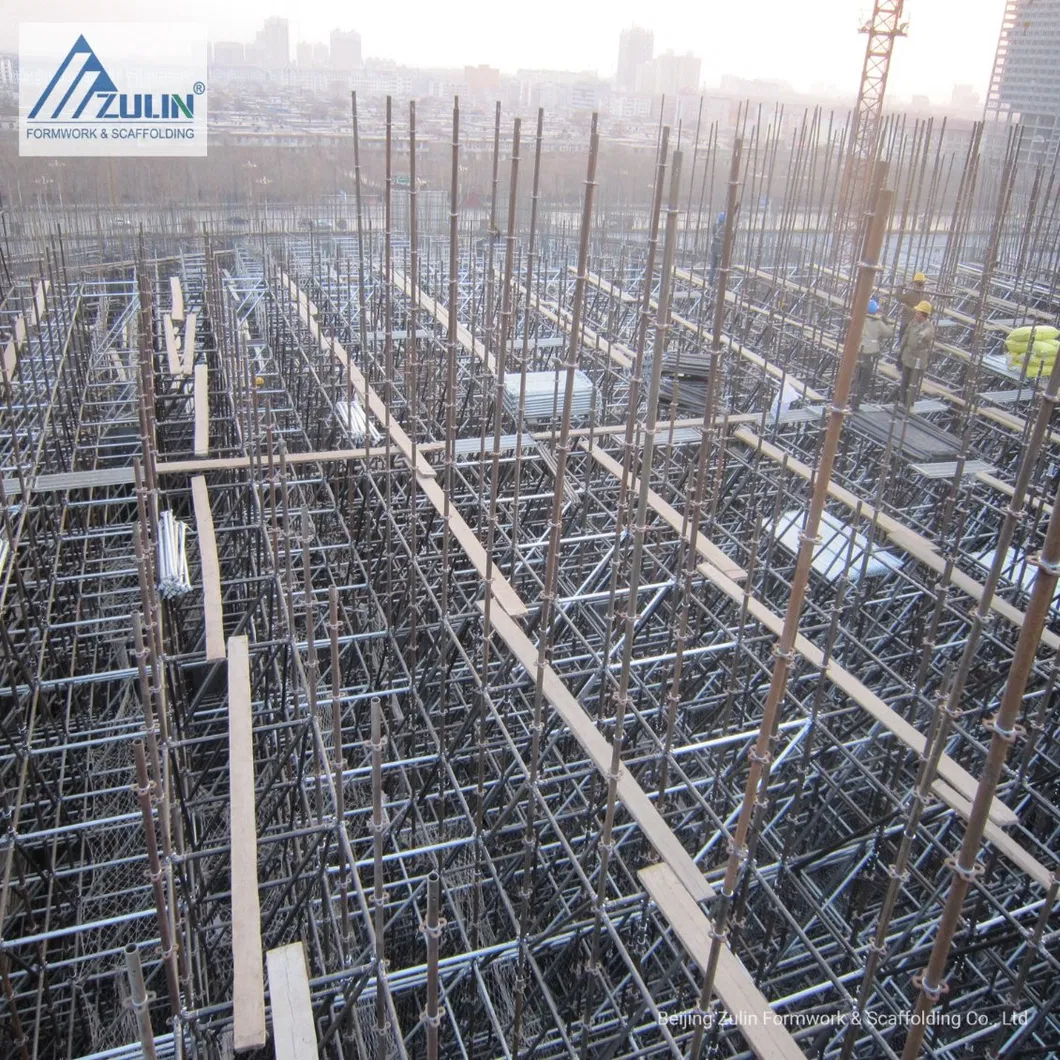

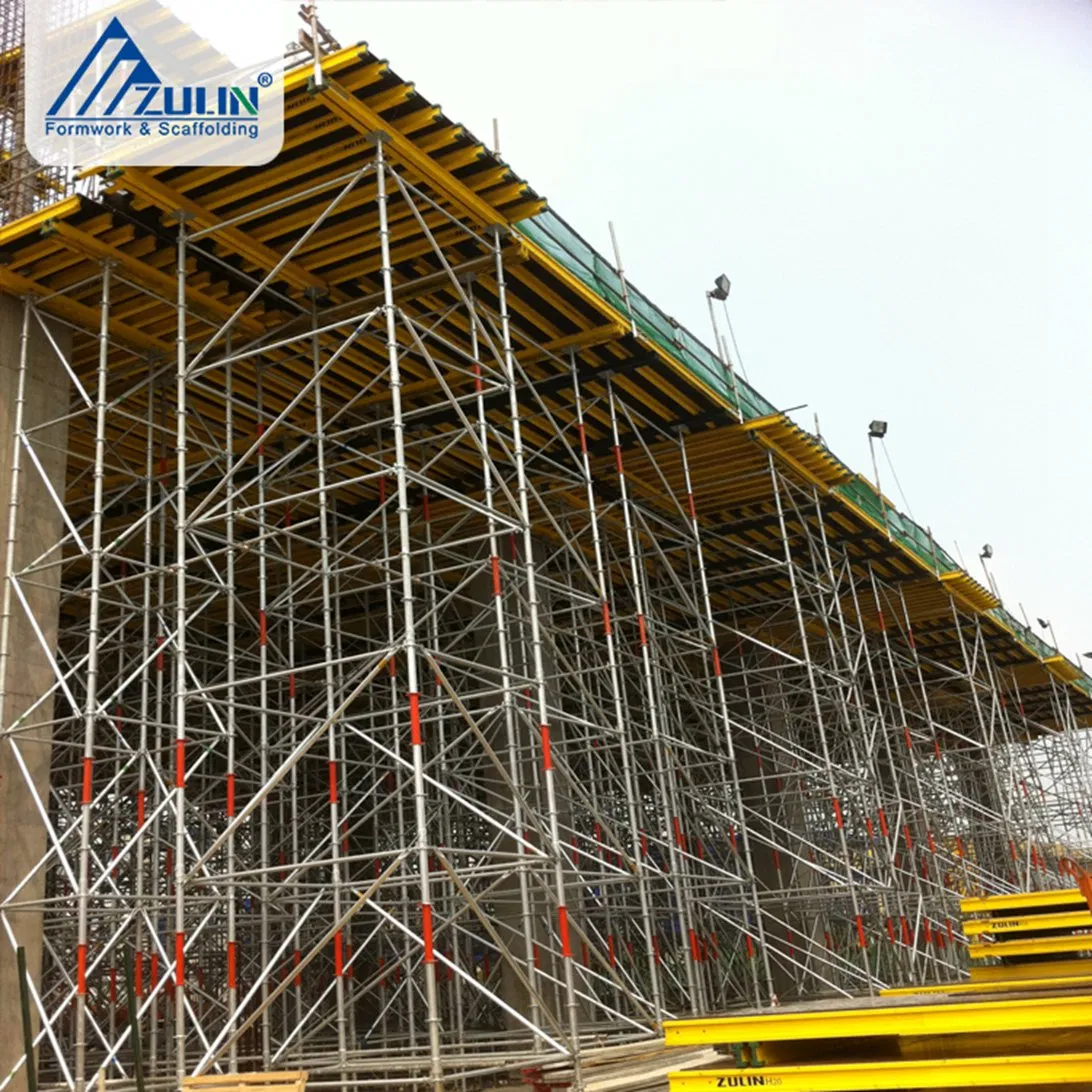

Ring-lock scaffolding is an advanced support system for construction, combining the advantages of both cup-lock scaffolding and shoring towers. It represents the new development direction of scaffolding technology. Available in 48mm and 60mm diameter series, it is widely used in buildings, bridges, and tunnels due to its excellent stability and heavy bearing capacity.

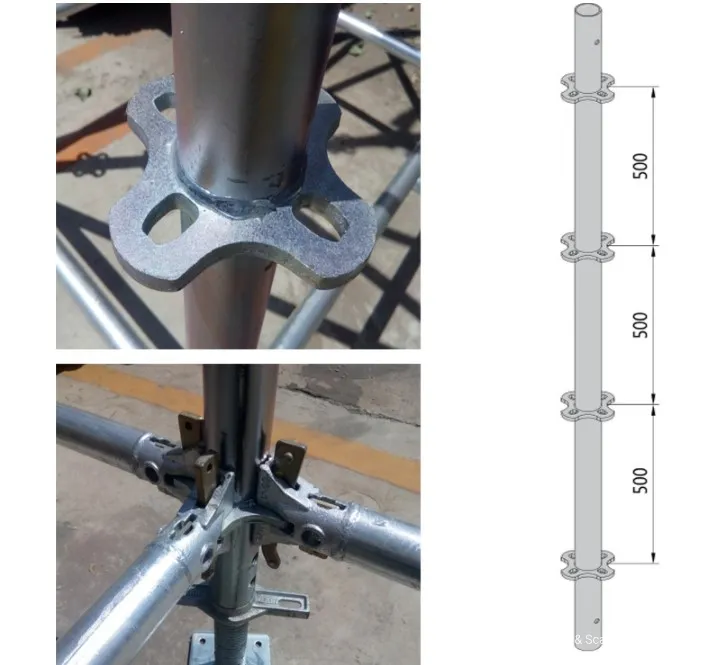

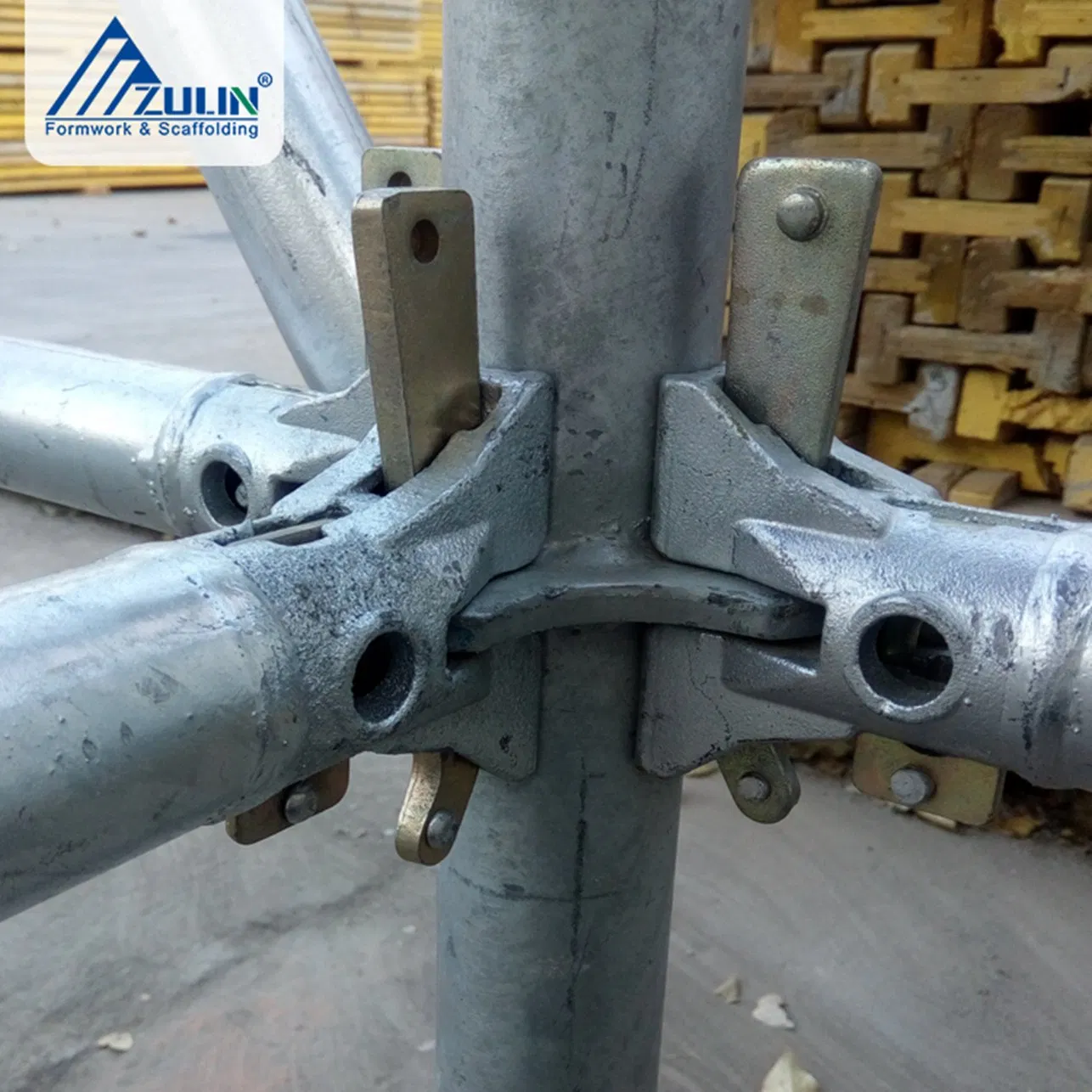

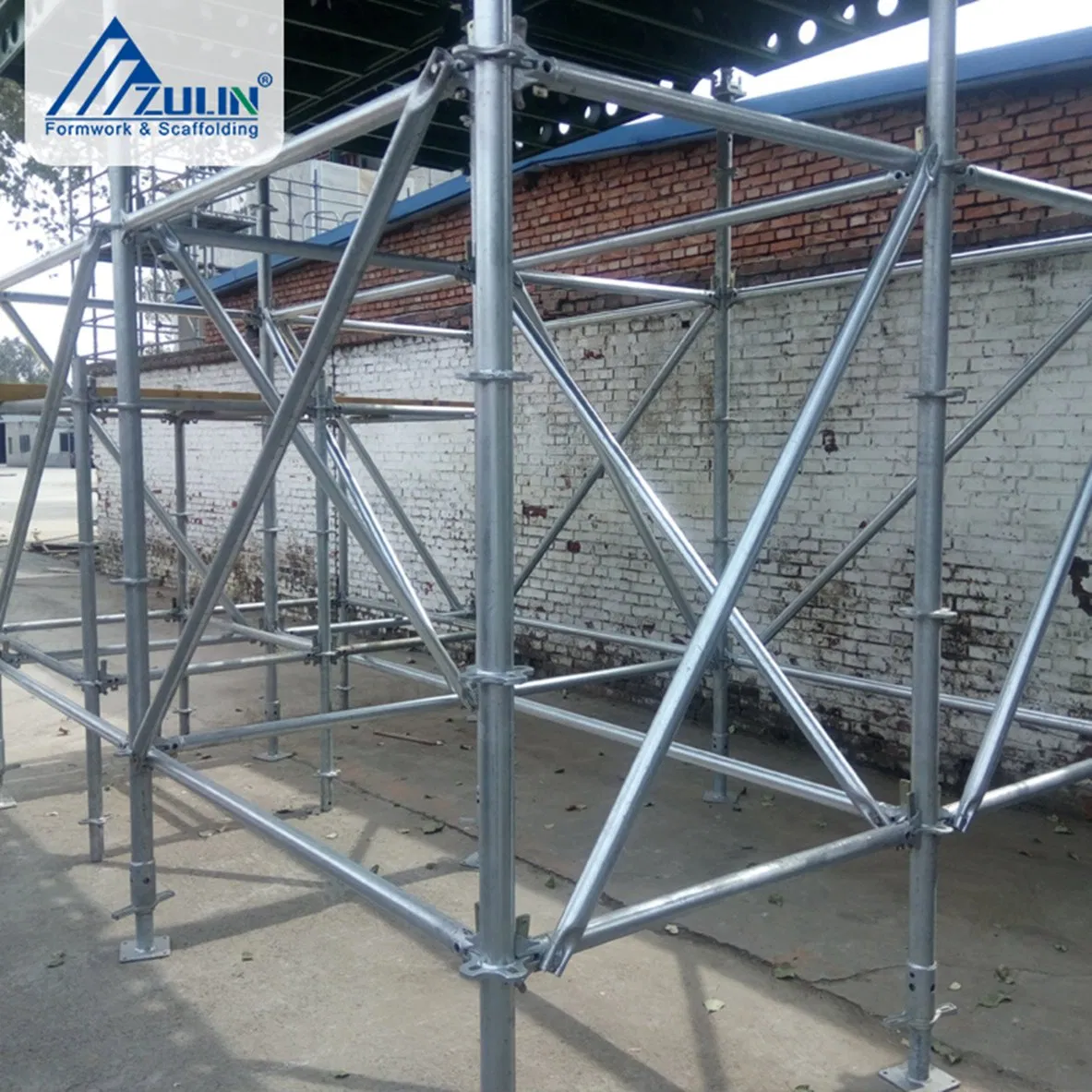

Standard Rosette nodes are welded every 500mm, allowing for ledger connections in four directions, providing maximum versatility in structural layout.

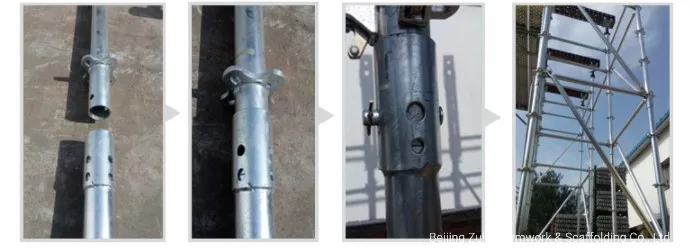

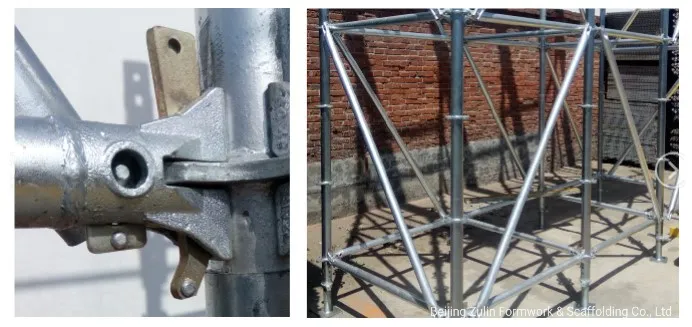

Vertical standards utilize an insertable design for seamless extension. Horizontal ledgers feature integrated connectors with inverted pins that move easily but cannot be accidentally removed, ensuring safety and preventing loss of small parts.

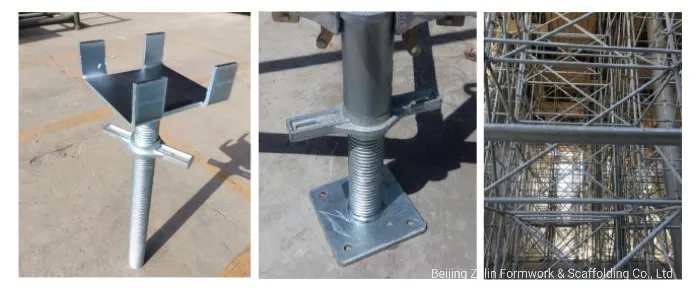

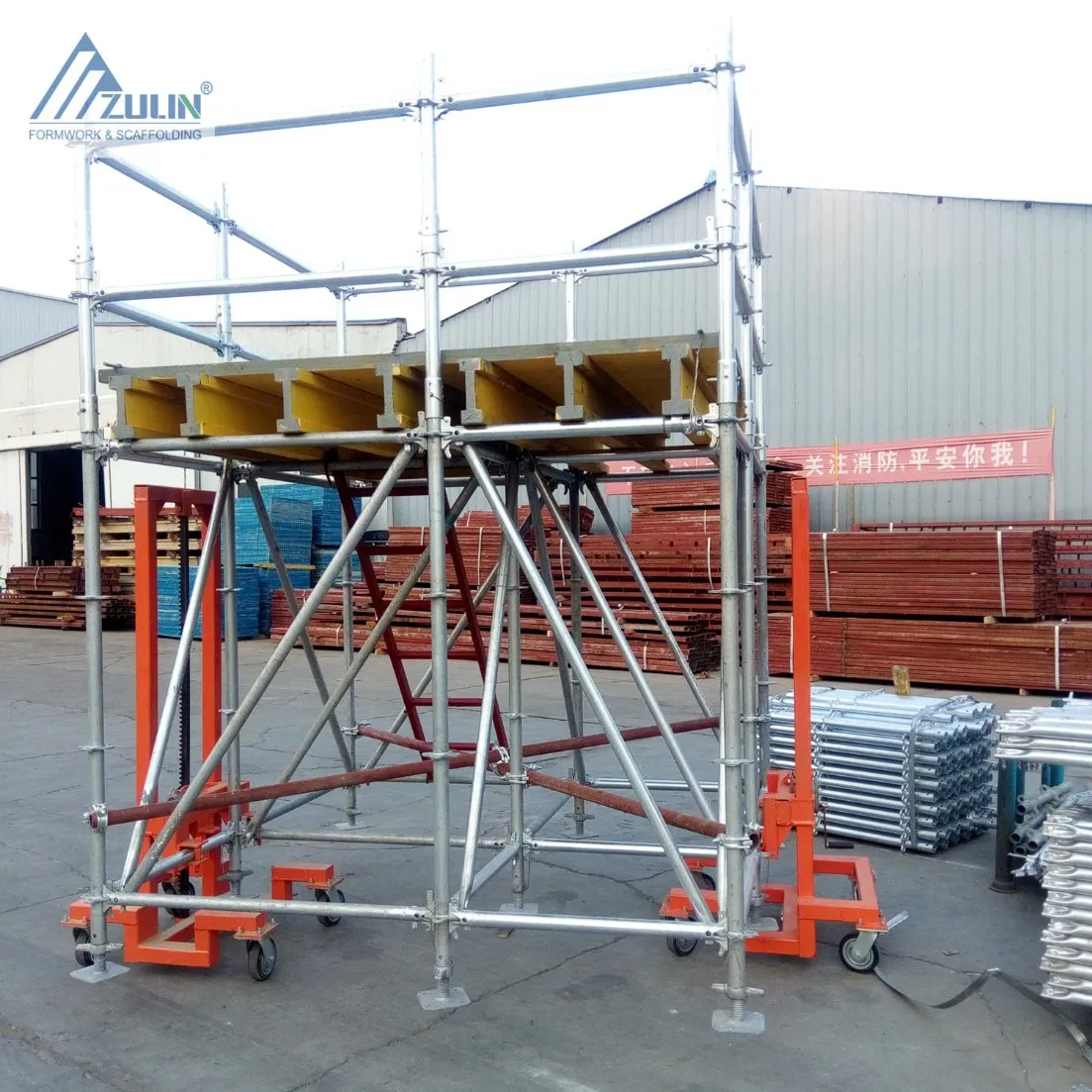

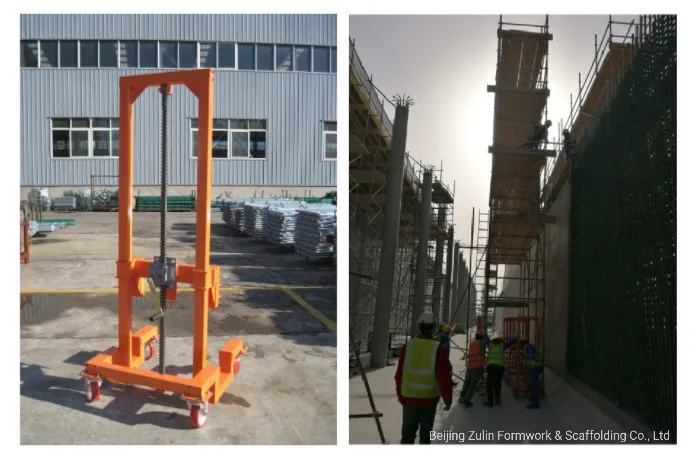

Equipped with adjustable screw jack heads and feet, the system meets diverse structural requirements. For enhanced project efficiency, specialized shifting trolleys allow for the integral movement of assembled scaffolding units.
| Name | Diameter (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|
| Ledger (42) | 42 | 600~3000 | 3 \ 2.5 |
| Standard (48) | 48 | 500~3000 | 3 \ 3.25 |
| Diagonal Brace (42) | 42 | 1200*1500~3000*2000 | 3 \ 2.5 |
| Screw Jack (48) | - | 600~900 | - |
| Ledger (48) | 48 | 600~3000 | 3 |
| Standard (60) | 60 | 500~3000 | 3.25 |
