Efficient Heavy-Duty Formwork System for Modular Slab Construction

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

i

Basic Information

Model NO.:

Steel Frame Formwork

Certification:

ISO, CE

Material:

Steel

Type:

Slab Formwork

Steel Type:

Steel Q235 Q355

Surface:

Powder Coating

Capacity:

5000 Ton/Month

Origin:

China

✔

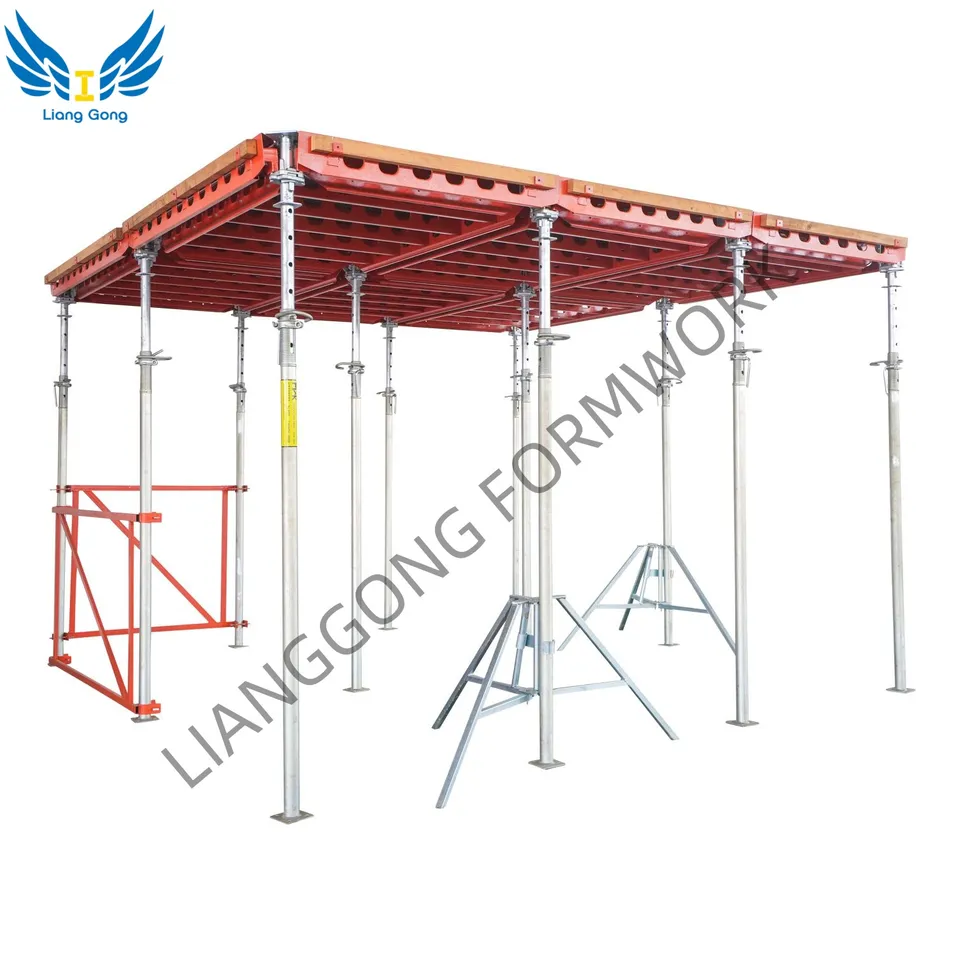

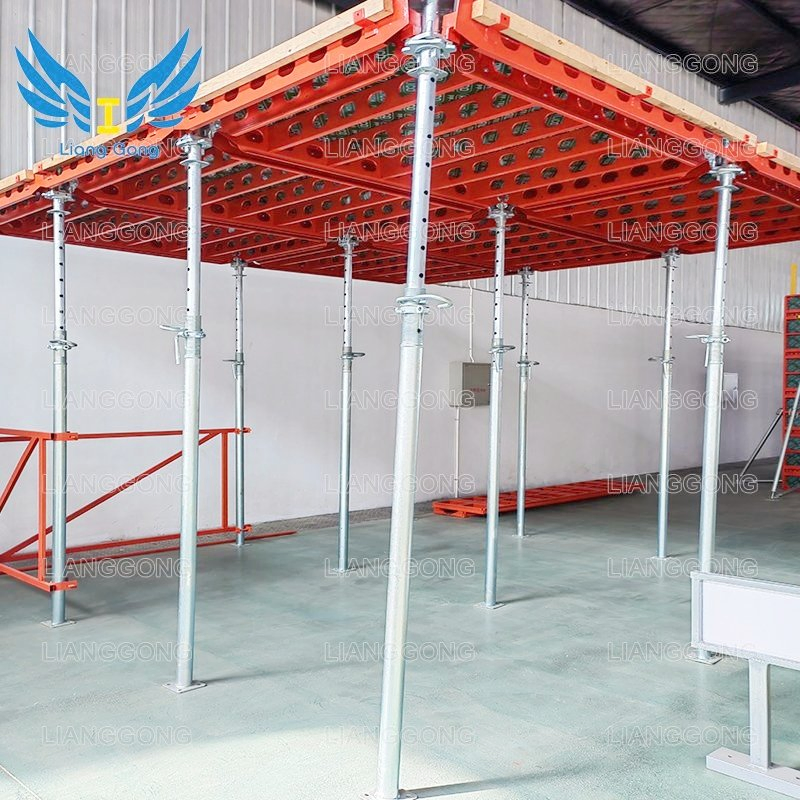

Drop Head Slab Formwork

The Drop Head Slab Formwork is a modular marvel for rapid concrete slab creation. Its drop head allows early panel removal, while props support the slab until full strength, reducing cycles and material use.

Interlocking panels simplify assembly, disassembly, and adjustments, adapting to varied slab shapes. This system saves time, cuts labor costs, and boosts productivity.

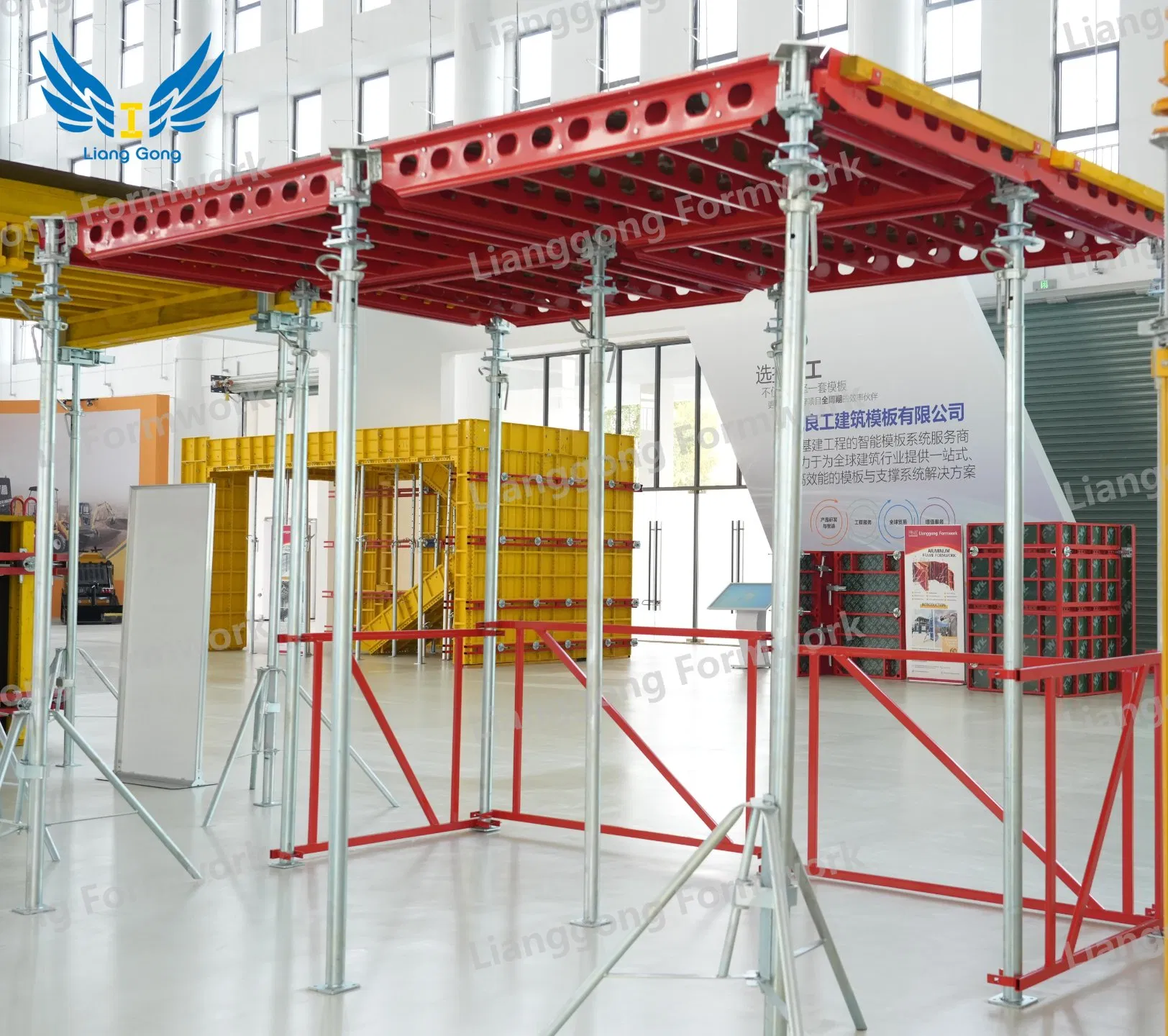

Key Advantage: Safety is paramount with optional handrails and platforms, ensuring secure working conditions throughout.

📋

Technical Specifications

Item	Model	Dimension	Area (㎡)	Weight (kg)
Slab Formwork Panel	TF1809	1800x900mm	1.62	38.00
Slab Formwork Panel	TF1806	1800x600mm	1.08	30.00
Slab Formwork Panel	TF1512	1500X1200mm	1.8	40.60
Slab Formwork Panel	TF1509	1500x900mm	1.35	33.00
Slab Formwork Panel	TF1212	1200x1200mm	1.44	32.00
Slab Formwork Panel	TF0909	900x900mm	0.81	22.00
Slab Formwork Panel	TF0606	600x600mm	0.36	13.50

⭐

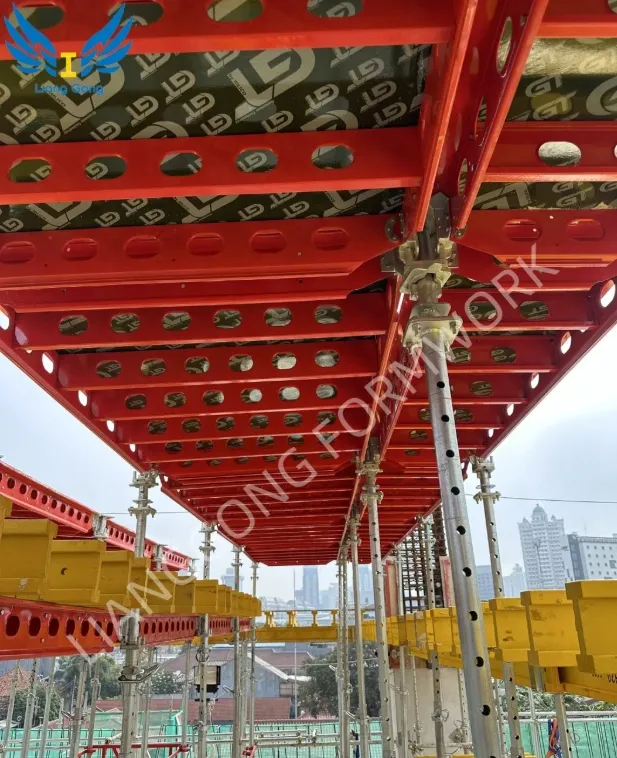

System Features

● Hand-held design: Max size 1800×1200mm, weighs only 44kg.

● Simple operation: Comprises panels & props only.

● Quick working: Up to 400 m2 daily per 4-person team.

● Cost-effective: Reusable parts and smart design ensure savings.

● Versatility: Supports varied slab configurations and thicknesses.

🖼

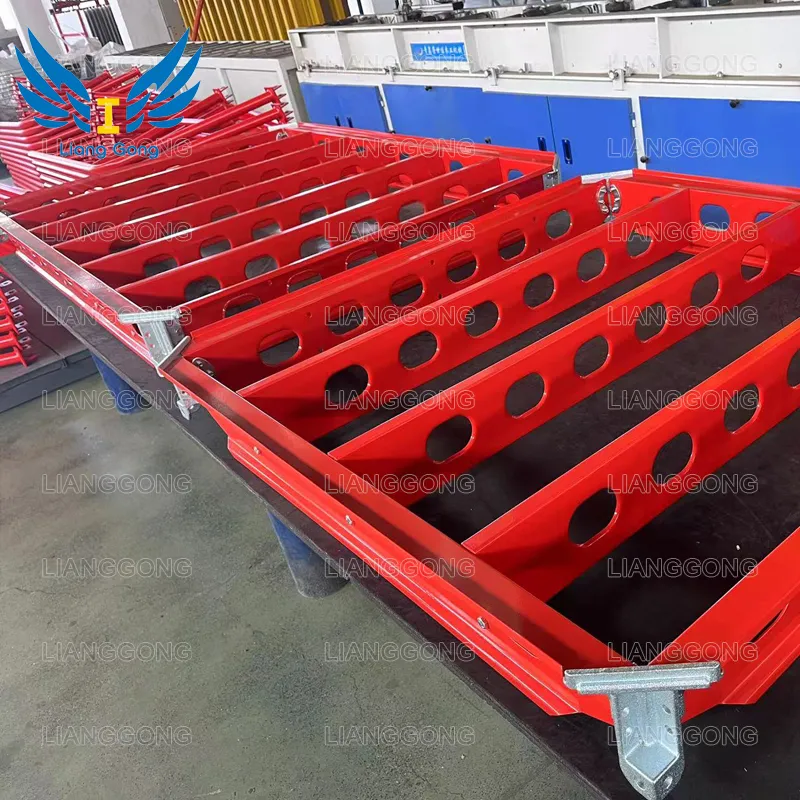

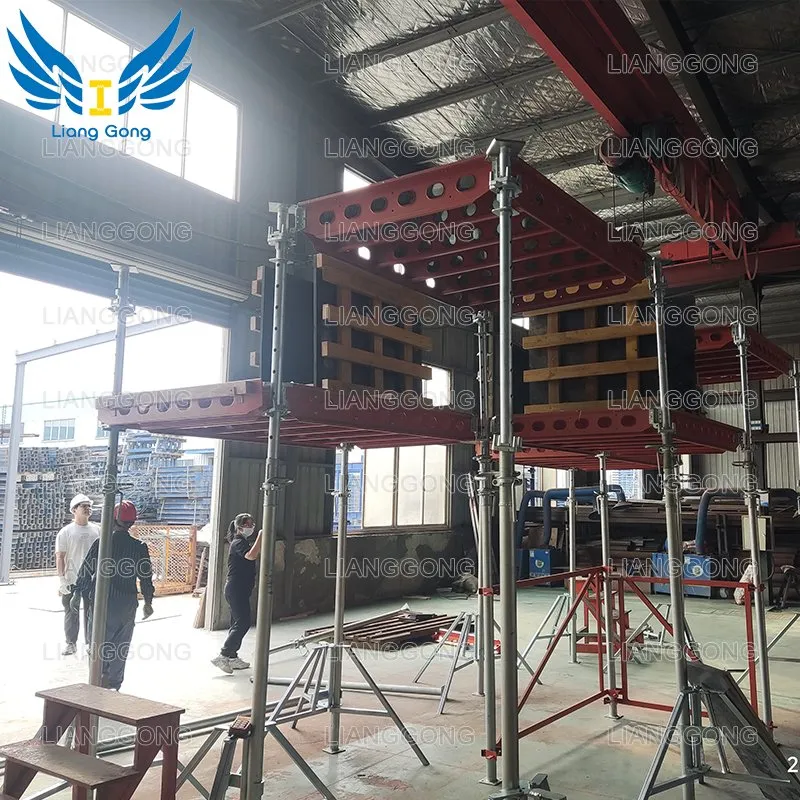

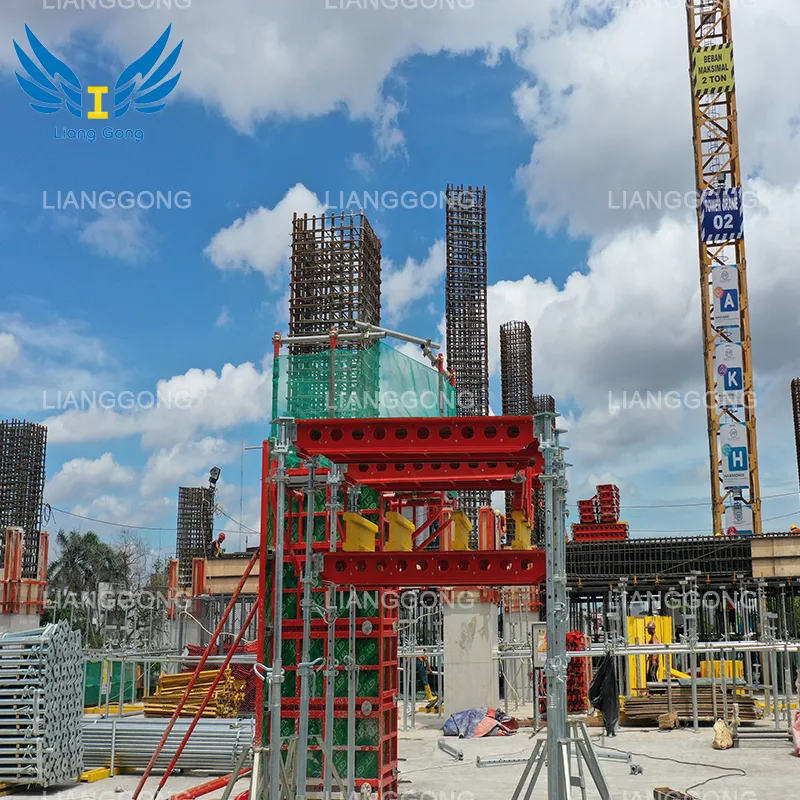

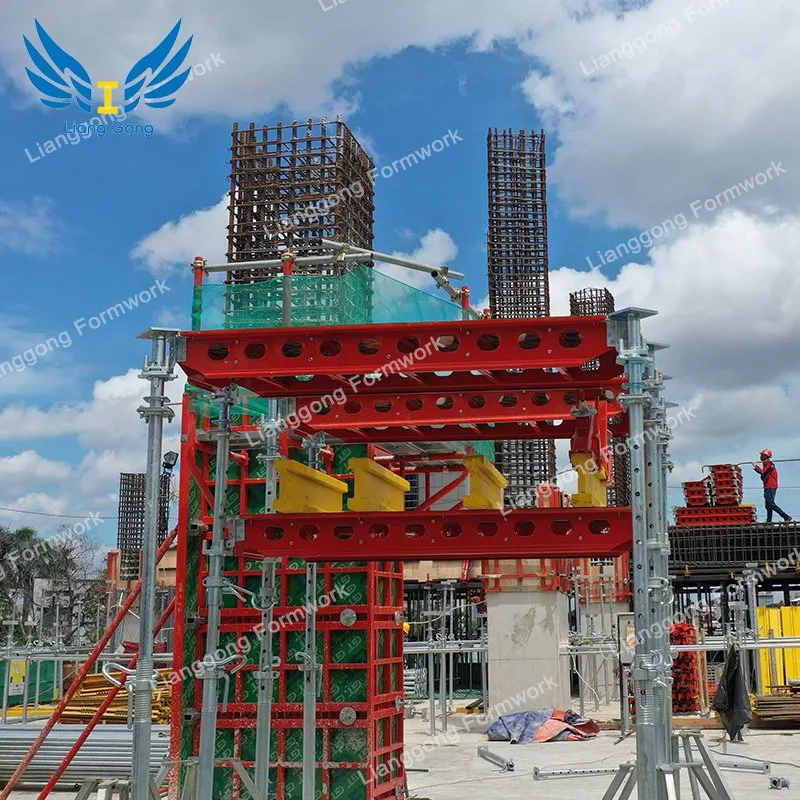

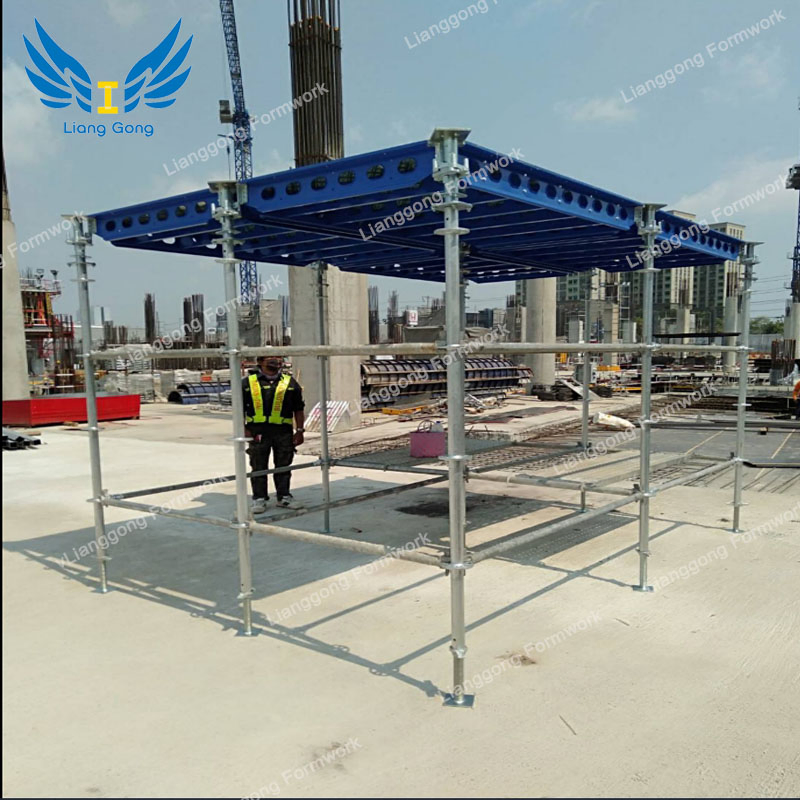

Product Display

📦

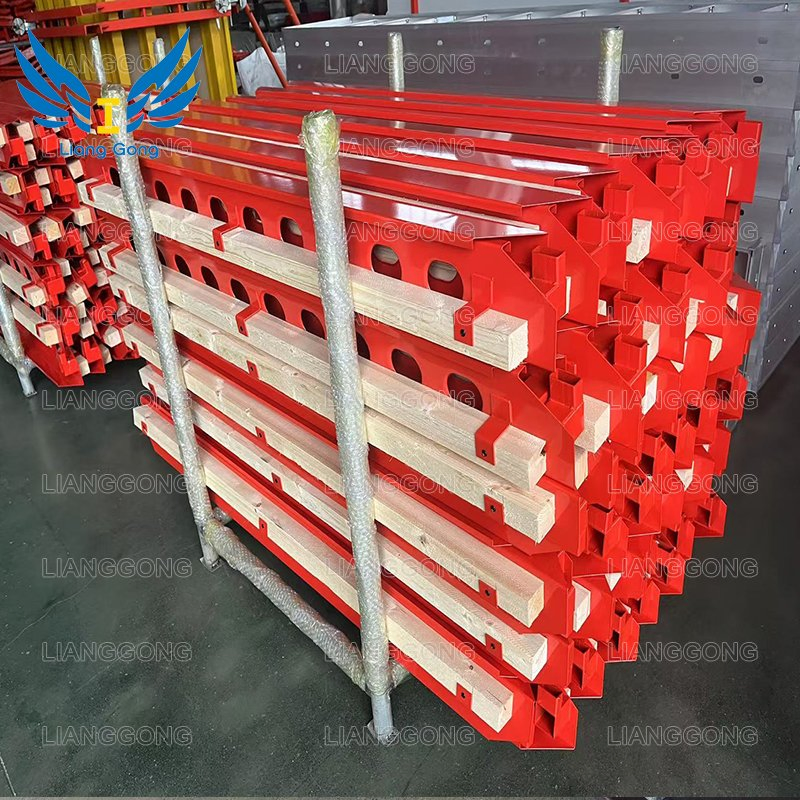

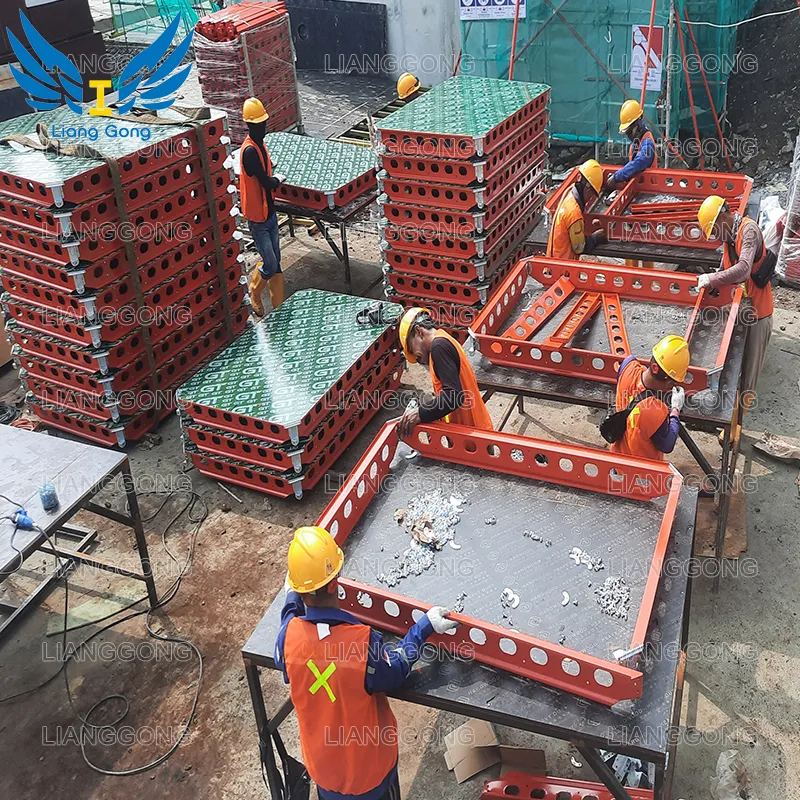

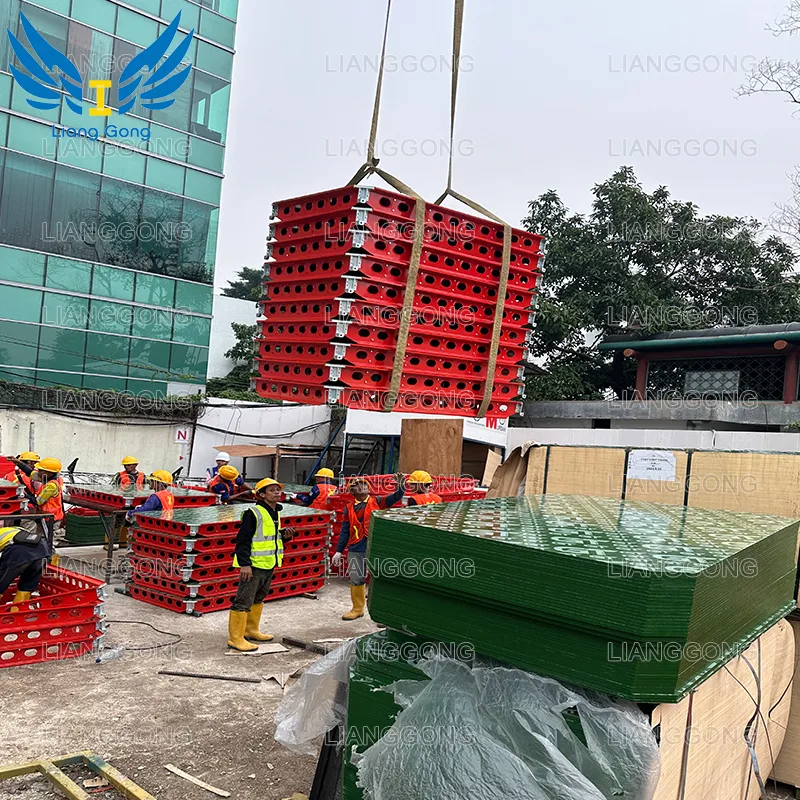

Packaging & Delivery

Packages: Bundles for timber/props, Pallets for small parts, and Wooden cases as requested. Container loads typically 22-25 tons.

🏭

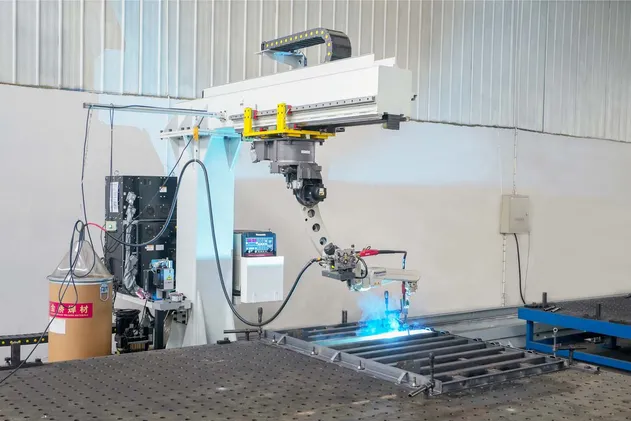

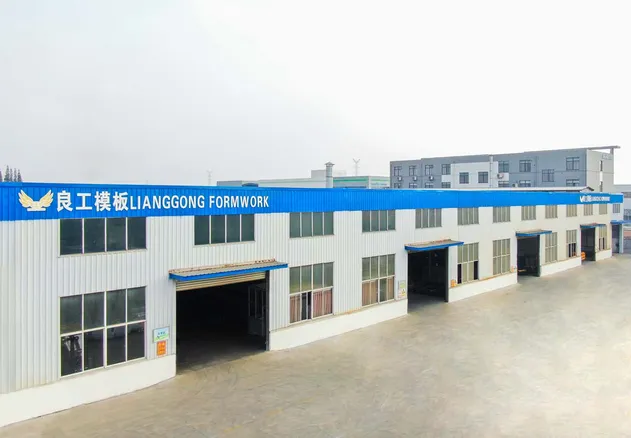

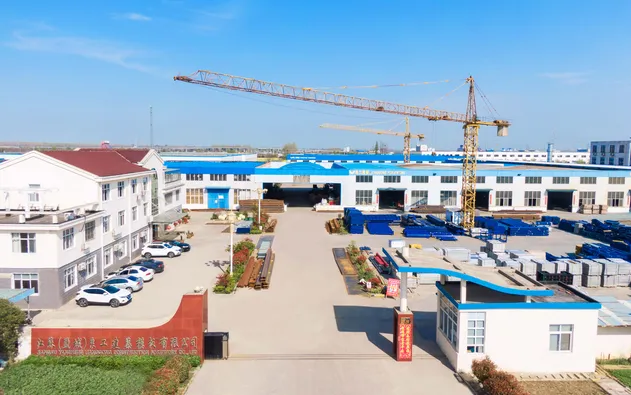

Manufacturing Facilities

Our advanced workshops ensure rapid, precise production of durable formwork systems. Skilled workers and modern machinery guarantee high quality and quick lead times.

?

Frequently Asked Questions

Q1: What is the main benefit of the Drop Head system?

The drop head allows for the early removal of formwork panels while the props remain in place to support the concrete slab, significantly speeding up construction cycles.

Q2: How long is the typical delivery time?

Typically 5-15 days if stock is available, or 15-20 days for custom production, depending on the order quantity.

Q3: Are samples available for quality testing?

Yes, we provide samples free of charge, though shipping costs are usually not included.

Q4: What information is needed for a customized quote?

We require structural and sectional drawings of your project to provide an accurate preliminary design and quotation.

Q5: Can the formwork be used for different slab thicknesses?

Yes, the system is highly versatile and supports varied slab configurations, thicknesses, and complex structural shapes.

Q6: Do you provide on-site technical guidance?

Yes, we offer both remote and on-site instruction to assist with assembly and ensure safety standards are met on your construction site.
