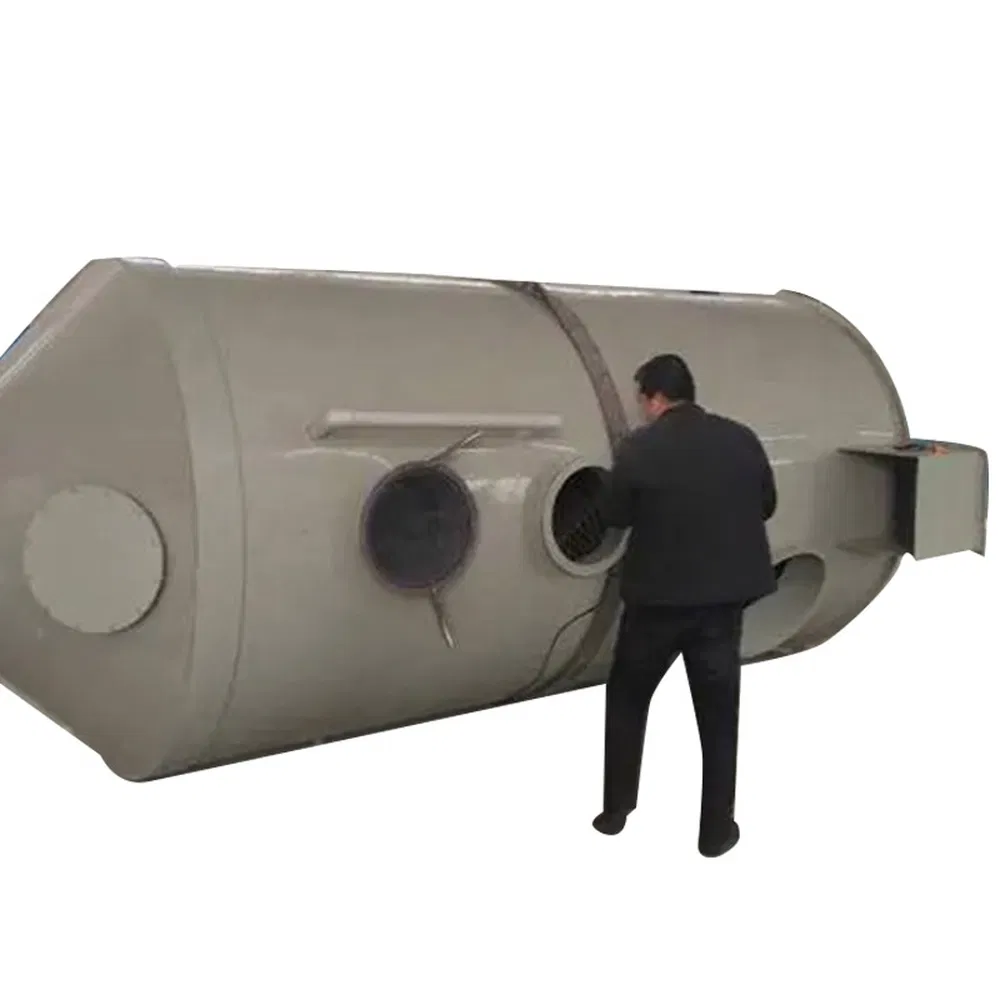

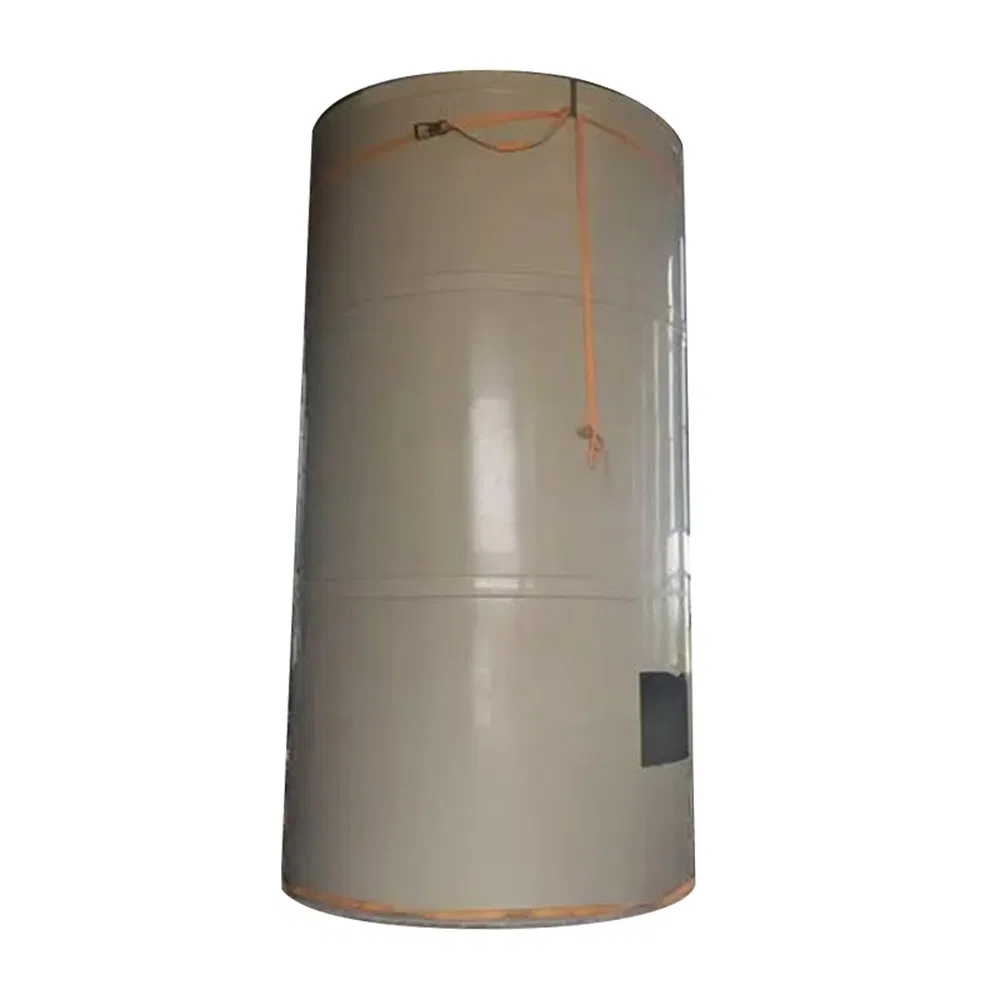

Stainless Steel Wet Scrubber Tower for Electronics Manufacturing Cleanroom

1 / 5

Stainless Steel Wet Scrubber Tower for Electronics Manufacturing Cleanroom

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

Basic Information

Model NO.

LYPL-5000

Automation

Automatic

Treatment

Chemical Treatment

Product Name

Spray Tower

Keywords

Spray Tower Scrubber

Specifications

φ1200*3500mm

Air Volume

5000m³/H

Power

2.2kw

Efficiency

99%

Capacity

50000pieces/Year

Product Description

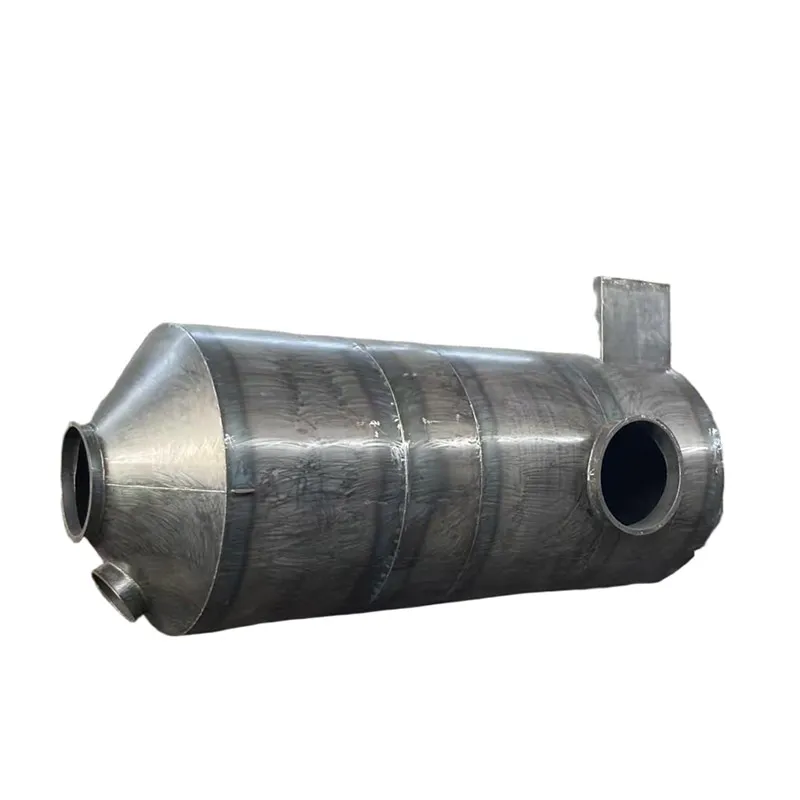

SPRAY TOWER OVERVIEW

A spray tower is a vertical chamber that facilitates mass transfer between a gas stream and a liquid spray for pollution abatement. Its operation is based on direct impingement scrubbing.

Key Features:

Adjustable liquid flow rates
Low-pressure drop design
Easy maintenance access
Effective for chemical processing and power plants

Process Breakdown

Gas inlet: Hot, contaminated gas is introduced at the bottom. A quench section may cool the gas first to protect the structure.

Liquid spray system: Multiple levels of nozzles atomize liquid into a high-density mist for maximum contact.

Counter-current flow: Gas flows upward against the downward spray, maximizing absorption efficiency.

Pollutant removal: Particulates are captured via inertial impaction; soluble gases (like SO2/HCl) dissolve into alkaline scrubbing liquid.

Demister: Chevron blades or mesh pads remove water droplets before gas is exhausted.

Recirculation: Water collects in a sump for treatment or recirculation to conserve resources.

Product Parameters

Model	Specifications	Air Volume	Power	Efficiency
LYPL-5000	φ1200*3500mm	5000m³/h	2.2kw	99%
LYPL-10000	φ1500*3500mm	10000m³/h	2.2kw	99%
LYPL-15000	φ1800*4500mm	15000m³/h	3kw	99%
LYPL-20000	φ2000*5000mm	20000m³/h	4kw	99%
LYPL-25000	φ2000*6000mm	25000m³/h	4kw	99%
LYPL-30000	φ2500*6000mm	30000m³/h	5.5kw	99%
LYPL-40000	φ2500*7000mm	40000m³/h	5.5kw	99%
LYPL-50000	φ2800*7500mm	50000m³/h	7.5kw	99%

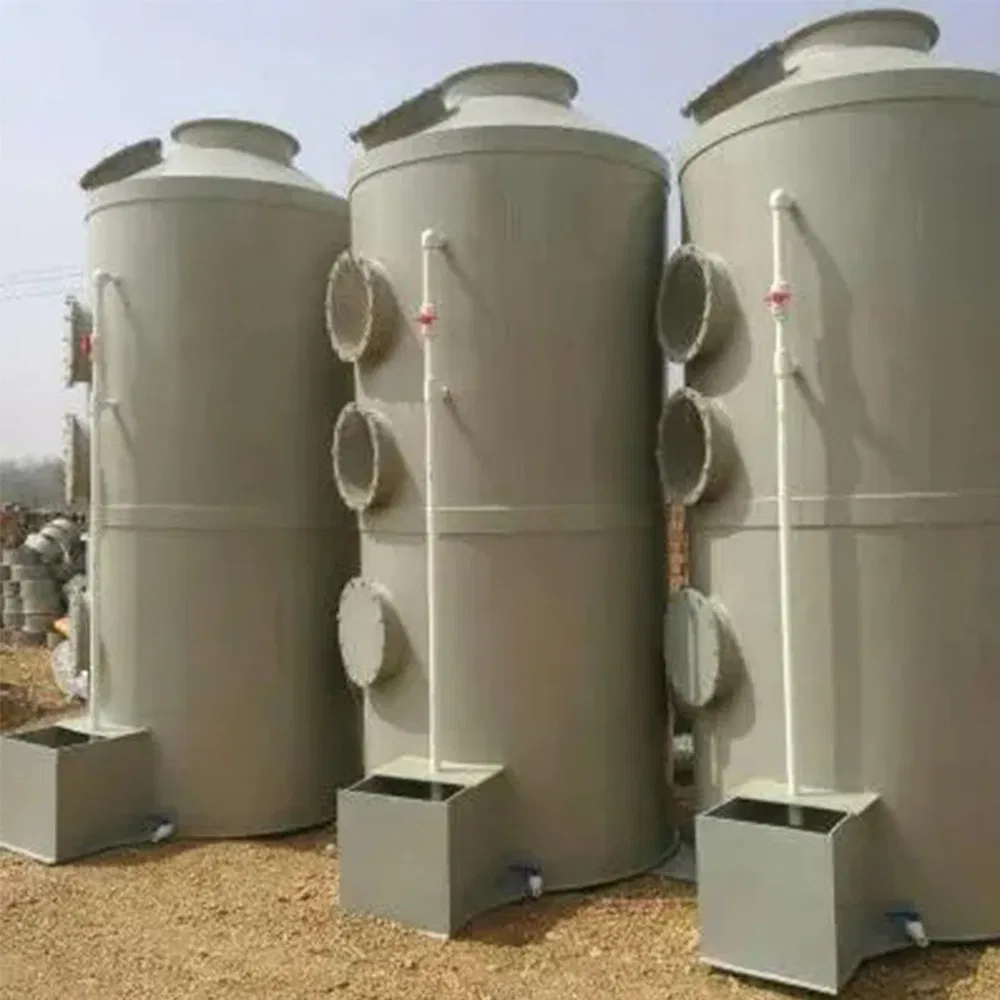

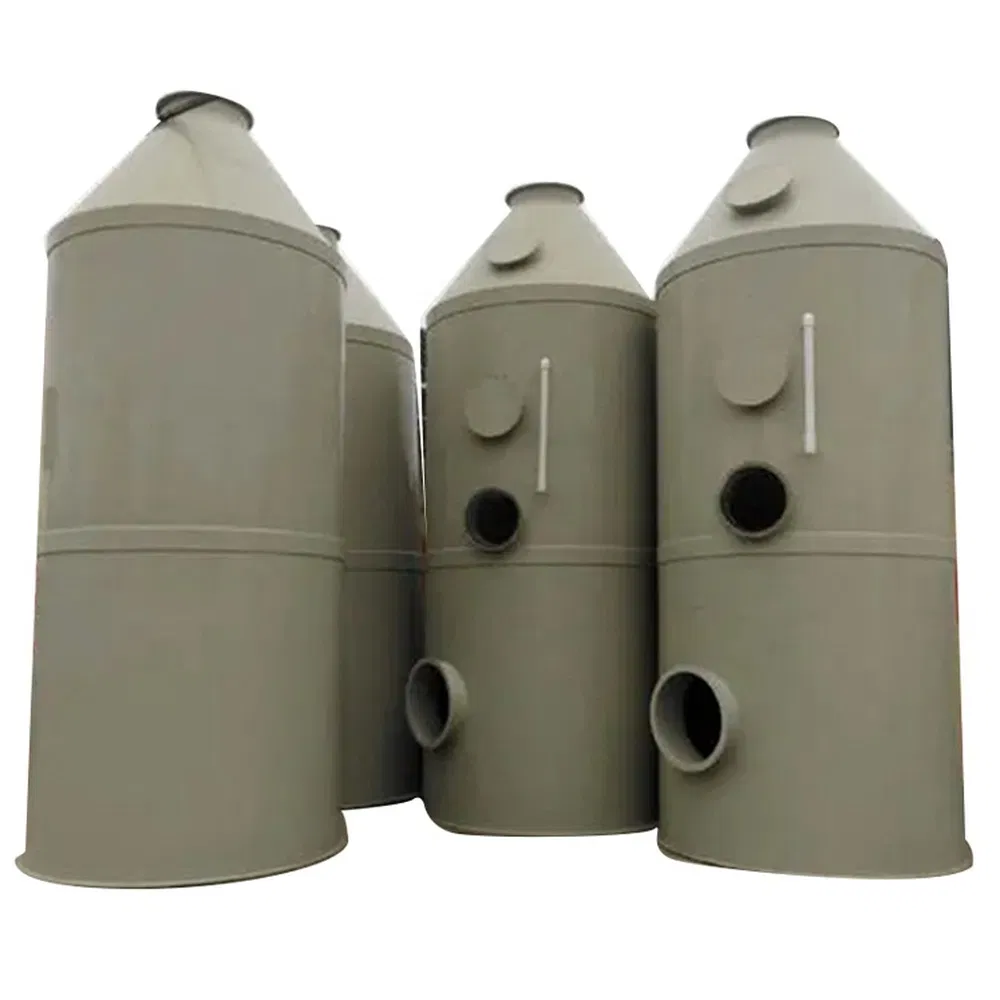

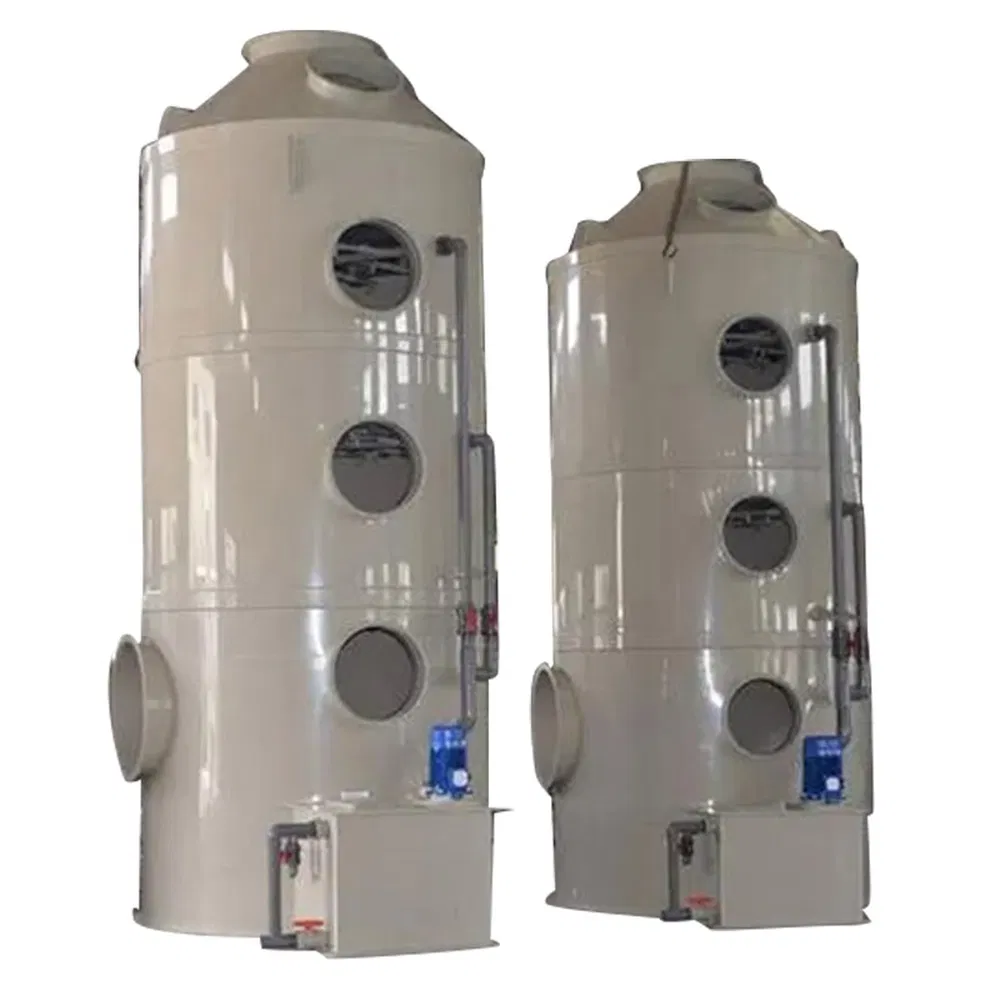

Detailed Photos

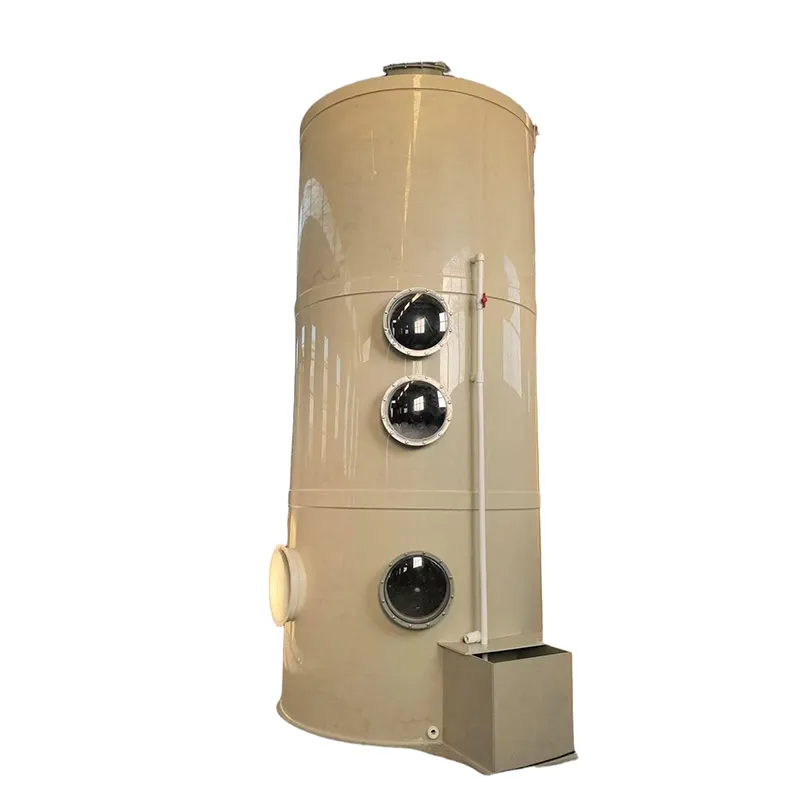

EASY MAINTENANCE ACCESS

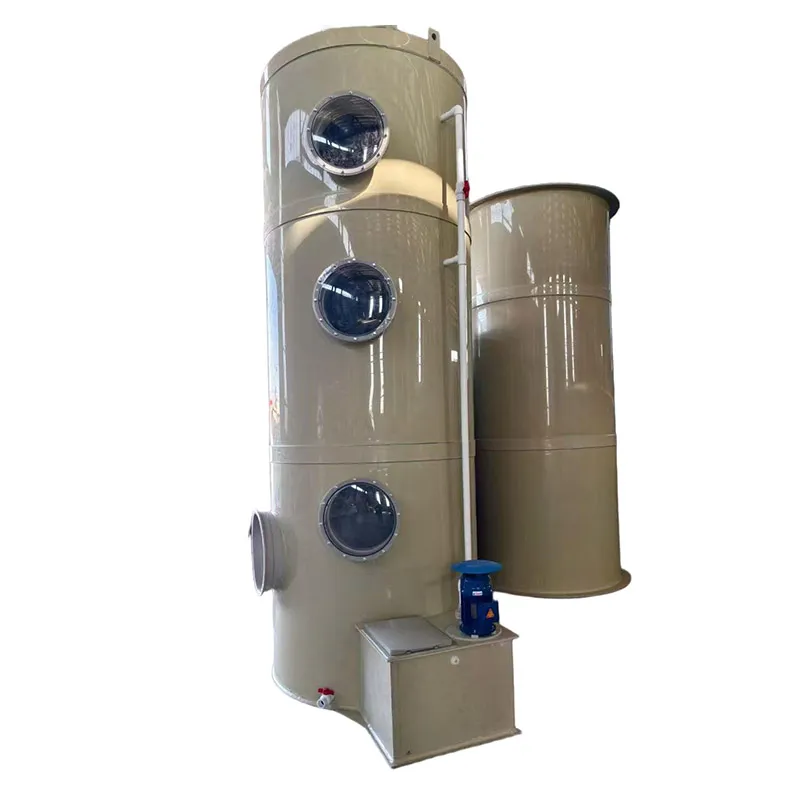

ADVANCED NOZZLE TECHNOLOGY

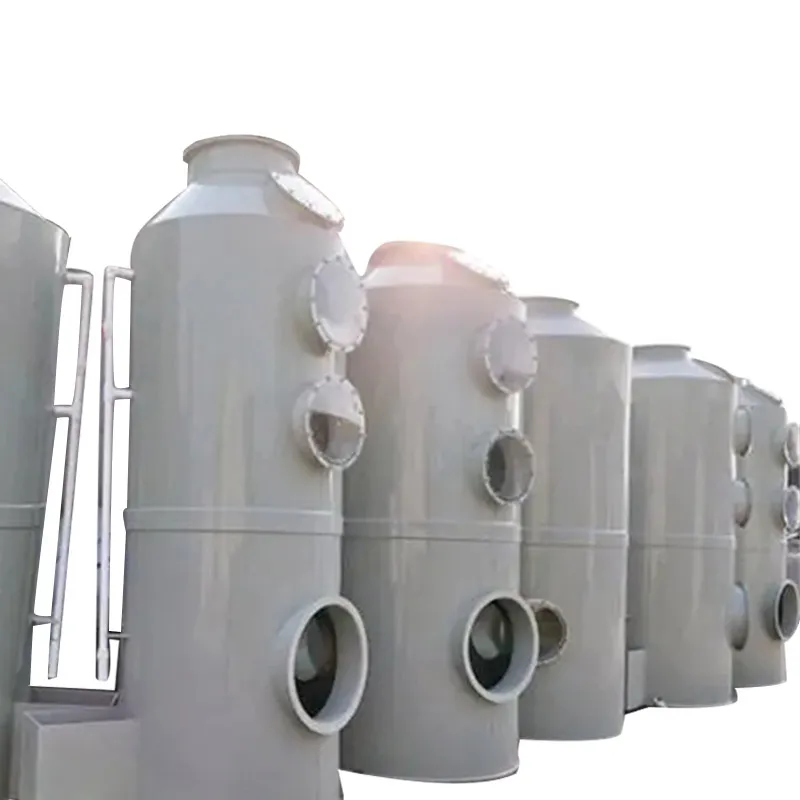

COMPACT FOOTPRINT DESIGN

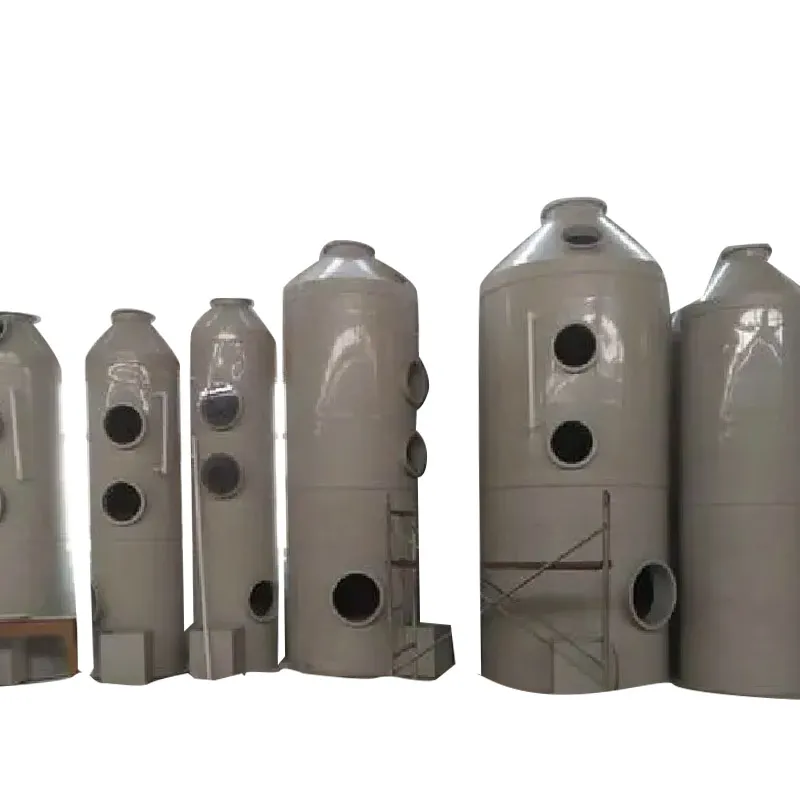

ENERGY-EFFICIENT OPERATION

Frequently Asked Questions

Q1: How do I request a quote?

Please provide the desired model, processing air volume, dust characteristics, and temperature requirements. We will issue a formal Proforma Invoice (PI) for your approval after confirming the configuration.

Q2: What are the supported payment methods?

We commonly accept Telegraphic Transfer (T/T). Typically, a 30% deposit is required after contract signing, with the 70% balance due before shipment.

Q3: How long is the delivery lead time?

Standard products are shipped within 5-7 business days after full payment. For customized products, the production cycle is confirmed separately based on the project scope.

Q4: How is the product packaged for safety?

Large equipment is protected with external stretch film and internal foam padding. Accessories are packed in wooden cases, and containers are reinforced with wire ropes to ensure long-distance transport safety.

Q5: What does the product warranty cover?

We offer a 12-month warranty covering material or manufacturing defects. It excludes normal wear and tear of consumables like filter bags and sealing strips, or damage from misuse.

Q6: Do you provide installation guidance?

Yes, we provide detailed electronic manuals, foundation plans, and wiring diagrams. We also offer remote video guidance and English operational training videos.
