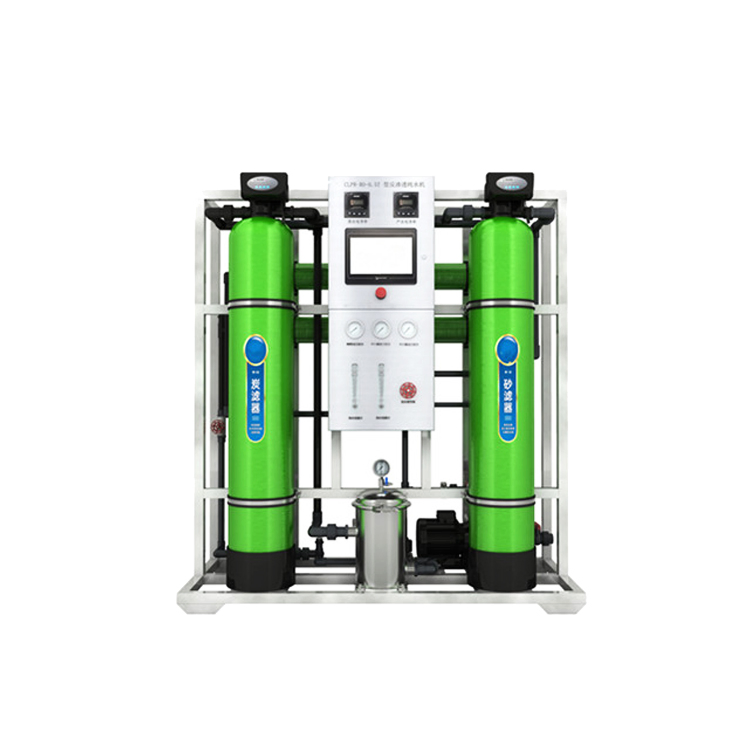

Reverse osmosis (RO) is a membrane separation process driven by a pressure gradient. It effectively removes dissolved salt colloids and organic matters in water, acting as a molecular filter. The process is the reverse of natural osmosis. By using a water pump to exert pressure on a saline solution, water is forced through the semipermeable membrane. To maintain efficiency, concentrated water continuously washes the membrane surface, removing impurities and ensuring high-quality desalination and purification.
| Model | Capacity (L/H) | Power (KW) | Membrane | Size (L*W*H mm) | Weight (Kg) |
|---|---|---|---|---|---|
| RO-250 | 250 | 1.65 | 4040*1 | 1400*600*1600 | 150 |
| RO-500 | 500 | 1.65 | 4040*2 | 1400*600*1600 | 250 |
| RO-1000 | 1000 | 2.05 | 4040*4 | 1600*800*1800 | 500 |
| RO-1500 | 1500 | 4.4 | 4040*6 | 2700*800*1600 | 600 |
| RO-2000 | 2000 | 4.4 | 4040*8 | 2700*800*1600 | 700 |
| RO-2500 | 2500 | 4.5 | 4040*10 | 2500*600*1600 | 800 |
| RO Plant-0.25T Specifications | |||
|---|---|---|---|
| Control | Automatic | Voltage | AC 220V/380V |
| Quartz Filter | 250*1400mm | Quartz Weight | 50KGS |
| Carbon Filter | 250*1400mm | Carbon Weight | 20KGS |
| Raw Water Pump | CHL4-40 | High Pressure Pump | CDL2-15 |

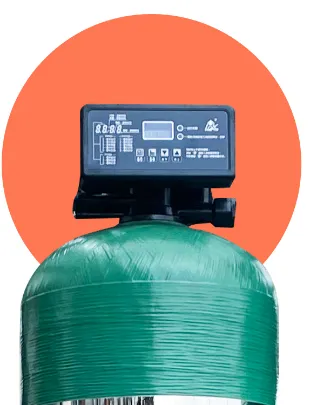

Features automatic operation and regeneration cleaning functions, significantly saving time and effort after initial setup.

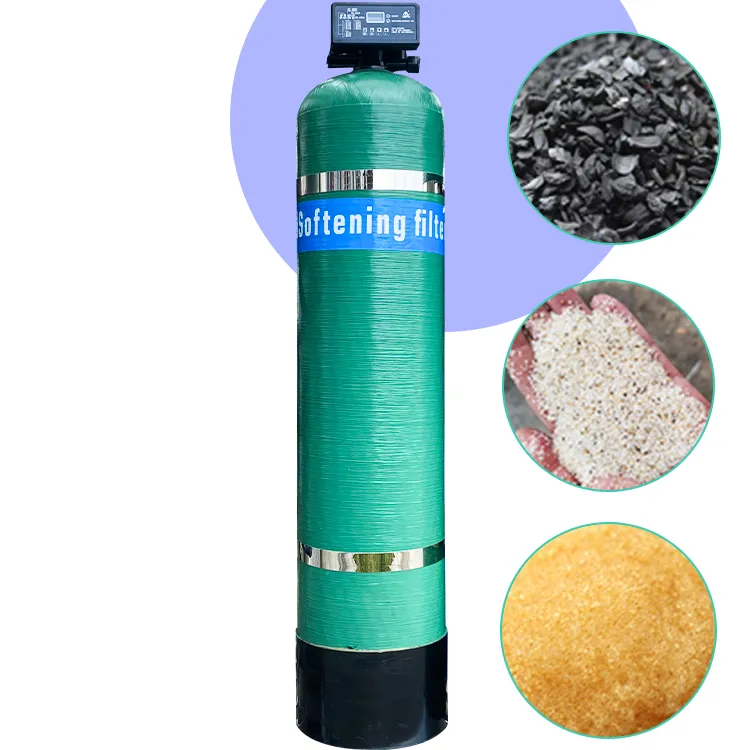

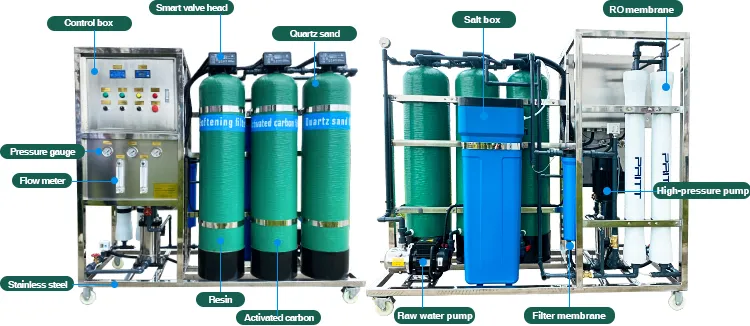

1. Quartz Sand: Removes flocculated pollutants.
2. Resin: Softens water by absorbing Calcium/Magnesium.
3. Activated Carbon: Adsorbs soluble impurities and odors.
