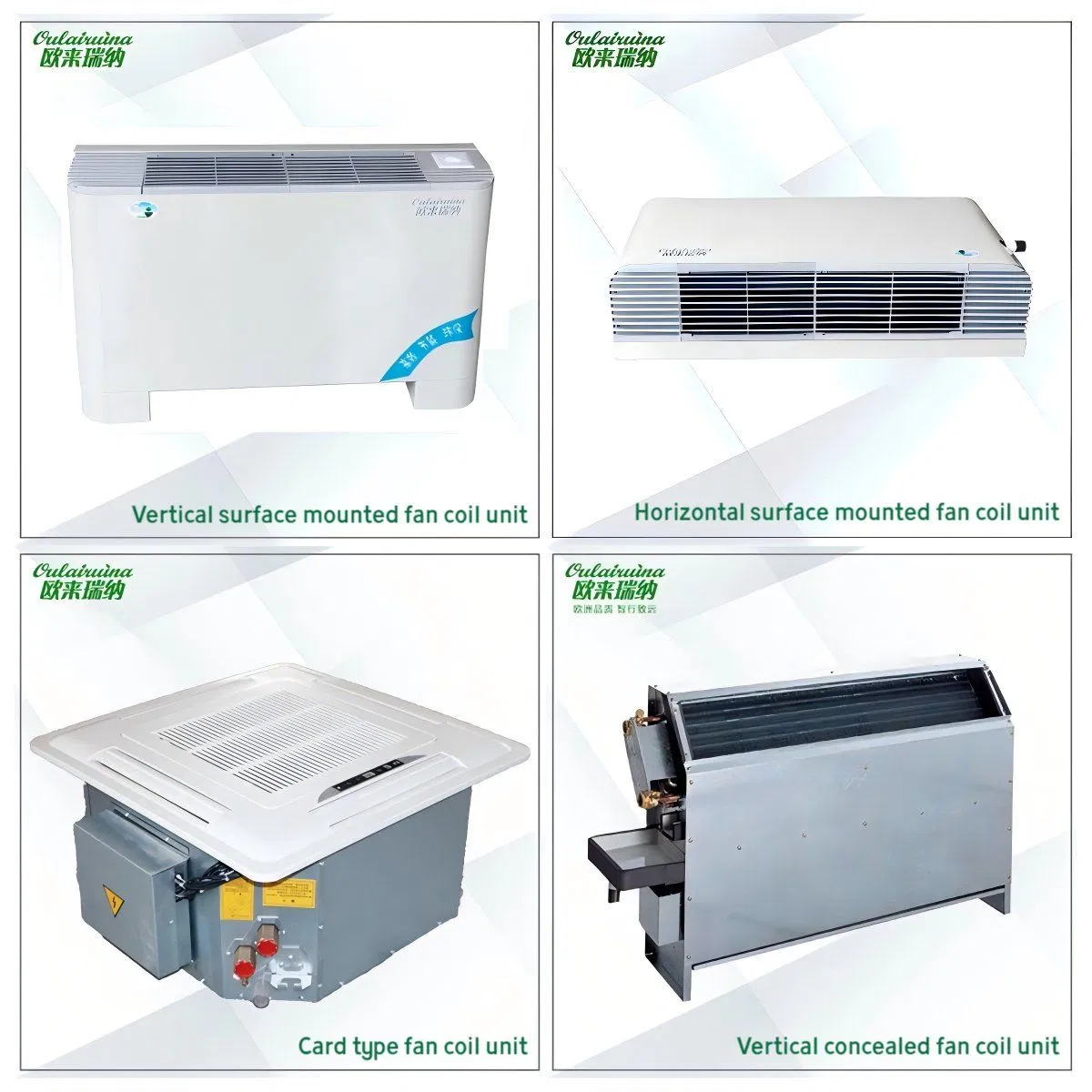

Fan coil units are mainly composed of centrifugal fans and coil heat exchangers, serving as the end devices of central air conditioning systems. They are widely used in multi-room and large space industrial and civil buildings such as hotels, restaurants, factories, hospitals, and office buildings to meet cooling, dehumidification, and heating requirements.

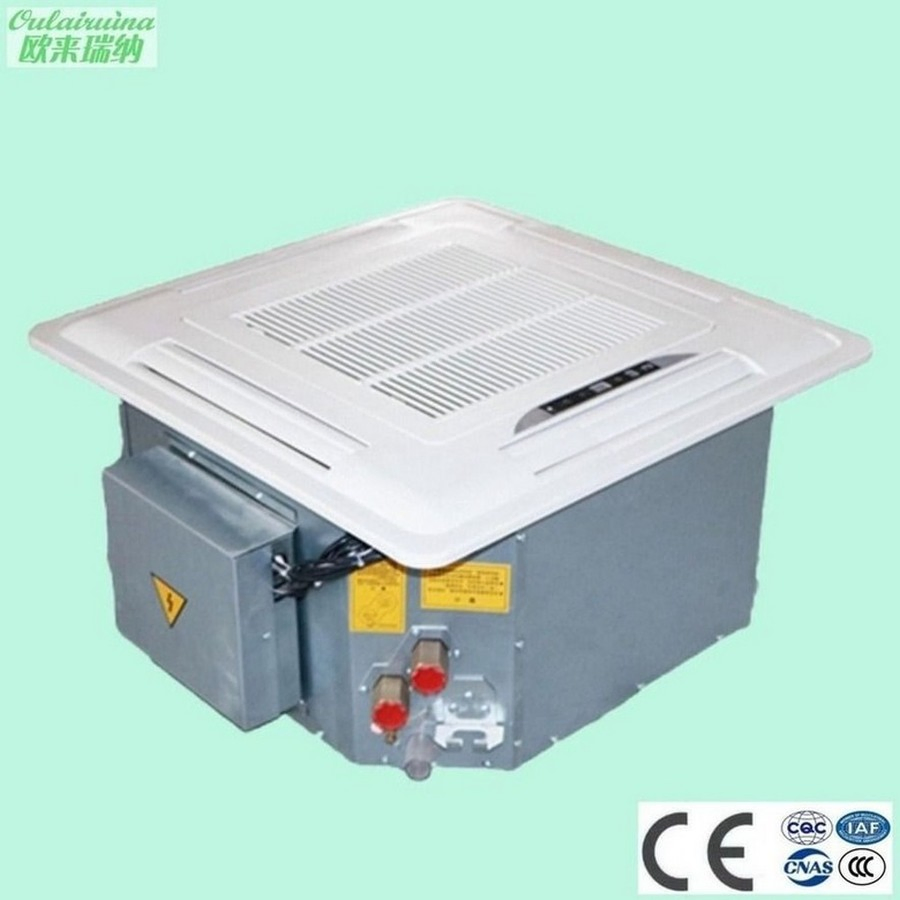

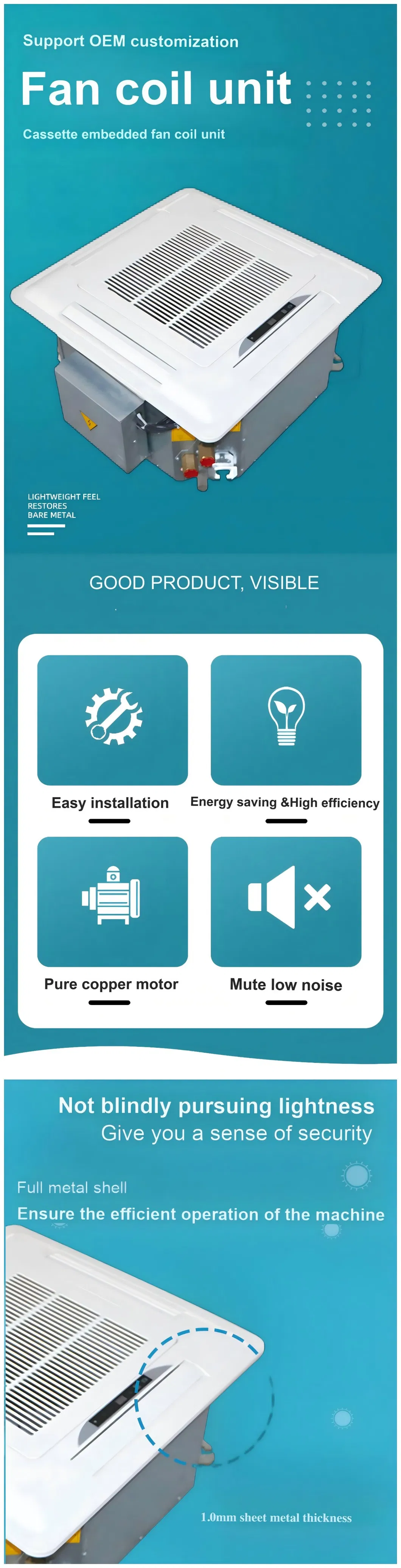

This 10-650CMH Card type fan coil unit can be ideally placed inside the ceiling, combined with indoor decoration, with only the air vents exposed, ensuring a beautiful appearance without taking up extra space.

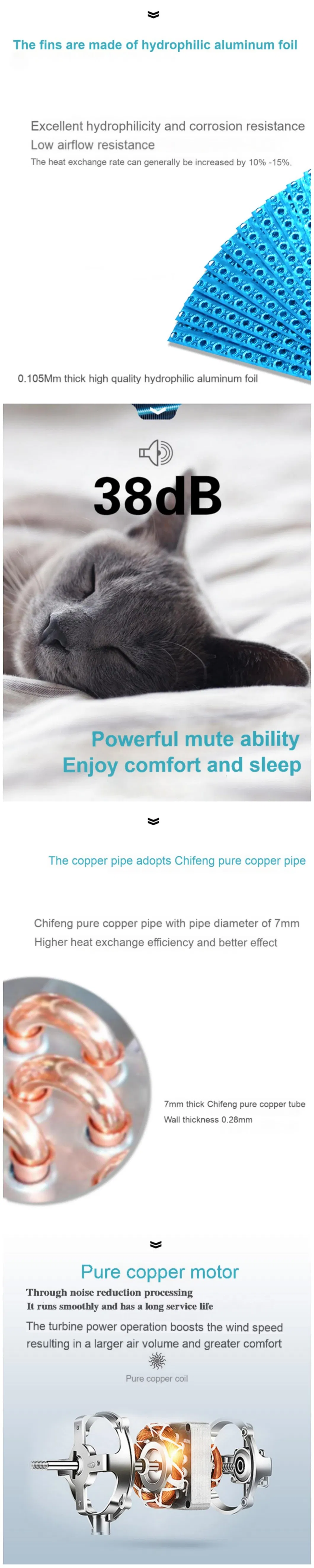

Each coil heat exchanger undergoes pressure leak detection. Inlet/outlet connections are made of forged brass. Motors feature ultra-low noise rolling bearings with a service life of up to 35,000 hours.

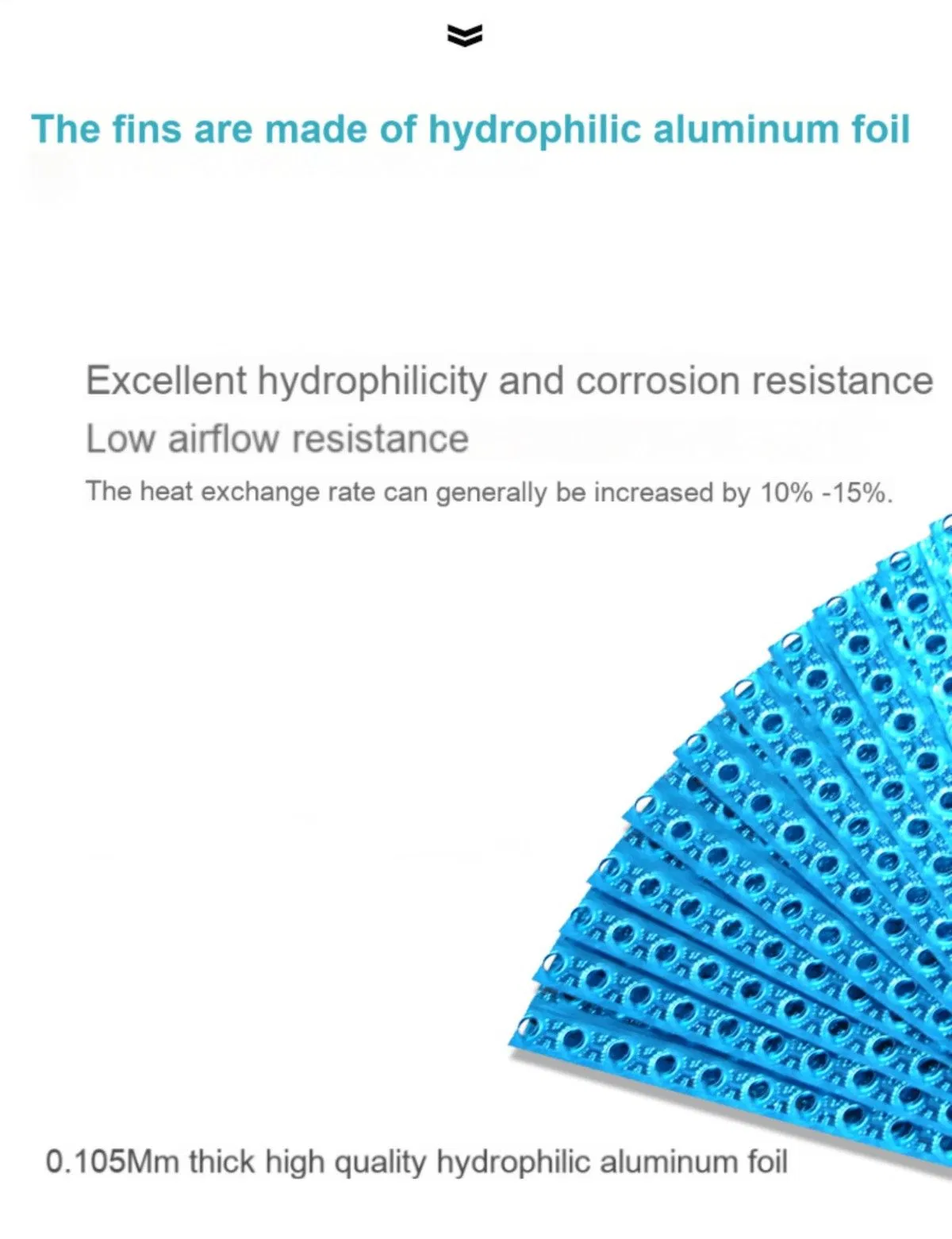

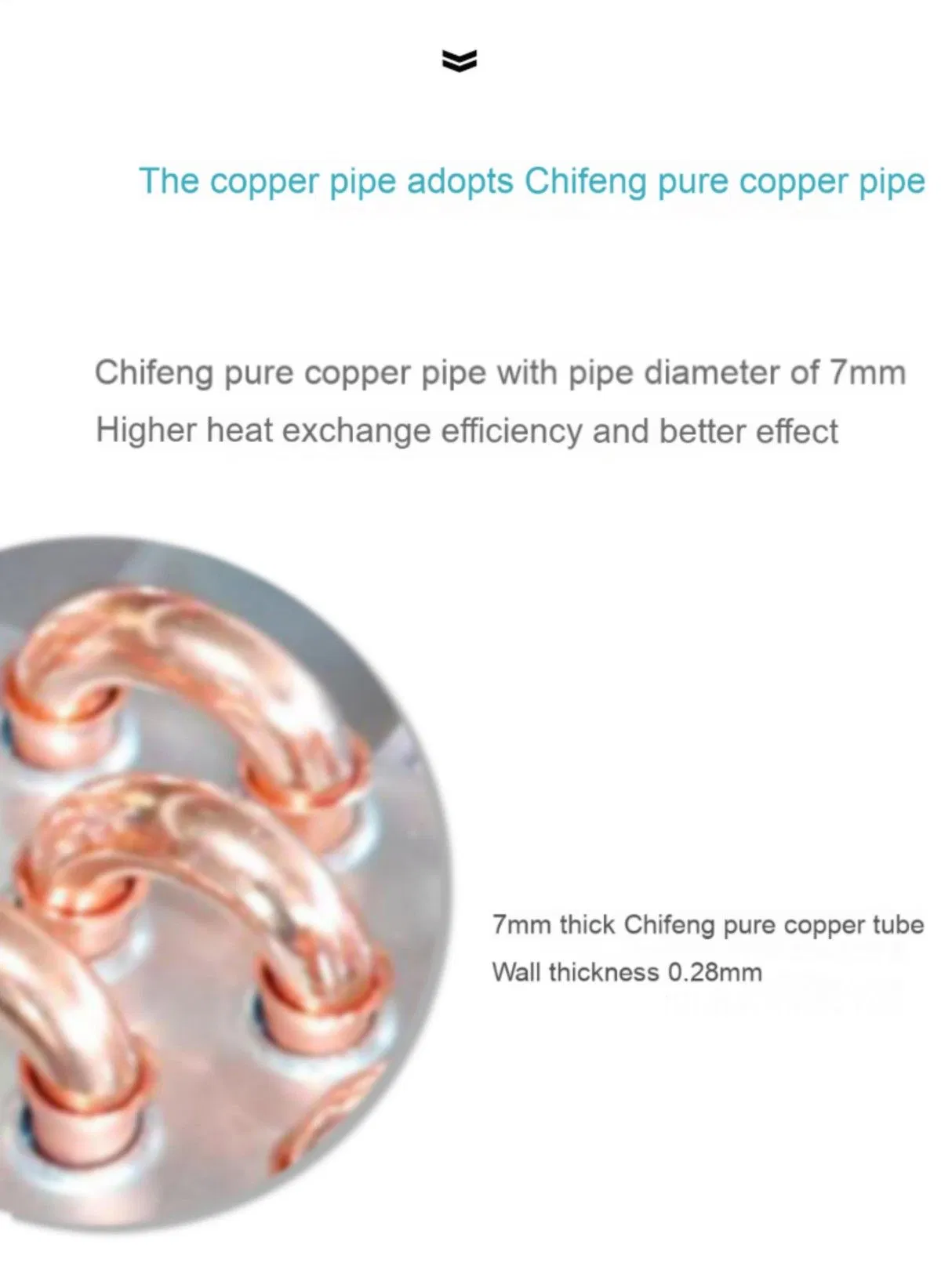

Seamless copper tubes with efficient double flanged aluminum fins are mechanically expanded for high heat transfer efficiency and sufficient cooling/heating capacity.
Adopting an ultra-wide angle volute shell and steel plate multi-blade centrifugal fans to ensure high air volume while maintaining quiet operation.
Produced with automatic fiber laser cutting (0.01mm error) and CNC bending machines to ensure precise angles and smooth copper pipe bends without wrinkles.

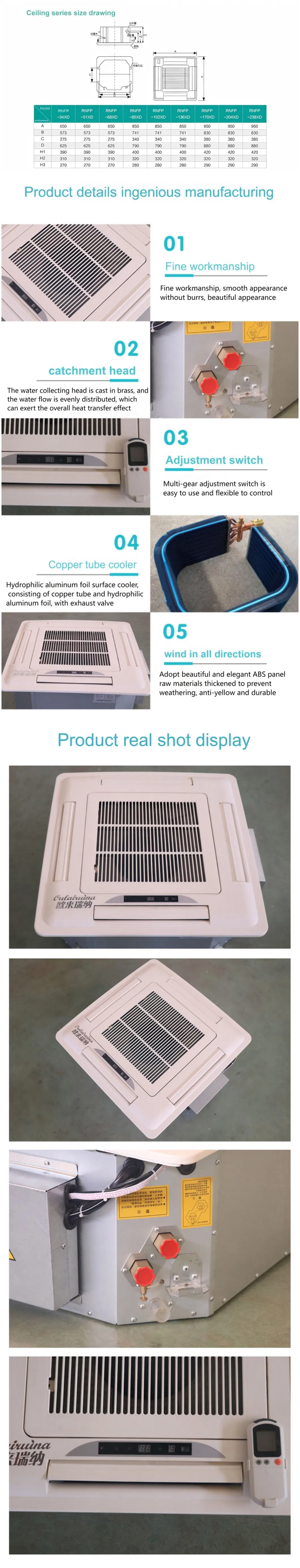

| Model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102R | FP-136 | FP-170 | FP-204 |
|---|---|---|---|---|---|---|---|---|
| Airflow (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 |
| Cooling (KW) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 | 9.0 | 10.8 |
| Heating (KW) | 2.7 | 4.05 | 5.4 | 6.75 | 8.1 | 10.8 | 13.5 | 16.2 |
| Power (W) | 36 | 50 | 60 | 74 | 93 | 130 | 147 | 183 |
| Noise dB(A) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 |

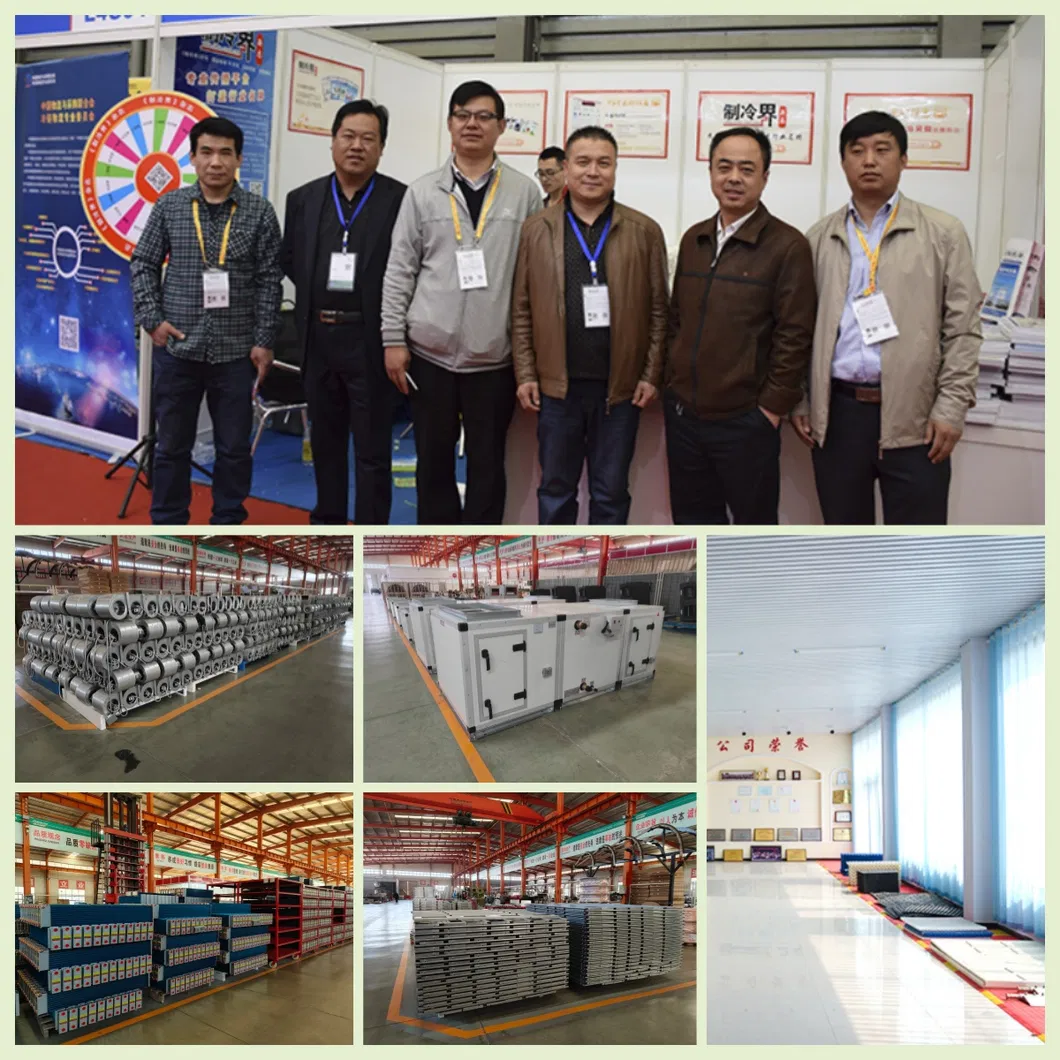

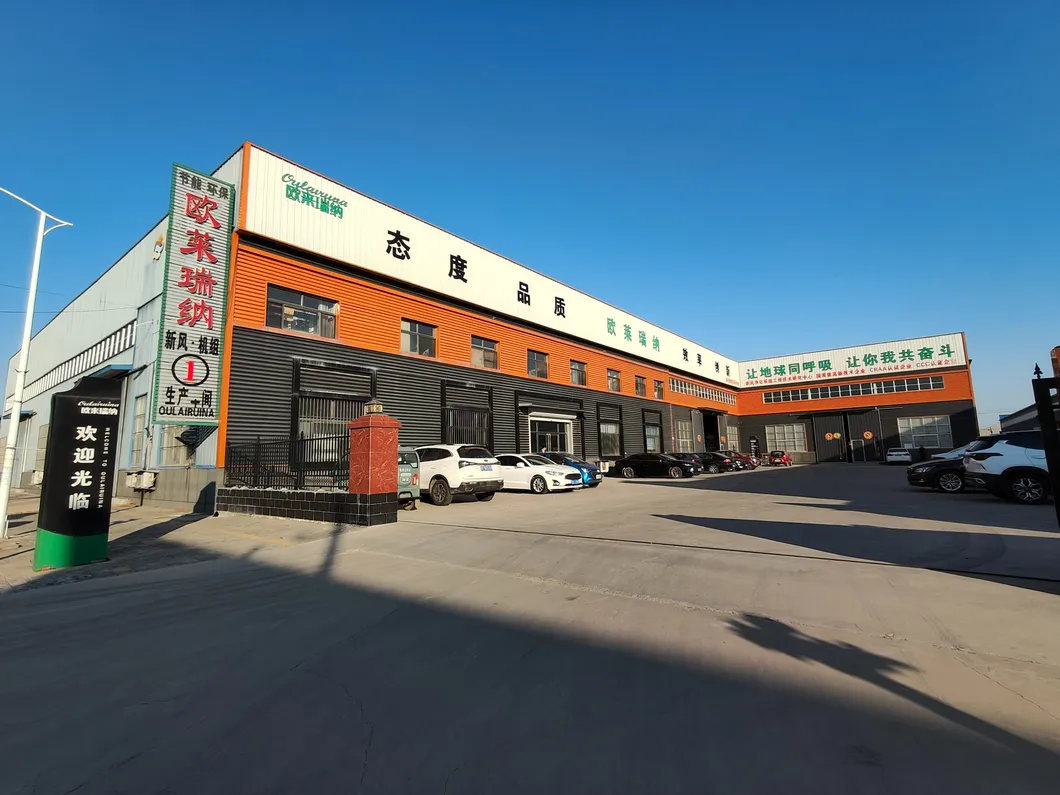

Founded in 1996, our company boasts an impressive legacy of innovation and excellence. Within our expansive workshop spanning over 10,000 square meters, we house over 60 state-of-the-art processing equipment. We seamlessly integrate research, design, production, sales, installation, and service.

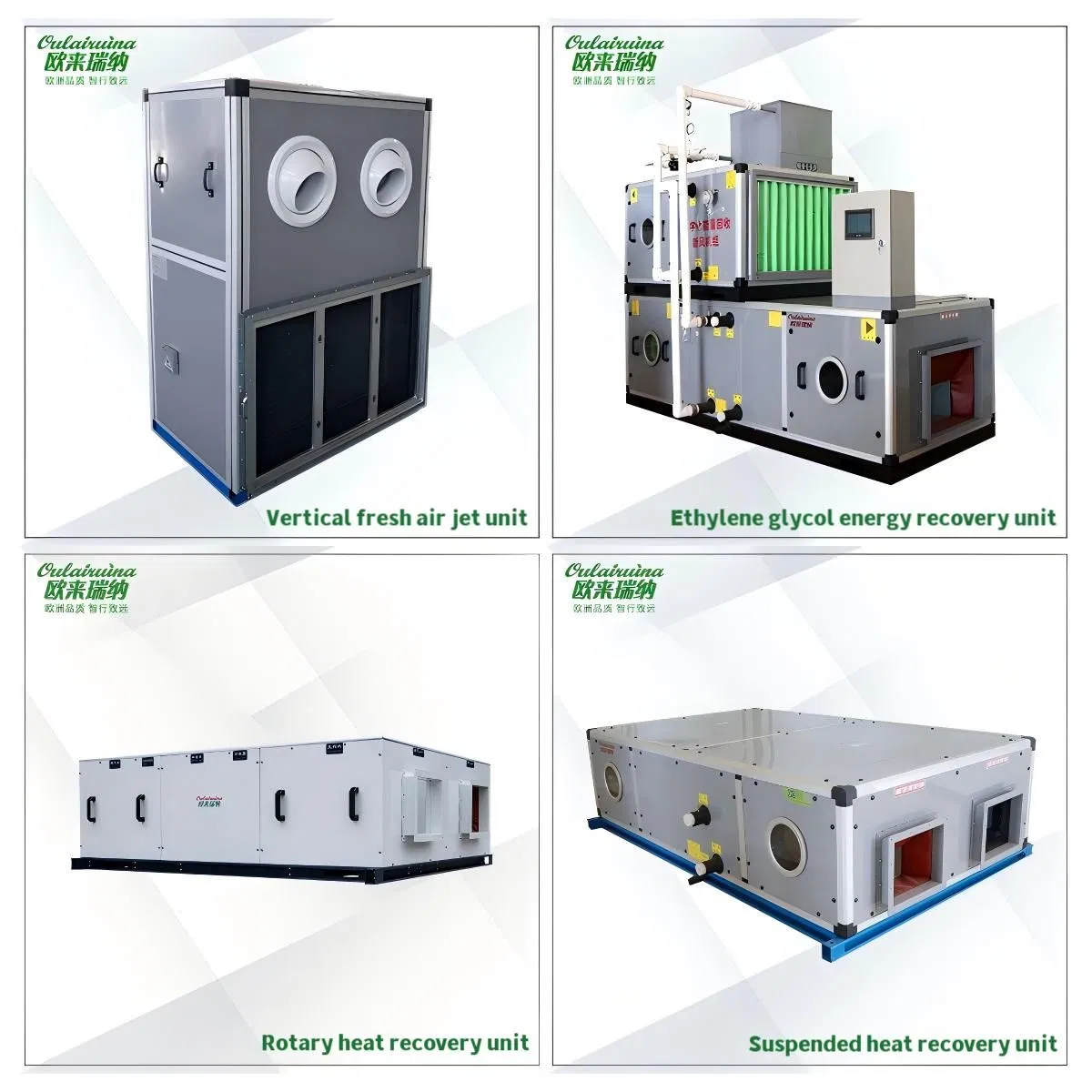

Our premier product offerings include high-performance solutions: heat recovery fresh air ventilators, silent exhaust fans, and advanced fan coil units. We are proud to have forged enduring partnerships with global market leaders and hold numerous patents and certifications including ISO9001, ISO14001, and CE.
