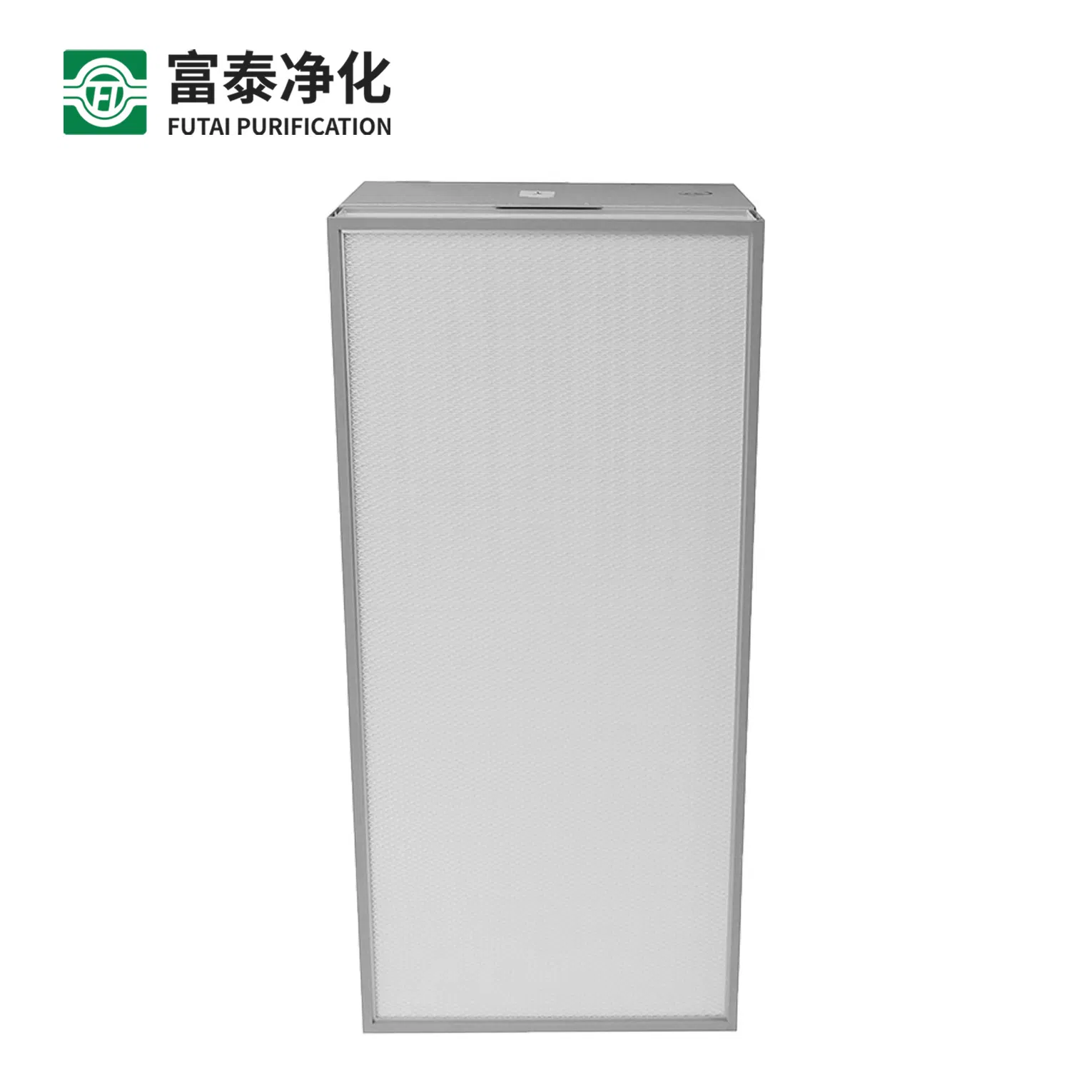

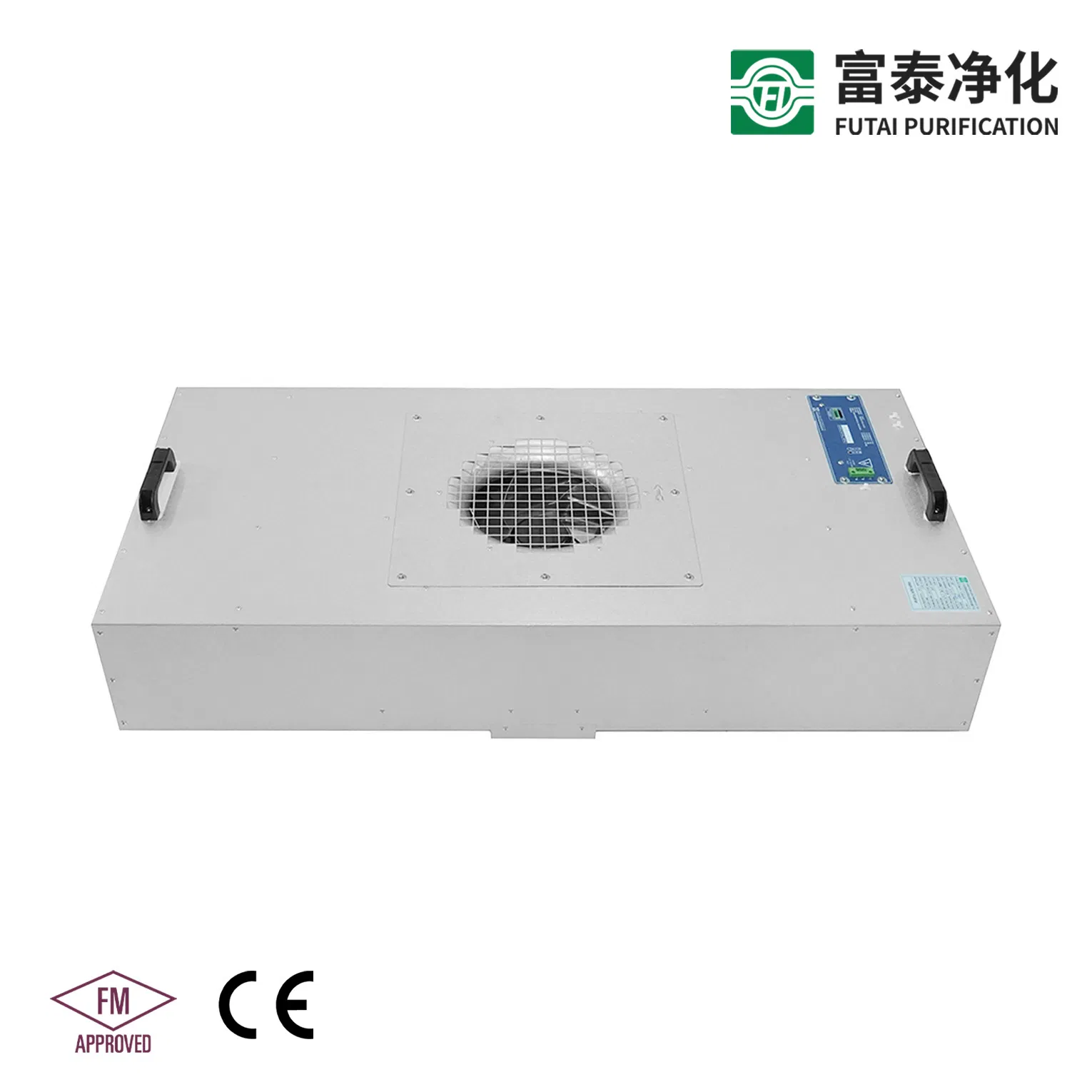

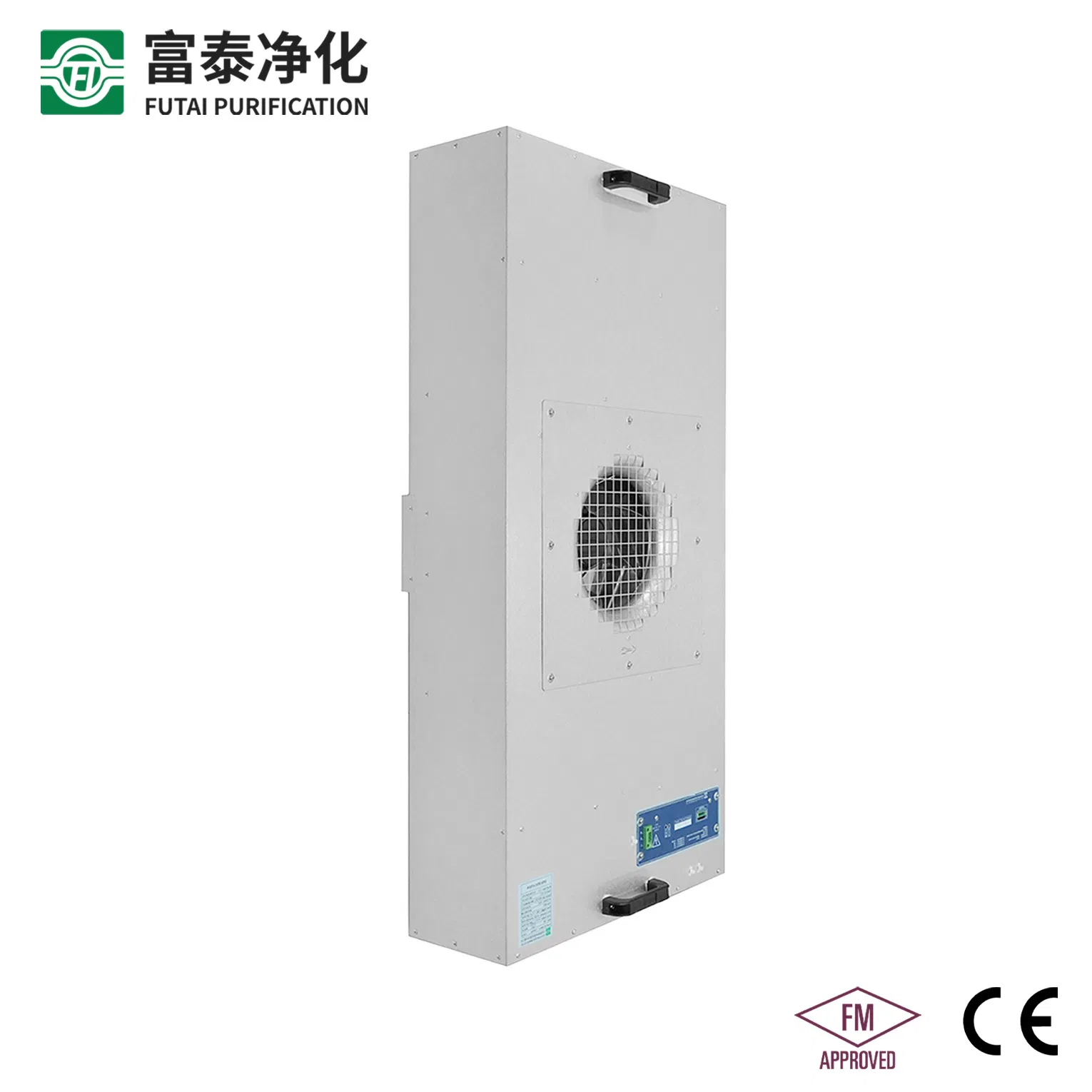

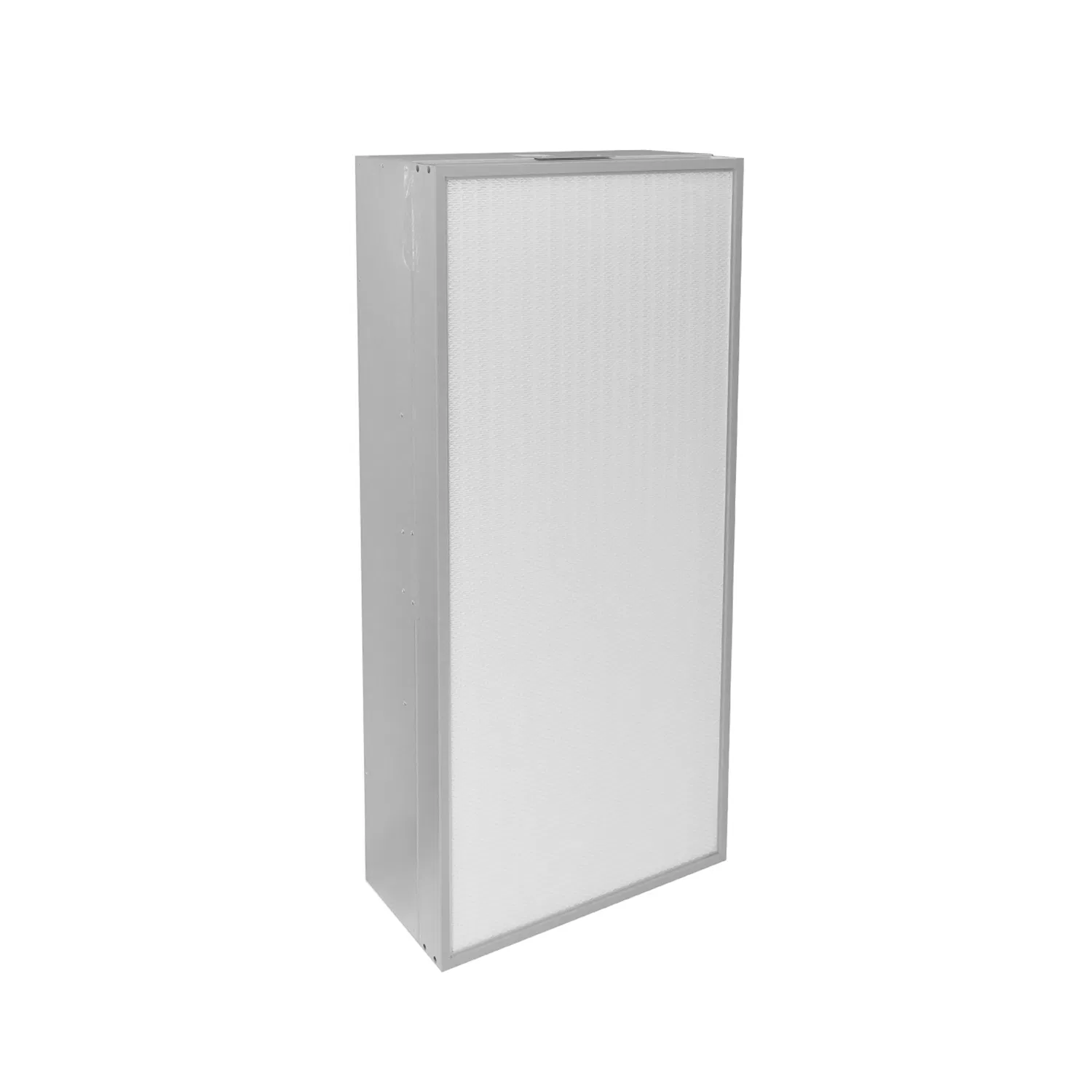

Premium Cleanroom Air Filtration System with HEPA Technology

Still deciding? Get samples of $ !
Order Sample

Product Description

📊

Basic Information

Model NO.
Altafan FFU
Medium Material
Fiberglass/PTFE
Efficiency
H13 H14 U15 U16
Filtration Grade
HEPA Filter
Type
Panel Filter
Frame Material
Aluminum-Zinc Coated Steel/Stainless
Control Method
Stepless Speed Control
Air Flow(CMH)
990
Noise(dB)
51±2
Production Capacity
500,000 piece/Year
⚙️

Product Description

Air Filtration System
Cleanroom Technology
Altafan FFU EC: Applicable to all grades of dust-free workshops, ideal for centralized control. This system is essential for semiconductor, electronics, flat panel display, optical, and biological industries where strict air pollution control is required. The compact design saves air chamber space and meets various grid system requirements.

Key Features

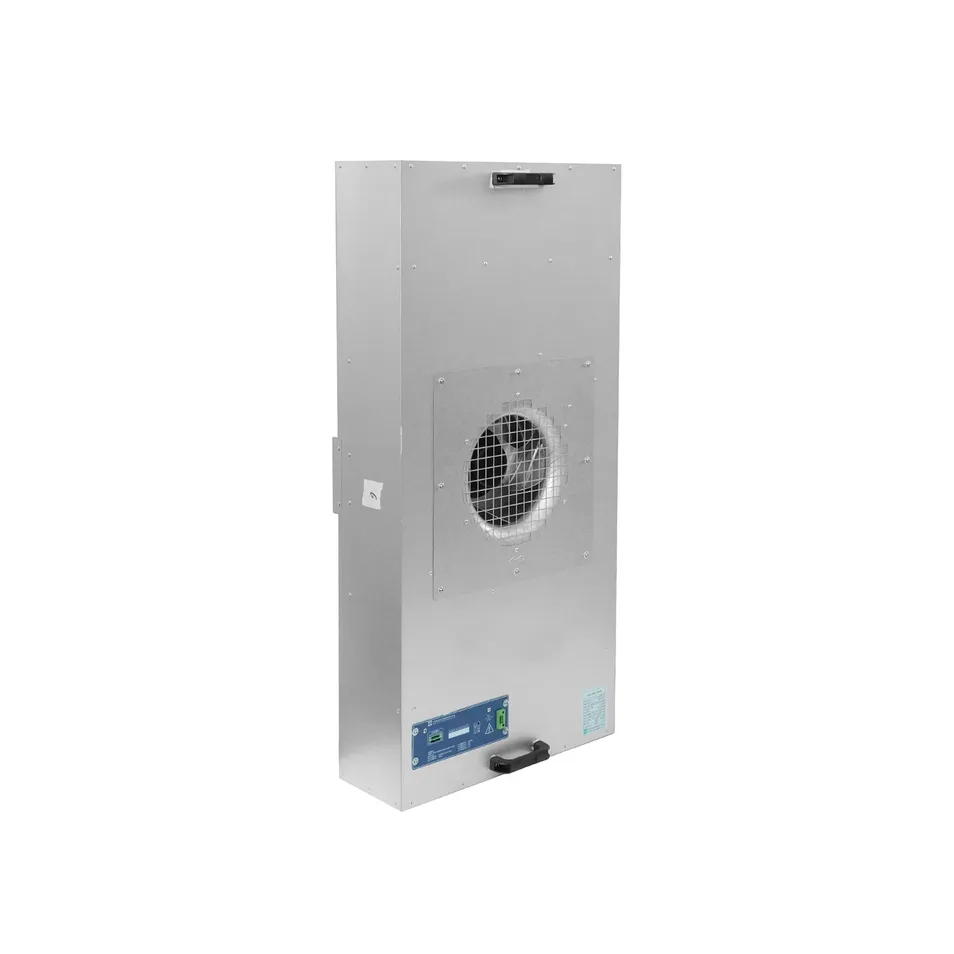

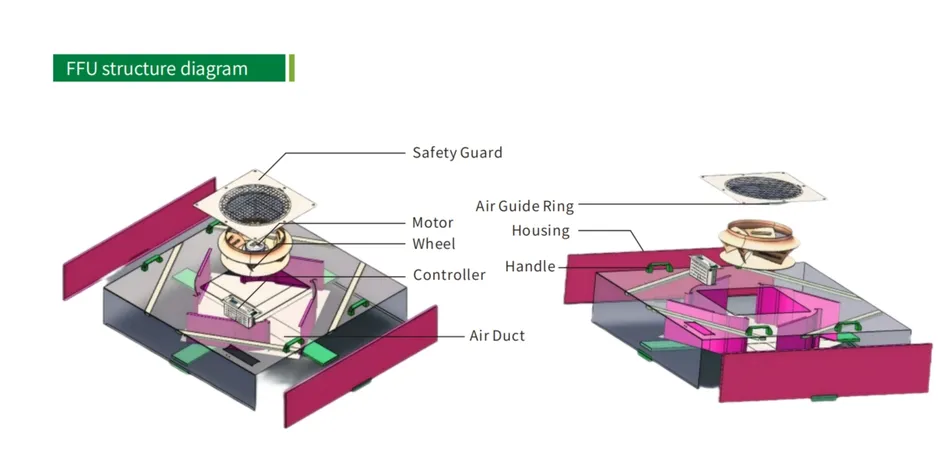

FFU Structure
FFU Detail
  • Compact box structure
  • Energy-saving and quiet operation
  • Modular design for easy installation
  • High efficiency with low resistance
  • Cabinet Materials: Aluzinc / Painted Steel / Stainless / Aluminum Alloy
📋

Technical Specifications

Specification 2×2 2×4 3×4 4×4
FFU Size (mm) 575×575×198 575×1175×198 875×1175×242 1175×1175×242
Air Volume (m³/h) 455 990 1550 2100
Noise Level (dB) 49±2 51±2 52±2 53±2
Power (W) 55 85 145 184
Filtration Efficiency HEPA 0.3μm 99.995% / ULPA 0.12μm 99.9995%

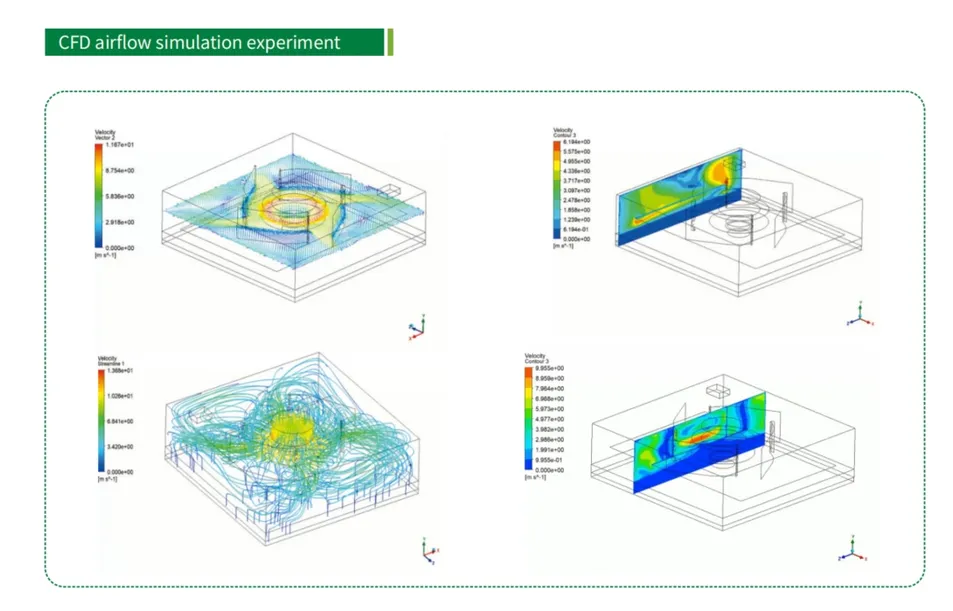

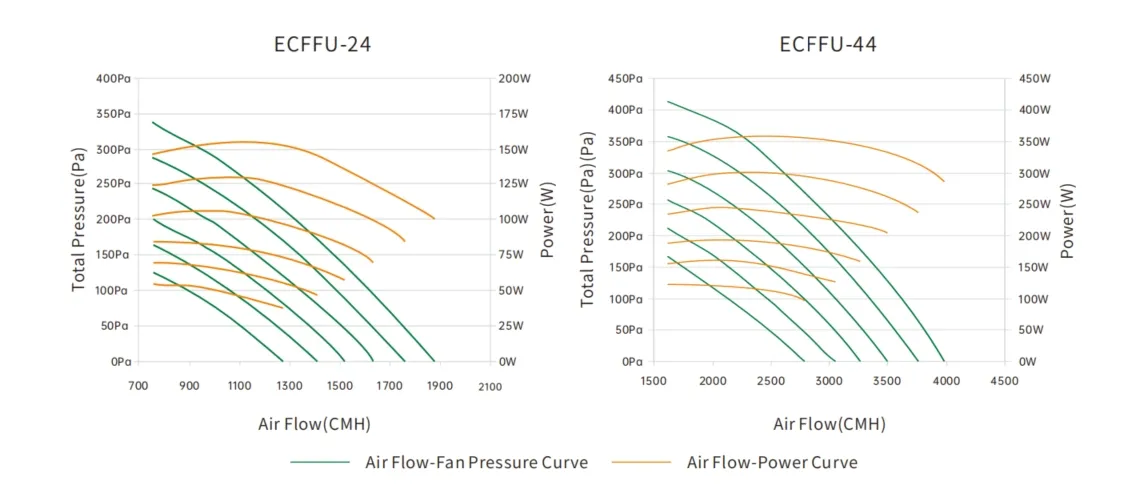

Performance Chart
📜

Certifications

This product has obtained international authoritative certifications including CE and UL, complying with stringent global safety and performance standards. It provides a stable ISO Class 5 (Class 100) clean environment.

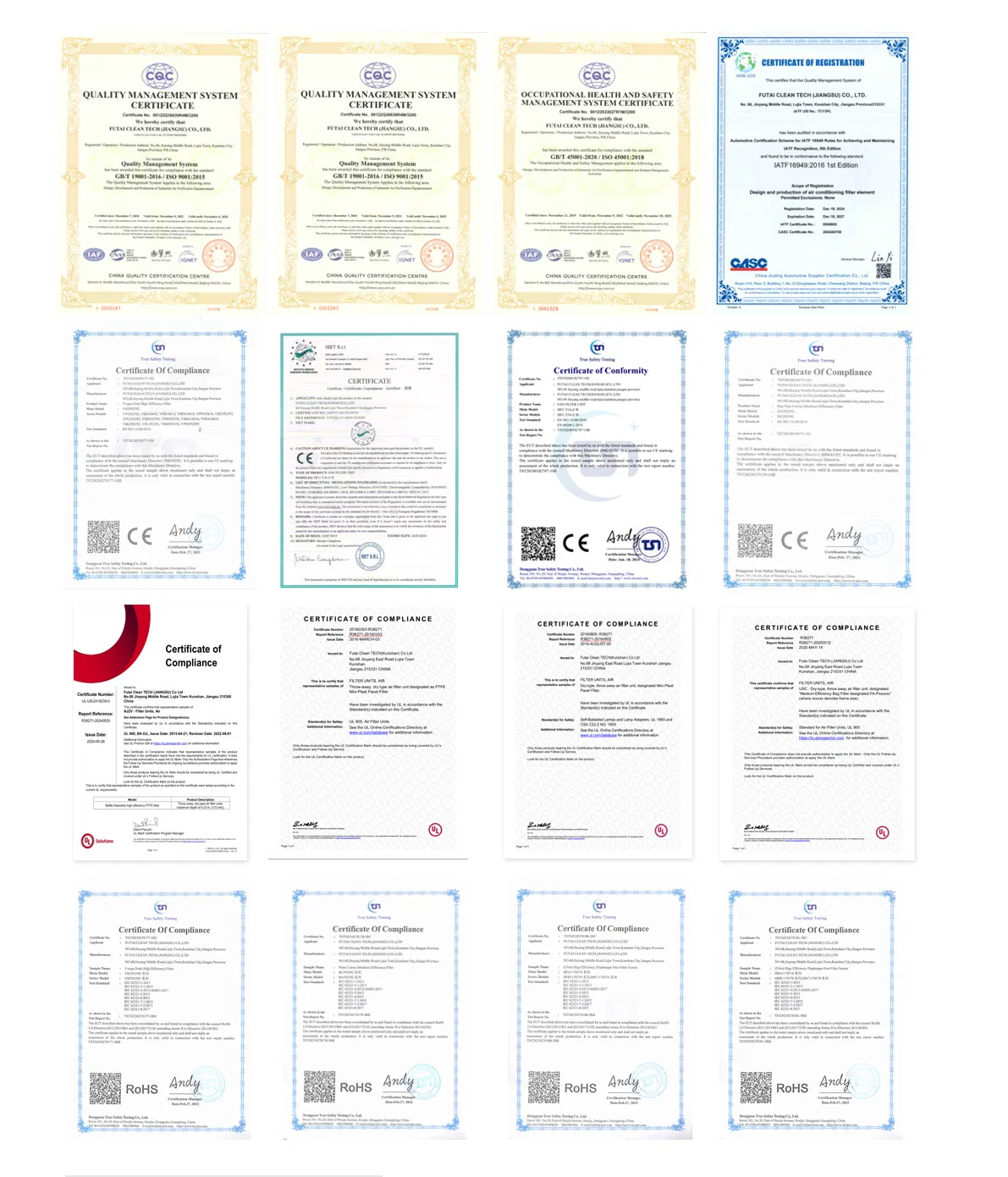

Certificates Display
📦

Packing & Delivery

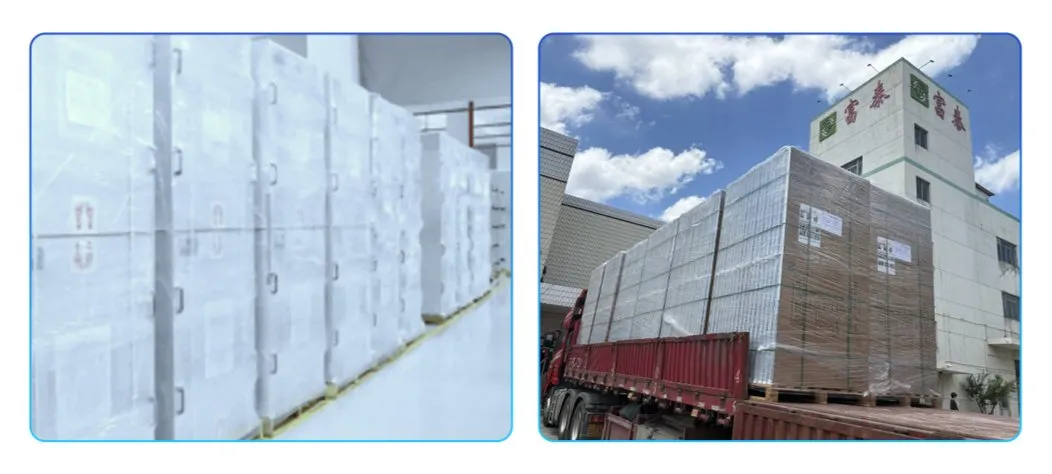

Packaging Process
🏭

Manufacturing Excellence

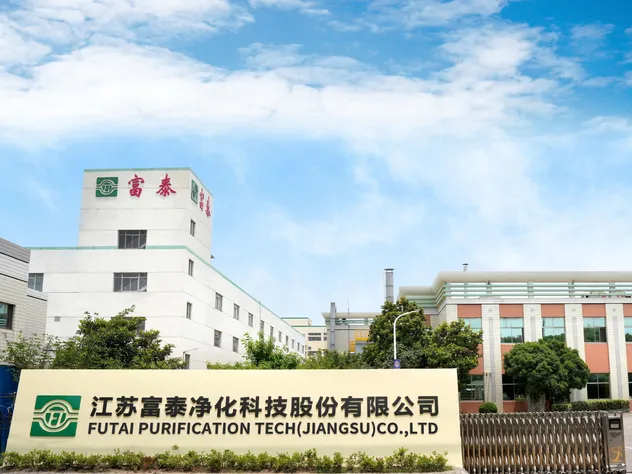

Factory 1
Factory 2

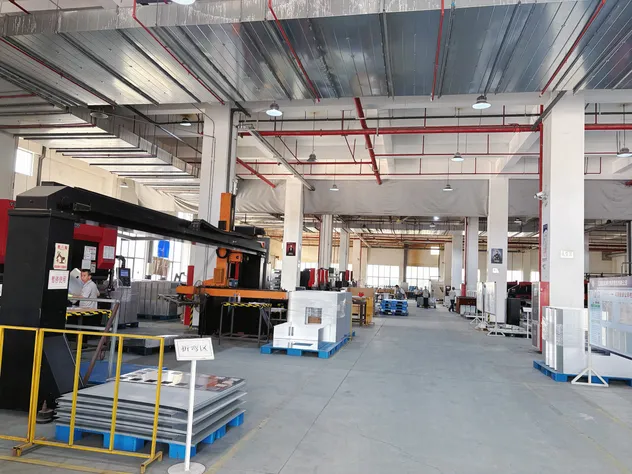

Factory 3
Our manufacturer focuses on R&D, production, and sales of air purification equipment. Equipped with advanced testing laboratories and ISO 1 dust chamber facilities, we maintain certifications such as ISO9001, 14001, 45001, and 13485 to ensure high-quality standards.
📸

Visitor & Exhibition Gallery

Client Visit
Client Visit
Exhibition

Frequently Asked Questions

Are you a manufacturer or trading company?
We are the OEM manufacturer with over 80 product patents, operating high-standard cleanroom facilities. Factory audits and visits are always welcome.
Do you provide product samples?
We offer free standard samples (shipping cost applies) and customized paid samples based on your requirements.
How do you ensure product quality?
Every motor undergoes rigorous dynamic balancing tests for minimal noise. Each HEPA filter is individually leak-tested to guarantee performance.
What certifications do you hold?
We are certified with ISO 9001, ISO 14001, IATF16949, ISO 13485, and hold CE/UL marks for our products.
What is your typical lead time?
The lead time depends on order volume, usually ranging from 15 to 30 working days after receiving the deposit.
What payment methods do you accept?
We support flexible payment methods including T/T, L/C, PayPal, Western Union, and Alipay.
🤝
