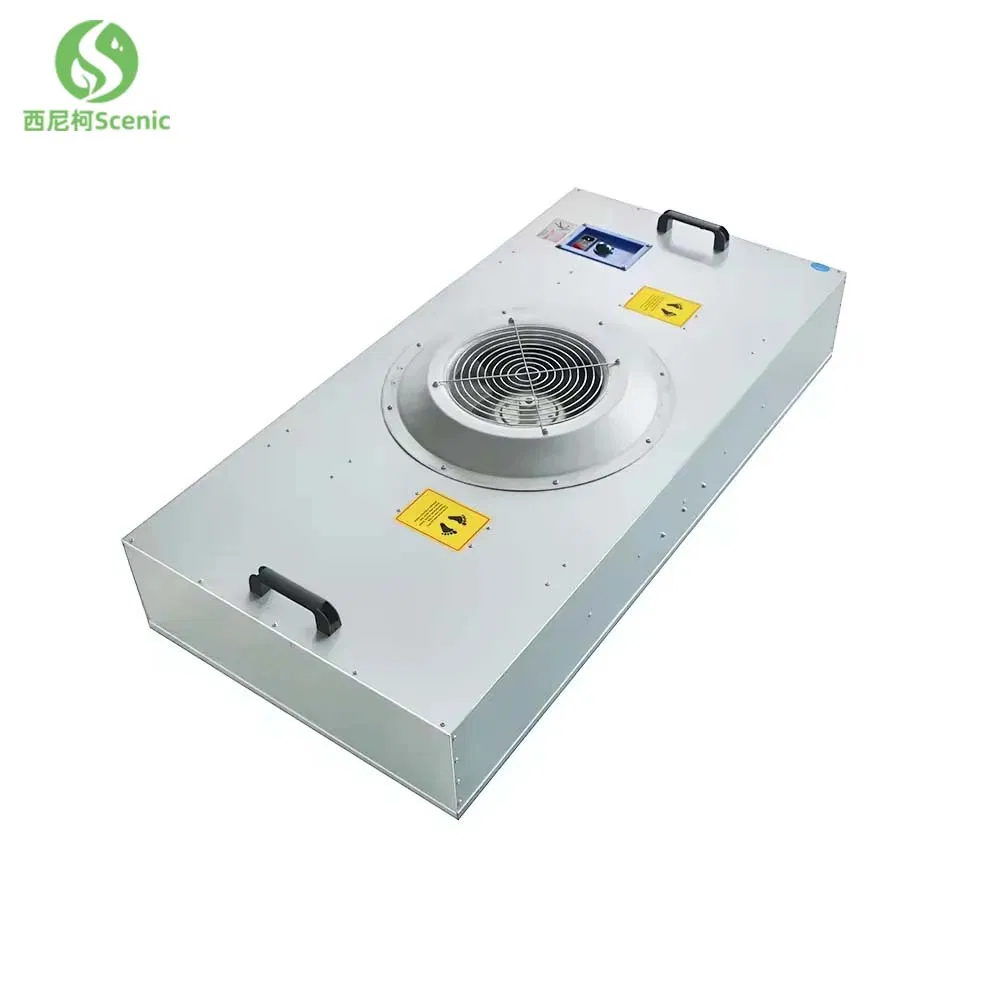

High-Efficiency HEPA Air Filtration System for Mycology Use

1 / 5

High-Efficiency HEPA Air Filtration System for Mycology Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AM-FFU-16

Medium Material

SUS304, SUS201, Galvanized Steel

Efficiency

99.99% @ 0.3microns

Filtration Grade

HEPA / ULPA / Pre Filter

Type

H13, H14

Noise Level

56-60 dba

Power Supply

1pH, 220V 50-60Hz / DC Motor

Package Weight

80.00kg

Product Description

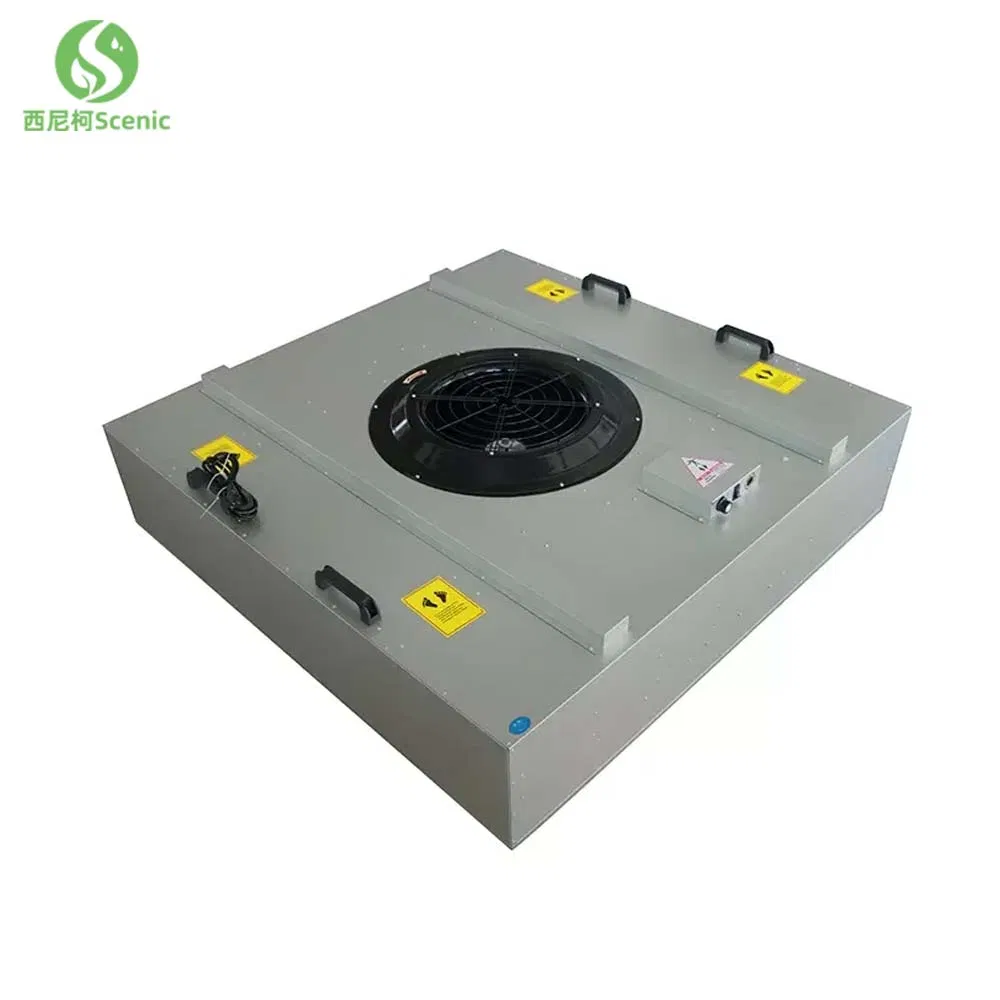

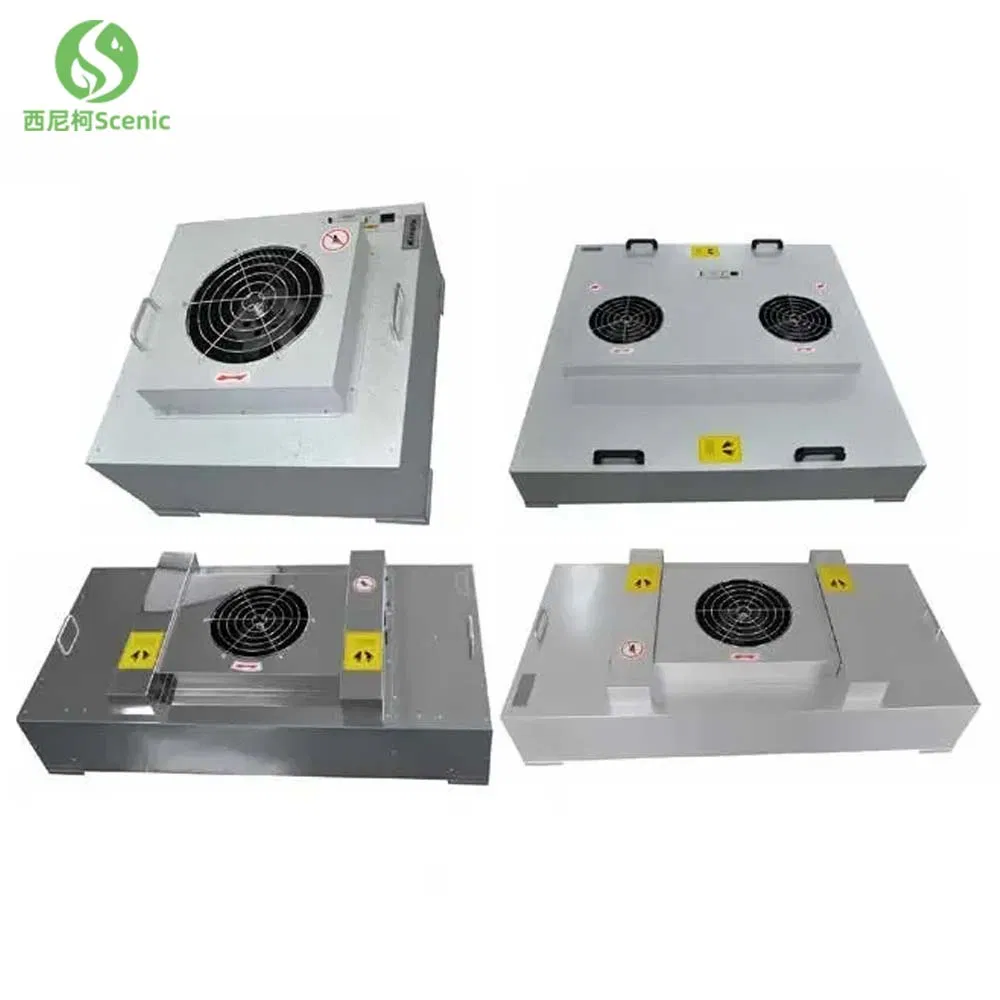

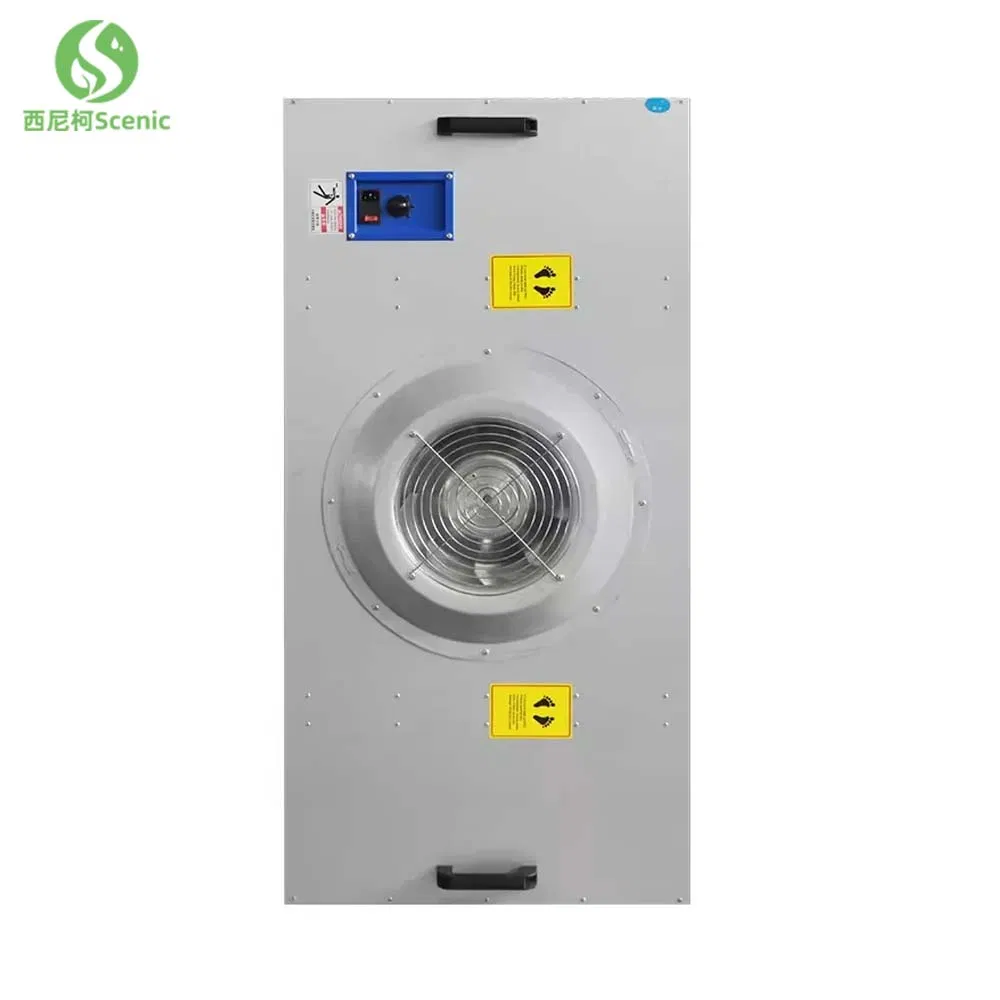

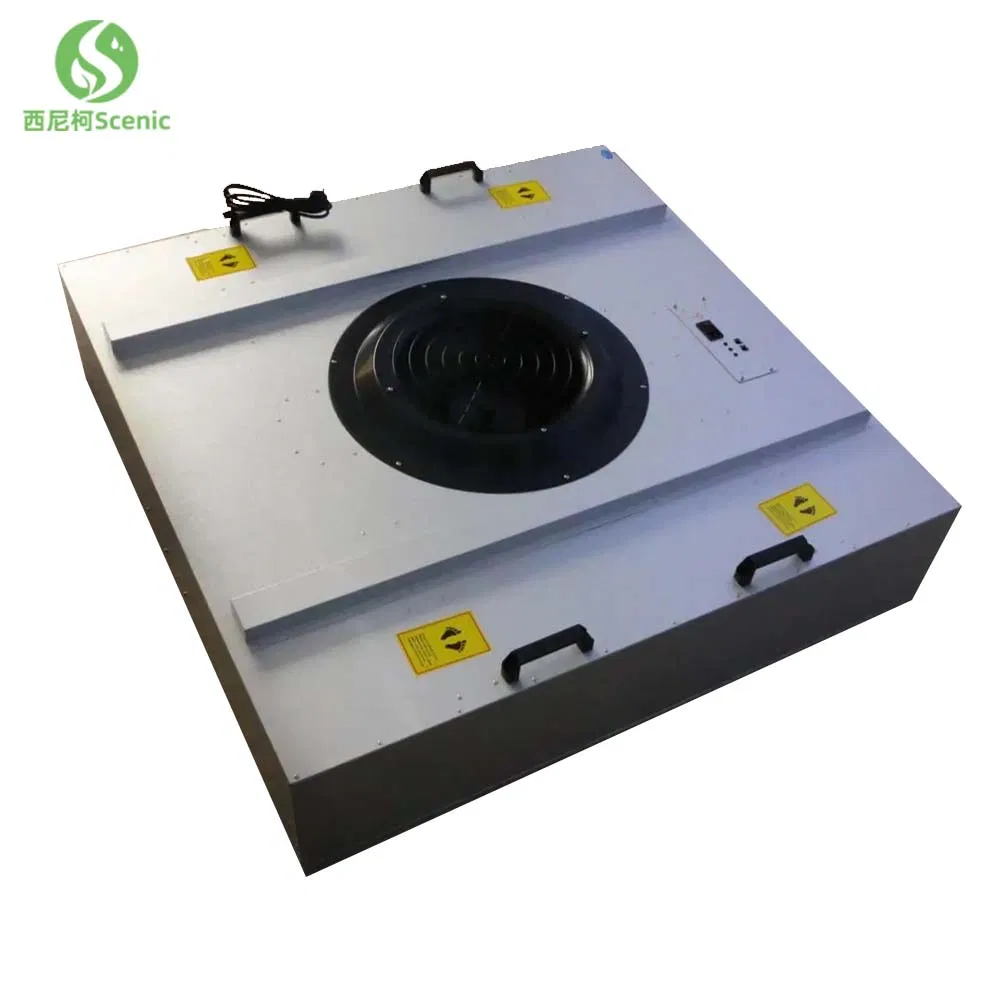

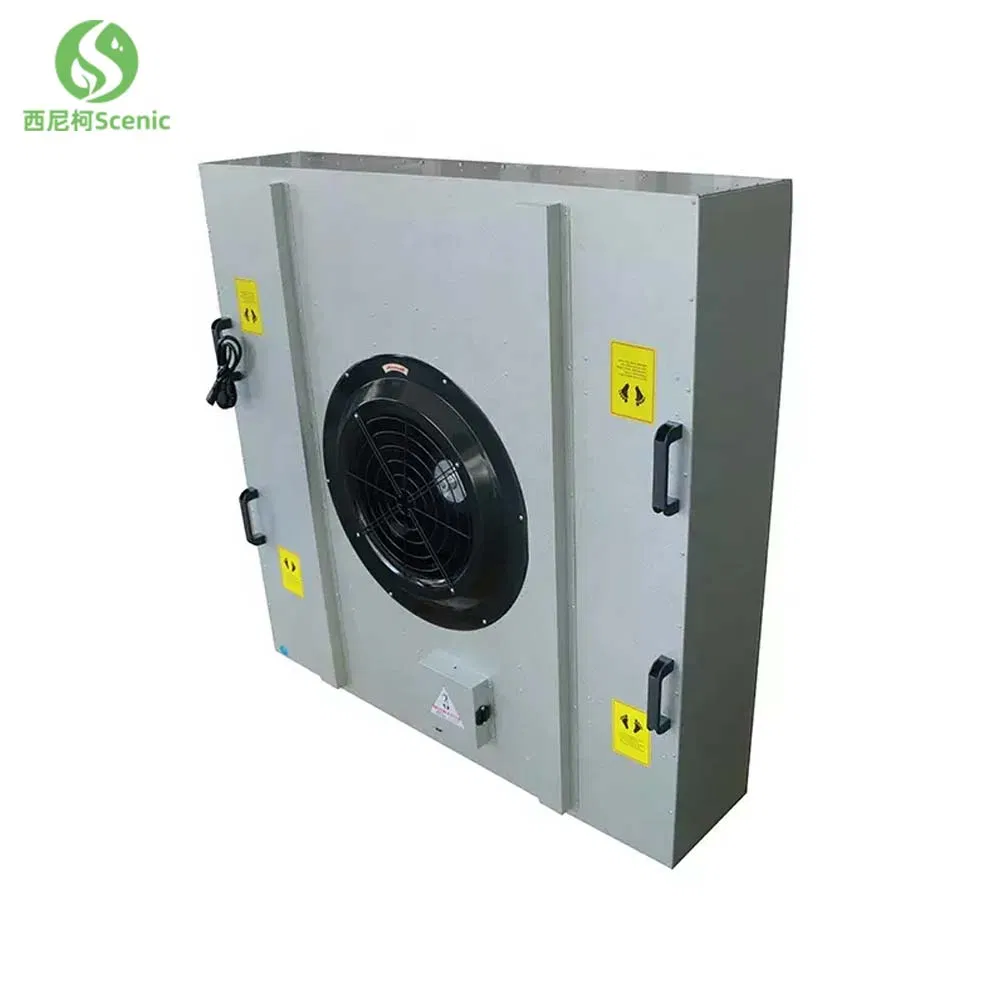

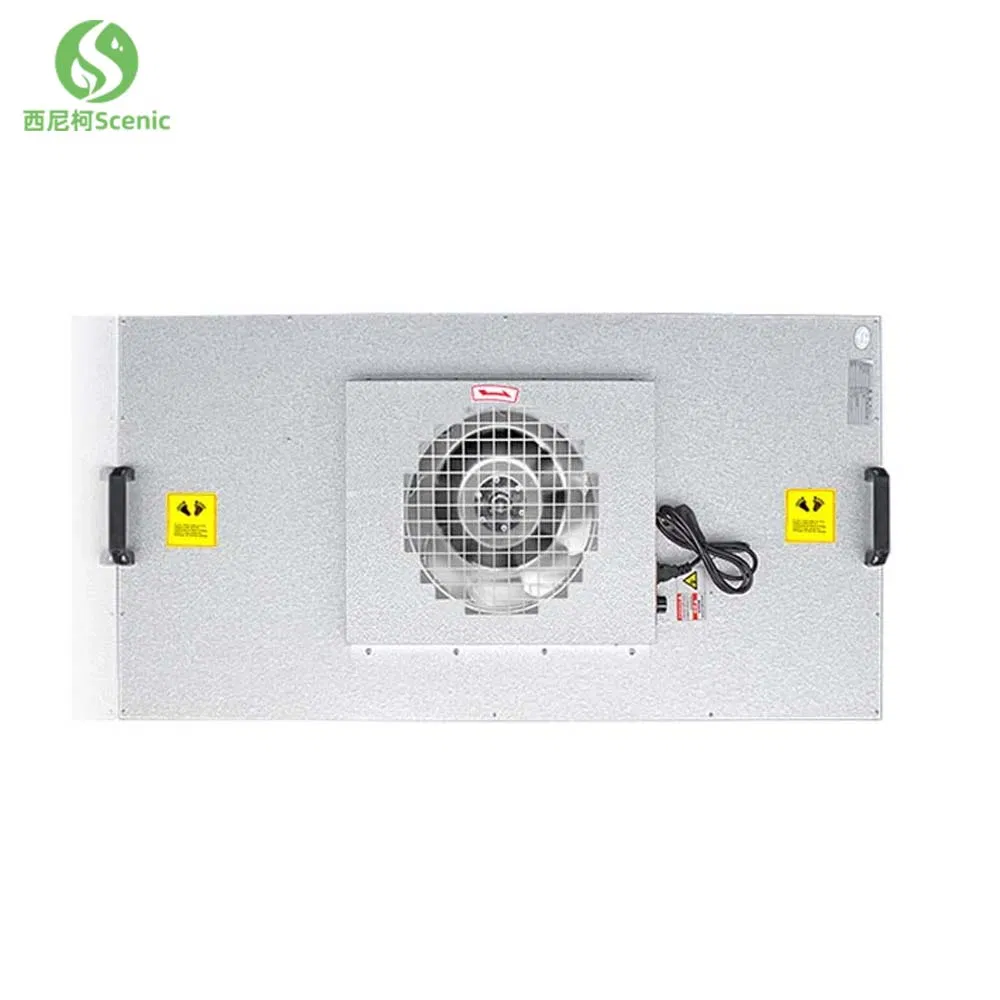

CE Certification 99.9% Mycology Laminar Flow Hood HEPA Fan Filter Unit FFU

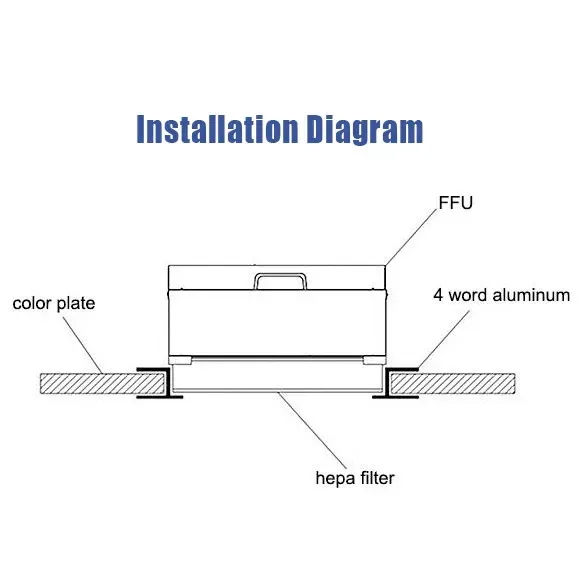

The FFU is an essential air cleaning equipment designed to supply purified air to clean rooms for manufacturing semiconductors, liquid crystals, and other sensitive components. Installed within the system ceiling grid, it is suitable for large-scale clean room environments requiring hundreds or thousands of units.

Main Advantages:

Simple direct speed control for precise airflow management.
Extremely low power consumption for energy efficiency.
Low sound power levels ensuring a quiet working environment.
EC Fan with high reserve capacity for advanced filtration.
Low design height for flexible installation in tight spaces.
Adjustable cleanness levels from Class 10 to Class 1000.

Application & Usage

A flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1. Ideal for environments with limited space above the false ceiling. Applications include semiconductors, electronics, flat-panel displays, disc-drives, optics, bio-engineering, clean benches, and laminar flow hoods.

Operational Parameters:

Wind speed: 0.35m/s - 0.45m/s
Filtration efficiency: 99.99%
Durable stainless steel or armor plate material
High-efficiency centrifugal air blower
Low vibration design

Technology Data Sheet

Model	FFU-1	FFU-2	FFU-3
Overall Size	575575285mm	1175575285mm	11751175360mm
Hepa Filter Size	57057069mm	117057069mm	11701170260mm
Cleanliness Class	Class 100, Class 1000, Class 10000 etc.
Air Velocity	0.45m/s or 90 FPM
Average Air Flow	600m³/h	1200m³/h	1500m³/h
Power Consumption	80W	110W	110W
Noise	56-60dBA
Weight	25kg	30kg	50kg

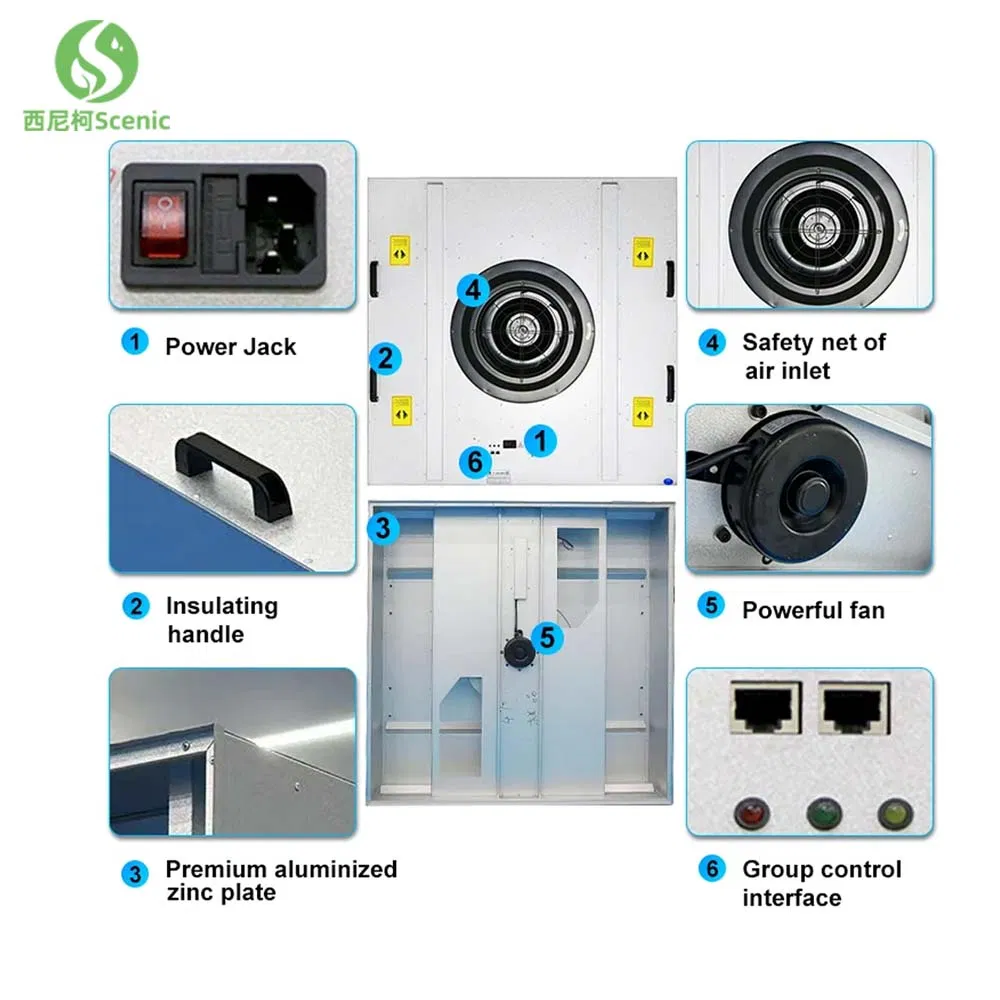

Detailed Features

Human-Centered Design: Stainless handles and perpendicular design for easy installation.
Energy-Saving Performance: Multi-blade turbine fan with over 80,000 hours of service life.
Ultra-Thin Profile: Thickness of only 23cm and weight of 25KG, ideal for low ceilings.

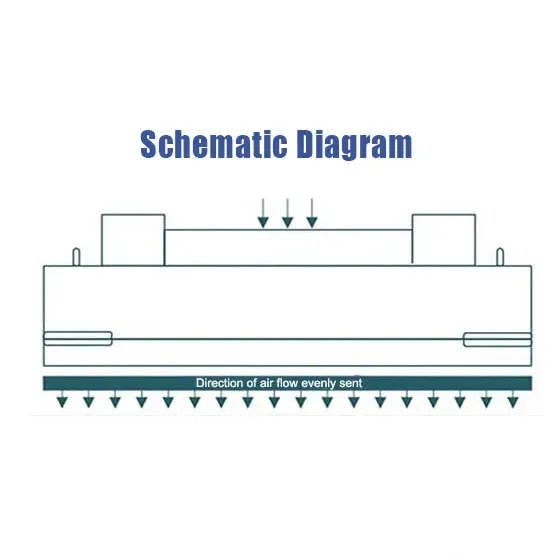

Precision Airflow: Internal current-averaging design ensures blowing side deviation is lower than ±10%.
Convenient Maintenance: Integrated pedal design for easy repair access.

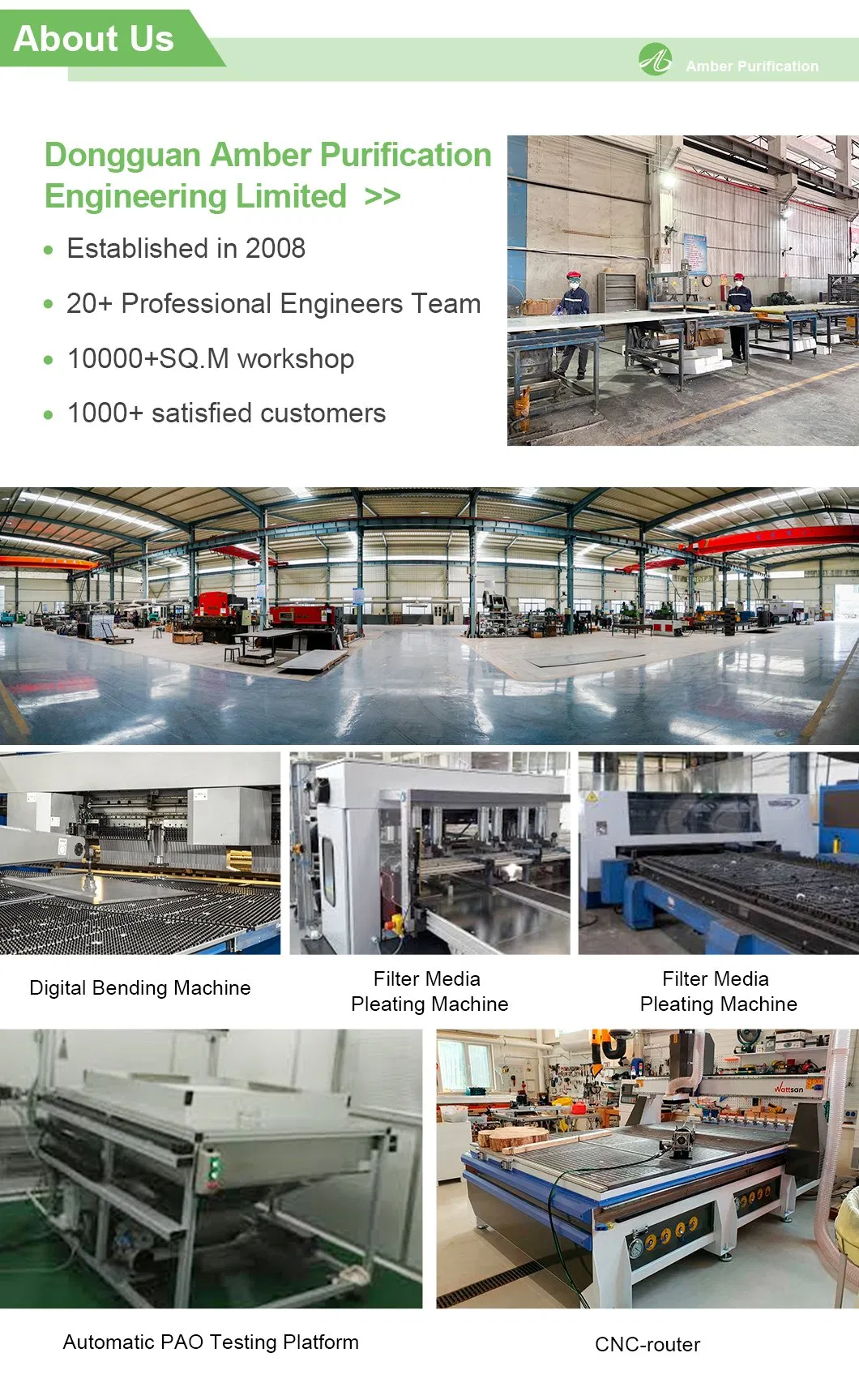

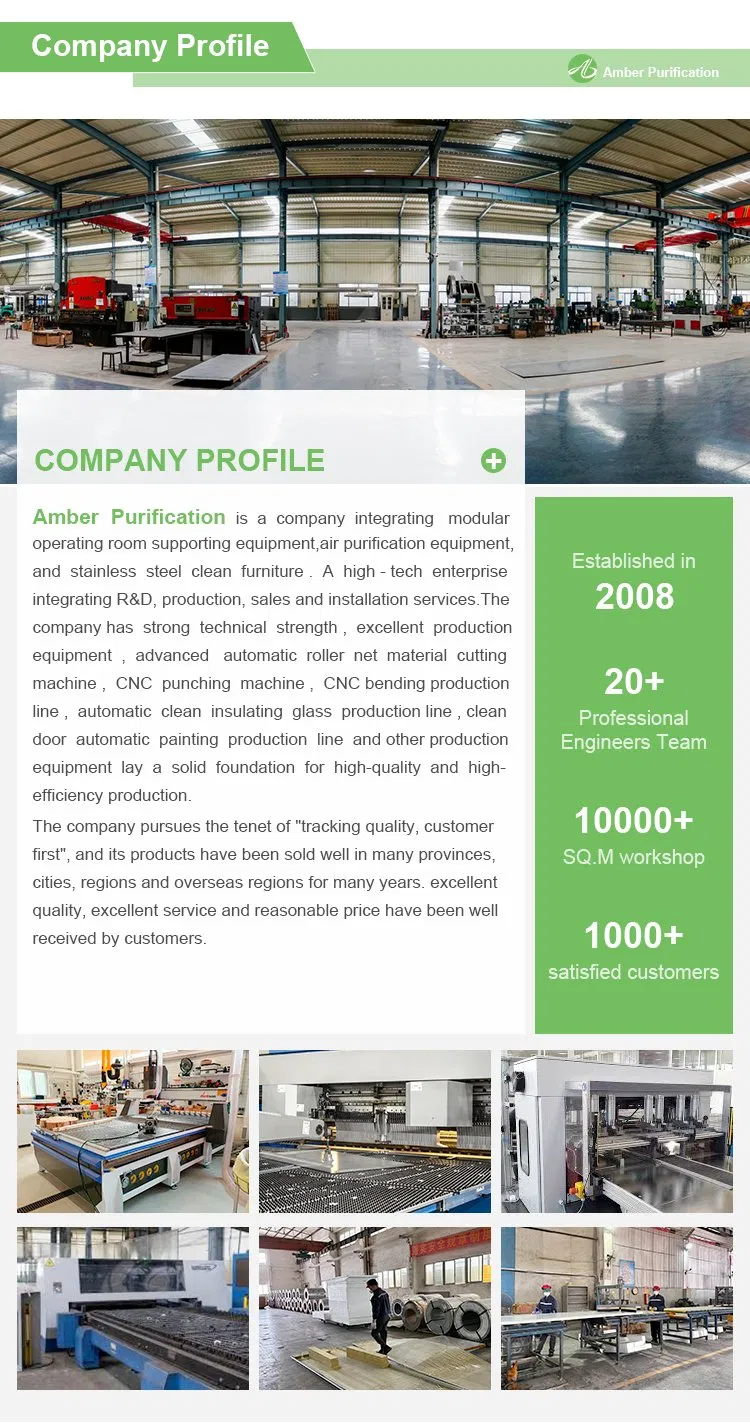

Production & Certification

Recommended Equipment

Compliance & Packaging

Customer Feedback

Frequently Asked Questions

What is the filtration efficiency of this HEPA Fan Filter Unit?

The FFU provides a high filtration efficiency of 99.99% at 0.3 microns, with options for H13 or H14 grade HEPA and ULPA filters.

Is the fan noise level suitable for cleanroom environments?

Yes, the unit is designed for low noise performance, typically operating between 56-60 dBA, ensuring it meets cleanroom standards for acoustic comfort.

What materials are available for the FFU casing?

The casing is available in several durable options, including SUS304 stainless steel, SUS201 stainless steel, coated steel, and galvanized steel.

Can the air velocity be adjusted?

Yes, the FFU features adjustable speeds with typical wind speeds ranging from 0.35m/s to 0.45m/s (90 FPM).

What power supply does the unit require?

The standard power supply is 1PH, 220V 50-60Hz, but DC motor options and customized voltages are also available.

How long is the expected service life of the fan?

By adopting energy-saving multi-blade turbine fans, the service life can reach longer than 80,000 hours of continuous operation.
