📊 Basic Information
| Model NO. | MY-CL |
|---|
| Standard Thickness | 50mm, 75mm, 100mm |
|---|
| Panel Material | Color Steel, Stainless Steel |
|---|
| Core Materials | PU/Rock Wool/Glass Magnesium |
|---|
| Effective Width | Wall: 950/1150mm; Ceiling: 950mm |
|---|
| Certification | ISO, CE, RoHS, SGS, TUV |
|---|
| Warranty | 1 Year |
|---|
| Production Capacity | 10000PCS/Month |
|---|
| Package Size | 100.00cm * 100.00cm * 20.00cm |
|---|
| Gross Weight | 20.000kg |
|---|

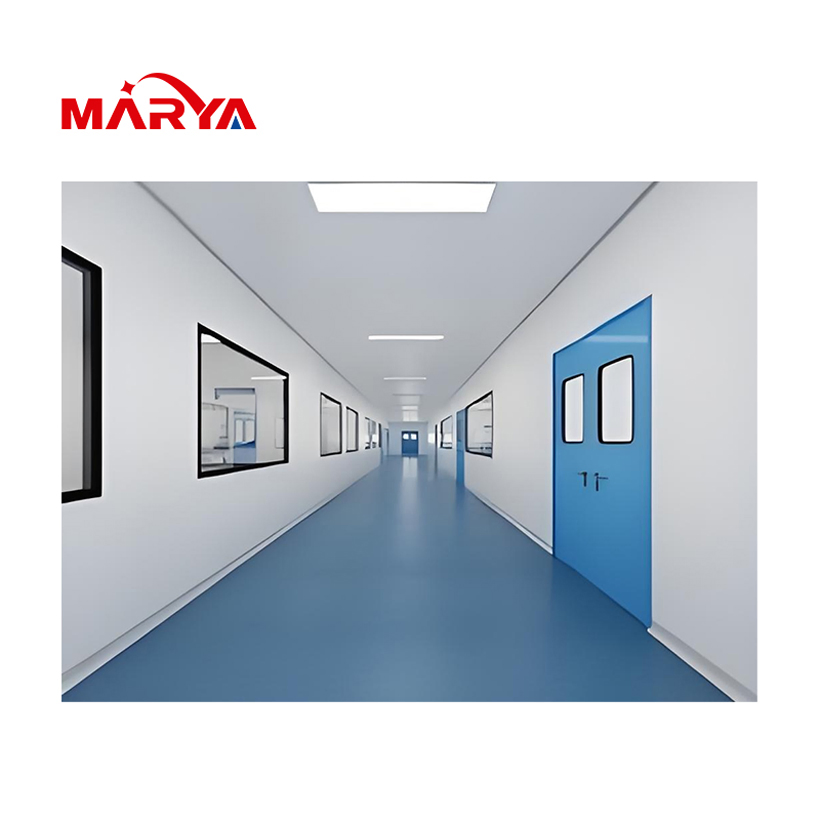

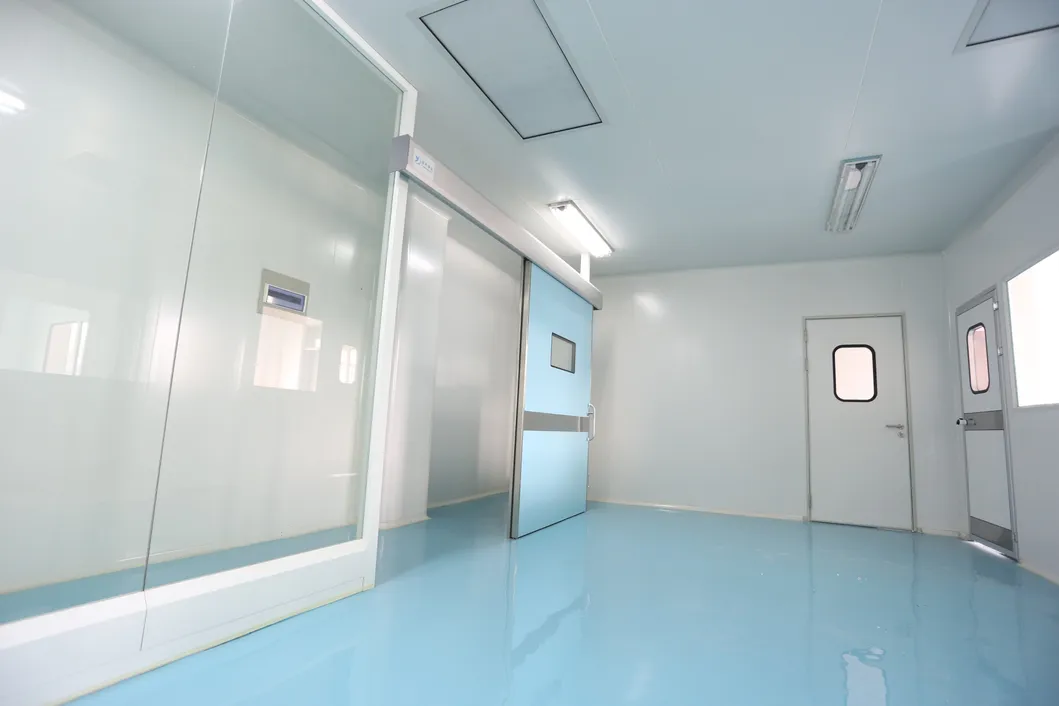

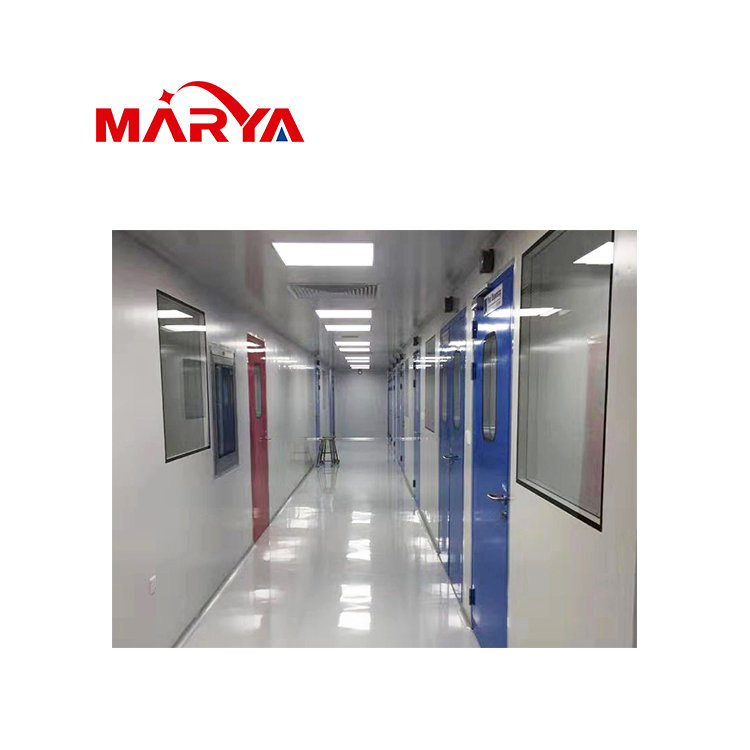

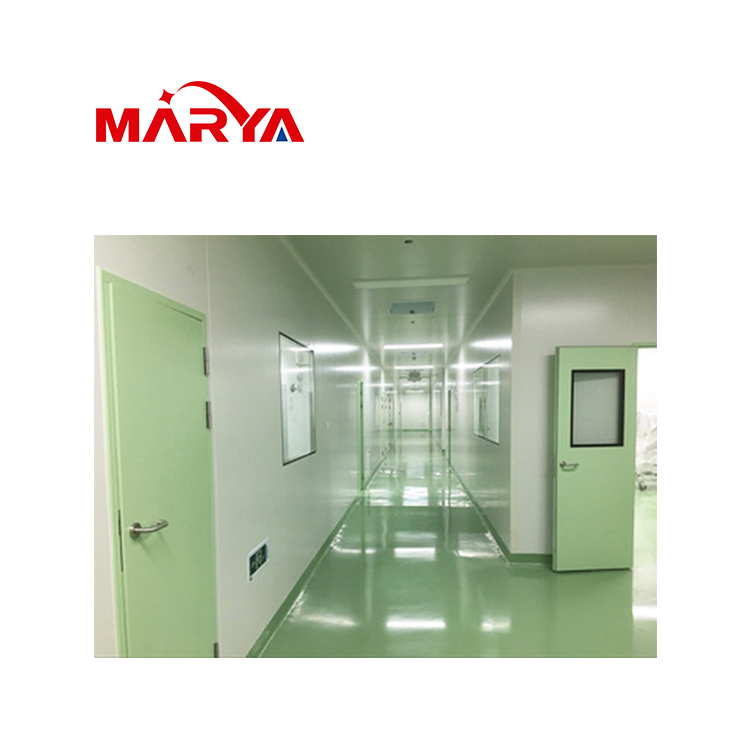

🏗️ Innovative Cleanroom Solutions
We are a leading provider of cleanroom systems, offering a comprehensive range of services. We specialize in consulting, designing, and constructing cleanrooms. Our expertise extends to research and development, manufacturing, and transportation of top-quality cleanroom materials and equipment. Our solutions are widely recognized in pharmaceuticals, aerospace, electronics, food processing, cosmetics, and medical operating rooms.
⭐ Engineering Advantages
- Adheres to Class 100-100000, ISO 5-8, and Class A-D standards, ensuring compliance with GMP, FDA, and WHO regulations.
- Modular design for swift installation and time efficiency.
- CE-certified construction materials guarantee quality and reliability.
- Precise control over temperature, humidity, pressure differentials, and airborne particles.
- Skilled design team with 20 years of experience in cleanroom environments.
- Self-owned material production plant for customized services and prompt responsiveness.

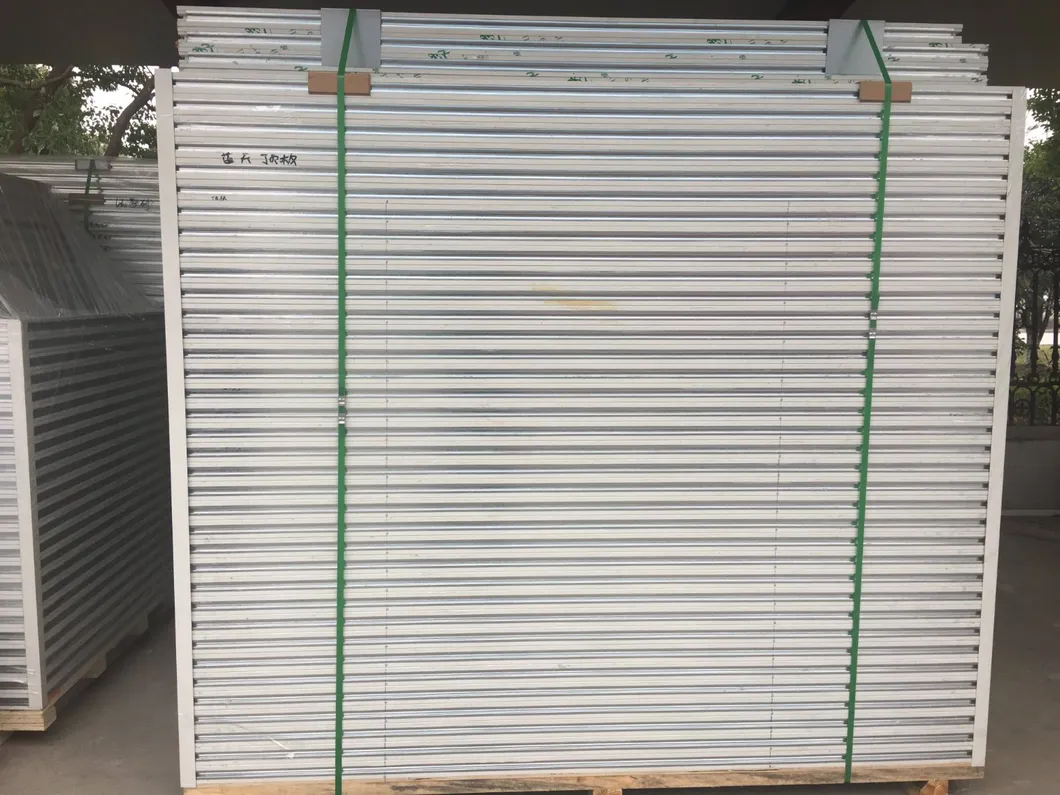

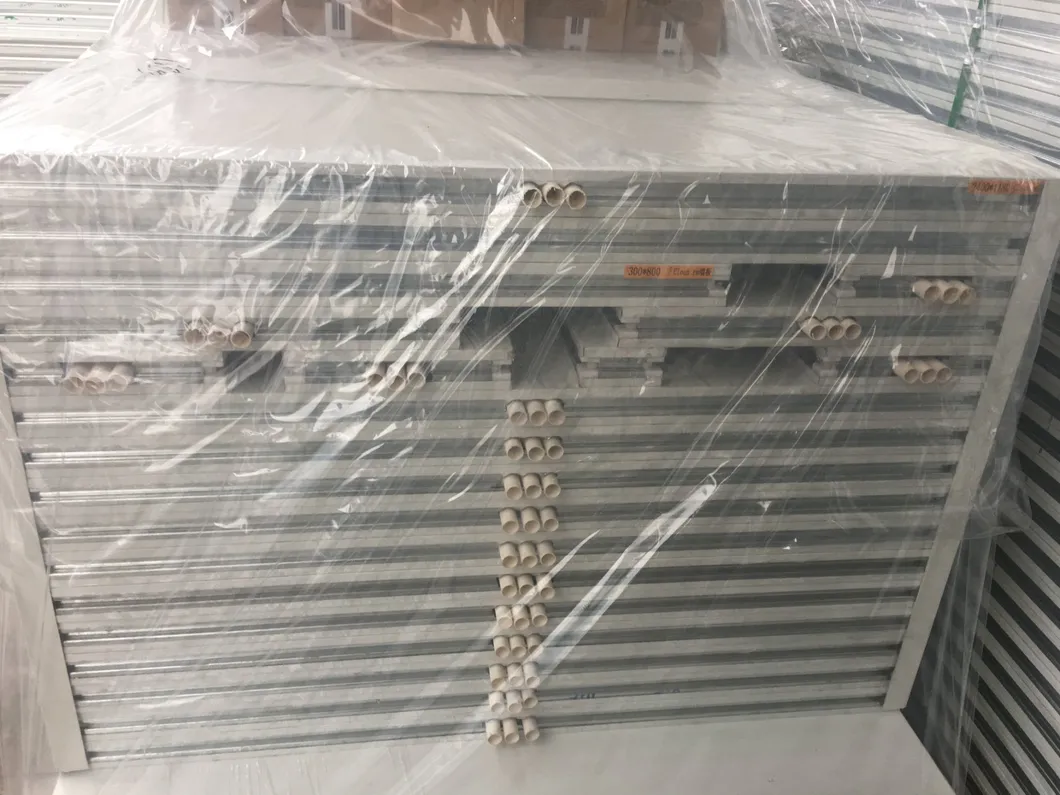

🧱 Wall & Ceiling Sandwich Panels
Our wall and ceiling systems offer exceptional strength and resistance to chemicals, abrasion, and impact. Panels are equipped with steel frames on all four sides to prevent contamination.
- Advanced design ensures seamless, flush connections for easy cleaning.
- Robust walkable ceiling structures capable of supporting significant weight.
- Customizable finishing surfaces for a professional aesthetic.
| Feature |
Specifications |
| Effective Width | Wall: 950/1150mm; Ceiling: 950mm |
| Length | Customized (less than 7500mm) |
| Core Materials | PU / Rock Wool / Glass Magnesium |
| Steel Thickness | 0.3mm - 0.8mm |
| Rock Wool Density | 40kg/m³ - 120kg/m³ |
| Character | Fireproof, heat insulation, soundproof, eco-friendly |

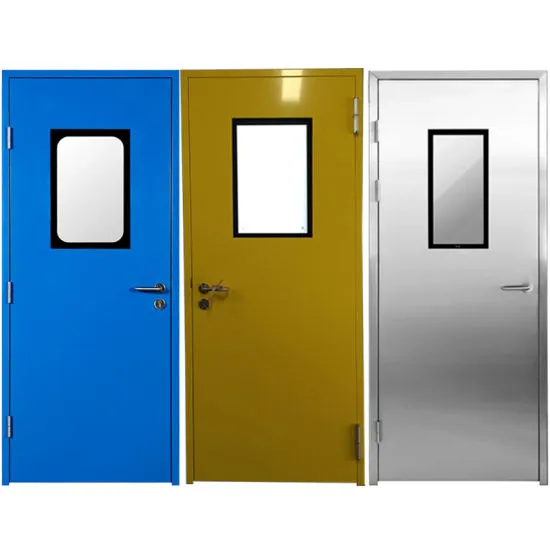

🚪 Cleanroom Doors
- Alu frame panel doors
- Flush-type steel skin doors
- Stainless steel doors
- Auto sliding doors

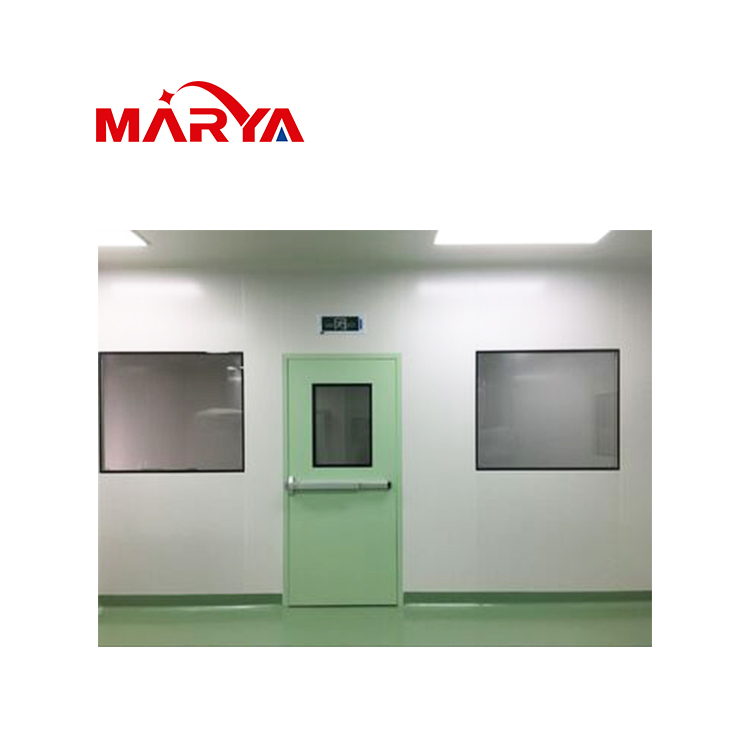

- Emergency exit doors
| Component | Material / Specification |
|---|
| Door Frame | Galvanized steel T1.2mm |
| Door Plate | Galvanized steel T1.0mm |
| Infill | Rock wool, PU, Honeycomb, Fireproof perlite |
| View Window | 5mm tempered double-layer insulating glass |
| Drop Seal | Automatic elevation type |

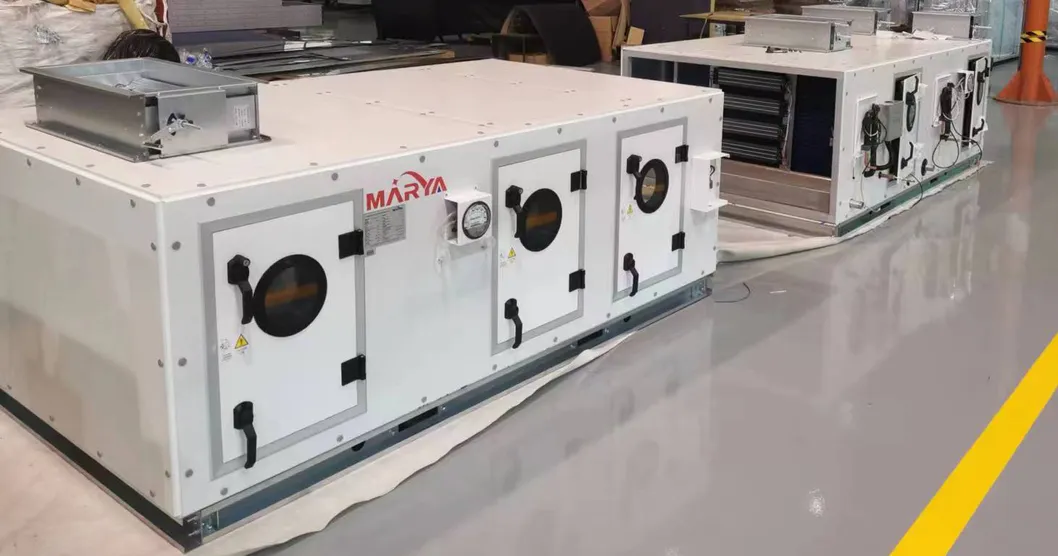

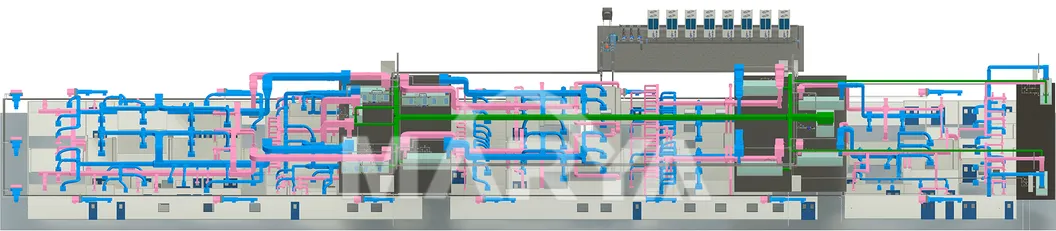

❄️ Cleanroom HVAC System
Designed according to ISO14644-1 and CFR209E standards. Systems include:
- Air cooling and Water cooling chillers.
- Air Handling Units (AHU) with chilled/cooling water systems.
- High-efficiency HEPA filter boxes and air supply ducts.
- Integrated humidifiers or dehumidifiers for precise climate control.
⚙️ Accessory Equipment

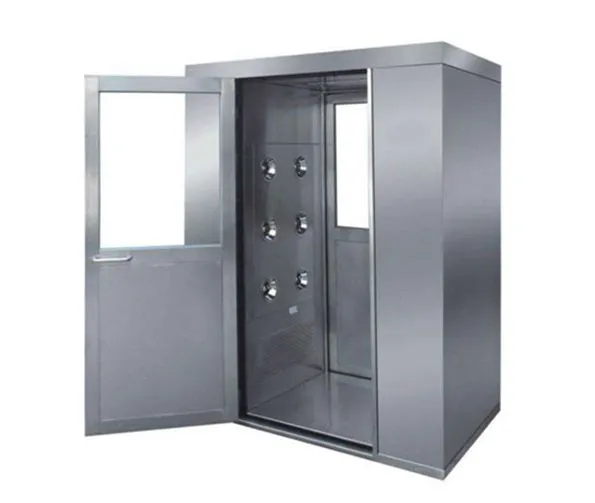

Air Shower Advantages:
- Automatic control with electronic interlocking.
- Infrared induction automatic blowing.
- LED display with adjustable blowing time (0-99s).
- Low noise involute duct design.

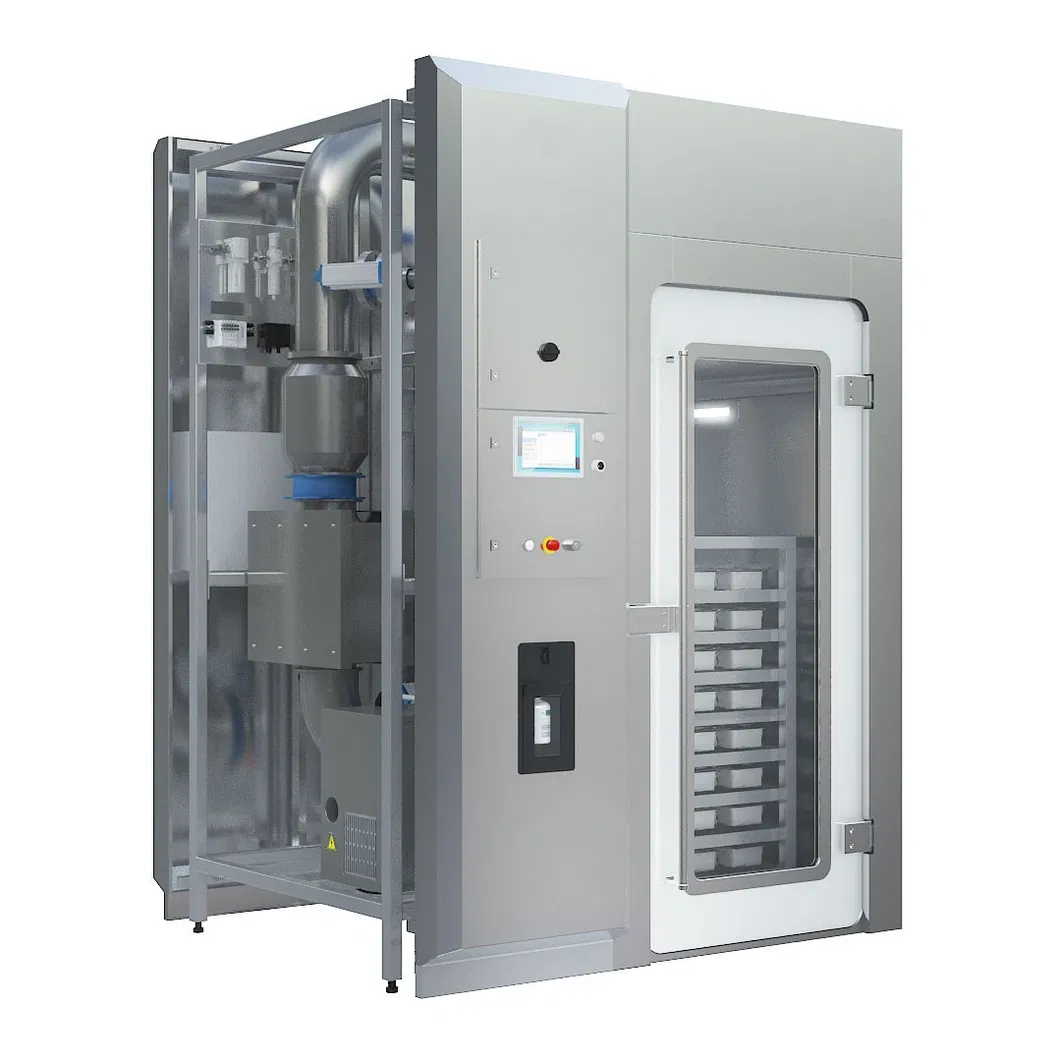

Pass Box Advantages:
- Mechanical or electronic interlock options.
- Full 304 stainless steel construction.
- Four-corner arc design for easy cleaning.
- Dynamic passbox with PAO inspection port.
🏢 Workshop & Certificates

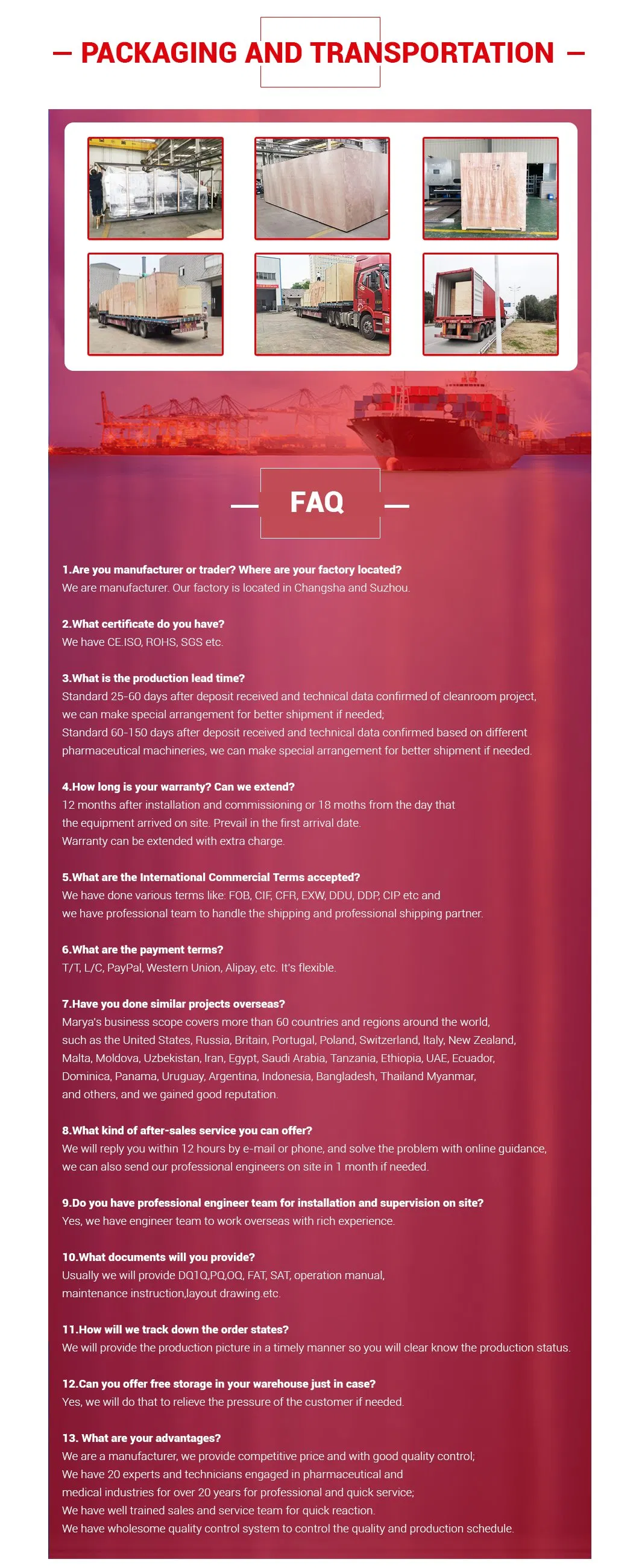

📦 Packaging & Shipping
❓ Frequently Asked Questions
What cleanliness standards do your cleanrooms meet?
Our cleanroom solutions comply with international standards including Class 100-100000, ISO 5-8, and Class A-D, meeting GMP, FDA, and WHO requirements.
What core materials are available for the sandwich panels?

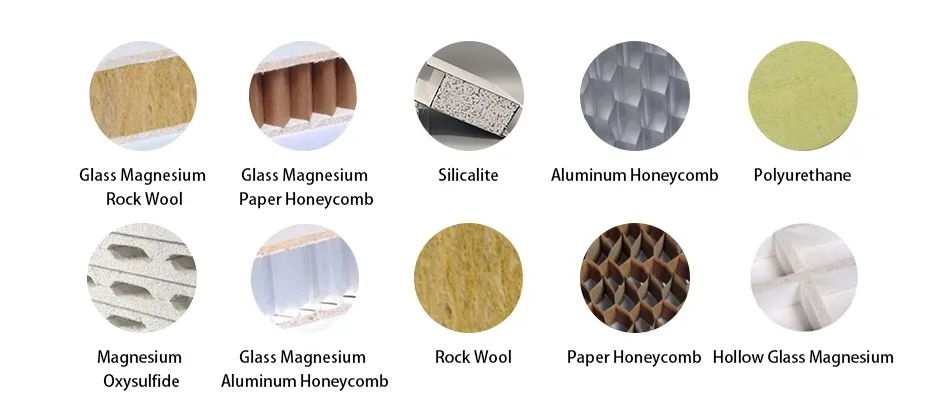

We offer a variety of core materials including PU (Polyurethane), Rock Wool, Glass Magnesium, Aluminum Honeycomb, and Paper Honeycomb based on your specific fire rating and insulation needs.
Can the cleanroom design be customized for specific industries?
Yes, we specialize in tailored designs for various sectors such as pharmaceuticals, electronics, aerospace, food processing, and medical operating rooms.
What are the advantages of your modular cleanroom design?
The modular design allows for rapid installation, flexibility in layout adjustments, and ensures all components are CE-certified for high-standard performance.
Do you provide international installation support?
Yes, we have a team of highly experienced installation engineers who can be deployed internationally to ensure seamless setup and validation.
How do you ensure the air quality within the cleanroom?
We utilize advanced HVAC systems integrated with HEPA filtration, precise pressure differential controls, and high-efficiency air showers to maintain strict cleanliness levels.
