1 Basic Information
Efficiency
U16, U15, H14, H13
Filtration Grade
HEPA/ULPA
Average Air Speed
About 0.45 M/S
Box Material
Aluminium-Zinc Alloy/Stainless Steel
Motor Type
Brushless DC Permanent Magnet Motor
Power Supply
AC 1 pH, 200-240V, 50/60Hz
2 Product Overview

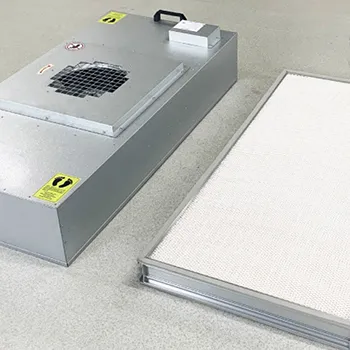

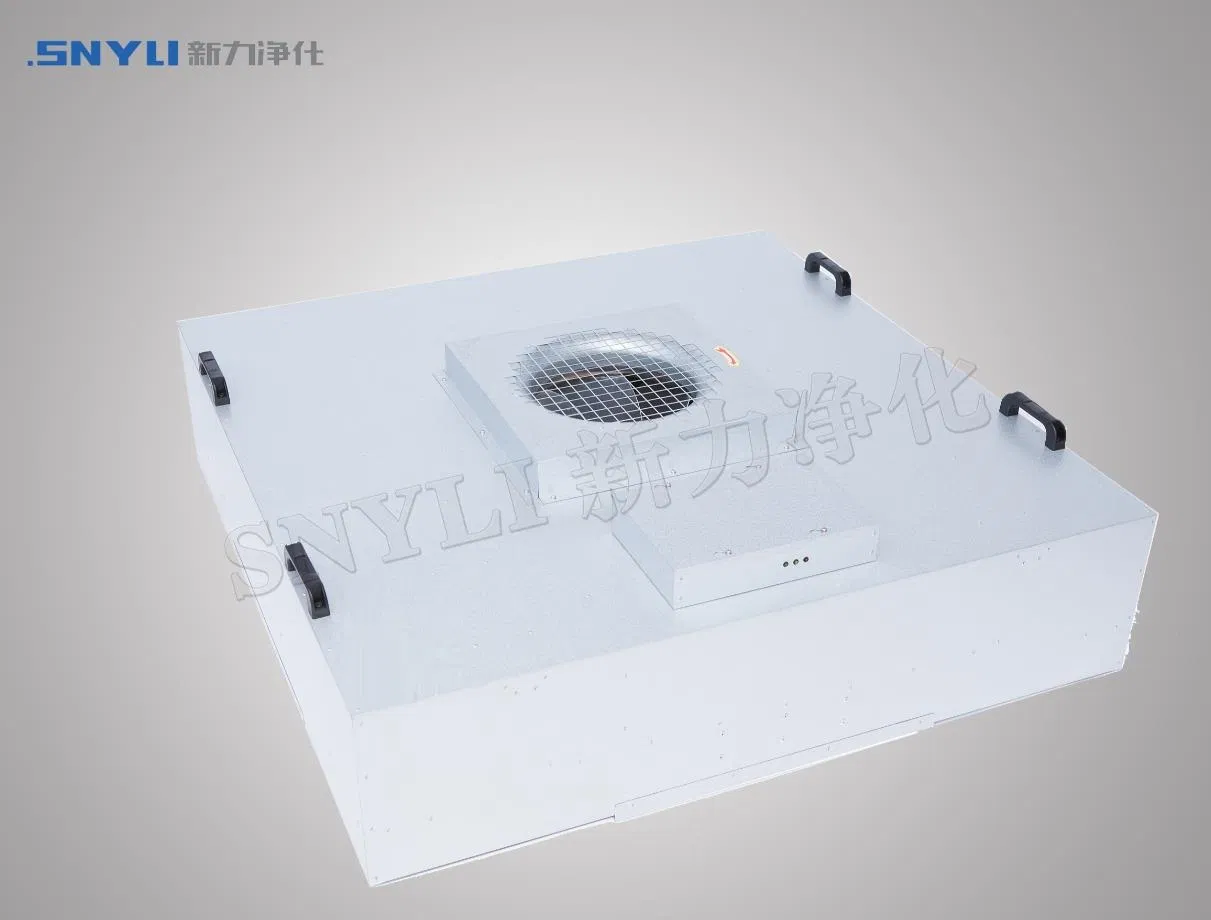

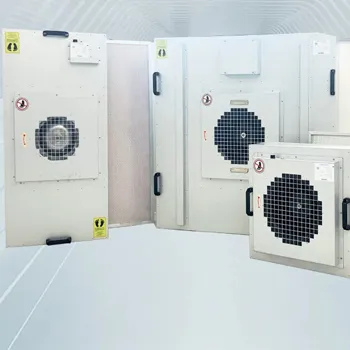

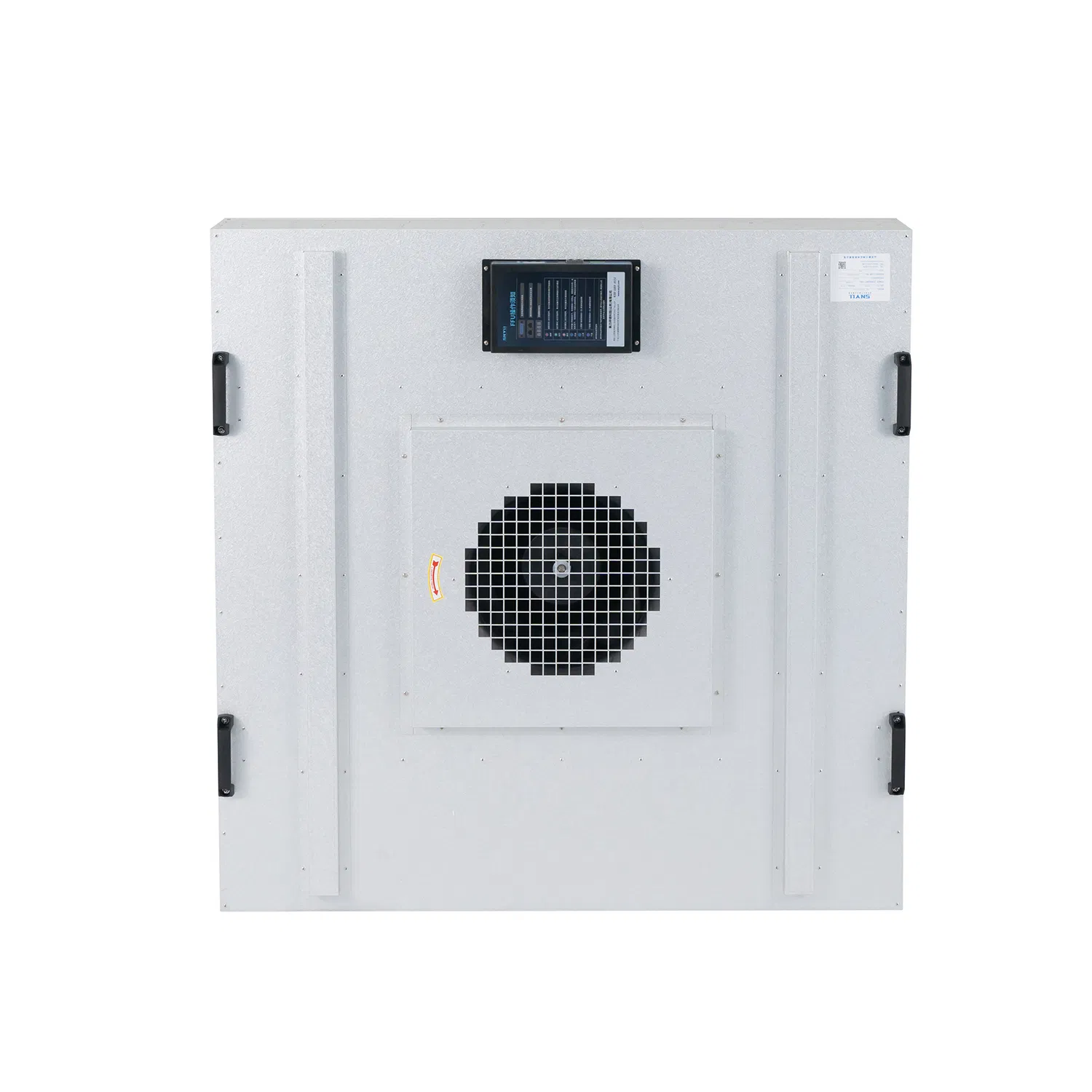

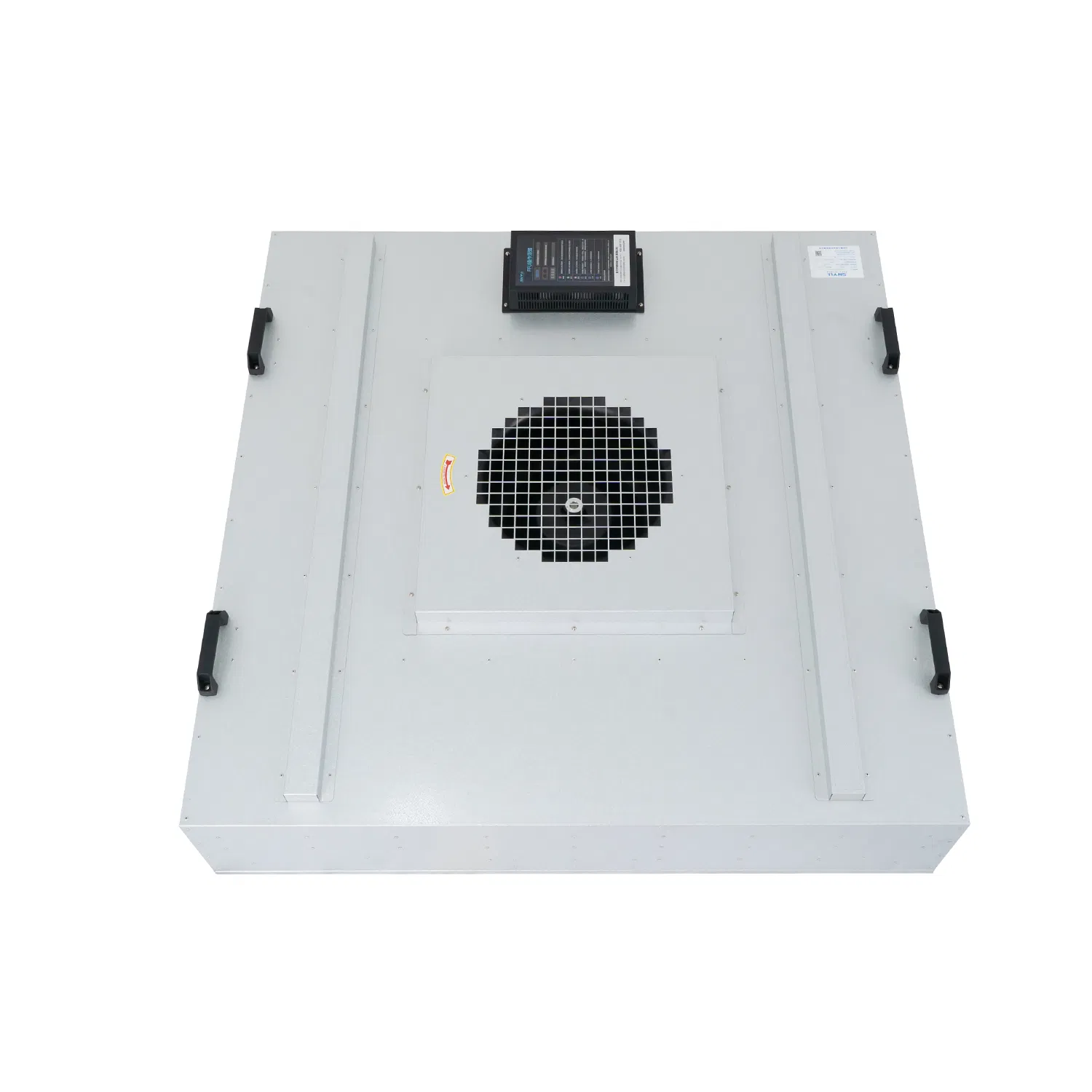

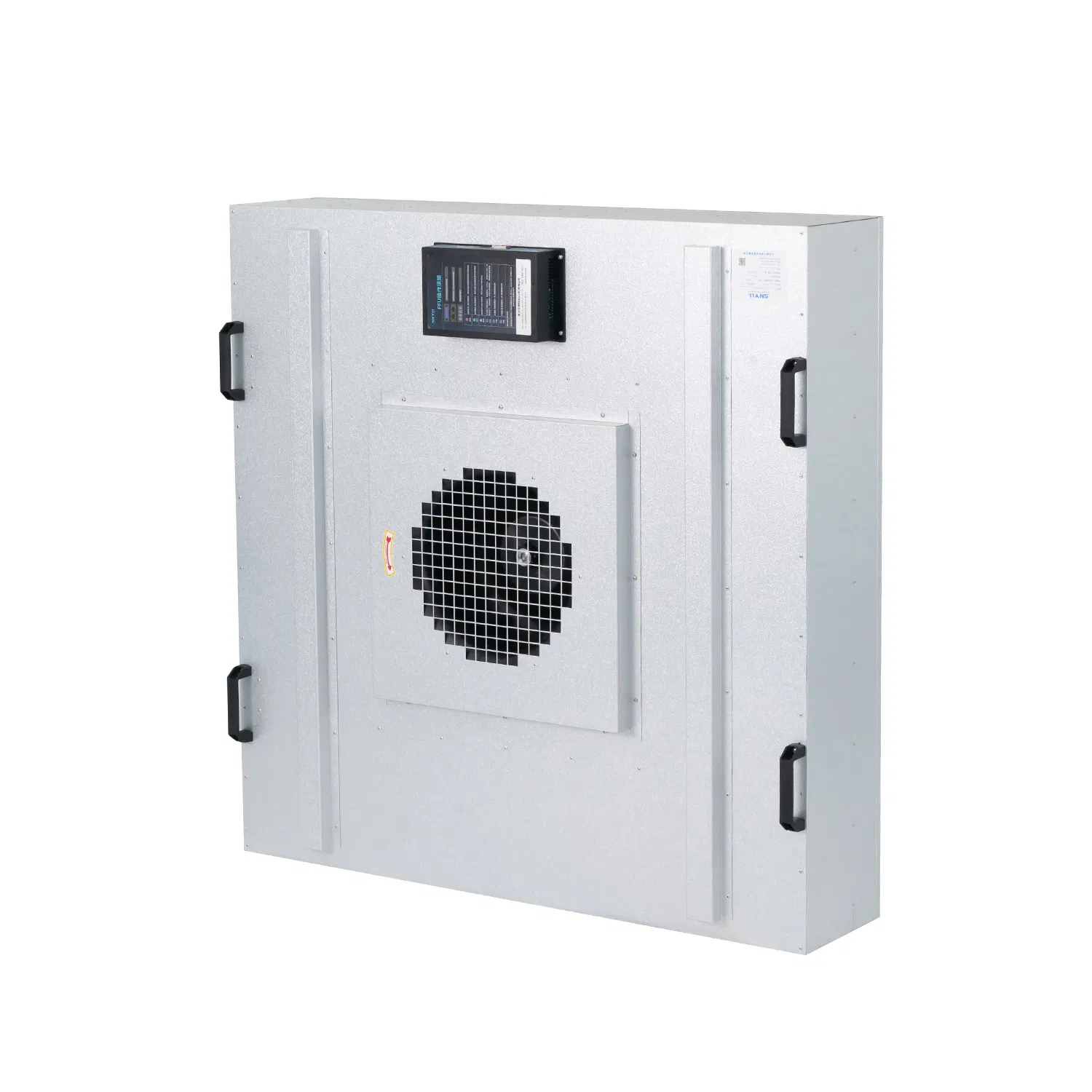

Laminar Flow Hood Air Filter Fan Unit (FFU) is a modular terminal air supply device combining a fan and high-efficiency filtration. It is designed for industrial clean rooms, microelectronics, and pharmaceutical manufacturing. The unit inhales air from the top and filters it through a HEPA or ULPA filter, delivering clean air at a uniform speed of 0.45m/s±20%.
The DC Fan Filter Unit is optimized for stability and energy efficiency. Utilizing advanced brushless motor technology, these units can save approximately 12% more electricity compared to standard market products.
| Specification |
Model SL-30CDCZPN1 |
Model SL-15CDCZPN1 |
| Exterior Size | 1174x1174x300mm | 574x1174x265mm |
| Filter Size | 1170x1170x70mm | 570x1170x70mm |
| Efficiency | HEPA/ULPA | HEPA/ULPA |
| Motor Efficiency | ≥88% | ≥88% |
| Noise Test | 1.5M under filter screen | 1.5M under filter screen |
| Box Structure | Full disassembly simple maintenance | Full disassembly simple maintenance |

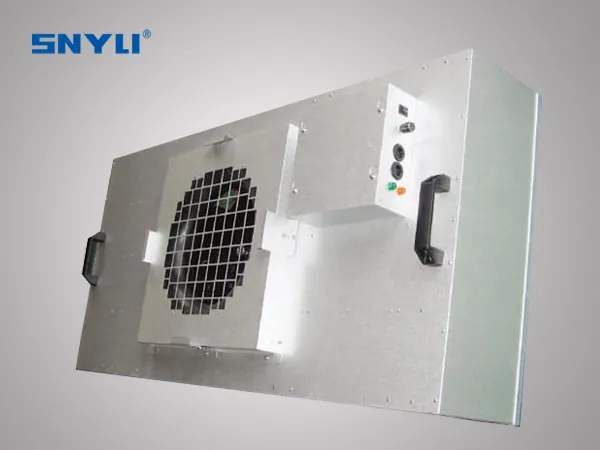

3 Key Features
- Industry leading Brushless DC permanent magnet motor with sine wave vector control.
- Zero speed start full closed-loop control for maximum reliability.
- Low standby power consumption (< 1.2W) and high overall efficiency.
- Integrated PFC function for higher power factor and lower harmonic current.
- Complete protection: over-voltage, over-current, short circuit, and over-temperature.
- Smooth operation with low noise and minimal vibration.

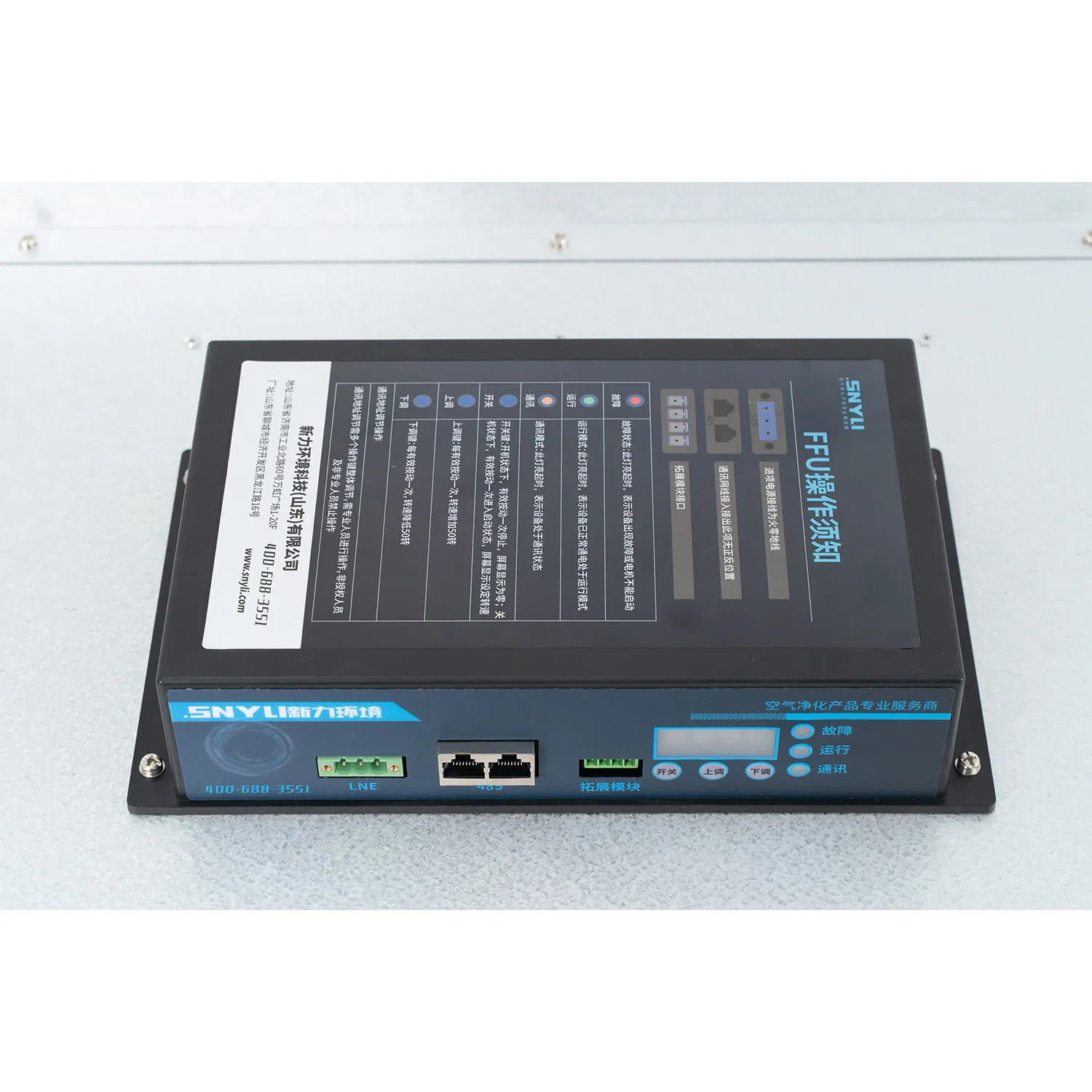

4 Group Control System

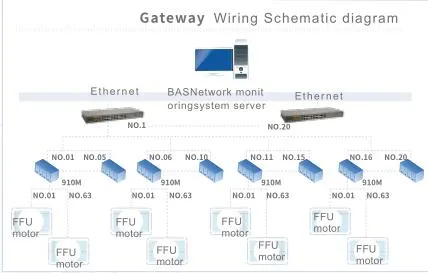

The intelligent monitoring system allows for large-scale management. A single host can connect with up to 63 FFU units via Modbus-RS485 protocol.
Intelligent Management: The software interface provides intuitive visual feedback on FFU status. Features include regional independent control, timing schedules for energy saving, and automatic grouping with delay-start to prevent power surges in large-scale installations.

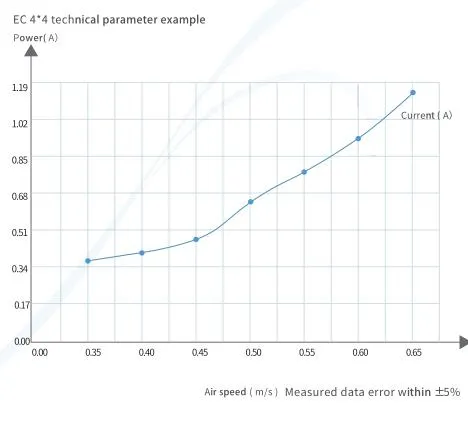

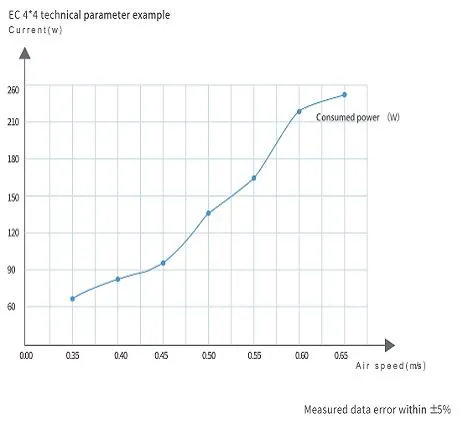

5 Performance Curves

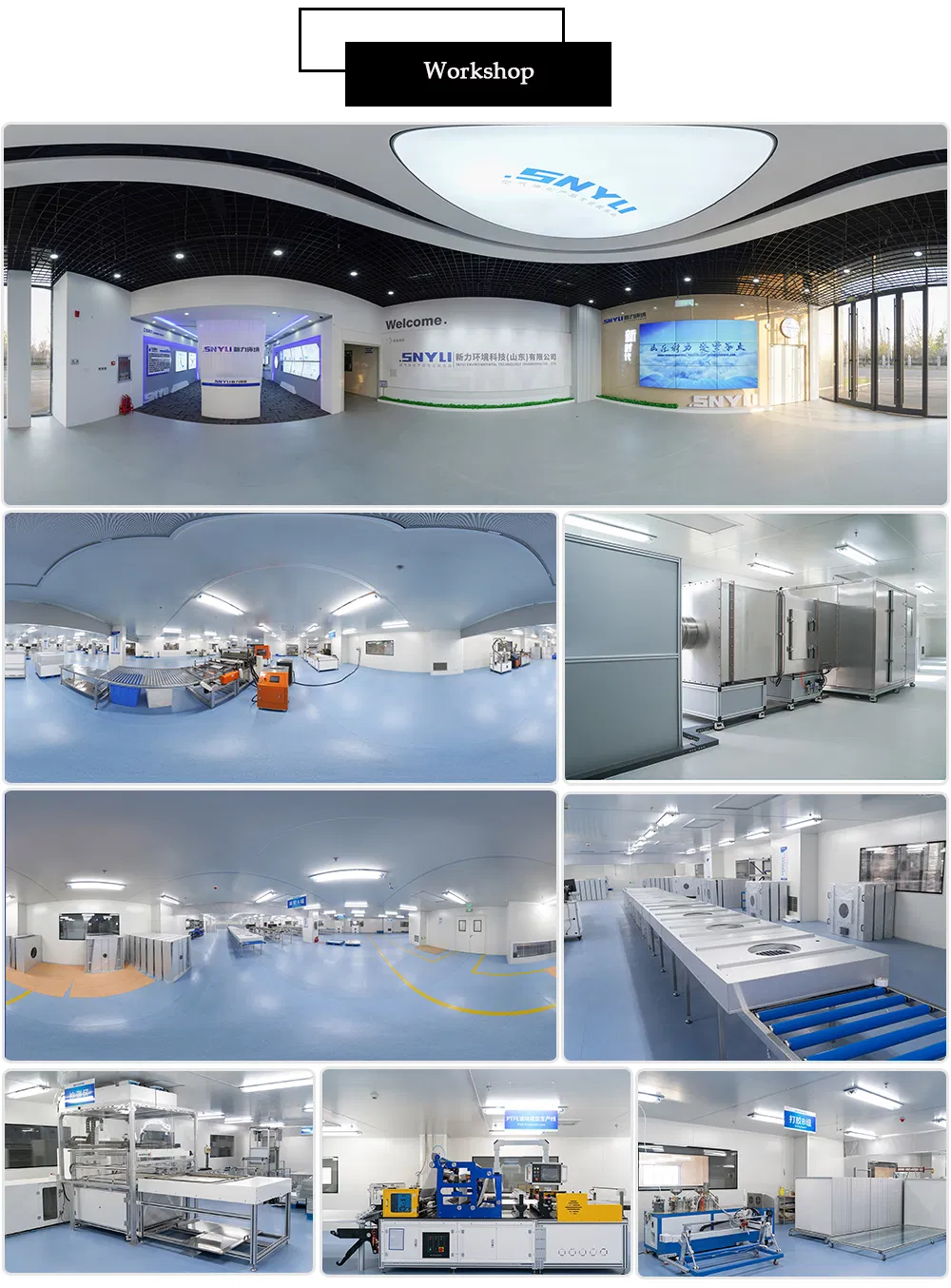

6 Quality Assurance
Frequently Asked Questions
Q1: Where are Fan Filter Units (FFU) commonly used?
FFUs are widely used in HVAC systems, painting stations, chemical plants, pharmaceutical facilities, clean rooms, power stations, and heavy metal industries to ensure air purity.
Q2: What are the international standards for air filters?
European standards include Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14), and ULPA (U15-U17). American standards range from MERV5 to MERV20.
Q3: What makes DC FFU units better than AC versions?
DC units offer more stable voltage, higher durability, and significantly lower power consumption. Our units save approximately 12% more electricity compared to standard versions.
Q4: What are the primary testing criteria for your products?
Products are tested and manufactured according to EN779:2012 and ISO9001 standards to ensure high performance and air quality control.
Q5: Can the FFU system be integrated with other sensors?
Yes, the FFU control system can be connected with temperature and humidity sensors. The fan speed can automatically adjust based on pressure difference changes.
Q6: What is the standby power consumption of these units?
The units feature a low standby power loss of less than 1.2W, contributing to long-term energy savings in large clean room environments.
