Industrial Integrated HVAC System for High Ceiling Factory and Workshop

1 / 5

Industrial Integrated HVAC System for High Ceiling Factory and Workshop

Customization:	Available
Type:	Cabinet Air Conditioner
Air Tube Material:	Galvanized Sheet

Send Inquiry

Product Description

Basic Specifications

Model NO.AirTS-C72

Operating Voltage380/400 VAC

Application FieldsMechanical Engineering

MountingFloor Standing

Lifetime>20 years

CertificationISO, CE

FunctionCooling, Heating

Cold/Heat SourceR410A

Control ModeWireless, Variable Frequency

Package Size195cm * 215cm * 244cm

Gross Weight436.000kg

OriginChina

✓

Product Description

Working Principle

The VRF air conditioners, also known as "one-to-many," is a system where one outdoor unit is connected to several indoor units. Each indoor unit can operate independently or be controlled together. The system utilizes outdoor heat exchangers, compressors, and direct cooling elements. Using pipes, the outdoor unit supplies cooling liquid to multiple indoor units, controlling refrigerant circulation to meet specific cooling and heating needs.

The indoor temperature sensor controls the valve on the indoor unit's cooling pipe. By adjusting the pressure, the system controls the outdoor unit's compressor speed to adjust capacity according to the load.

Key Features

Significant energy savings: Automatically adjusts compressor speed and refrigerant flow for maximum efficiency.
Space-saving design: Outdoor units are typically installed on roofs, saving building interior space.
Easy installation: Simple setup compared to centralized water systems, ensuring reliable operation.
Versatile Requirements: Can simultaneously cool one area and heat another, meeting diverse climate needs.

Technical Parameters

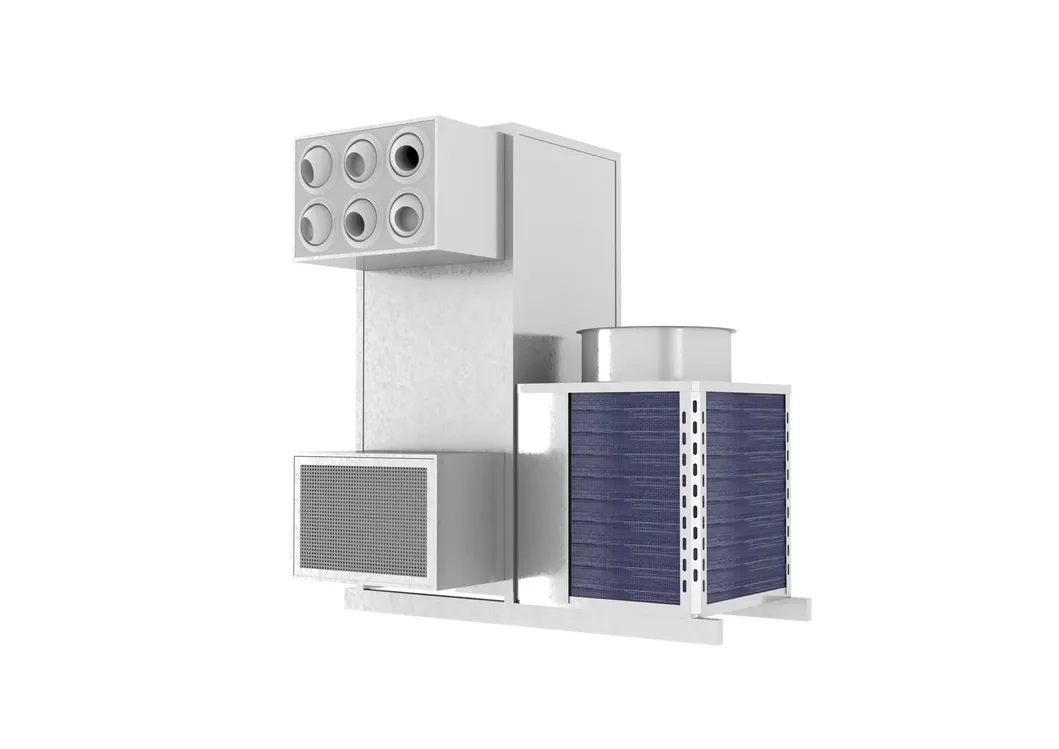

Direct Expansion Side Mounted Jet-flow Air Conditioning Unit
Model	-	AirTS-C72
Standard circulating air volume	m3/h	12000
Nominal cooling capacity (indoor 27ºC /outdoor 35ºC)	kW	72
Nominal heating capacity (indoor 20ºC /outdoor 7ºC)	kW	68
Nominal cooling input power	kW	21.00
Nominal heating input power	kW	19.00
Power supply (3phase, 5 wires)	-	3N~380V 50Hz
Maximum fuse ampere (MFA)	A	85
Minimum circuit ampere (MCA)	A	82
Refrigerant	-	R410A
Applicable distance of lateral air supply	m	<30
Control mode	-	VAV stepless regulation
Noise level outside	dB	<74

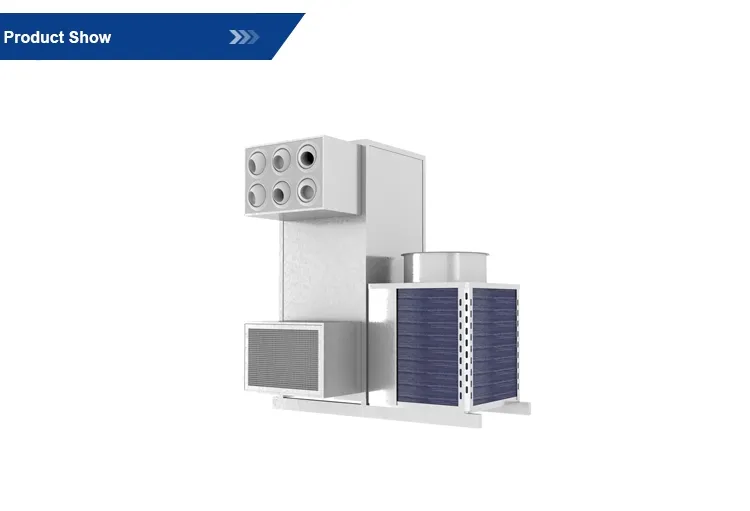

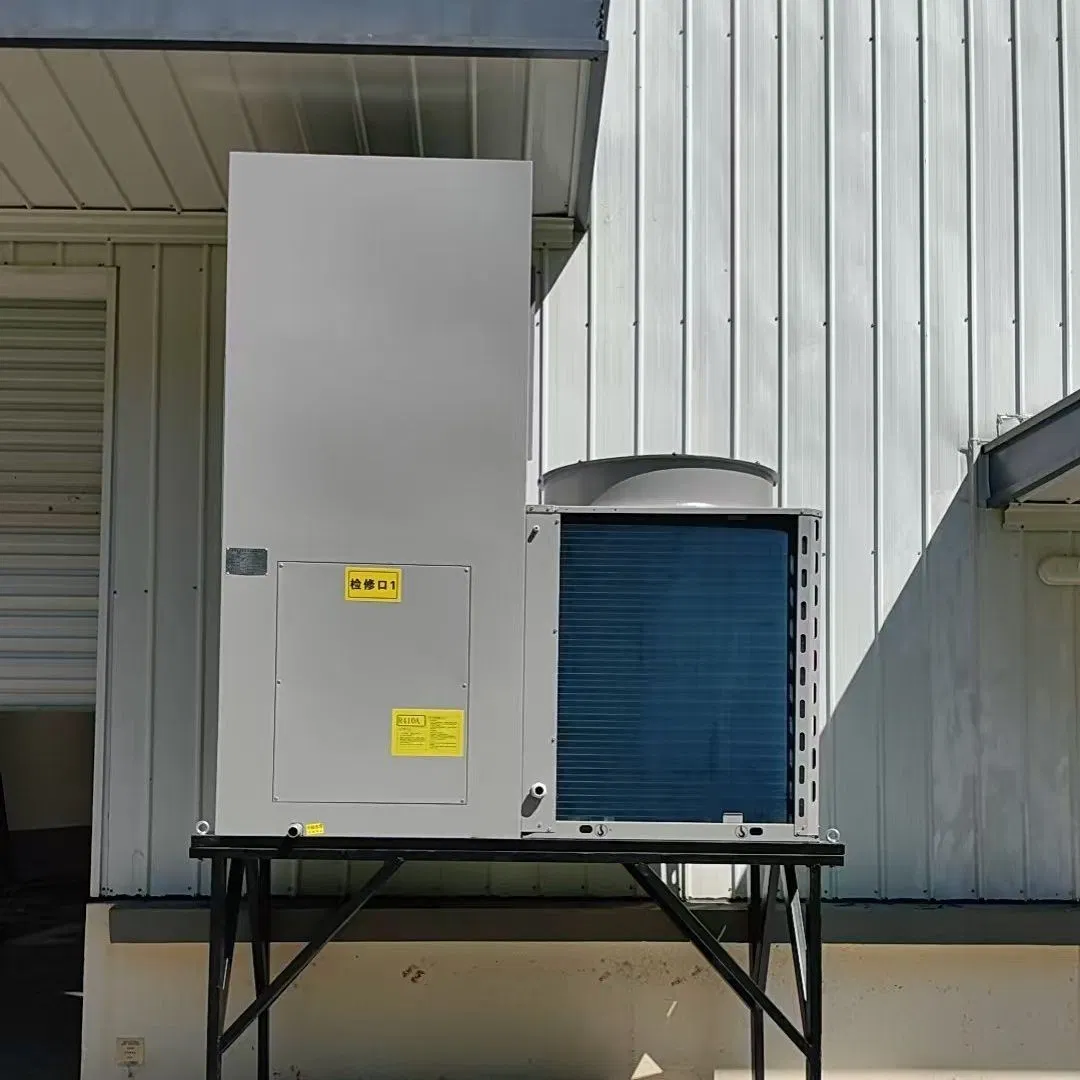

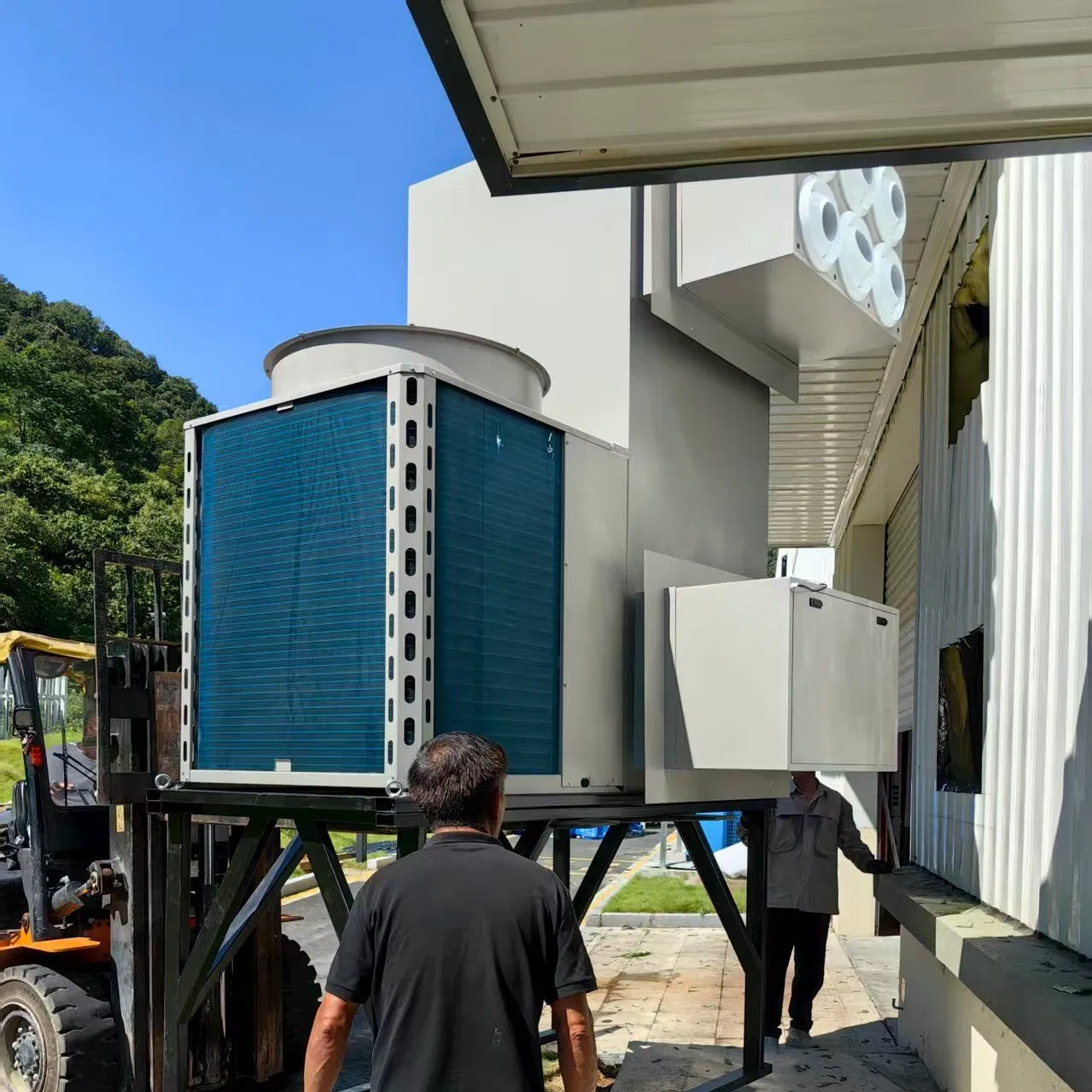

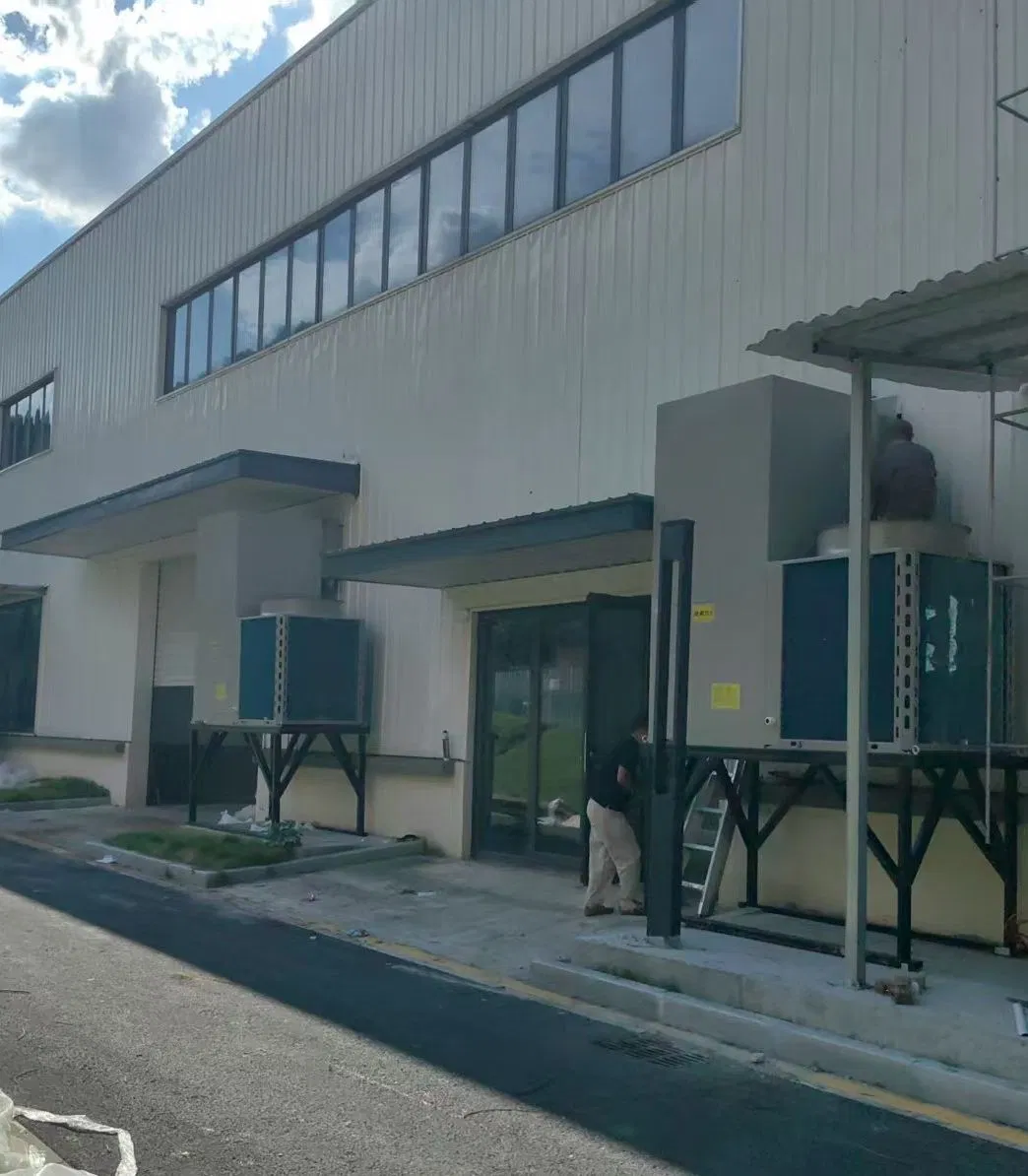

Product Showcase

Frequently Asked Questions

How does the VRF system achieve energy savings?

The system automatically adjusts the compressor speed and refrigerant flow based on the actual load, reducing energy consumption during lighter use and lowering overall operating costs.

Is this system suitable for high-ceiling buildings?

Yes, these units are specifically designed for high and large spaces ranging from 4 to 30 meters in height, such as factories, workshops, and mechanical engineering facilities.

What functions are integrated into this HVAC system?

The system provides comprehensive solutions including heating, cooling, ventilation, humidification, dehumidification, and dust removal.

How is the quality of the equipment guaranteed?

Quality is ensured through a strict process including a pre-production sample before mass production and a final inspection before every shipment.

What are the control options for the units?

The units support wireless control, variable frequency operation, and auto-monitoring with VAV stepless regulation for precise climate management.
