Advanced Home Sewage Recycling Filtration System for Clean Water

Customization:	Available
Type:	Integrated Containerized UF Plant
Method:	Biological Treatment

Send Inquiry

Product Description

Basic Specifications

Model NO.

JHM-IUFP

Usage

Industrial, Home, Agriculture, Hospital

Certificates

ISO, SGS

Material

Pes, Pan, PVDF

Membrane Type

Hollow Fiber Membrane

Feature

High Efficiency

Capacity

50,000 PCS Per Month

Origin

China Mainland

Product Description

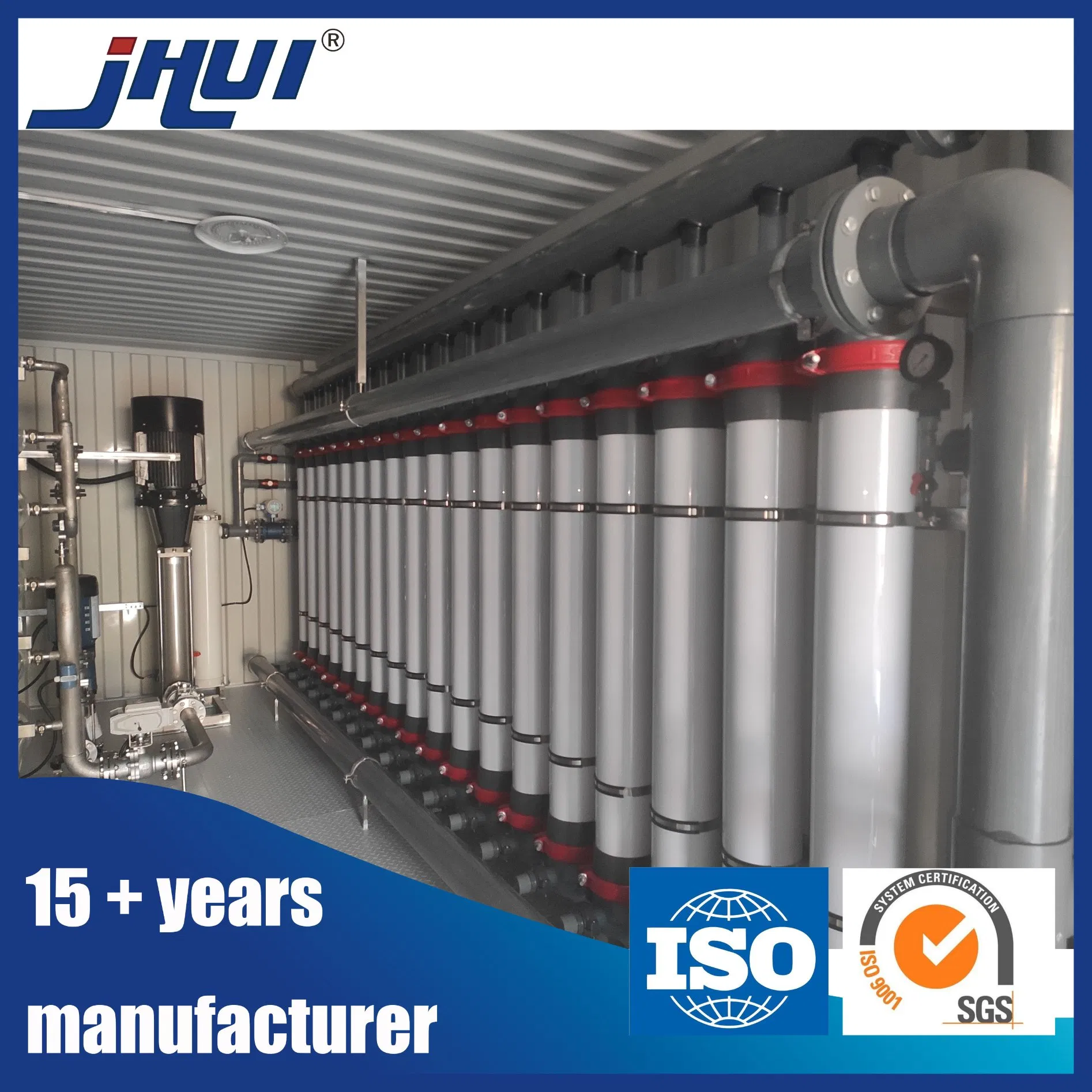

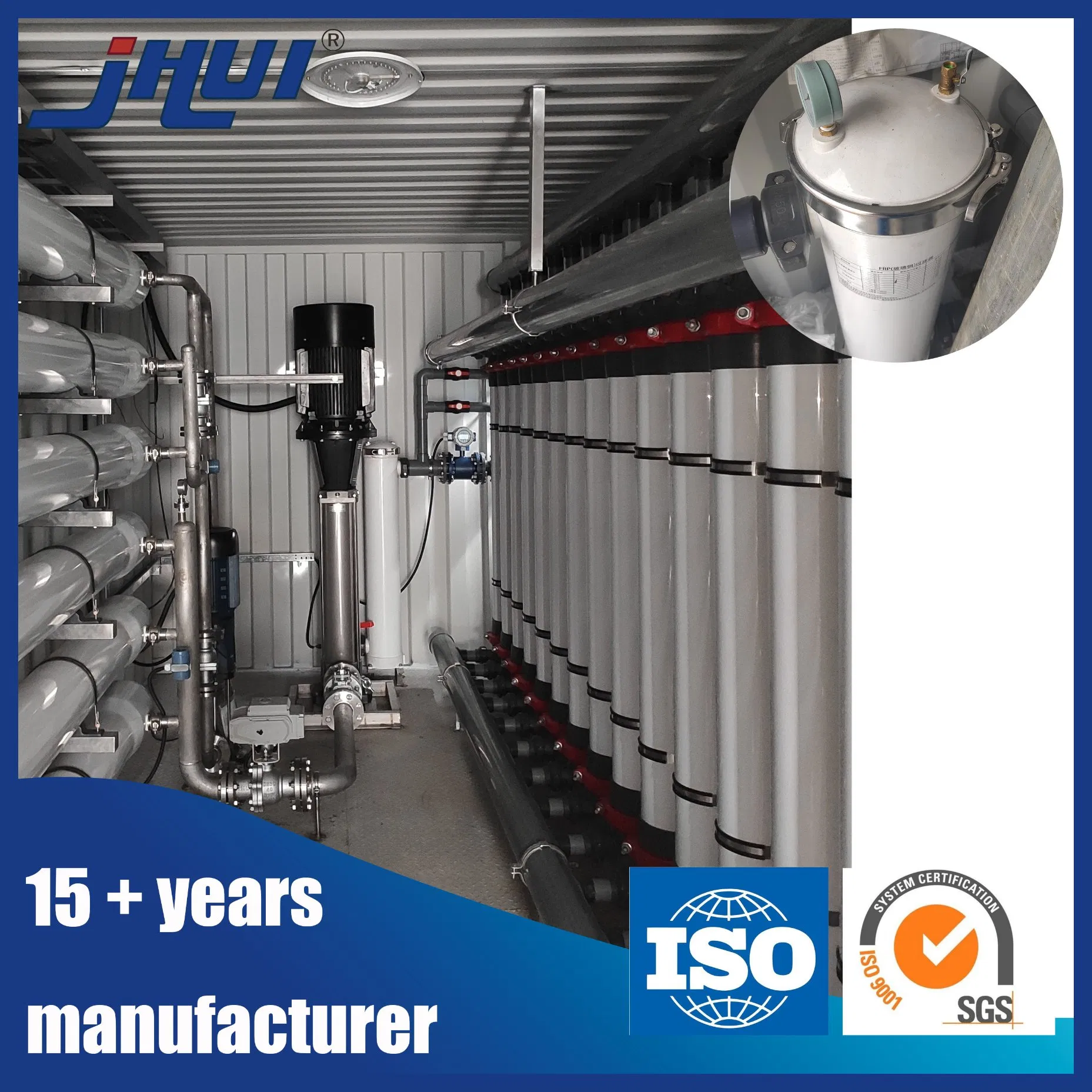

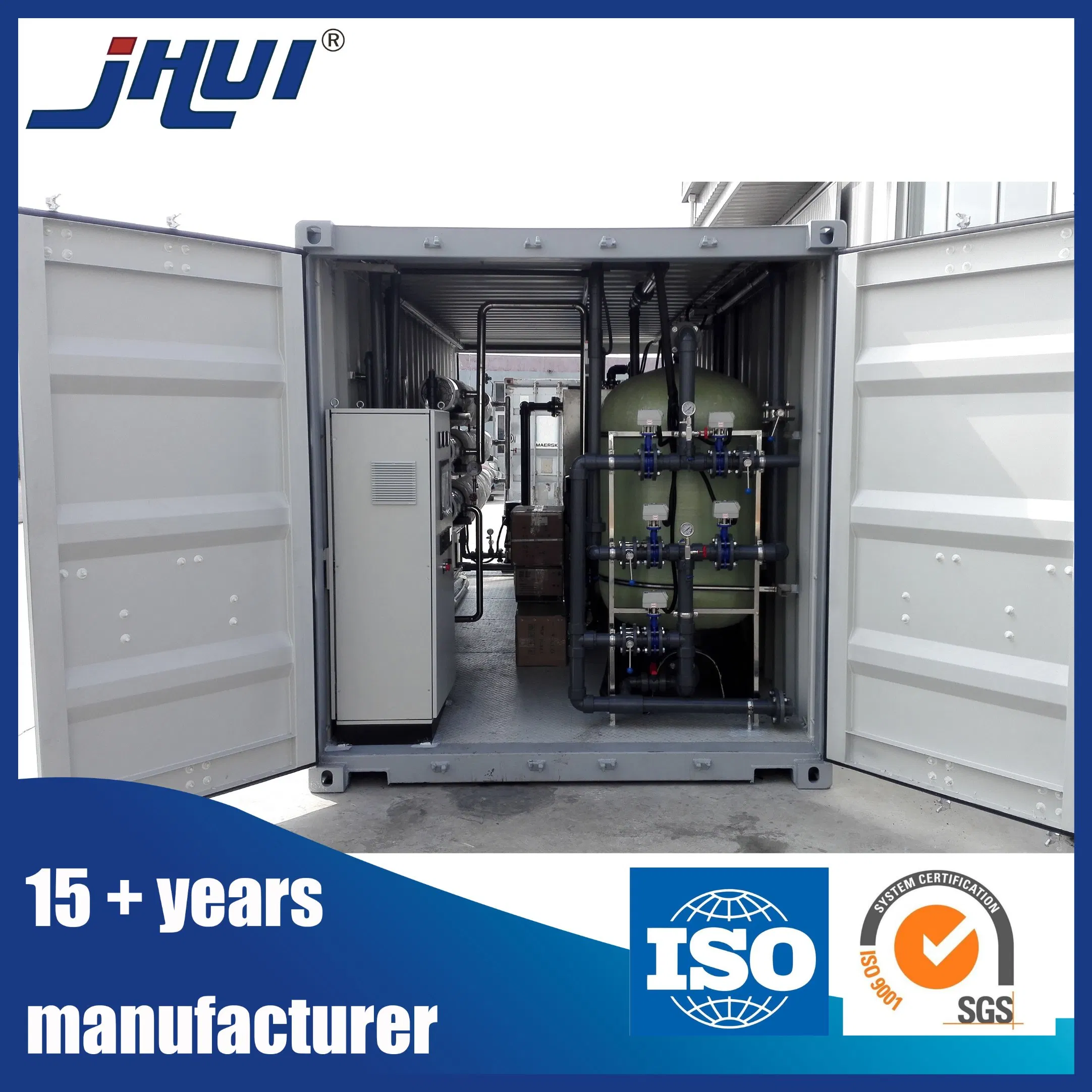

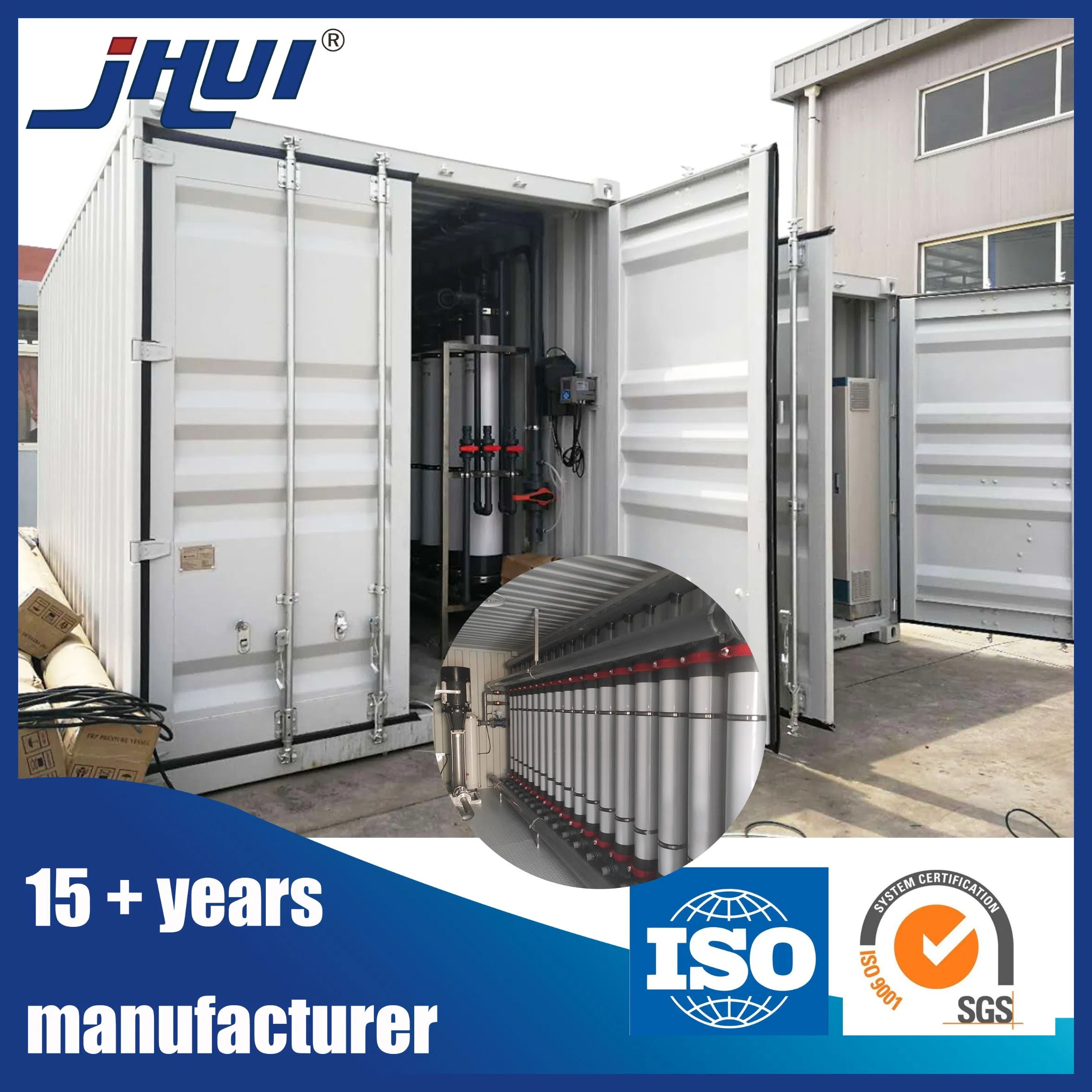

Container underground UF water treatment equipment UF system for home sewage water recycling

Integrated UF System Technology Introduction:

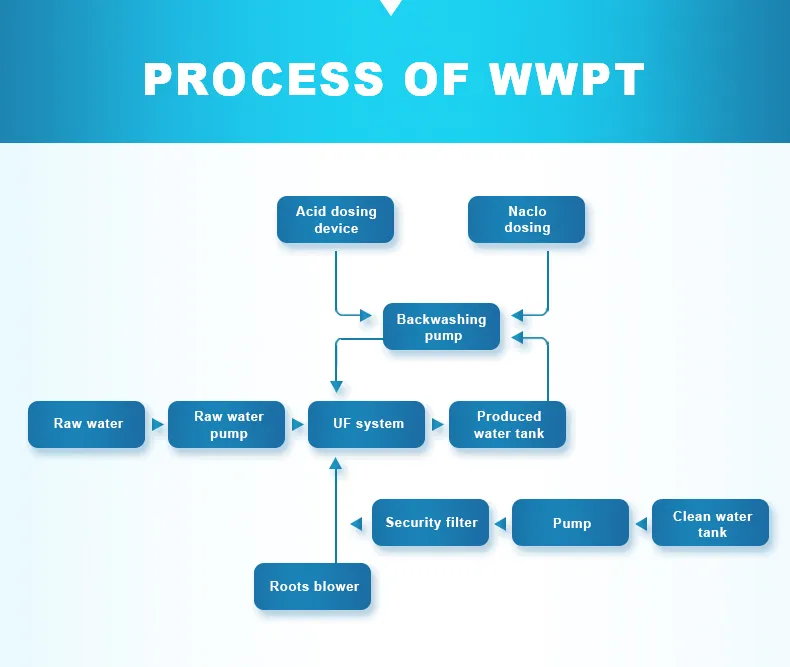

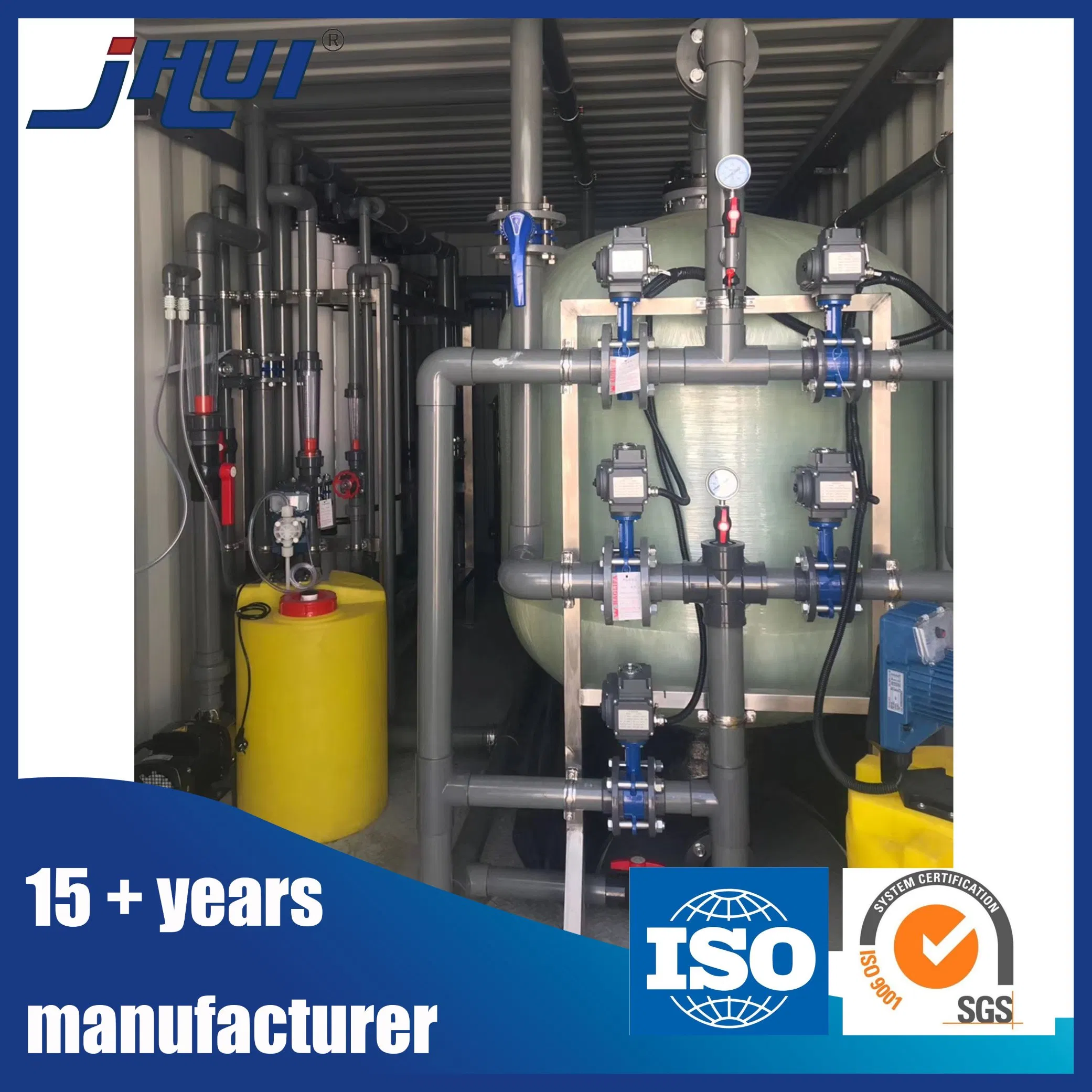

The integrated UF system utilizes Ultrafiltration (UF) as the core technology for water treatment. The assembly includes the UF device, roots blower, dosing system, cleaning device, and security filter. Depending on the raw water quality, pretreatment stages like quartz sand filters and activated carbon filters are utilized.

Sand Filter: Removes suspended solids, colloids, iron, organic matter, bacteria, and viruses.
Activated Carbon Filter: Specifically designed for removing peculiar smells and odors.
Security Filter: Prevents sand particles from entering the UF membrane to avoid pore blockage.

No.	Feed Water Quantity (TPH)	UF Membrane Module Spec.	Module Quantity (PCS)
1	10	UFaIA160	10
2	20	UFbIA160	20
3	36	UFaOA200	24
4	104	UFaIA225	52

Design & Technical Support:

We provide professional technical services to study and design the UF system based on specific requirements, ensuring the most efficient configuration for water treatment needs.

Wide Range of Applications

Food Industry: Process water and sewage treatment.

Beverage Industry: Production water and concentrated separation.

Pharmaceutical: Washing water and aseptic water preparation.

Chemical Industry: Wastewater treatment and water reuse.

Power Industry: Boiler recharge and cooling water.

Electronics: Semiconductor ultrapure water systems.

Petrochemicals: Oil field injection and deep wastewater treatment.

Desalination: Brackish water and seawater treatment for coastal areas.

Drinking Water: Purification and standard-raising engineering.

Main Product Range

UF ultrafiltration membrane & systems
MBR hollow fiber membrane & systems
Integrated equipment systems (AO, AAO, MBBR, etc.)
Reverse osmosis (RO) membrane & systems
Moving bed biofilm reactor (MBBR)
Disc and tube air diffusers

Frequently Asked Questions

1. What are the primary applications of the Integrated UF System?

The system is widely used for municipal wastewater, reclaimed water recycling, livestock farm wastewater treatment, and commercial building water reuse. It is also suitable for industrial processes in the food, beverage, and pharmaceutical sectors.

2. Which materials are used in your UF membranes?

Our hollow fiber membranes are manufactured using high-quality materials including Pes, Pan, and PVDF to ensure durability and filtration efficiency.

3. Can the UF system be customized for specific water quantities?

Yes, we provide fully customized solutions. Our technical department designs UF systems based on your specific feed water quantity (e.g., 10TPH, 20TPH, 100TPH+) and quality requirements.

4. What is the role of the pretreatment filters in the UF plant?

Pretreatment includes sand filters to remove suspended solids/bacteria and activated carbon filters to remove odors. This protects the UF membrane from clogging and extends its service life.

5. What certifications do your water treatment products hold?

Our production processes and products are certified under ISO 9001:2000 quality management systems and have passed SGS certification.

6. What is the production capacity for these membrane modules?

We have a large-scale manufacturing base with a production capacity of approximately 50,000 PCS per month for hollow fiber membranes.
