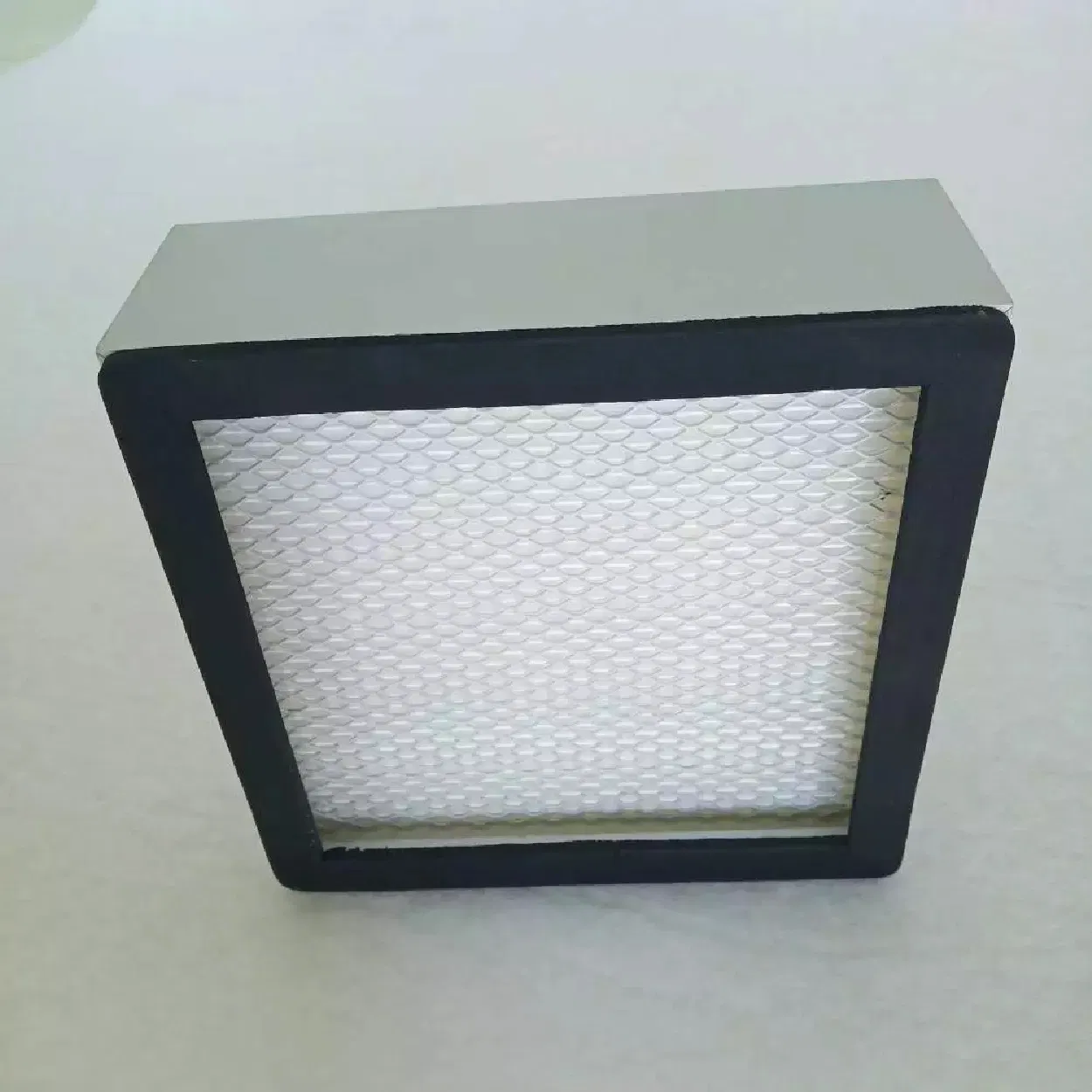

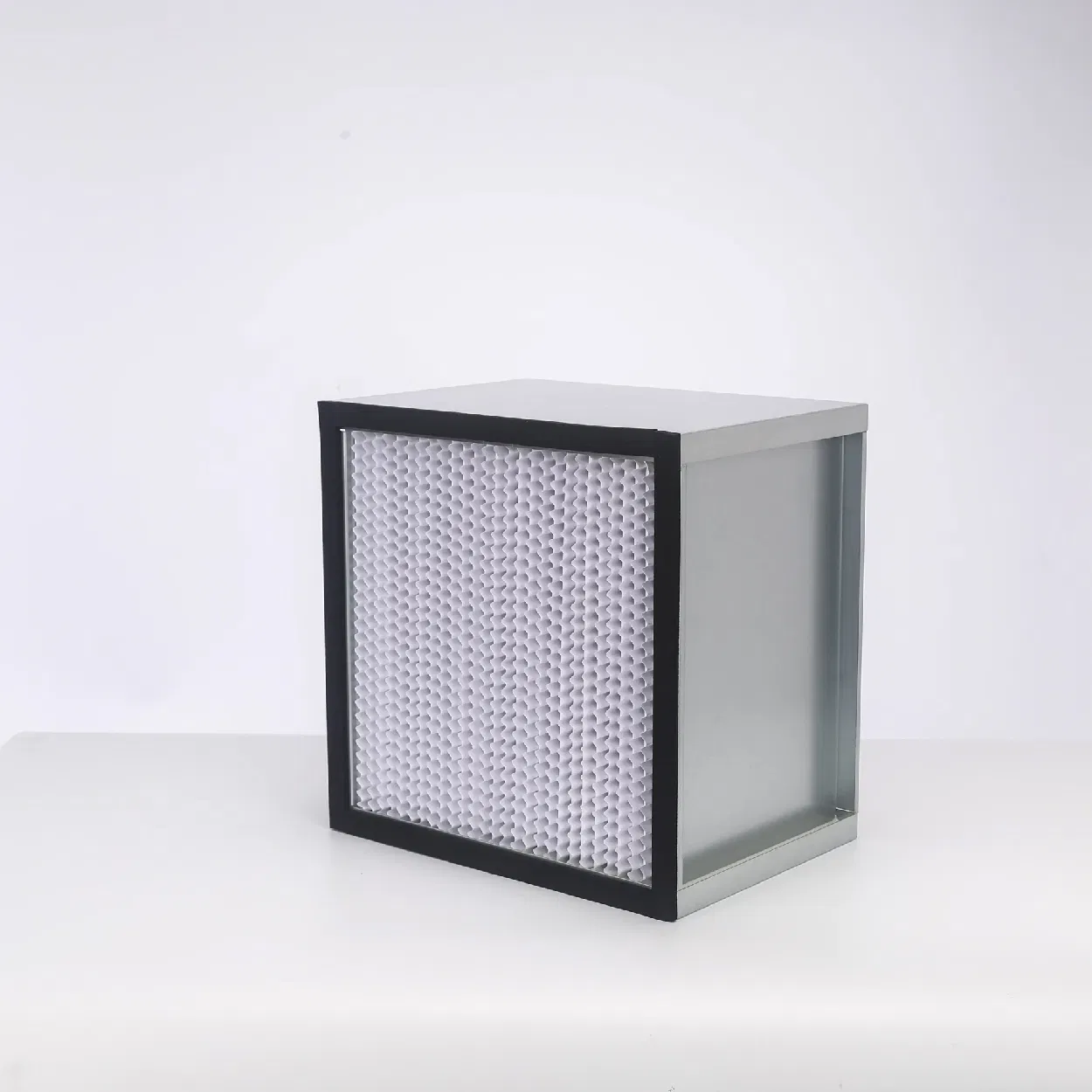

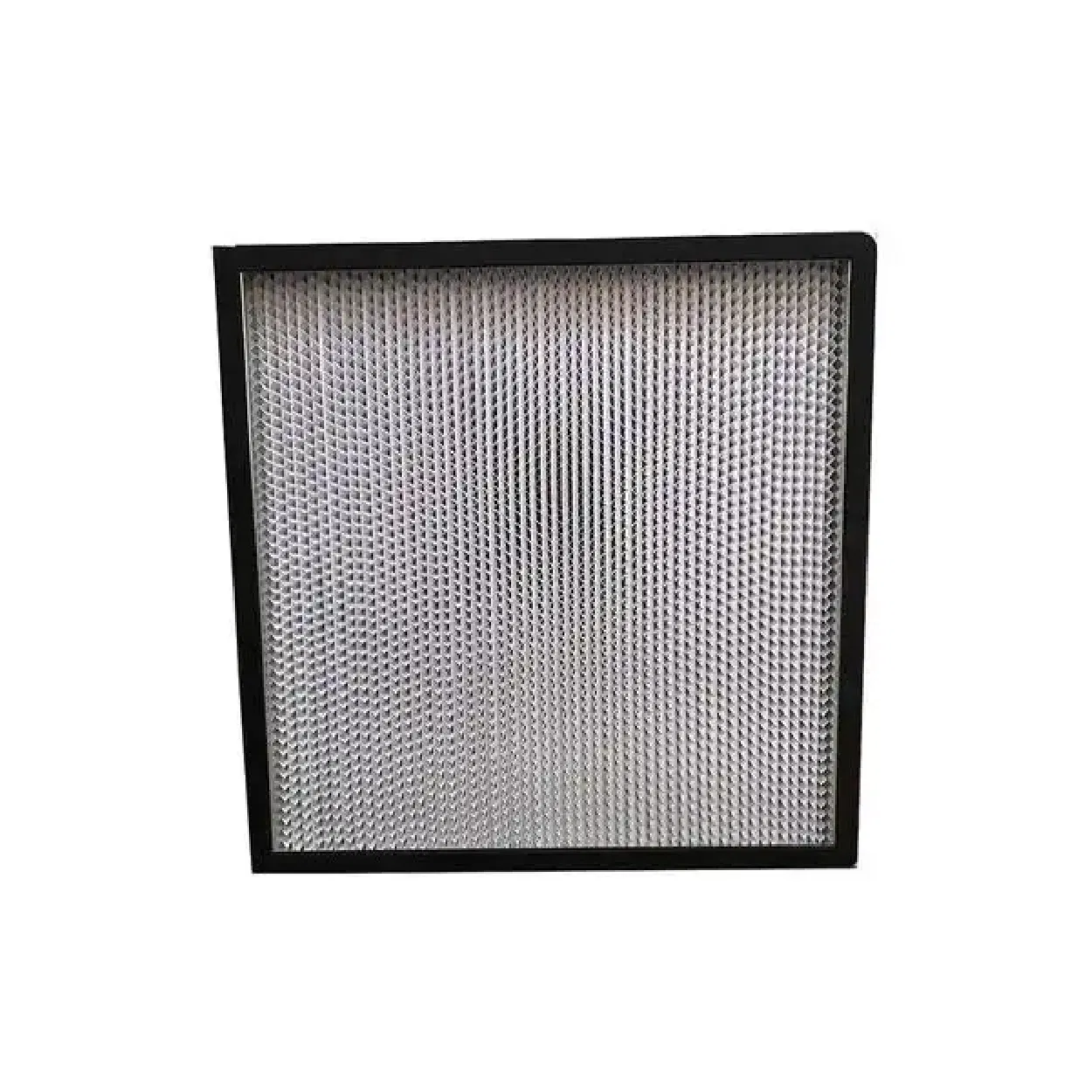

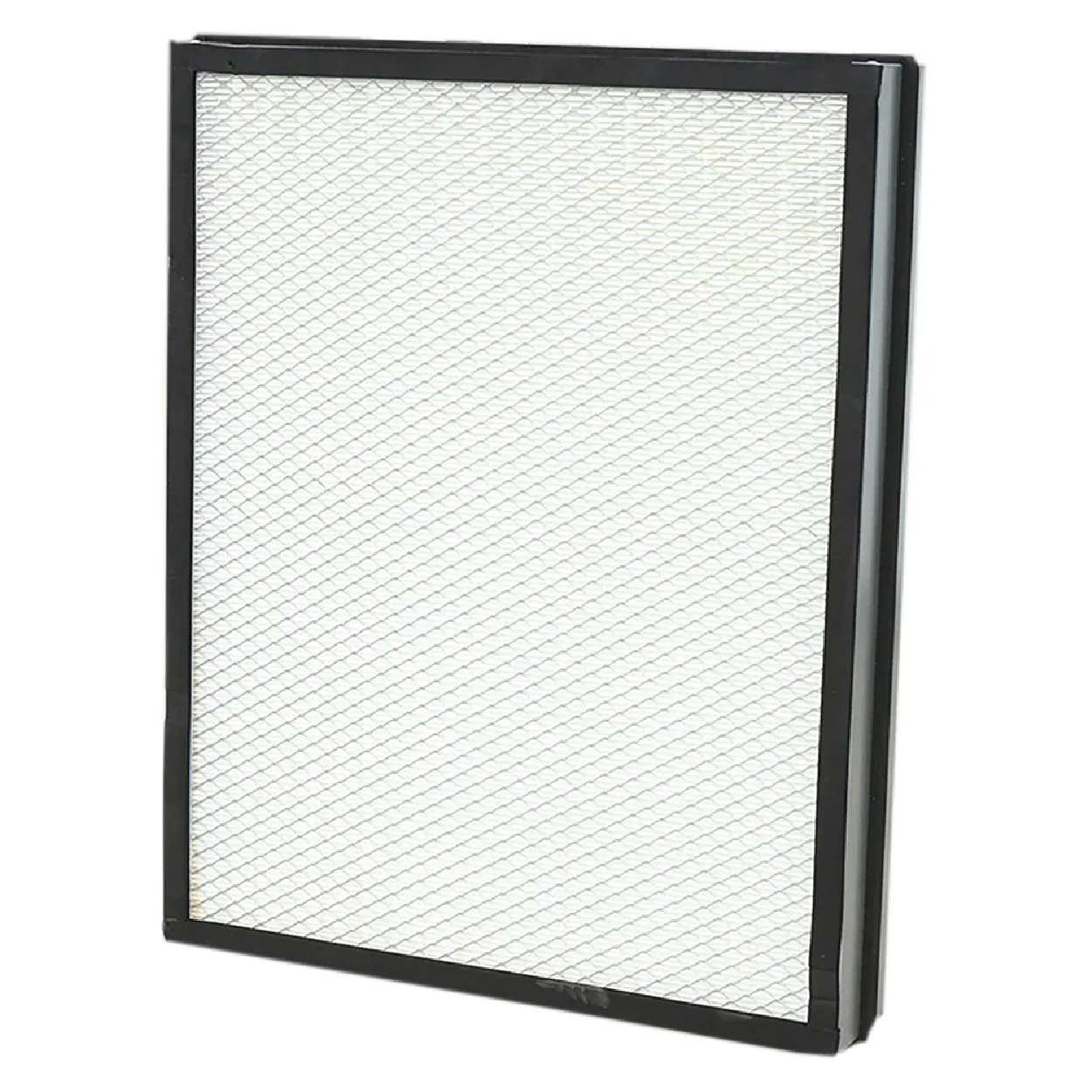

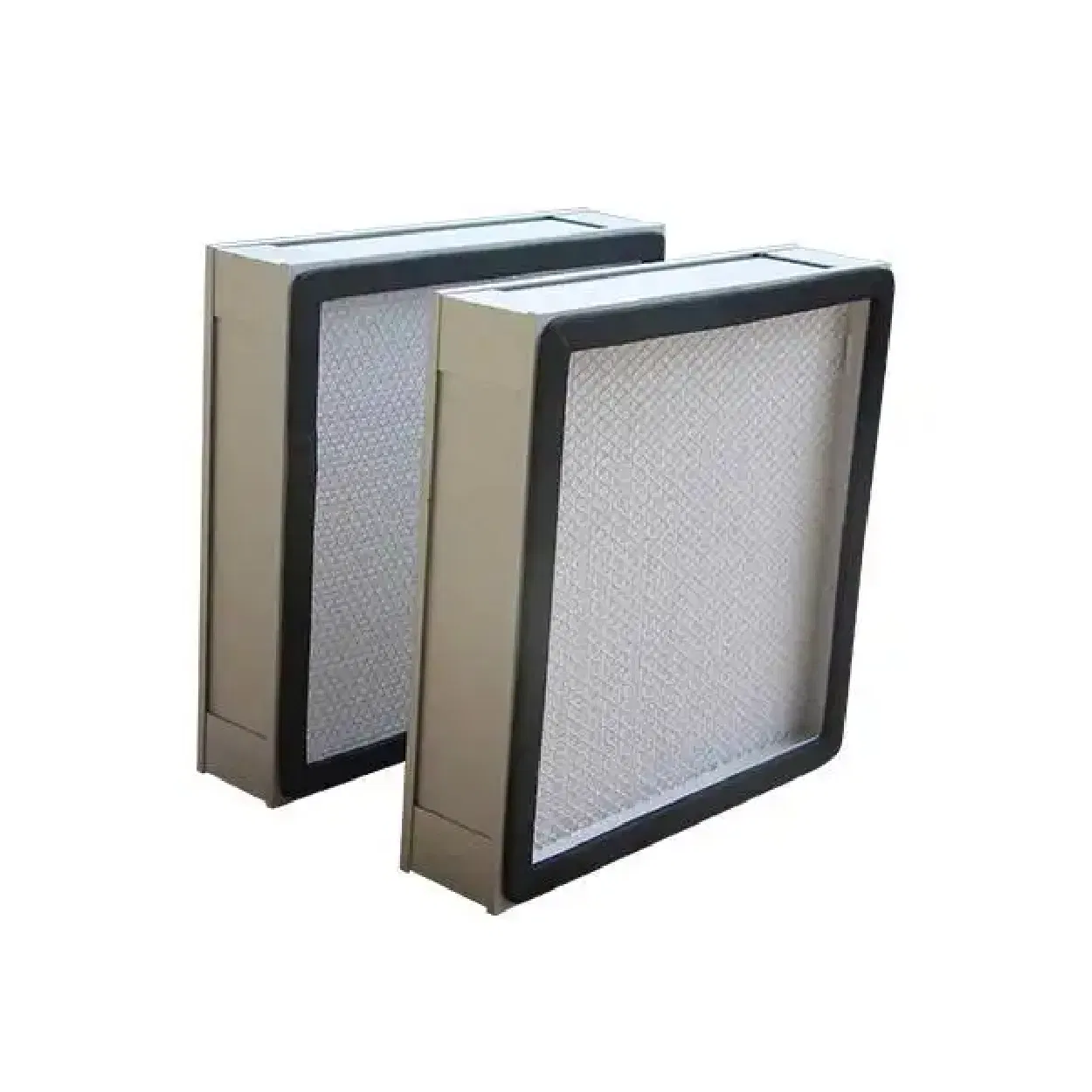

High-Efficiency Partitionless Filter for Cleanroom - Ideal for Pharma & Electronics

Customization:	Available
Clapboard:	without Clapboard
Filter Number:	1

Send Inquiry

Product Description

Technical Specifications

Model NO.TKSAGE-PC2-7

Medium MaterialSynthetic Fiber

EfficiencyH13/H14

TypePanel Filter

External Dimensions610*610*69mm

Filtration EfficiencyH13/H14(En779)

Fire RatingUL 900 Certification (Undergoing)

Max Temp.≤70ºC

Production Capacity10,000 Units

HS Code8421399090

📦Packaging & Delivery

Package Size	70.00cm * 70.00cm * 10.00cm
Gross Weight	5.000kg

High-Efficiency Filter Highlights

Low Noise & Efficient

Ideal for hospital operating rooms and ICU wards. Compact structure allows for easy installation and replacement.

Leak-Free Assurance

Utilizes advanced water-based aerosol leak detection platforms to ensure every unit is 100% leak-free without secondary pollution.

Separator-Free Design

Hot melt adhesive separation ensures uniform spacing, low resistance, and significant energy savings.

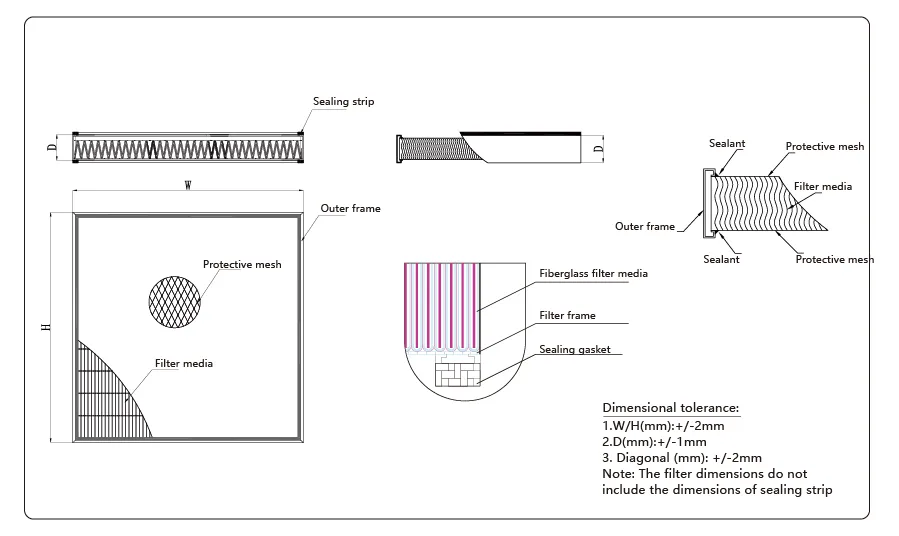

⚙️Product Parameters

Outer Frame	Aluminum profile
Filter Media	High-quality ultra-fine moisture-proof fiberglass
Filter Media Separator	Hot melt adhesive
Filtration Efficiency	H13 / H14 / U15 / U16 / U17 (EN1822)
Fire Rating	UL900 (Undergoing)

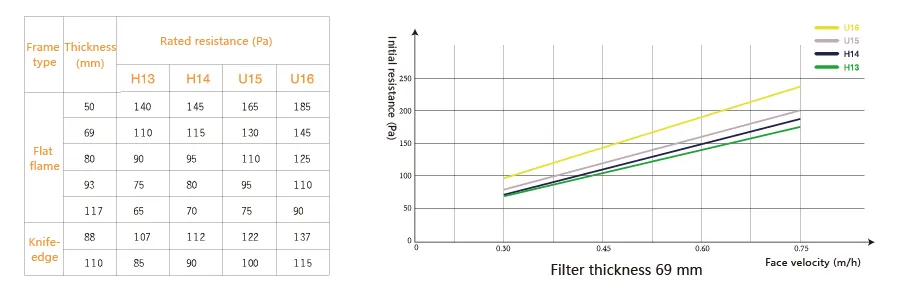

Suggested Final Resistance	500Pa
Sealant	Polyurethane
Protective Mesh	Double-sided steel mesh spraying (white)
Average Air Speed	0.45m/s

🛡️Professional Manufacturing

Our production system is fully integrated with in-house R&D capabilities, holding over 100 patents and multiple international certifications (CE, UL). All products meet stringent regulatory standards such as GMP and FDA.

Manufacturing Excellence

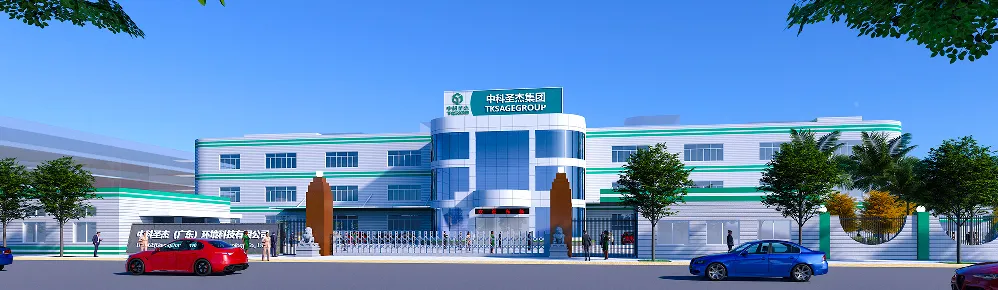

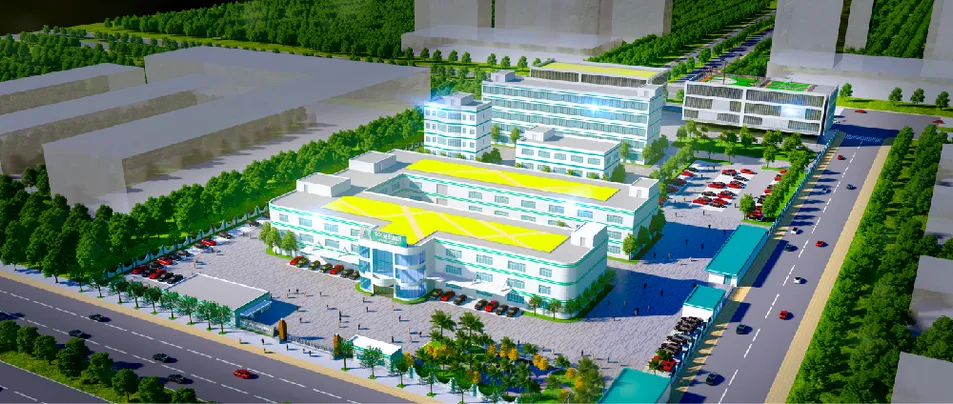

The facility spans over 35,000 square meters with a dedicated R&D center. Equipped with advanced CNC machines, laser cutting, and fully automatic welding, we provide solutions for biopharmaceuticals, life sciences, healthcare, and microelectronics.

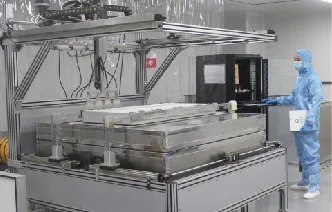

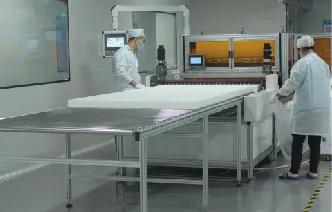

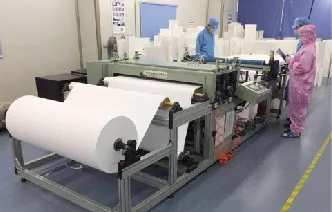

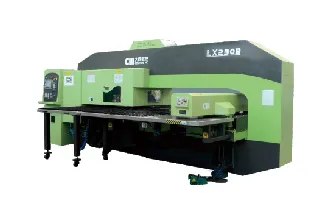

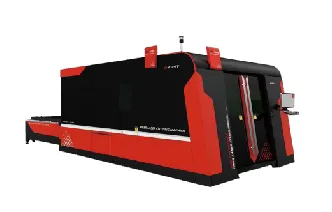

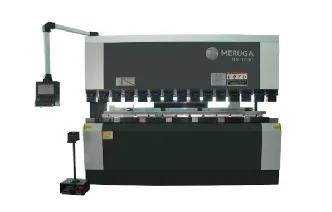

🛠️Advanced Production Equipment

🏆Enterprise Honors & Certifications

Bio-safety Lab	Cellular Genes	Operating Room	Life Sciences
Center for Disease Control	Health & Food Processing	Scientific Research	Bio-pharma Solutions

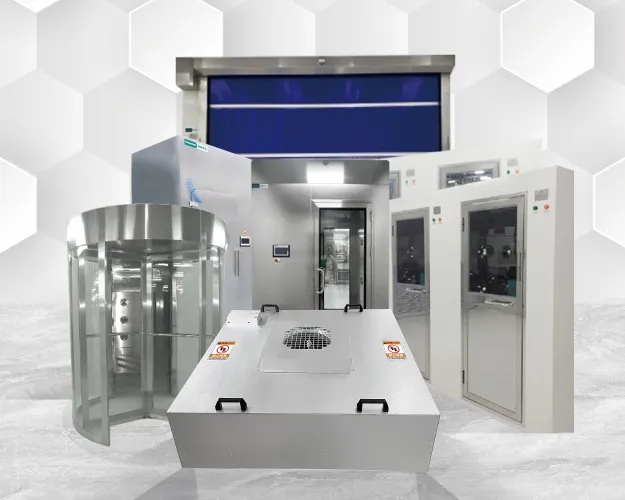

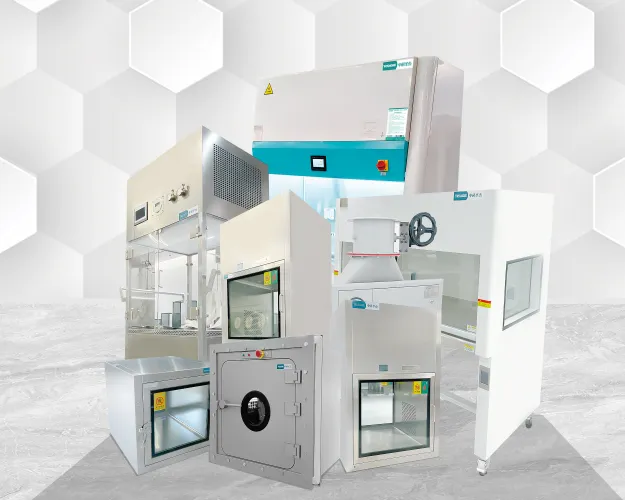

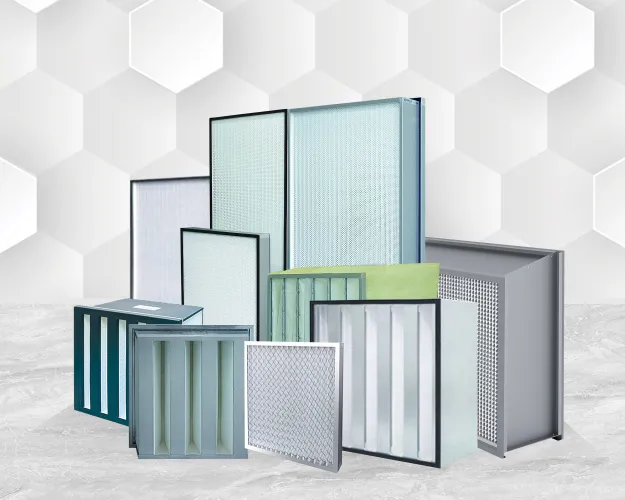

Product Categories

Frequently Asked Questions

1. What is the difference between H13 and H14 filtration efficiency?

H13 HEPA filters have a minimum efficiency of 99.95%, while H14 filters have a minimum efficiency of 99.995%. Both are used for high-level cleanroom applications like pharmaceuticals and surgery rooms.

2. How are the filters tested for leaks?

We use an advanced environmental-friendly water-based aerosol leak detection platform. All tests are performed according to the EN1822 standard to ensure every filter is 100% leak-free.

3. What is the maximum operating temperature for these filters?

These filters are designed for continuous operation at temperatures up to 70ºC (approx. 158ºF).

4. Can these filters be used in humid environments?

Yes, the filter media is made of moisture-proof ultra-fine fiberglass, making it suitable for high-humidity cleanroom environments.

5. Is the frame material customizable?

While the standard frame is made of high-quality aluminum extruded profile for lightweight and durability, we offer various configurations to meet specific cleanroom requirements.

6. What certifications do your air filters hold?

Our products are manufactured under ISO9001 quality systems and carry international certifications including CE and UL, meeting stringent GMP and FDA standards.
