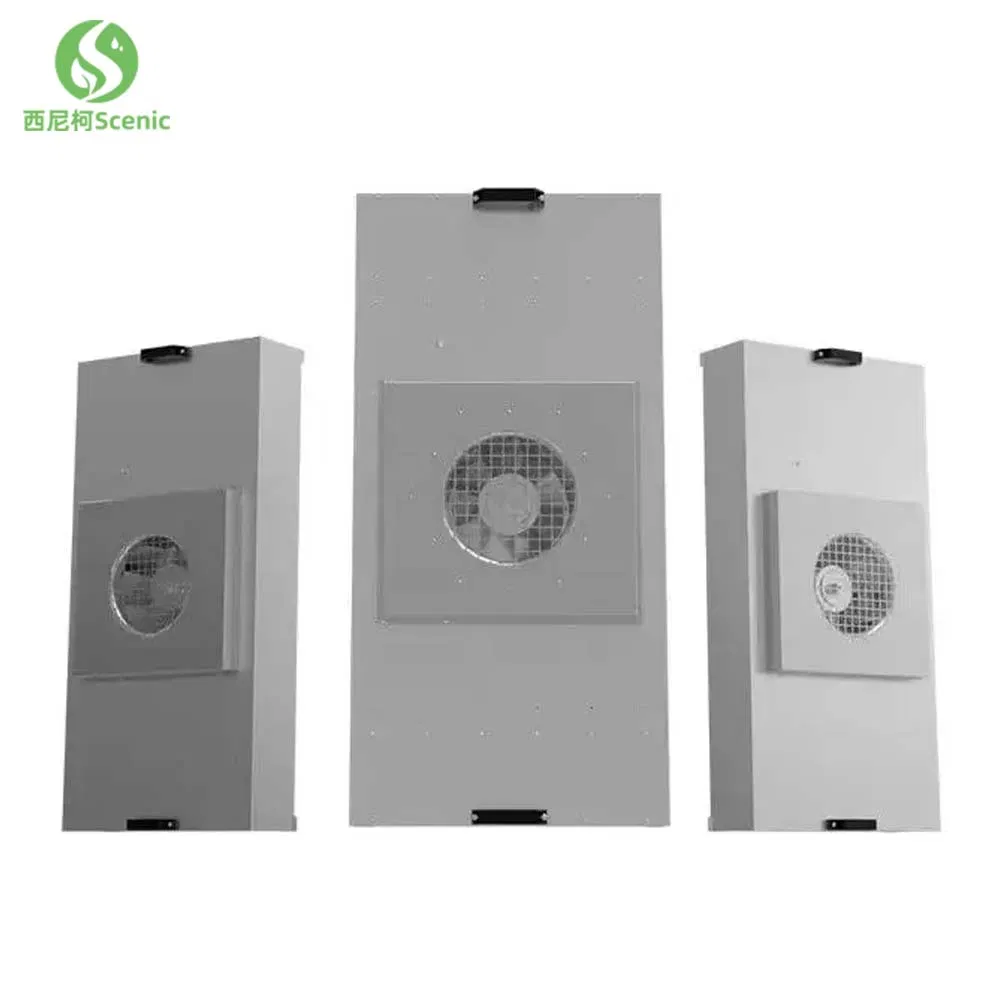

Advanced HEPA H14 Cleanroom Air Filtration System with DC Motor

Customization: Available
Clapboard: without Clapboard
Filter Number: 1

Product Description

Basic Overview
Model NO.
Scenic-FFU
Medium Material
Stainless Steel Mesh
Efficiency
F9
Filtration Grade
HEPA Filter
Type
Folded Filter
Fan Vibration
0.2~0.5mm/S
Material
SUS304, SUS201, Baking Finished
Supply Voltage
220V 50Hz & 110V 60Hz
Noise
55dba
Certification
ISO9001 CE
Fan Type
Aluminum Turbofan
Cabinet Material
Galvanized Steel / Powder Steel / Stainless Steel
Product Description

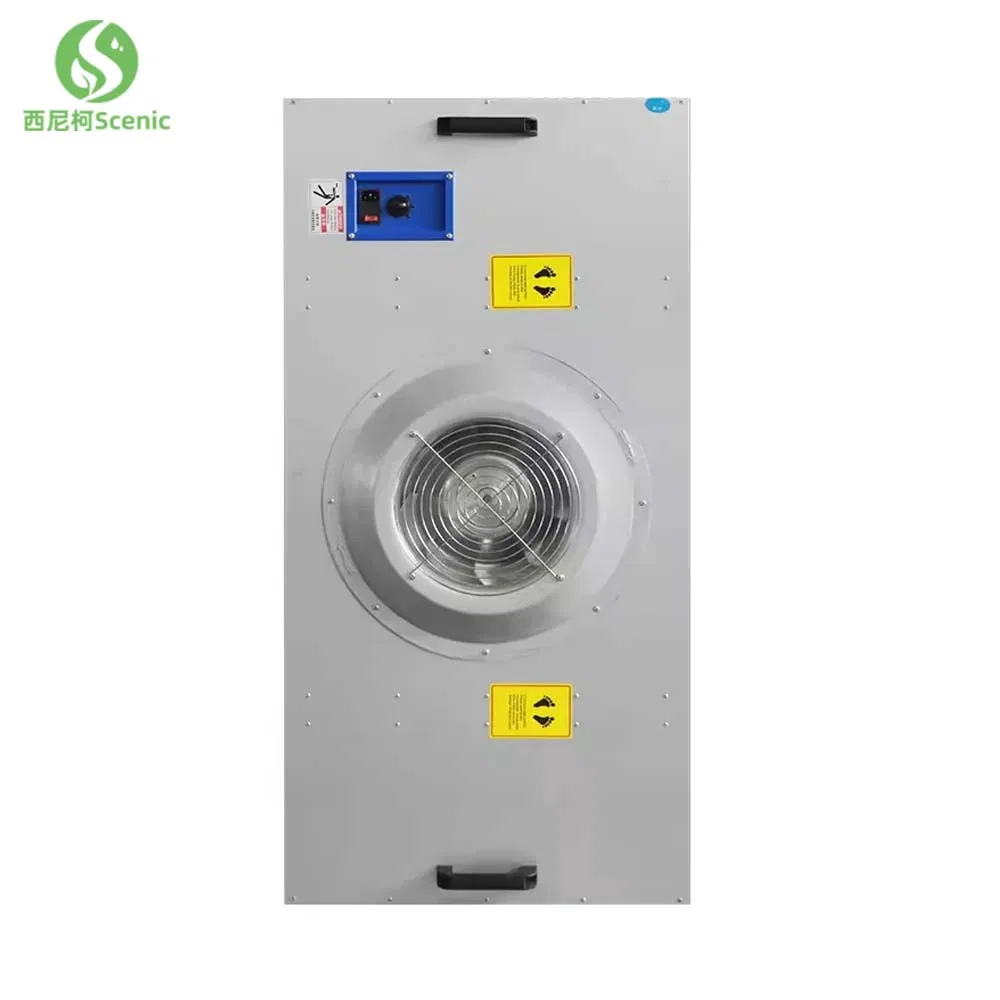

Professional 110V/220V Laminar Flow Air Hood with HEPA H14 Filter

Fan filter unit (FFU) is a kind of ceiling unit with internal fan, used for turbulence and laminar flow clean room. The unit design is flexible, according to the design specifications, it can easily match with any ceiling skeleton, in order to achieve the clean grade 1000 to 1 level requirements.

The fan filter unit is one of the quietest and best priced units in the clean market. With this unit, high quality air can be delivered to clean rooms. Air manifold is excellent, making it suitable for semiconductor, electronics, flat panel display, disk drives, optical, and biological industries. It is ideal for clean benches, clean production lines, packaged clean rooms, and local high-grade cleanliness requirements to strictly control air pollution and reduce operation costs.

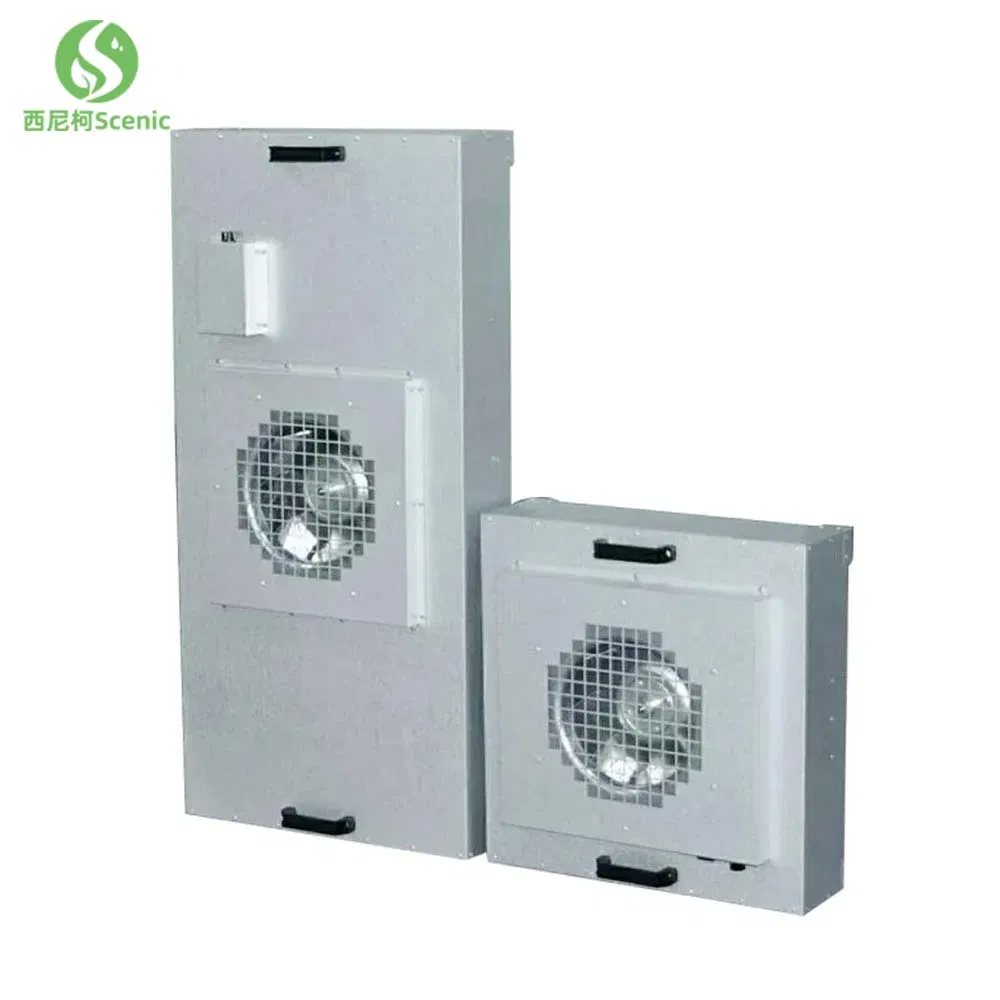

Air Filtration System

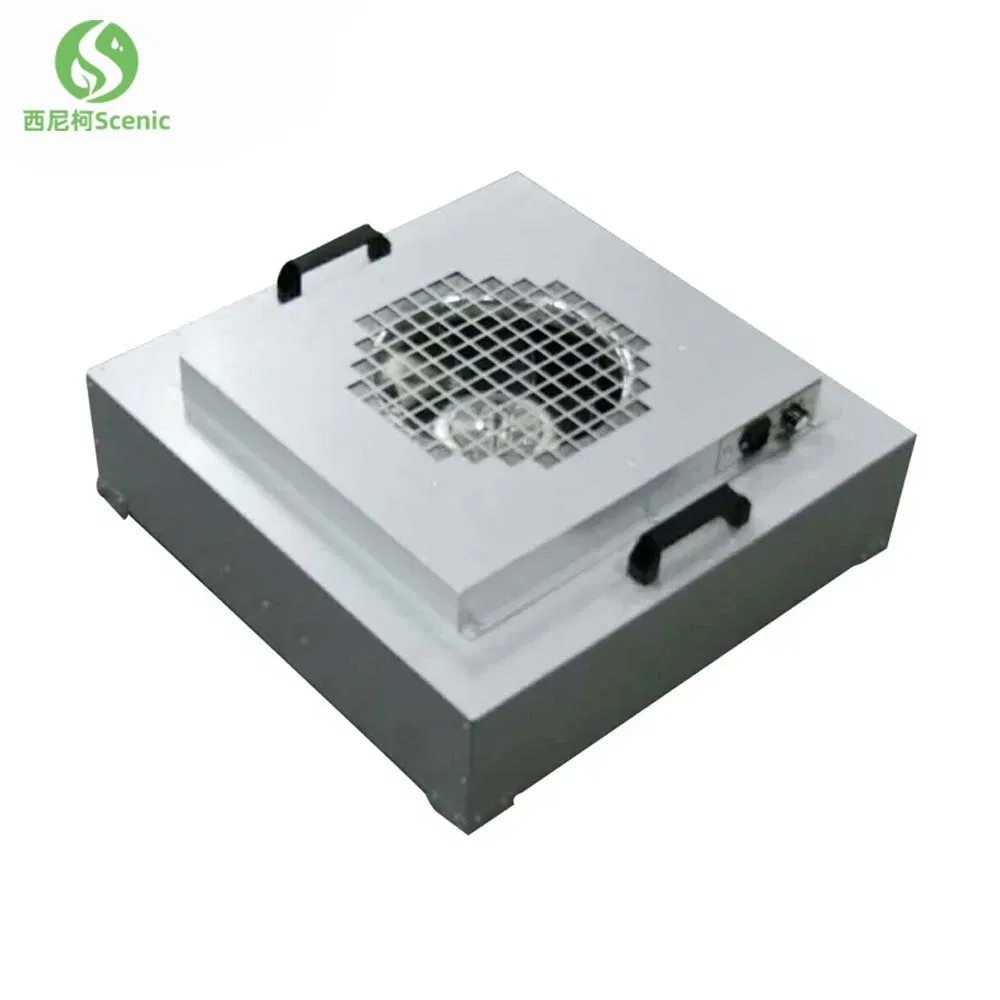

Cleanroom FFU
MODEL Scenic-FFU2*2 Scenic-FFU2*4 Scenic-FFU4*4
SIZE(W*L*H)mm 600*600*350 575*1175*350 1175*1175*350
Material galvanumed steel /painted steel/ stainless steel
Air Flow(m3/h) 600 1200 2000
Air Velocity 0.36-0.6m/s (THREE SPEED ADJUSTABLE)
HEPA FILTER 99.99%@0.3um (H13)/99.999%@0.3um(H14)/ULPA
FAN MOTOR Airfoil turbo Fan Motor(aluminum)
Power Supply AC/DC (110V, 220V), 50/60HZ, 1PHASE
Detailed Photos

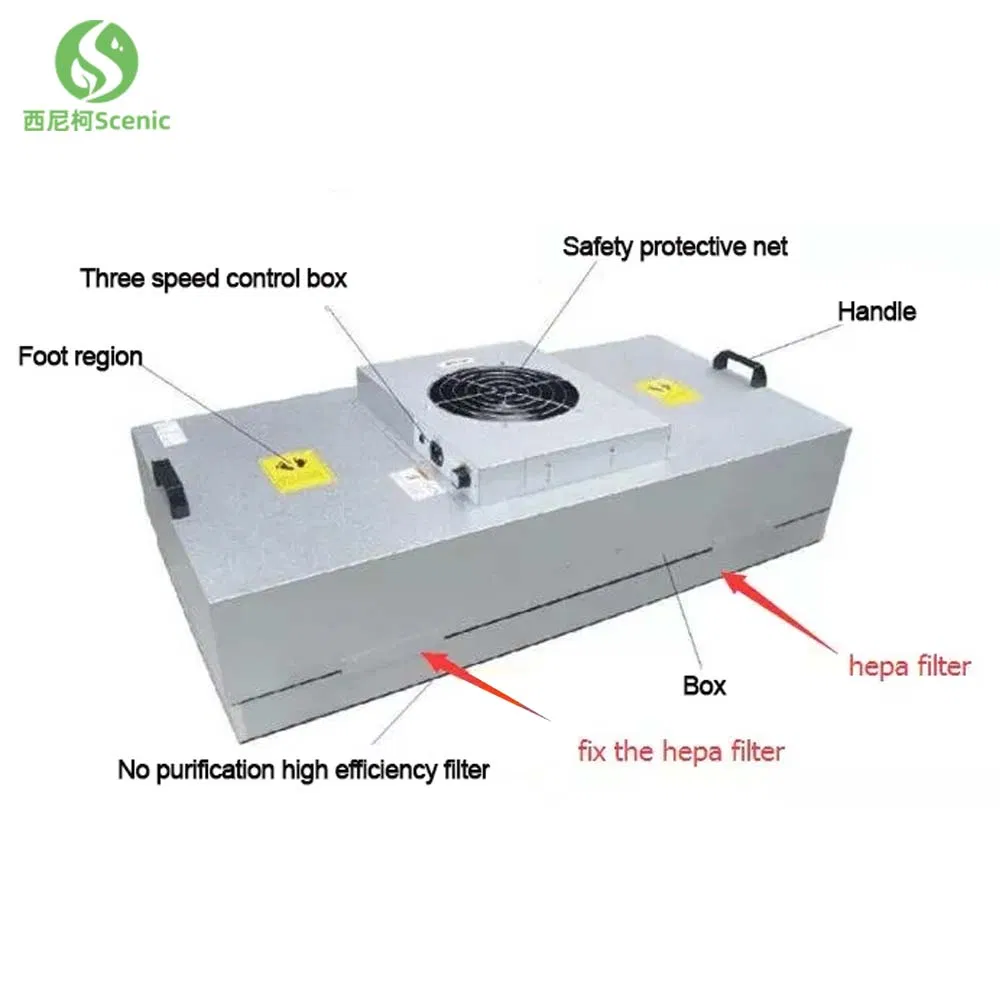

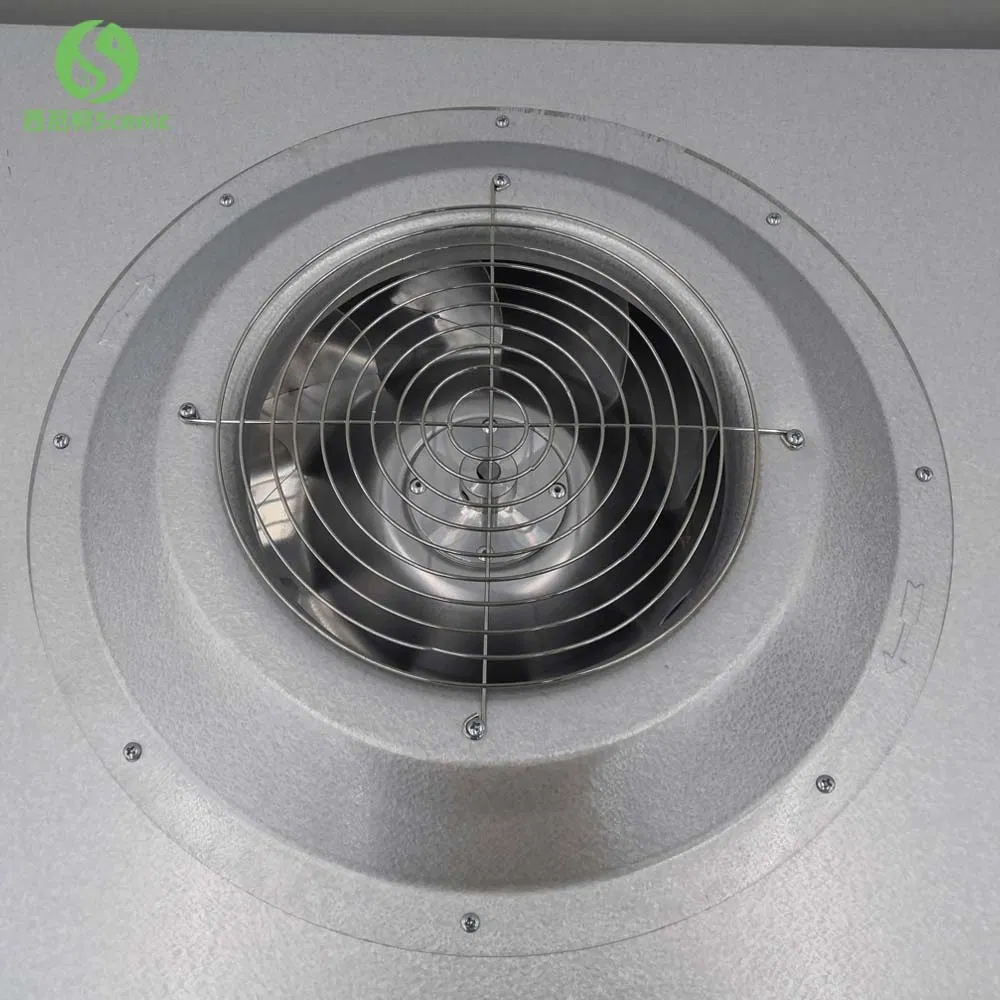

Detailed View 1

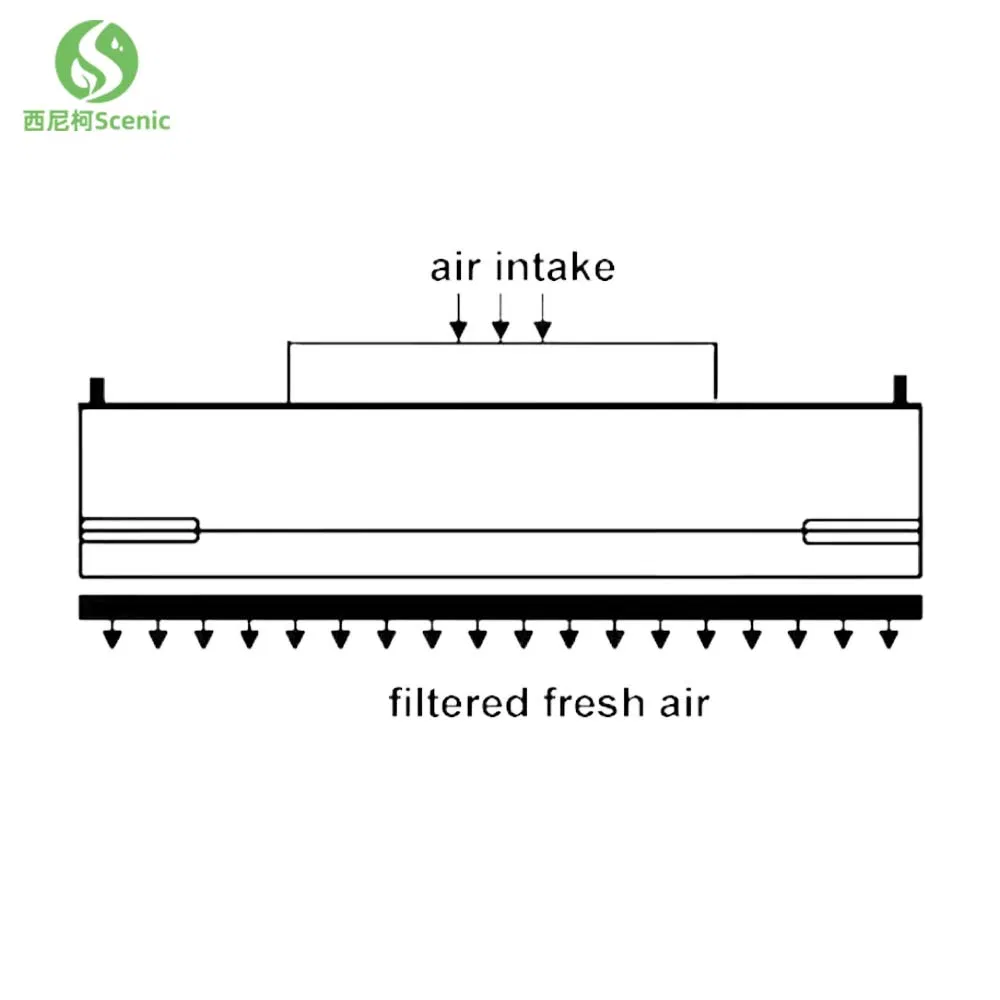

Detailed View 2

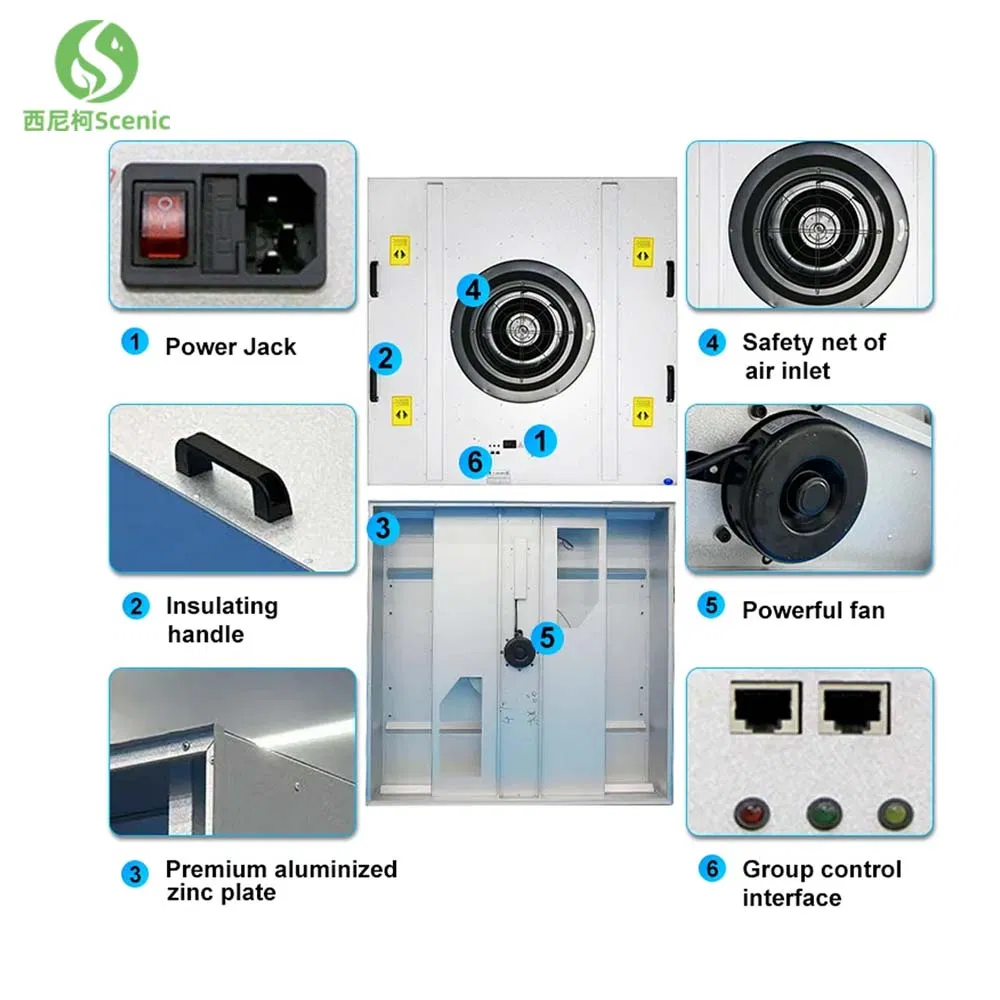

Detailed View 3
Detailed View 4
Detailed View 5
Detailed View 6
Detailed View 7
Detailed View 8
Detailed View 9
Detailed View 10
Detailed View 11
Detailed View 12
Detailed View 13
Detailed View 14
Detailed View 15
Frequently Asked Questions
What is the filtration efficiency of this Fan Filter Unit?
The unit comes with high-efficiency HEPA filters providing 99.99% at 0.3um (H13) or 99.999% at 0.3um (H14), and even ULPA options are available.
Is the air velocity adjustable?
Yes, the air velocity is three-speed adjustable, ranging from 0.36 to 0.6 m/s, allowing for flexible airflow control.
What materials are available for the cabinet?
The cabinet can be constructed from galvanized steel, powder-coated steel, or high-grade stainless steel depending on your requirements.
What voltage standards does the FFU support?
The unit is compatible with both 110V 60Hz and 220V 50Hz power supplies, making it suitable for international use.
How much noise does the unit generate during operation?
The unit is designed to be one of the quietest in the market, operating at approximately 55dba.
In which industries is this FFU commonly used?
It is widely used in semiconductors, electronics, flat panel displays, biological industries, and clean room production lines.
