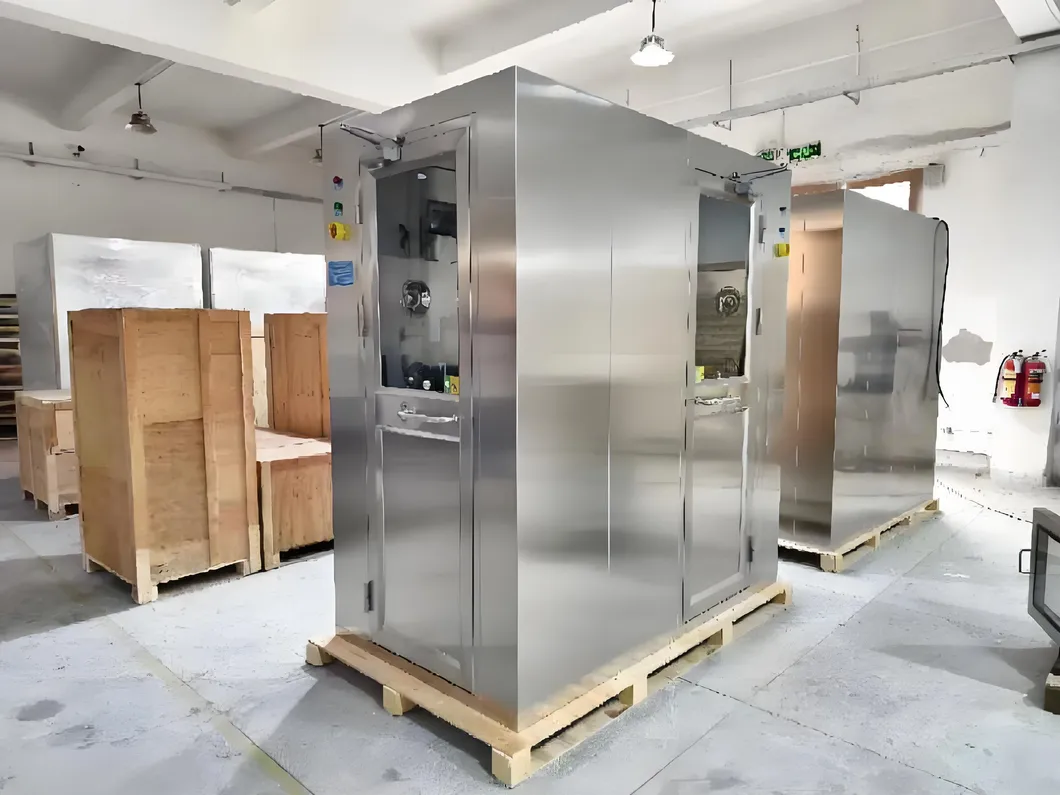

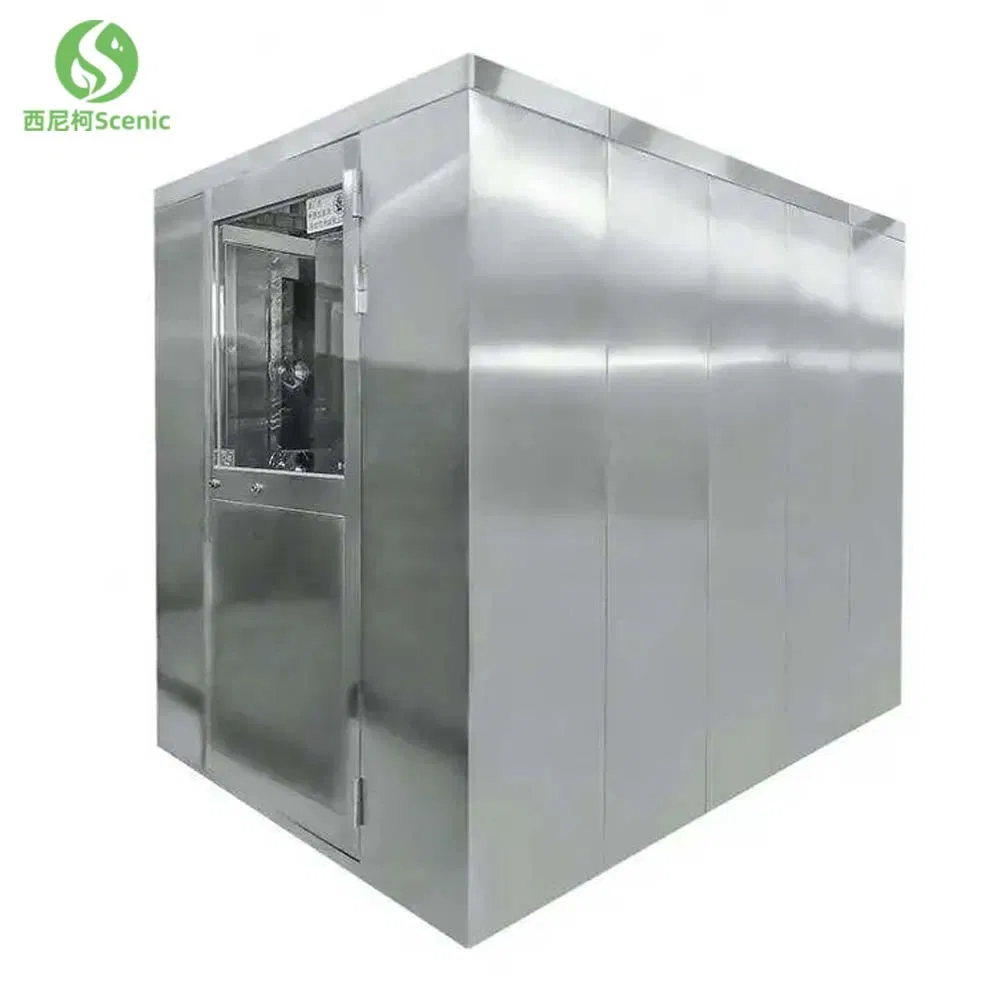

H14 Filtration System Air Purifier for Superior Cleanroom Air Quality

1 / 5

H14 Filtration System Air Purifier for Superior Cleanroom Air Quality

Customization:	Available
Application:	Pharmaceutical,Food Industry, Clean Room
Certification:	CE

Send Inquiry

Product Description

🔹 Basic Product Information

Model NO.:Scenic Air Shower

Fuel:Electric

Feature:Fast Shutter Door, Automatic Door

Nozzles:24-32

Applicable Object:People Shower

Material:Stainless Steel

Fan Power:380V/50Hz, 1.5kw

HEPA Filter:H13 / H14

Efficiency:99.995% or 99.999% @0.3um

Airspeed:>20m/S

Noise:<65dB

Advantage:Intelligent Interlock Control

📦 Packaging & Delivery

Package Size:1000.00cm * 1000.00cm * 1000.00cm

Gross Weight:50.000kg

Transport Package:Plywood

📝 Product Description

The Air Shower Room is an essential channel for entering clean rooms, designed to significantly reduce pollution caused by personnel movement. It serves as a universal local purification equipment, strategically installed between clean and non-clean areas to maintain environmental integrity.

📊 Specifications

Classify	Texture	Advantages	Size
1. Person air shower 2. Automatic sliding door 3. Automatic rolling door	SUS201 / SUS304 Cold plate baking varnish Anti-corrosion paint	Baosteel brand stainless steel Superior rust resistance Powerful 1.5KW performance	Standard single, double, triple Customized sizes available
Air Speed	Shower Time	HEPA Filter	Power Supply
20-25m/s	0-99s adjustable (Standard: 10s)	H13 or H14 99.99% - 99.995%@0.3um	AC, 1PH 220V or 3PH 380V 50/60HZ

🖼️ Product Showcase

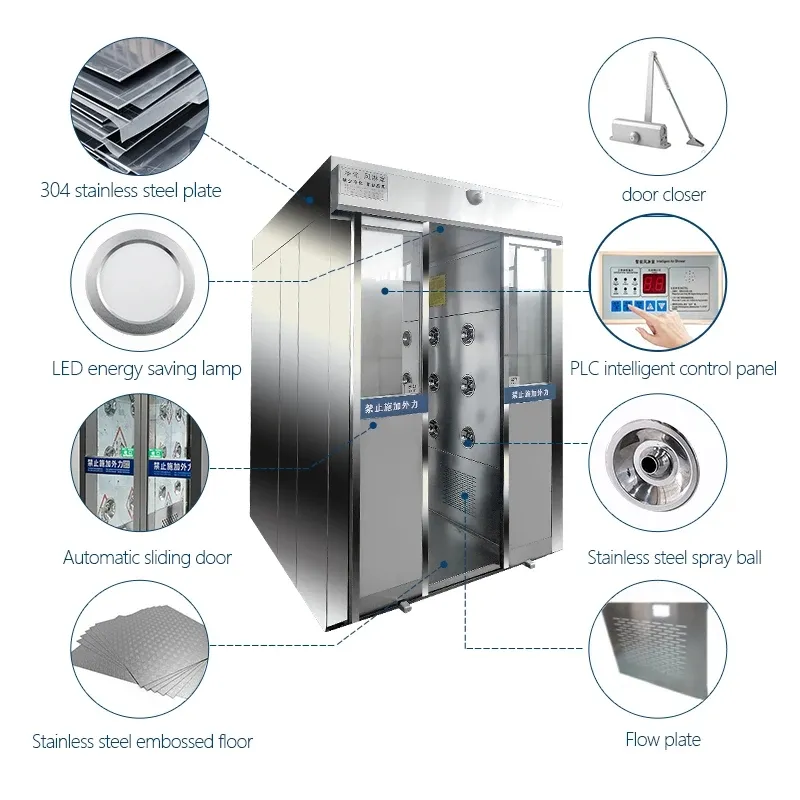

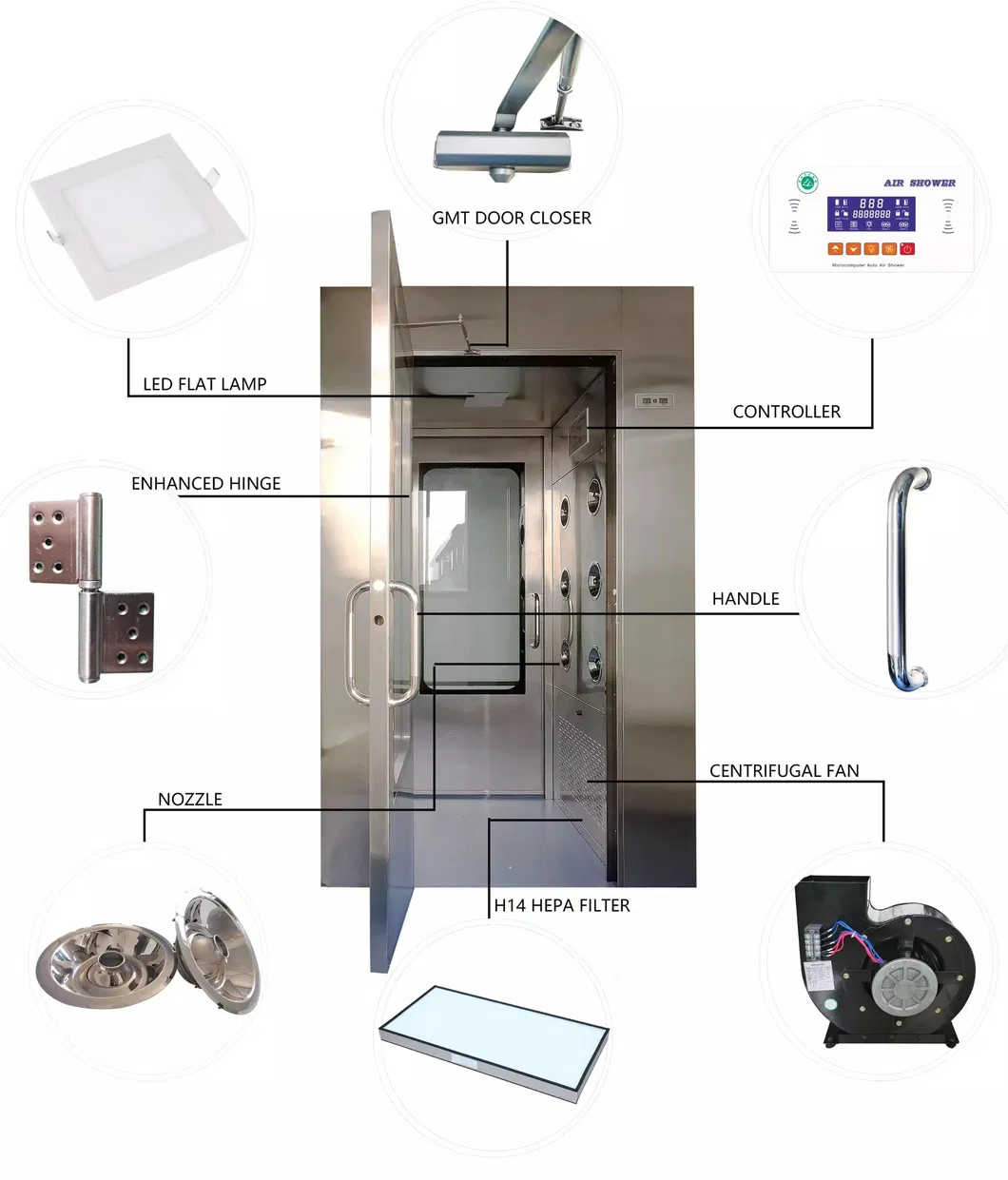

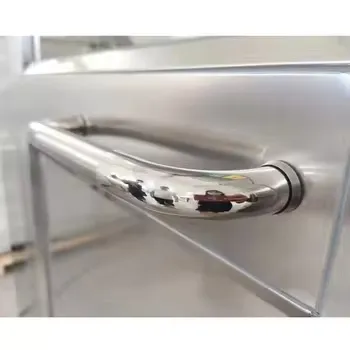

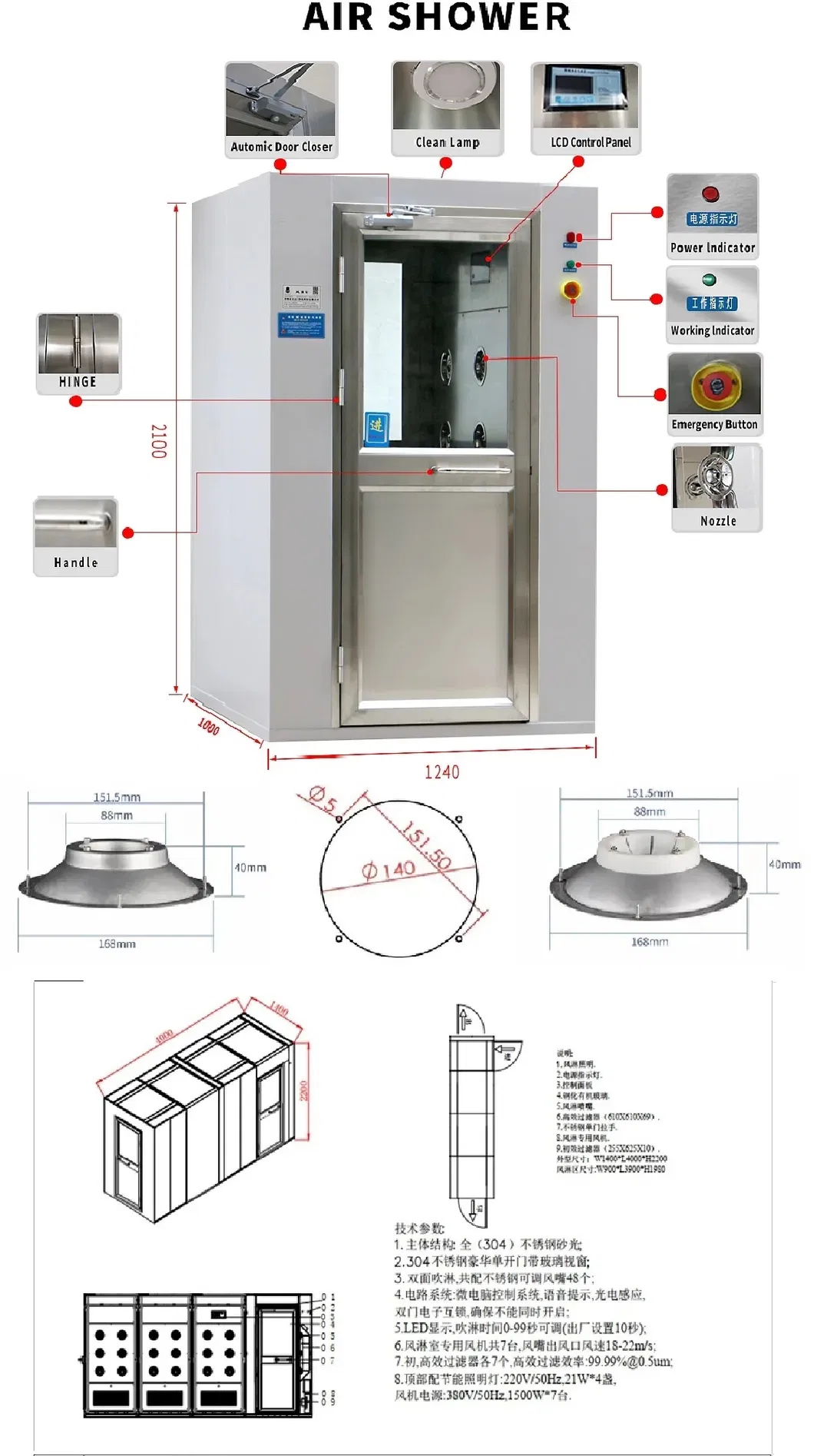

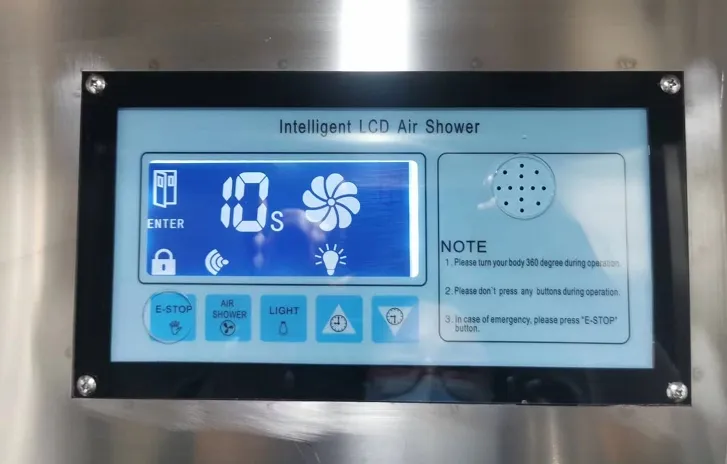

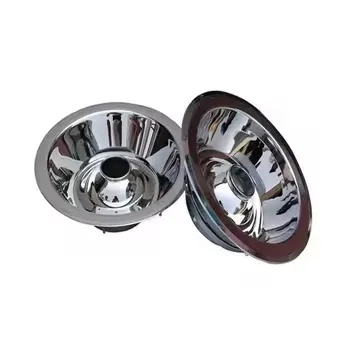

Control Panel, Nozzles, and Handle Components

1. Emergency stop button & Stainless steel SUS304 construction
2. Air showing button & Lighting control
3. Precise up and down adjustment buttons

✨ Model Variations

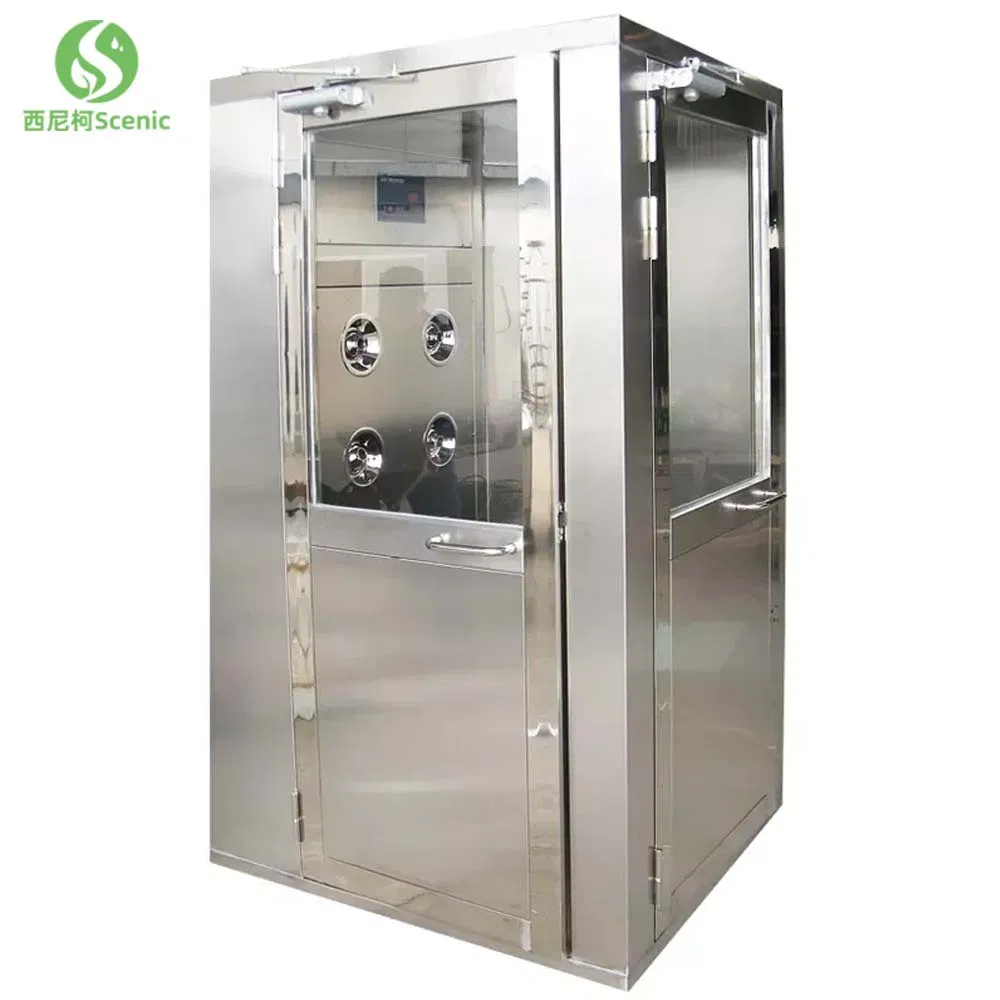

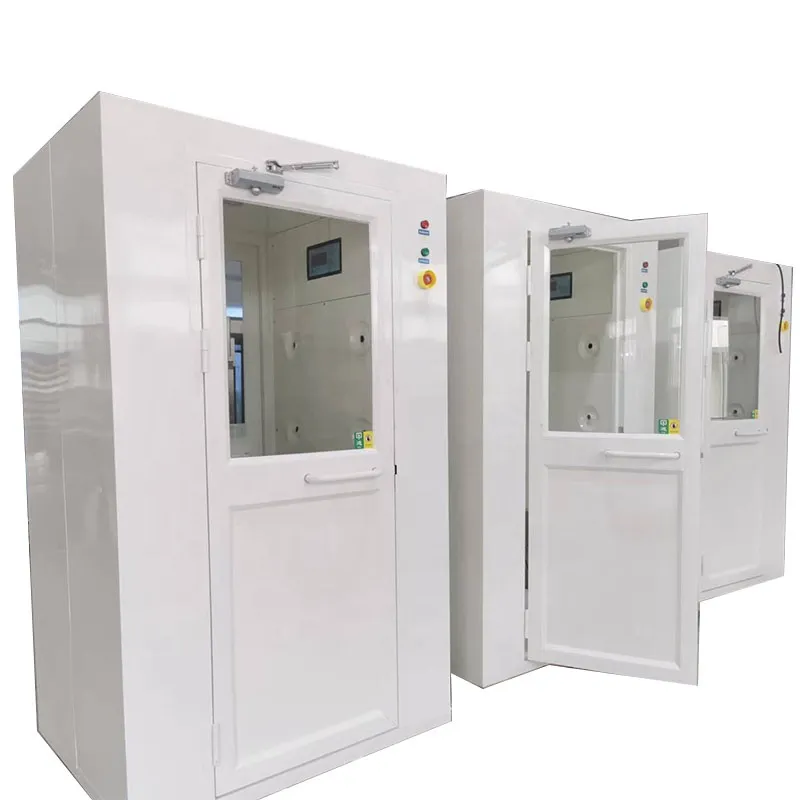

Single Person Air Shower

External: 1290*1000*2050mm

Internal: 790x1000x1930mm

Filters: 610*610*50 (1pc)

Nozzles: 12pcs

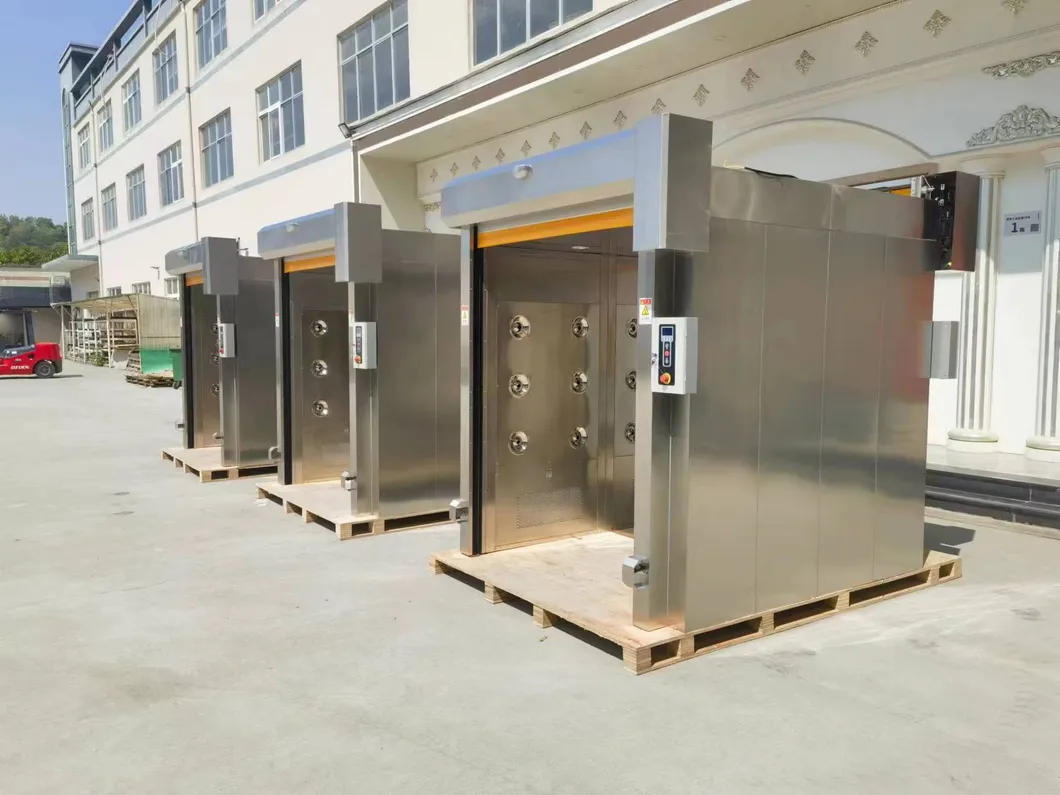

Roller Door Air Shower

External: 2000*3000*2050mm

Internal: 1500*2900*1960mm

Filters: 610*610*120

Nozzles: 36pcs

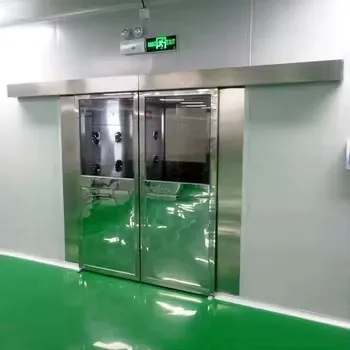

Sliding Door Air Shower

External: 1800*1500*2240mm

Internal: 800*1400*1960mm

Material: 1.2 mm Cold-Rolled Steel

Nozzles: 24pcs

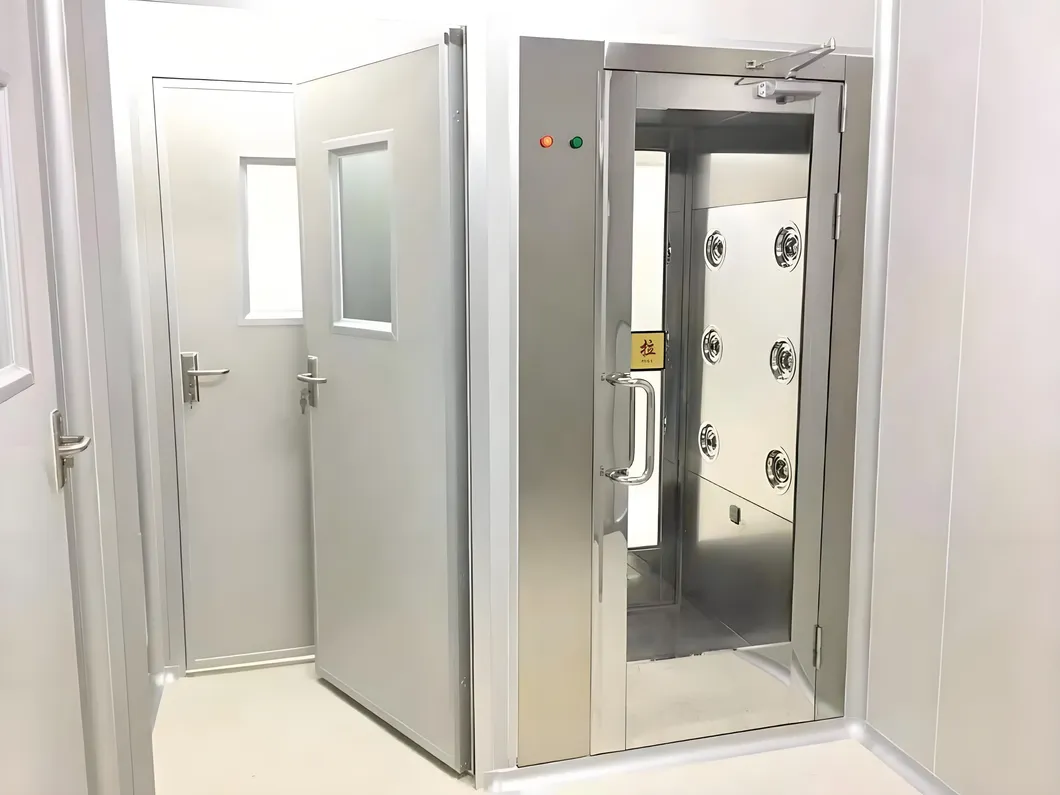

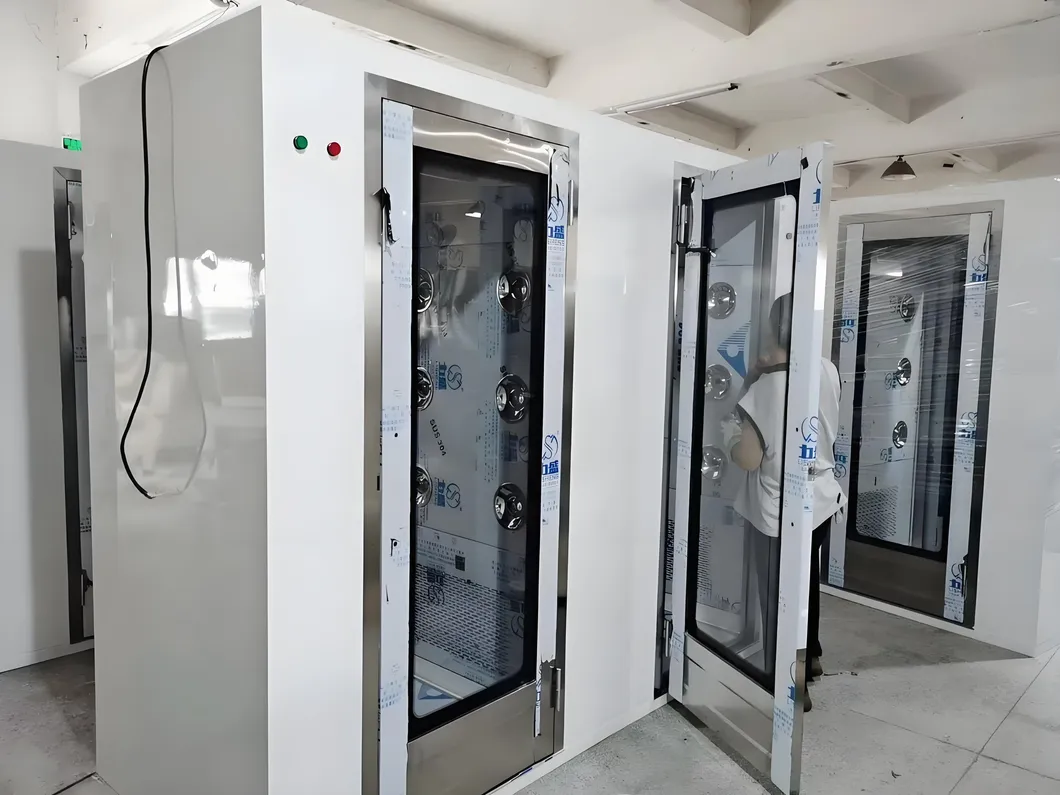

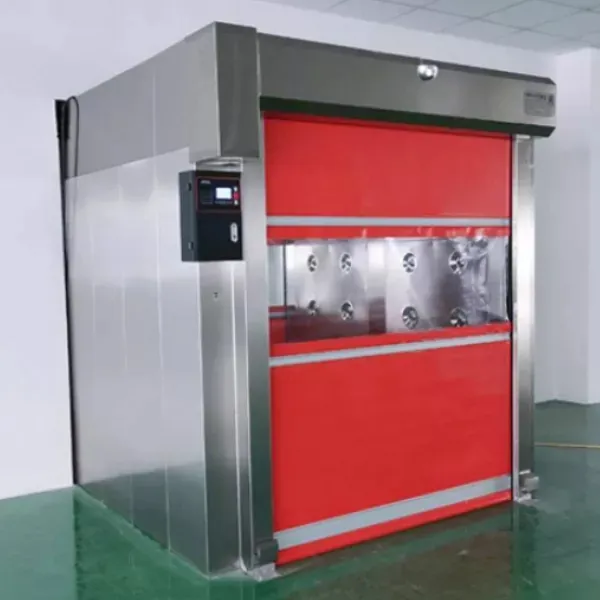

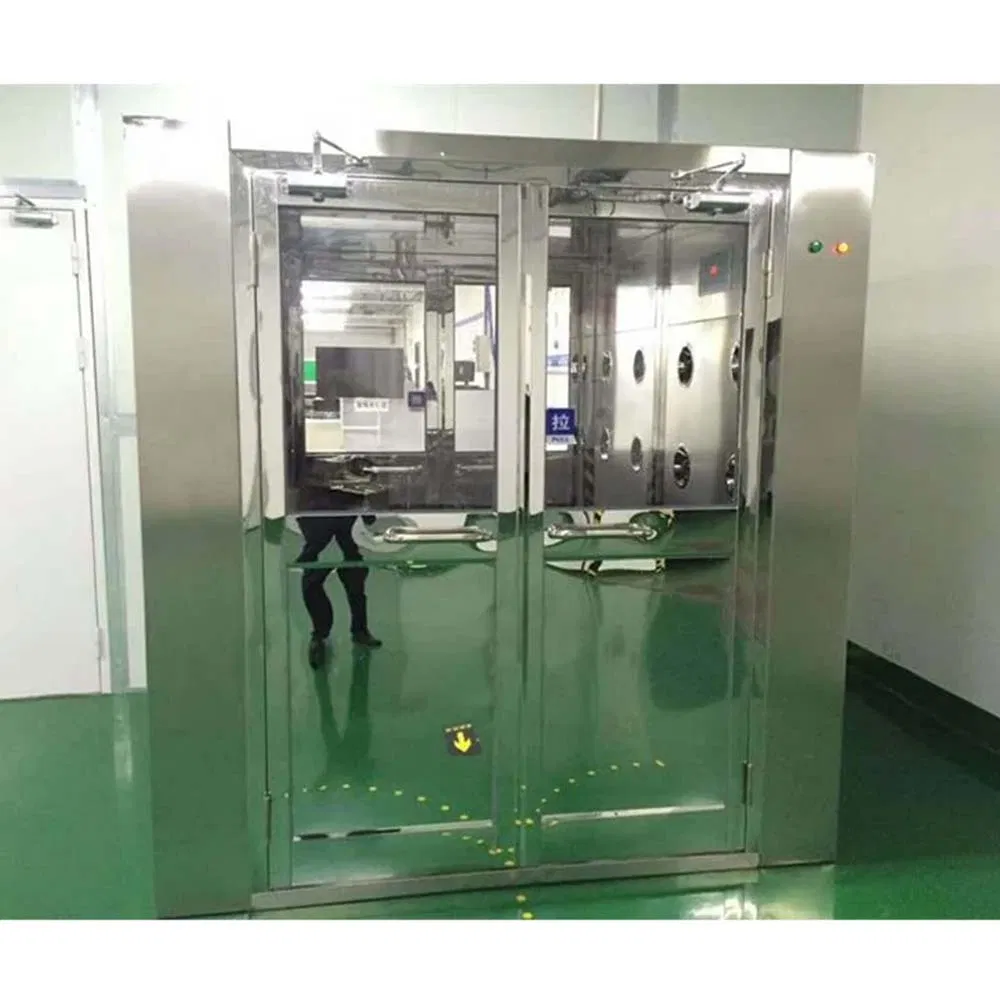

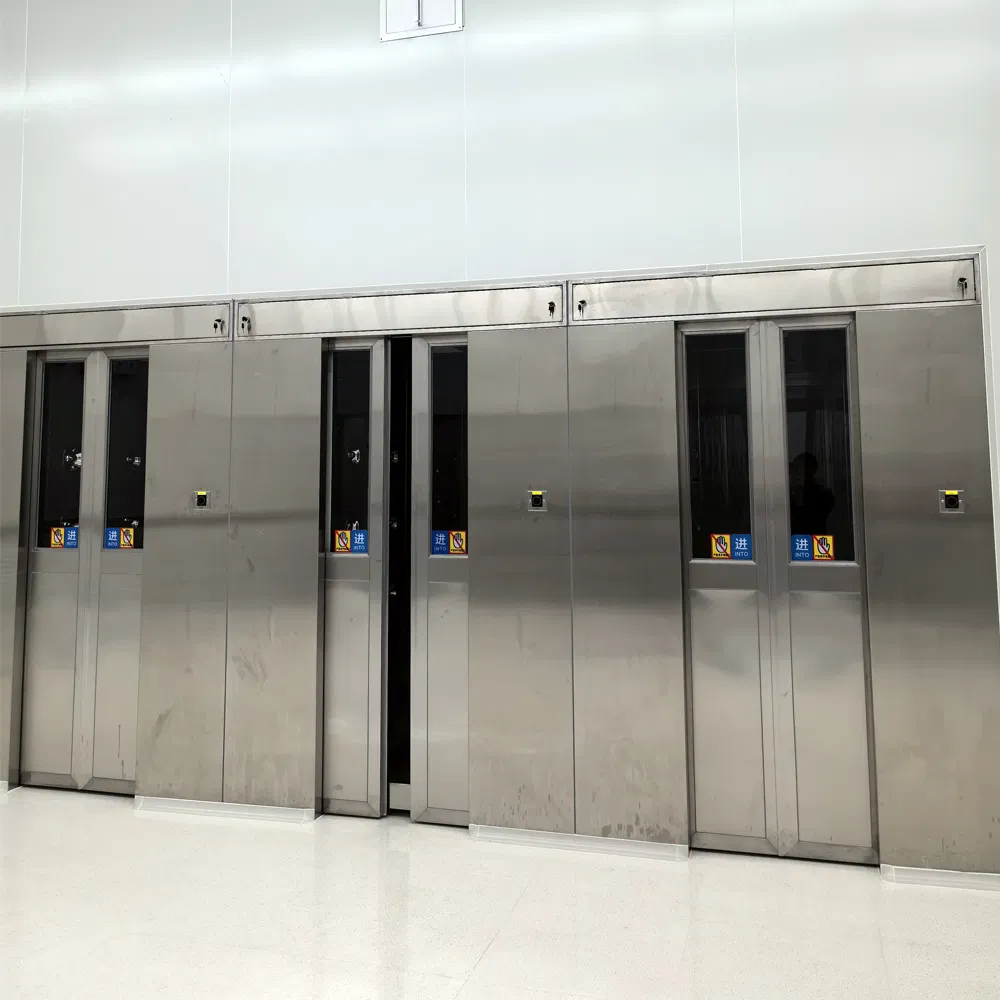

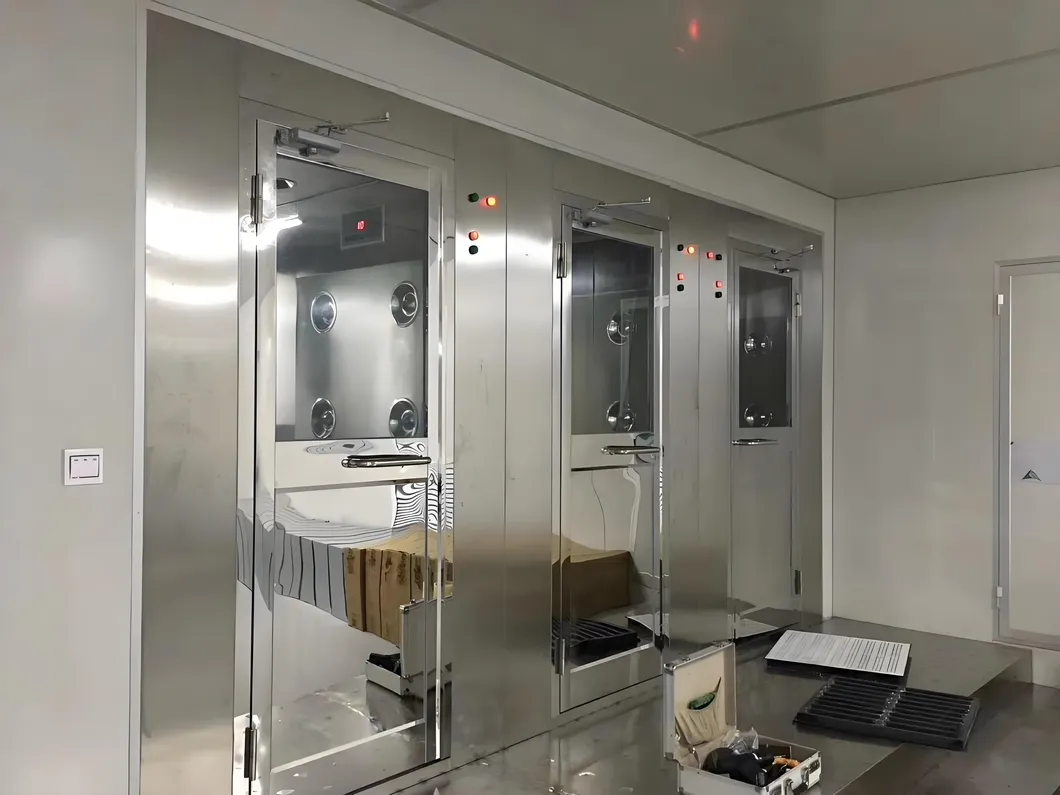

🏗️ Project Cases

🛡️ Quality & Logistics

Professional Packaging, Certified Standards, and Our Dedicated Team

Frequently Asked Questions (FAQ)

What is the main purpose of an air shower room?

The air shower room serves as a critical buffer zone between a non-clean area and a cleanroom. It uses high-velocity air to blow off dust, hair, and other particles from personnel or goods, significantly reducing contamination.

Can the air shower duration be adjusted?

Yes, the shower time is fully adjustable from 0 to 99 seconds. The standard factory setting is typically 10 seconds.

What is the filtration efficiency of the units?

Our units utilize H13 or H14 HEPA filters, achieving a filtration efficiency of 99.995% or 99.999% for particles as small as 0.3um.

What materials are used for the construction?

We offer multiple options including high-quality SUS304 or SUS201 stainless steel, and cold-rolled steel plates with anti-corrosion baking varnish finishes for durability.

Are different door types available?

Yes, we provide several door configurations including automatic sliding doors, fast rolling shutter doors, and standard manual doors to suit different traffic requirements.

Are custom sizes available for specific projects?

Absolutely. While we offer standard single, double, and triple person configurations, we can customize the dimensions and technical specifications to meet your specific cleanroom layout.
