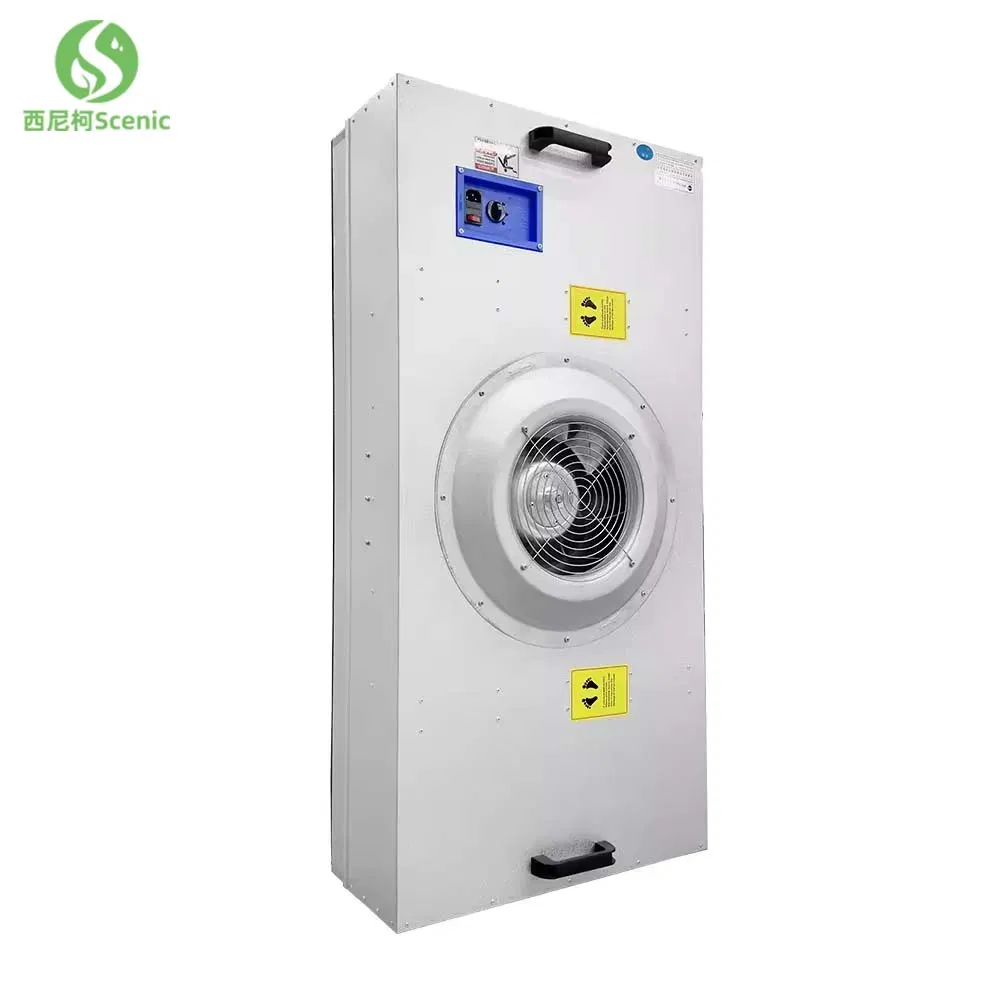

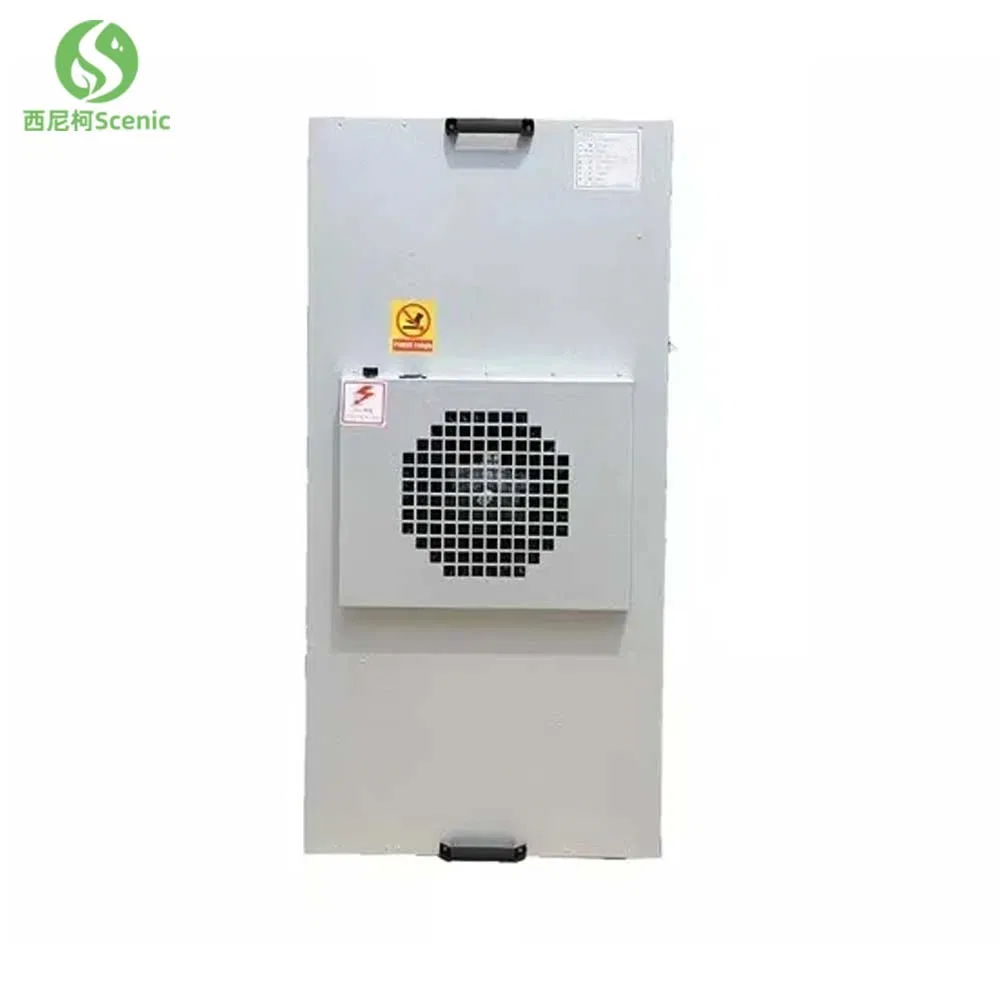

Energy-Saving DC Motor Clean Room Air Filtration System

1 / 5

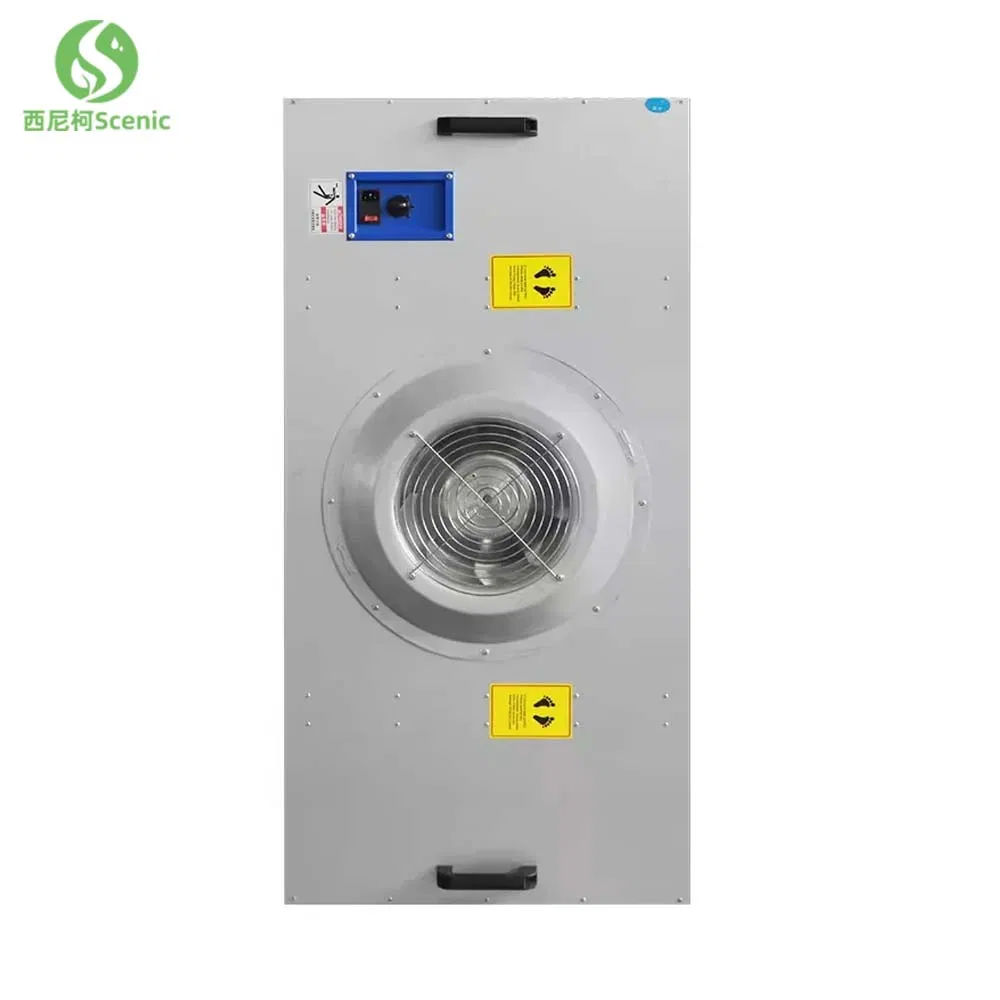

Energy-Saving DC Motor Clean Room Air Filtration System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

AM-FFU-12

Medium Material

SUS304, SUS201, Galvanized Steel

Efficiency

99.99%@0.3microns

Filtration Grade

HEPA Filter ULPA Filter, Pre Filter

Type

H13, H14

Keywords

Clean Room HEPA FFU

Power

1pH, 220V 50-60Hz or DC Motor

Regular Size

1175*1175, 1175*575, 575*575

Noise

56-60dba

Production Capacity

10000/Year

🚀 Product Description

FFU Manufacture Fan Filter Unit with HEPA Filter

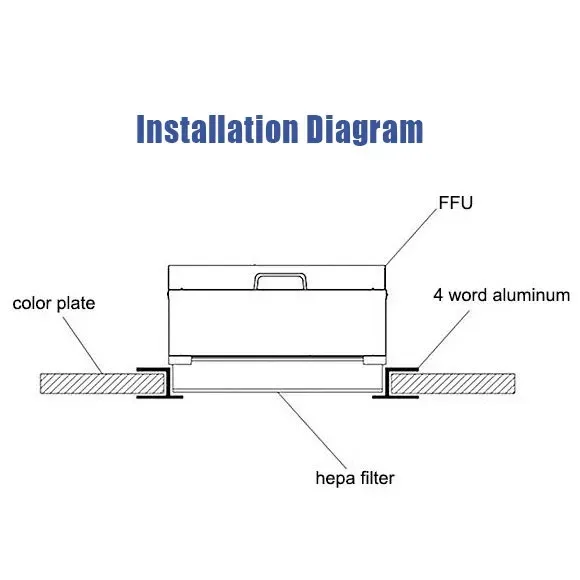

FFU is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

Key Advantages

Simple direct speed control
Low power consumption
Low sound power level
EC Fan with high reserve capacity
Very low design height
Cleanness from Class 10 to Class 1000

🌍 Application Fields

Flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1 with very low space above the false ceiling. Widely used in semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room, laminar flow hood, etc.

Technical Parameters

Wind speed: 0.35m/s, 0.45m/s
Noise: 49-63dBA
Filtration efficiency: 99.99%
Material: Armor plate, Stainless steel
Highly-efficient centrifugal air blower
Durable, low vibration

📊 Technology Data Sheet

Model	FFU-1	FFU-2	FFU-3
Overall Size	575575285mm	1175575285mm	11751175360mm
Hepa Filter size	57057069mm	117057069mm	11701170260mm
Cleanliness	Class 100, Class 1000, Class 10000 etc
Efficiency	99.99%, 99.995% H13 or H14
Air velocity	0.45m/s or 90 FPM
Average air flow	600m3/h	1200m3/h	1500m3/h
Power supply	1PH, 220V 50-60HZ or DC motor
Power consumption	80w	110w	110W
Casing material	Steel coated, SUS201, SUS304, Galvanized steel
Noise	56-60dBA
Weight	25kg	30kg	50kg

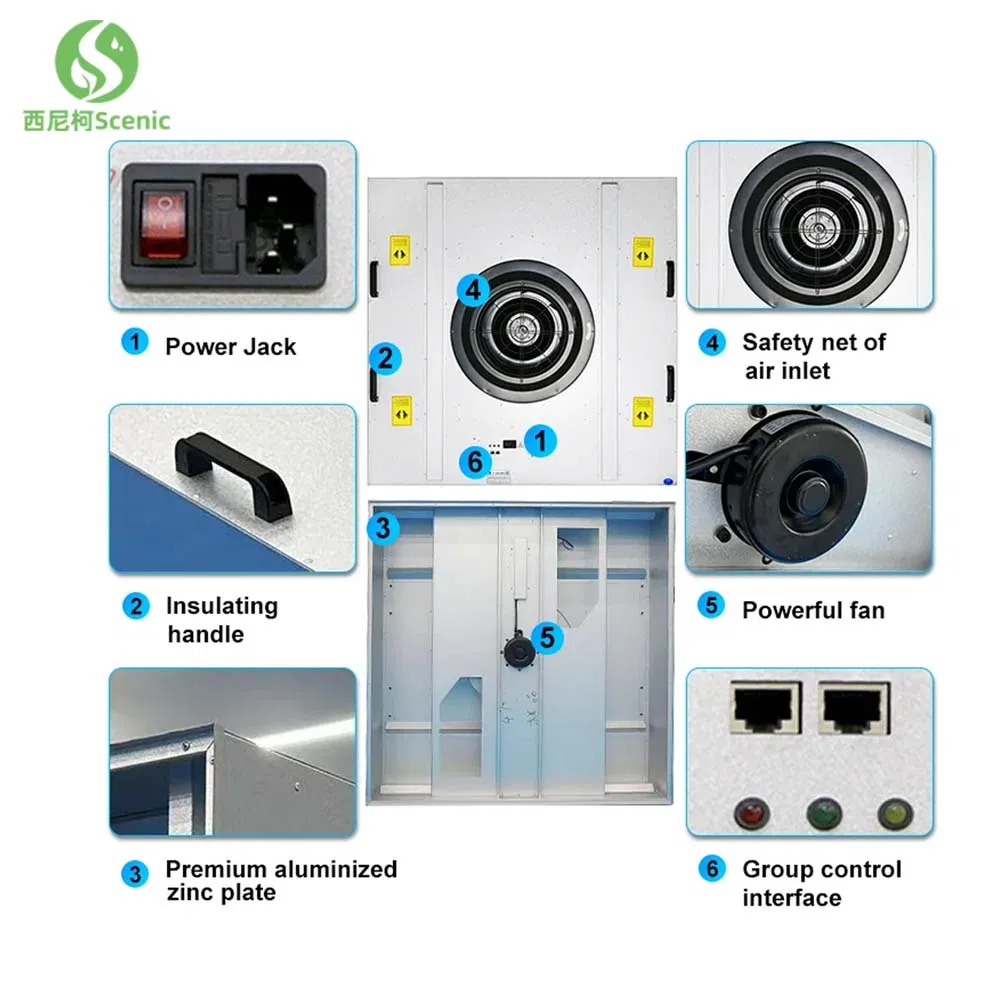

🔍 Detailed Photos & Features

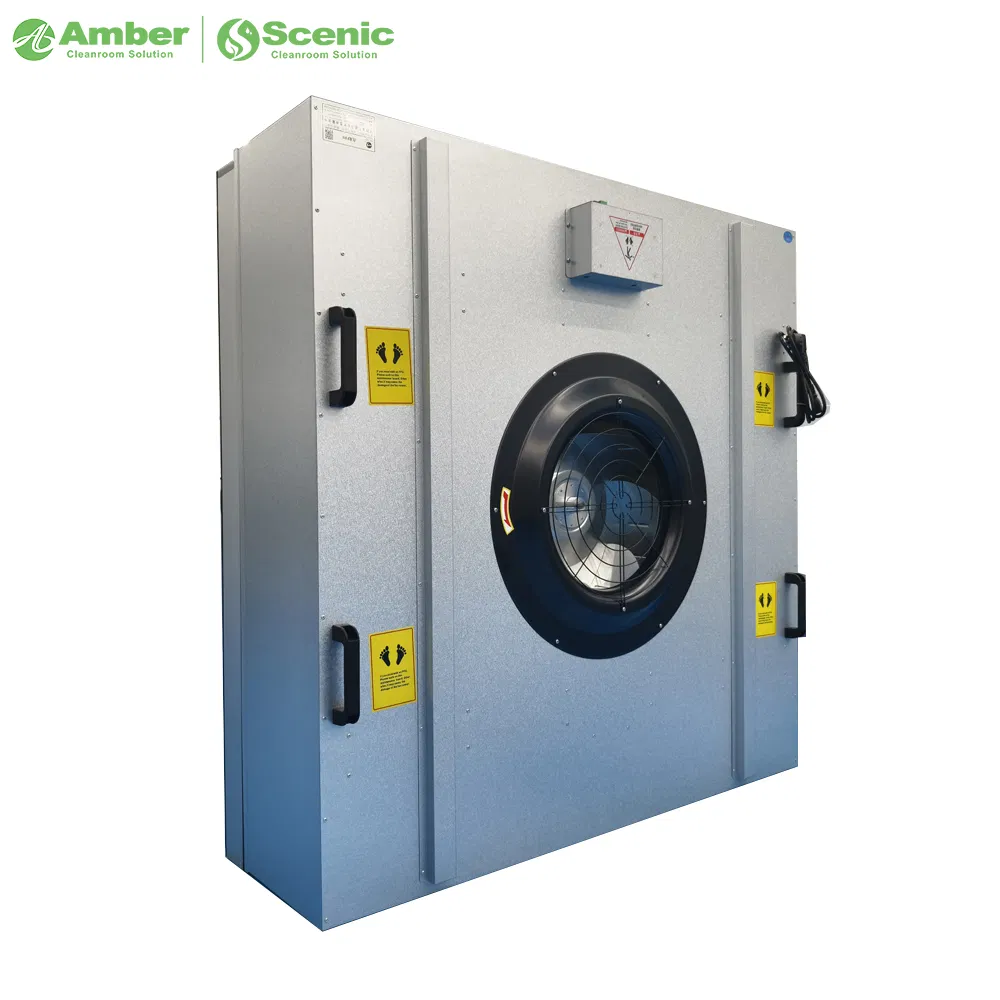

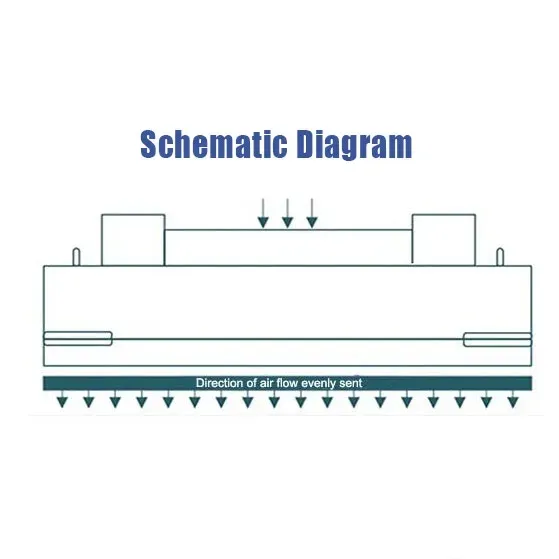

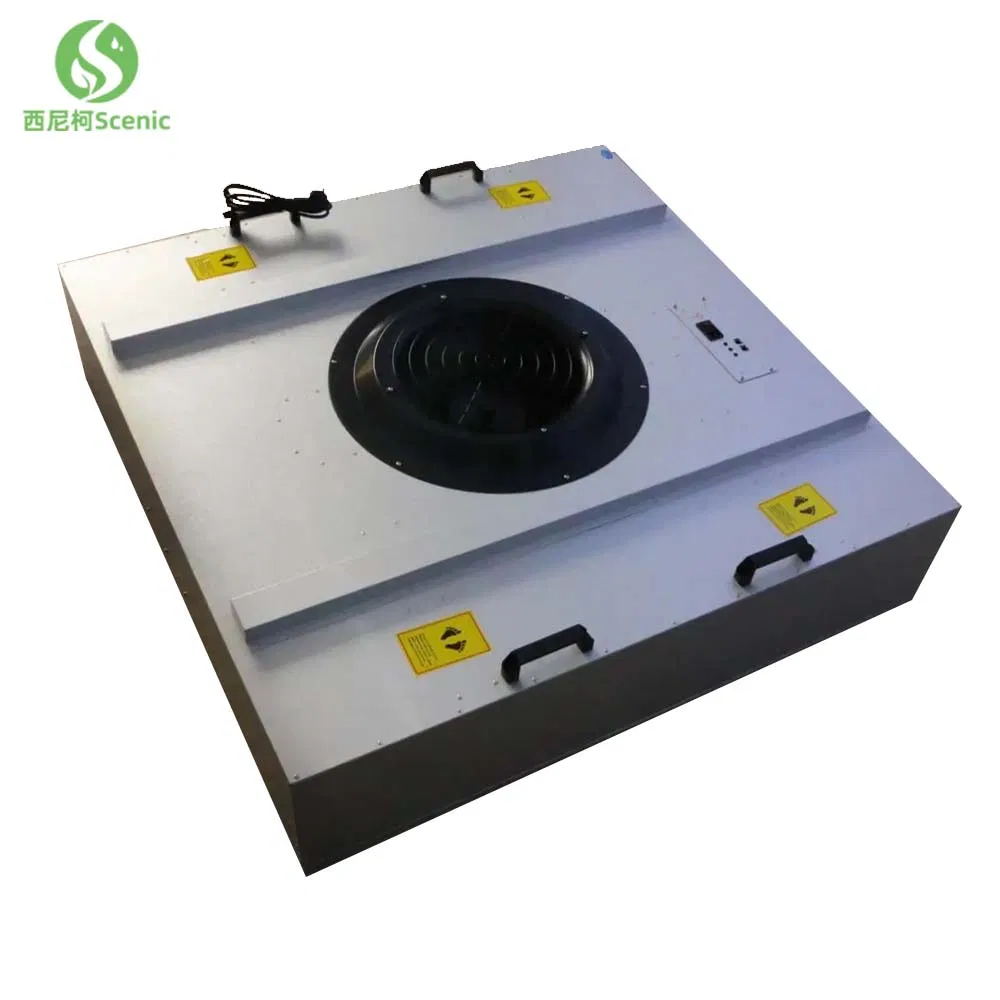

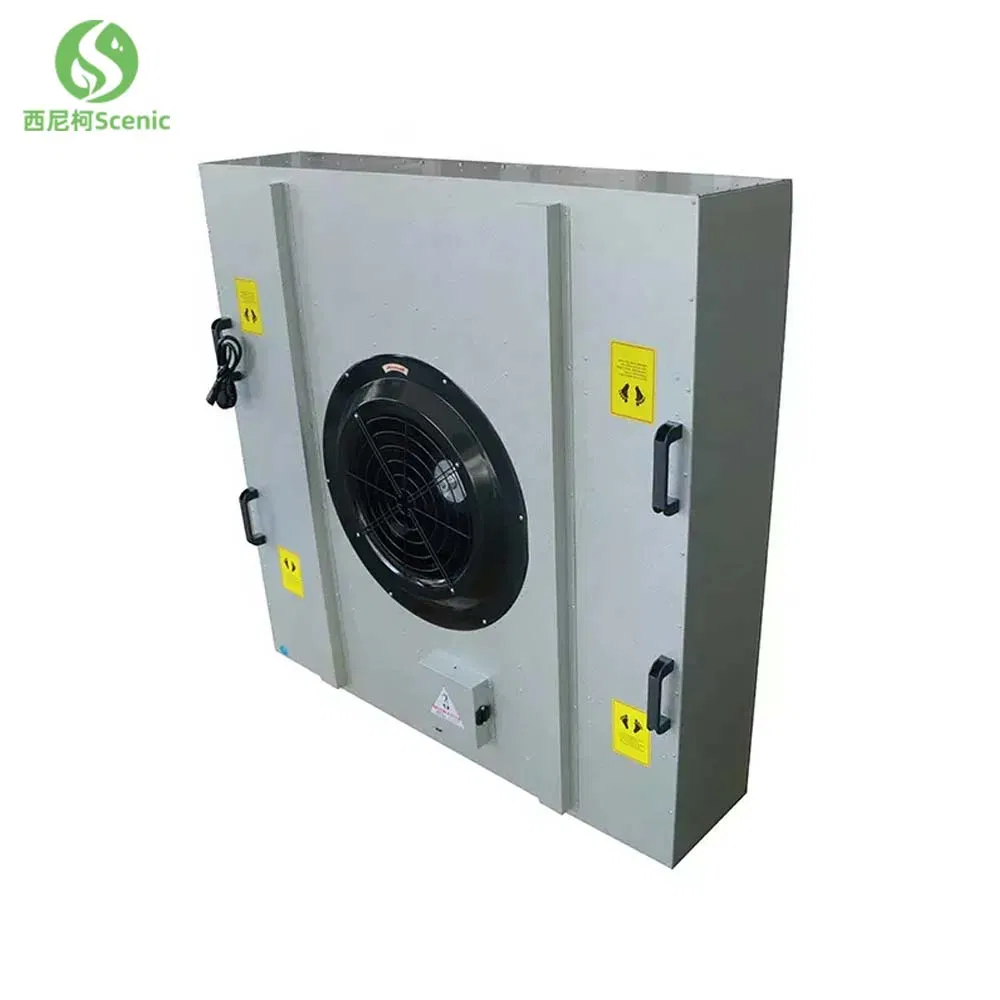

The FFU Fan Filter Unit draws in contaminated air from the top and exhausts filtered clean air vertically in a unidirectional (laminar) air stream. It is a self-contained fan and filter module for cleanroom applications.

Human-centered design with stainless handles for easy installation.

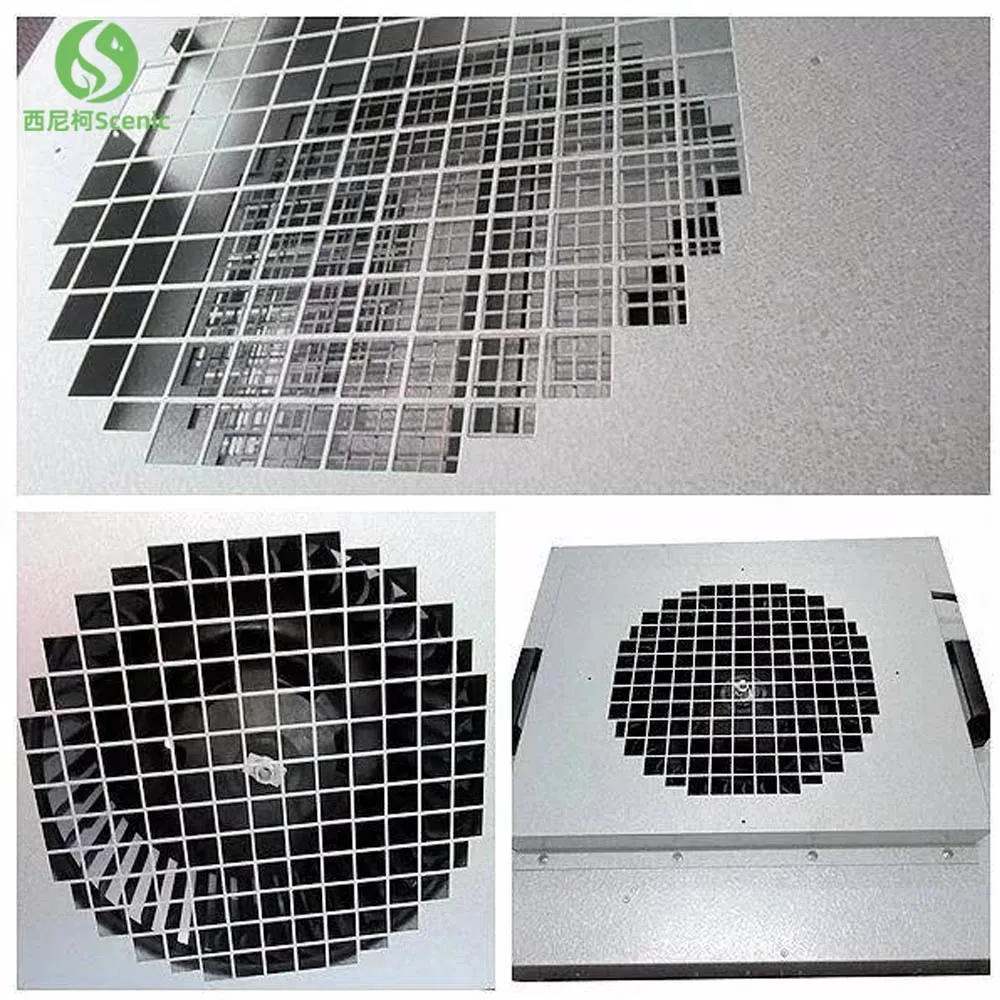

Energy-saving multi-blade turbine fan with over 80,000 hours service life.
Light and thin shape (23cm thickness) suitable for low ceilings.
Premium current-averaging design ensures deviation lower than ±10%.

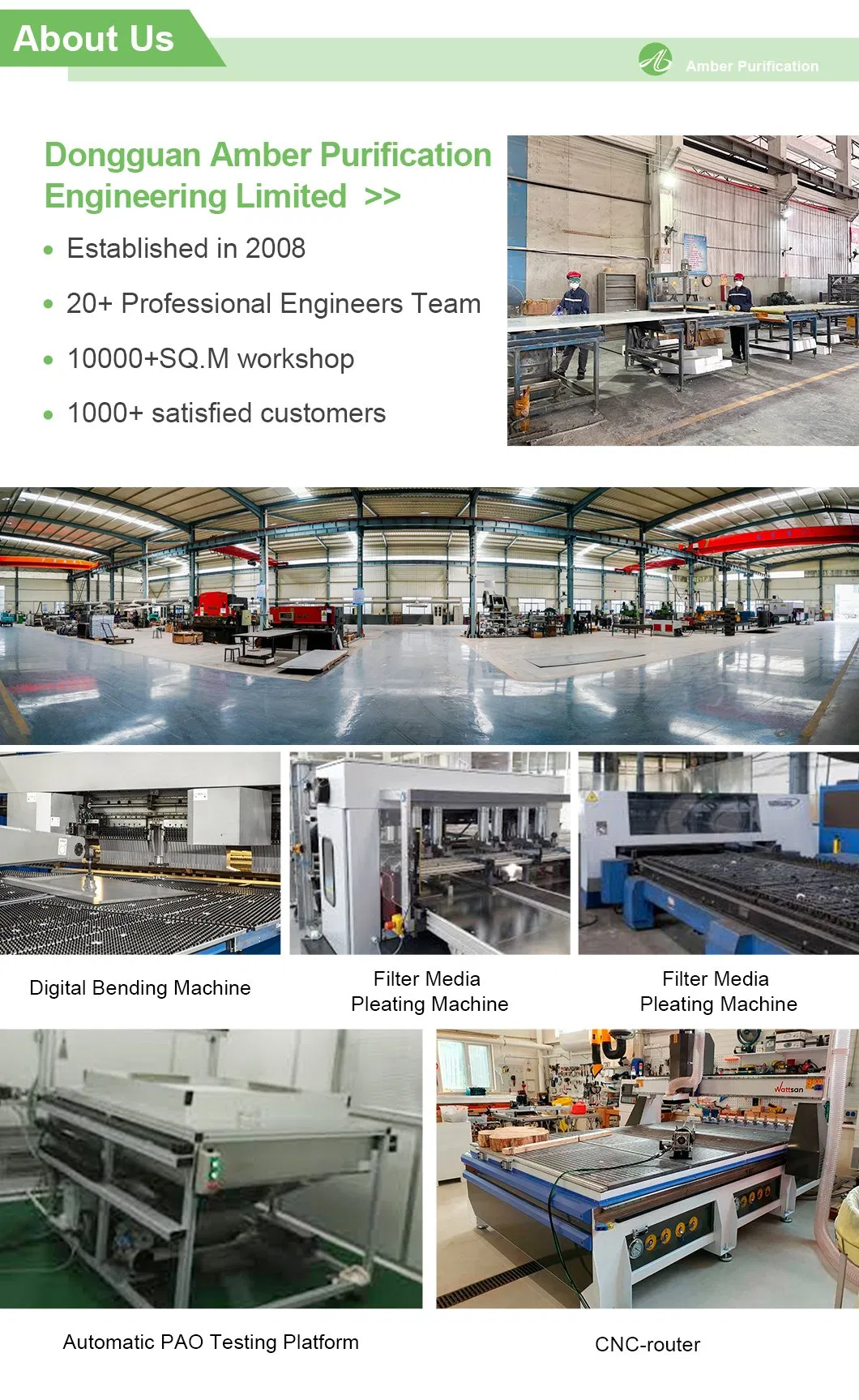

🏢 Production & Quality

🛠️ Recommended Equipment

📜 Certifications & Shipping

❓ Frequently Asked Questions

What is the primary function of an FFU?

A Fan Filter Unit (FFU) is a self-contained device used to deliver purified, laminar air to cleanrooms by filtering out airborne particles using HEPA or ULPA filters.

What materials are available for the FFU casing?

We offer multiple material options including SUS304 stainless steel, SUS201 stainless steel, coated steel, and galvanized steel to meet different environmental requirements.

What is the filtration efficiency of your units?

Our standard HEPA filters provide 99.99% efficiency at 0.3 microns. We also offer H14 and ULPA filters for even higher cleanliness requirements.

Can the air speed be adjusted?

Yes, our units feature simple direct speed control. We also offer EC motors with advanced control options for better energy efficiency and precise airflow management.

Is the FFU suitable for low ceiling installations?

Absolutely. Our FFU features a thin-profile design with a thickness of only 23-28.5cm, making it ideal for cleanrooms with limited overhead space.

What industries typically use these Fan Filter Units?

They are widely used in semiconductor manufacturing, electronics, flat-panel displays, bio-engineering, optics, and pharmaceutical cleanrooms.
