City Municipal Water Treatment Ao Sediment Mbbr Containerized Mbbr Integrated Treatment System

1 / 5

City Municipal Water Treatment Ao Sediment Mbbr Containerized Mbbr Integrated Treatment System

Customization:	Available
Type:	Integrated Mbbr Plant
Method:	Biological Treatment

Send Inquiry

Product Description

Basic Information

Model NO.

JHM-MBBR01

Usage

Industrial, Home, Agriculture, Hospital

Certificates

ISO, SGS

Material

New HDPE

Feature

High Efficiency

Production Capacity

5000 PCS Per Month

Package

Plastic Woven Bag/0.1m3

HS Code

3926909090

Product Description

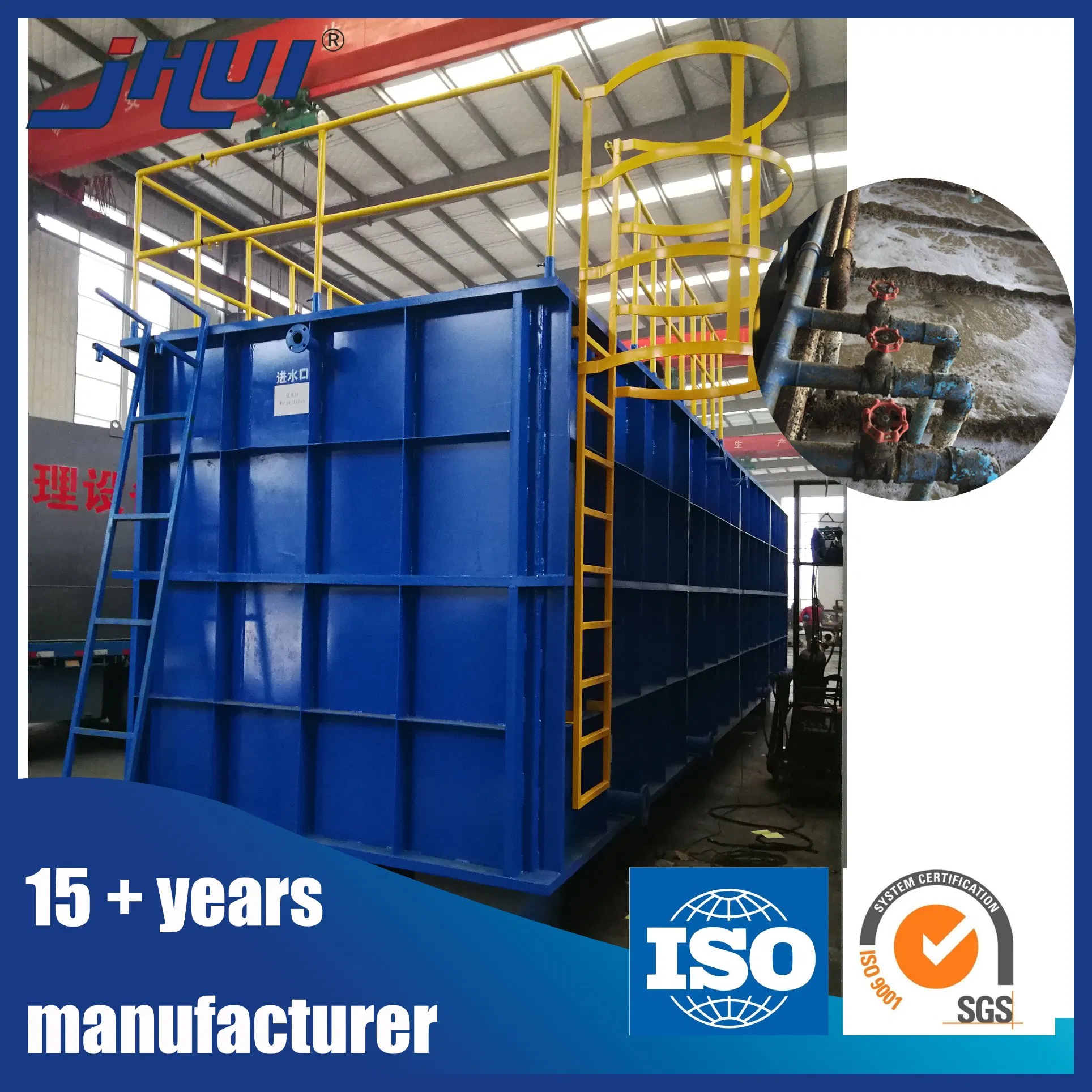

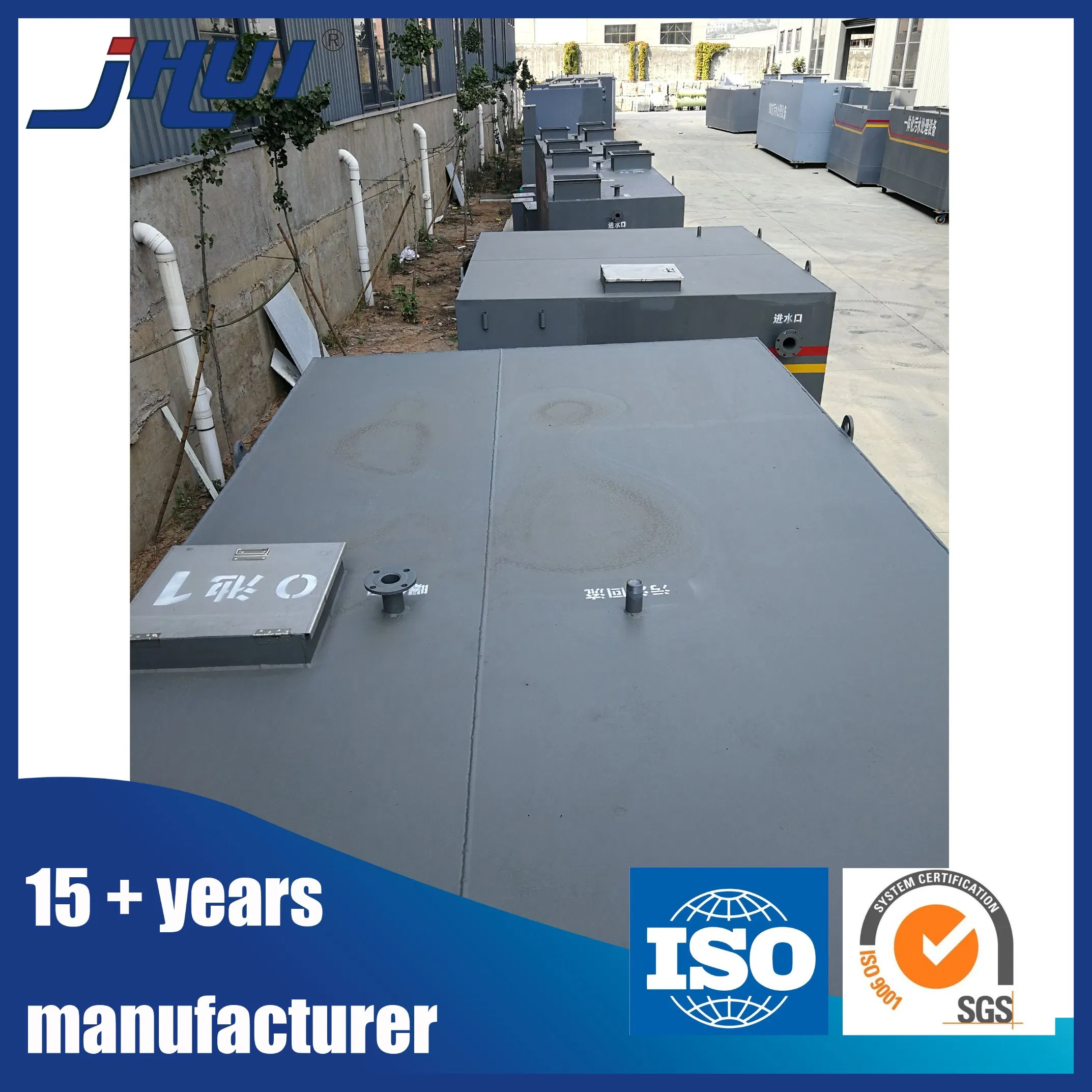

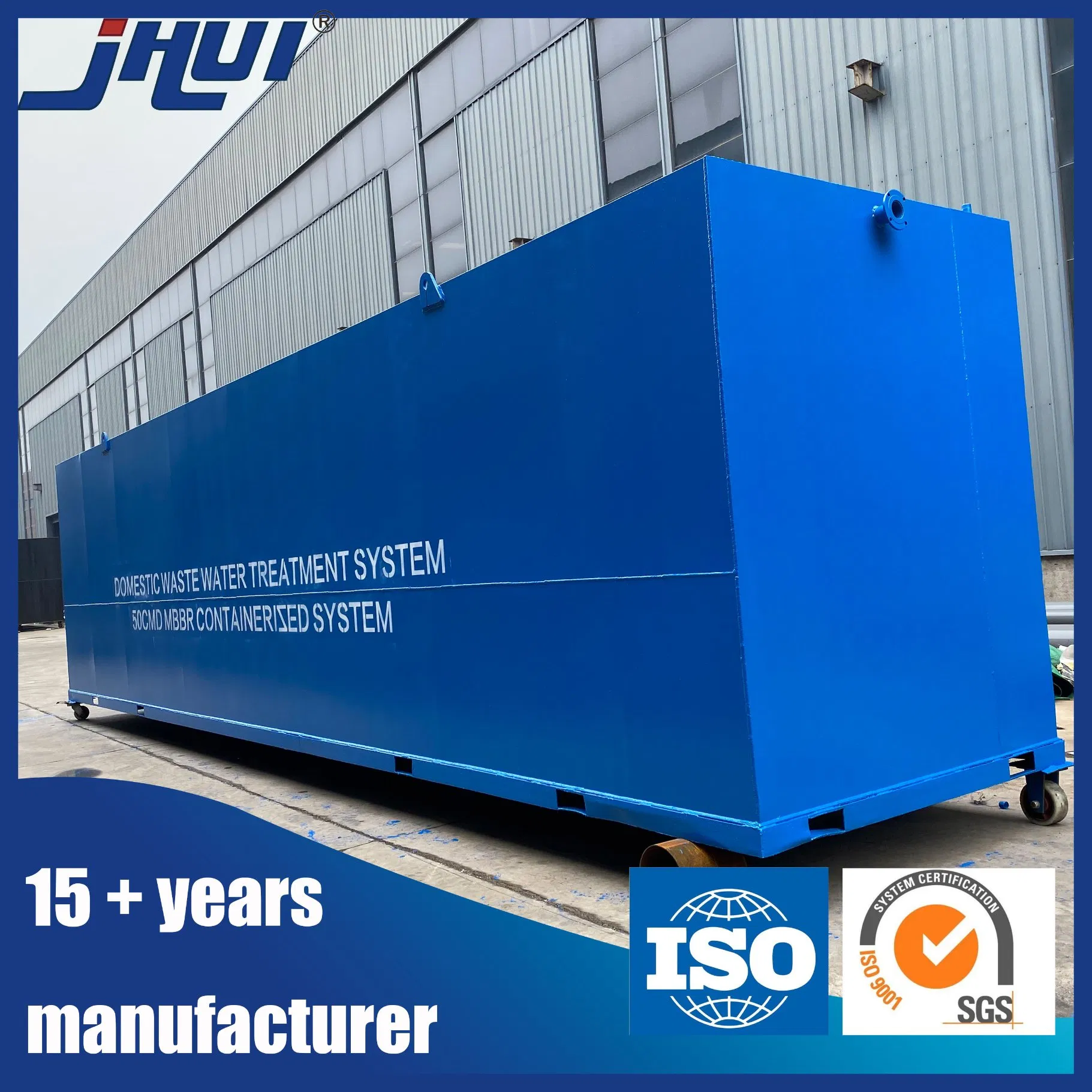

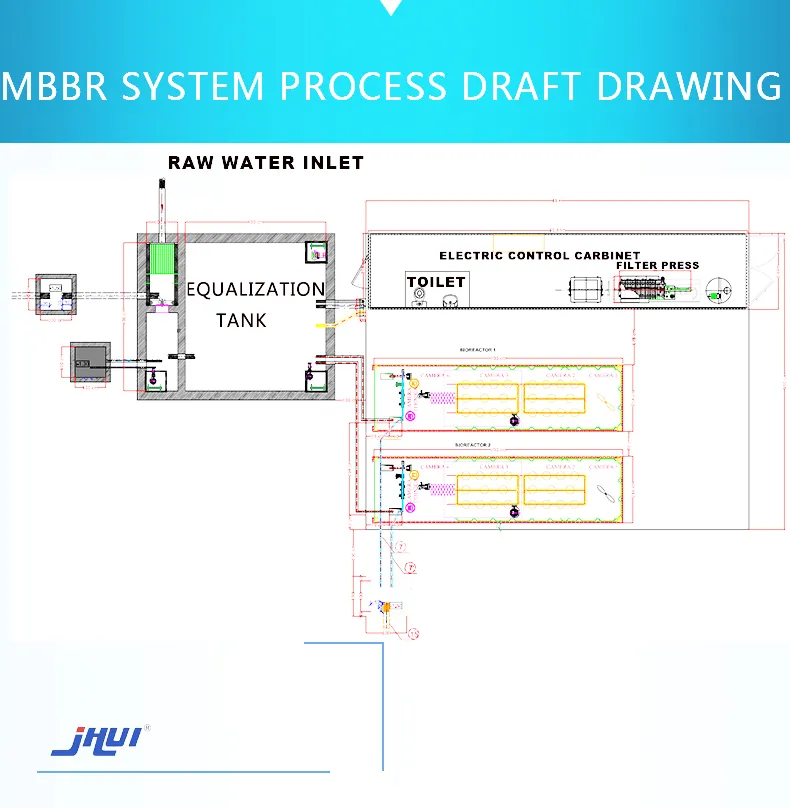

City municipal water treatment AO sediment MBBR containerized system

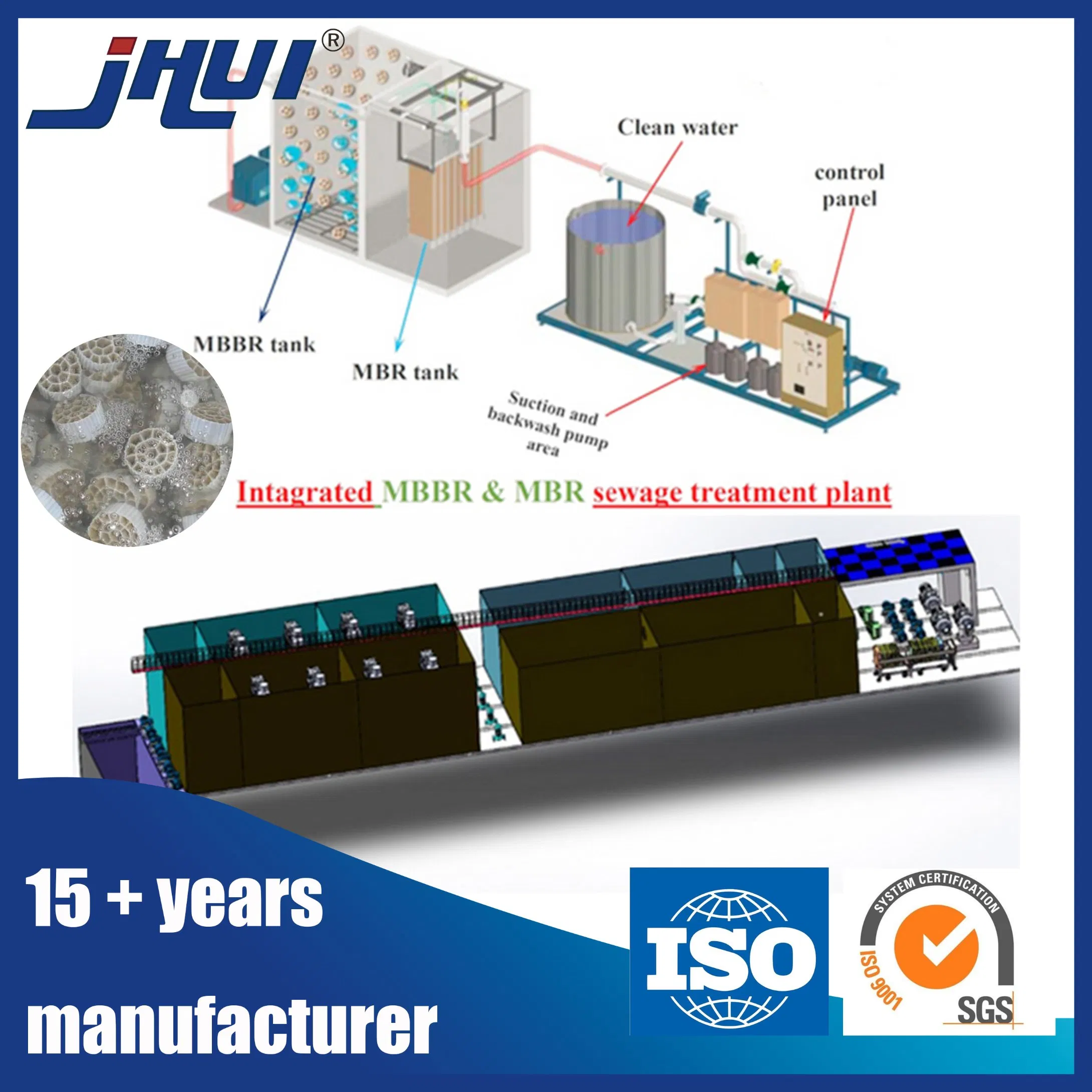

Moving Bed Bio-film Reactor (MBBR) is a high-efficiency bio-film reactor with strong loading ability, high treatment efficiency, and long sludge age. It produces less residual sludge and offers excellent nitrogen and phosphorus removal without sludge expansion.

Technical Parameters

Model	Capacity (m3/d)	Dimensions LWH(m)	Weight (ton)	Op. Weight (ton)	Total Power (kw)	Area (m2)
WSZ-C5	5	1.987x1.2x1.66	1.04	4.99	3.84	18
WSZ-C10	10	2.35x1.518x2.16	1.72	9.42	3.84	21
WSZ-C20	20	4.831 x 1.518x2.16	2.61	18.44	4.60	25
WSZ-C30	30	4.705x2.03x2.16	3.09	23.70	6.10	29
WSZ-C40	40	6.125x2.03x2.16	3.68	30.53	6.10	33
WSZ-C50	50	6.125x2.03x2.66	4.25	37.32	6.10	39
WSZ-C60	60	6.596x2.262x2.66	4.78	44.47	7.50	42
WSZ-C100	100	10.85x2.262x2.66	6.85	72.14	9.10	57

Main Product Range

Manufacturing Excellence

Our facility is a high-tech enterprise specializing in the research, development, and production of hollow fiber membrane separation technology. With nearly 20 years of experience in water treatment engineering, we maintain ISO 9001:2000 quality management systems and SGS certification.

Applications

Food & Beverage: Process water preparation and sewage treatment.
Pharmaceutical: Washing water and aseptic water preparation.
Chemical & Petrochemical: Wastewater reuse and deep treatment.
Power Industry: Boiler recharge and circulating cooling water.
Electronics: Semiconductor ultrapure water systems.
Desalination: Brackish water treatment for coastal and offshore areas.

Exhibitions & Global Presence

We actively participate in international water exhibitions to showcase our latest technologies:

2018: Russia, Malaysia, Vietnam Water Exhibitions.
2019: Thailand, Pakistan, Indonesia, India Water Exhibitions.

Frequently Asked Questions

1. What is MBBR technology?

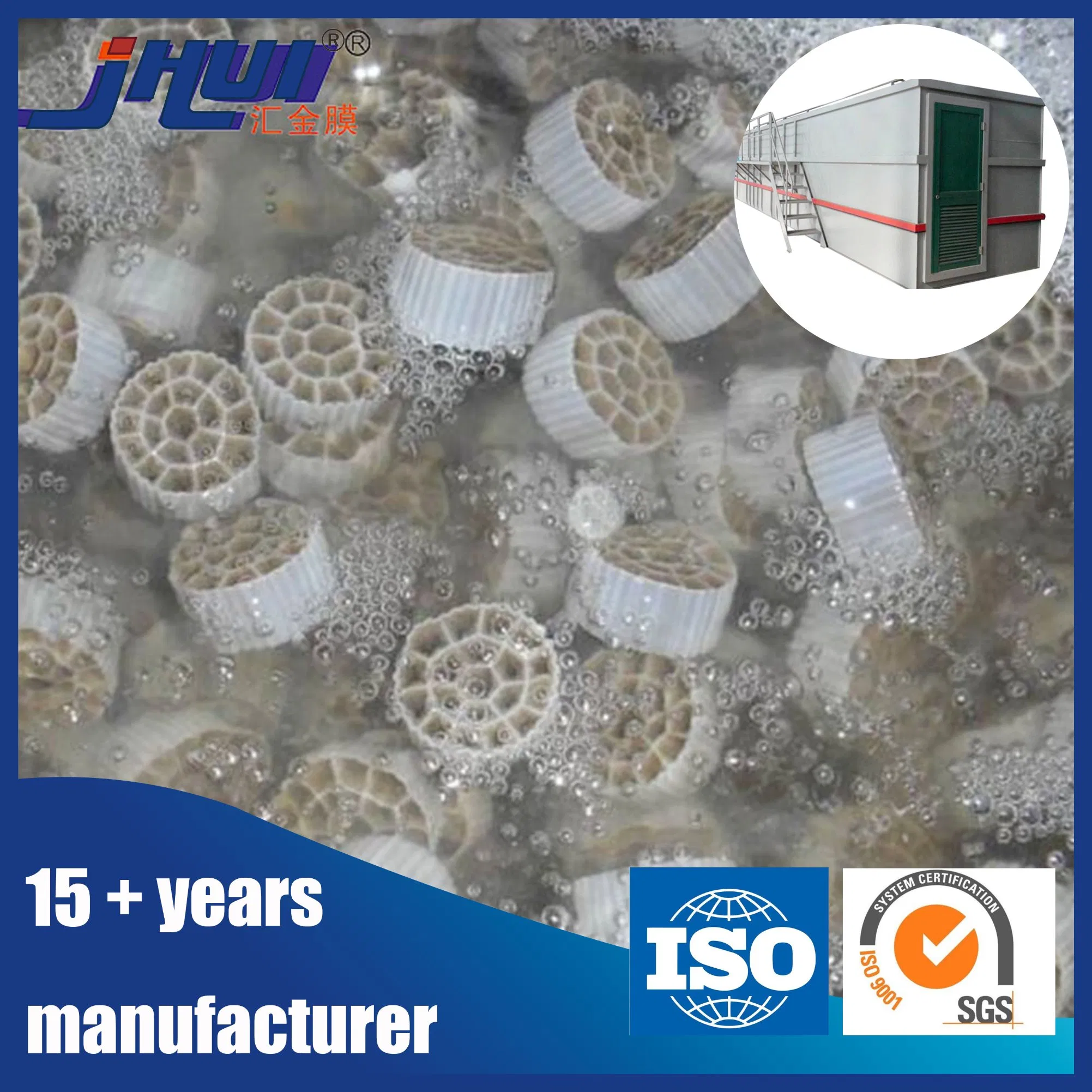

MBBR stands for Moving Bed Biofilm Reactor. It uses thousands of polyethylene biofilm carriers operating in mixed motion within an aerated wastewater treatment basin, providing a large surface area for microbial growth.

2. What are the main advantages of a containerized MBBR system?

It is highly portable, easy to install (plug-and-play), requires minimal civil work, and is space-efficient, making it ideal for decentralized wastewater treatment.

3. What kind of maintenance does the system require?

The system is designed for low maintenance. Since the biofilm carriers are self-cleaning due to constant movement, there is no risk of clogging, and sludge management is simplified.

4. Can the system be customized for specific wastewater types?

Yes, the system can be engineered to handle municipal, industrial, agricultural, or hospital wastewater by adjusting the tank design and carrier density.

5. Is the bio-media material durable?

Yes, we use New HDPE material for our suspended fillers, which ensures high activity, chemical resistance, and a long service life.

6. How does the system handle nutrient removal?

The MBBR process is excellent for nitrification and denitrification, efficiently removing nitrogen and phosphorus to meet strict environmental discharge standards.
