Advantages of ESD Flooring Tiles:

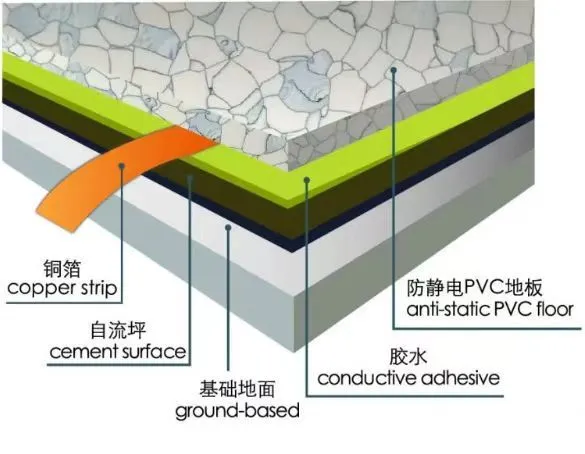

Utilizes an electrostatically conductive network, ensuring permanent conductive properties to effectively dissipate static electricity and protect sensitive equipment.
Made from PVC resin, conductive materials, stabilizers, and pigments. This ensures a durable solution capable of withstanding heavy foot traffic.

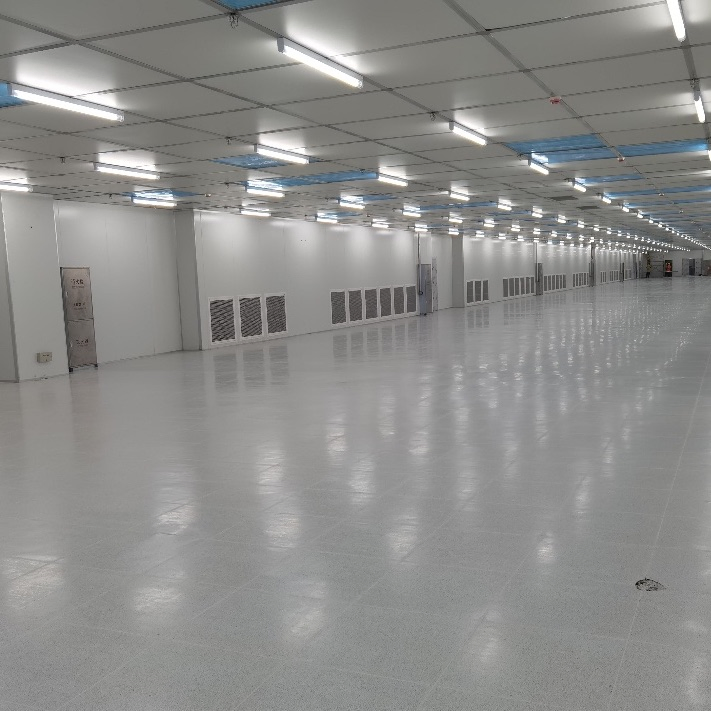

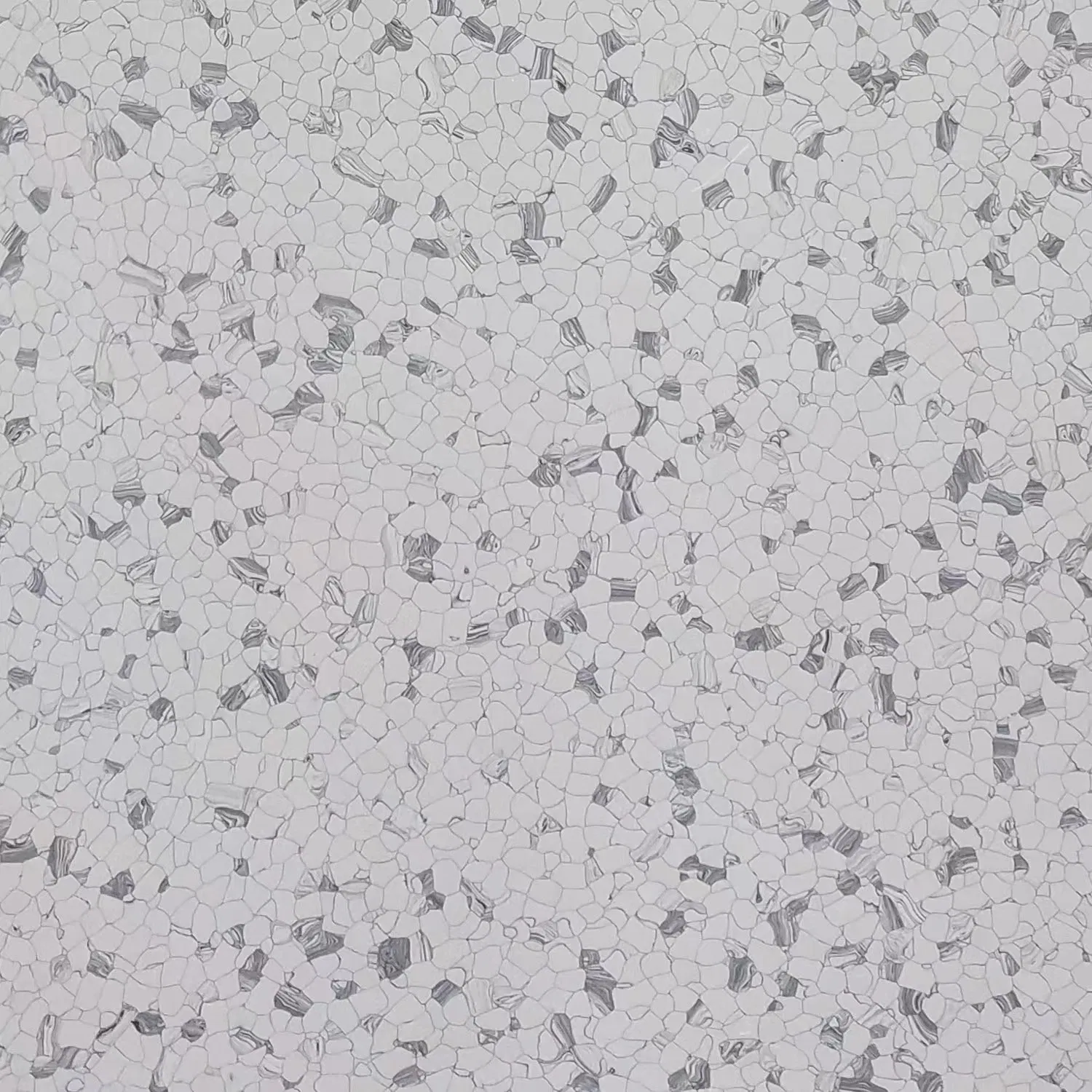

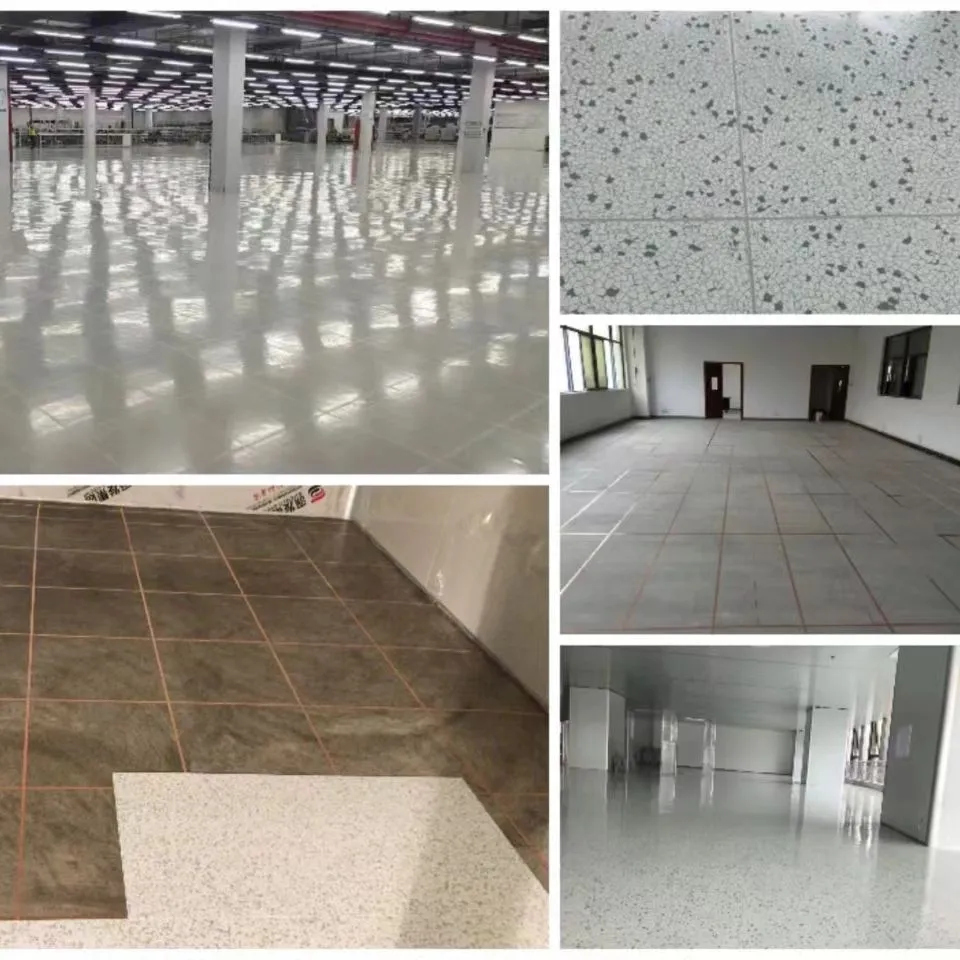

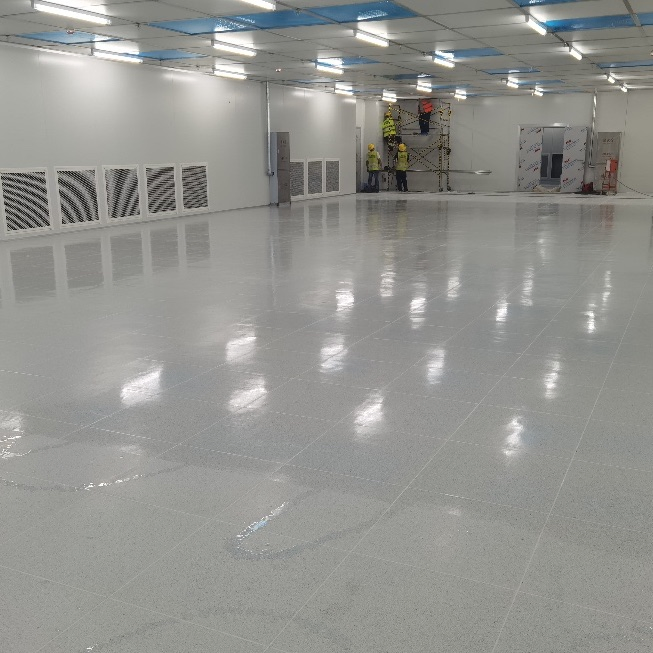

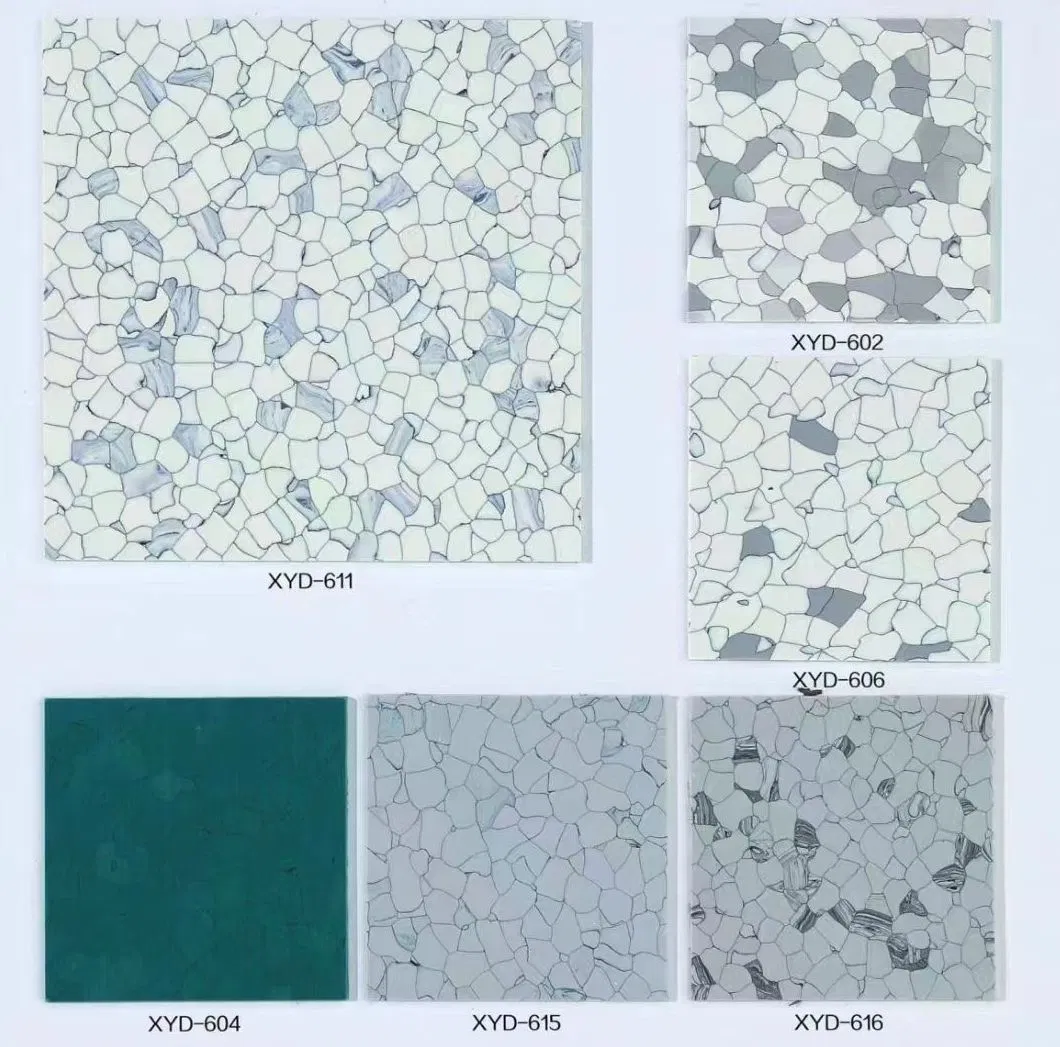

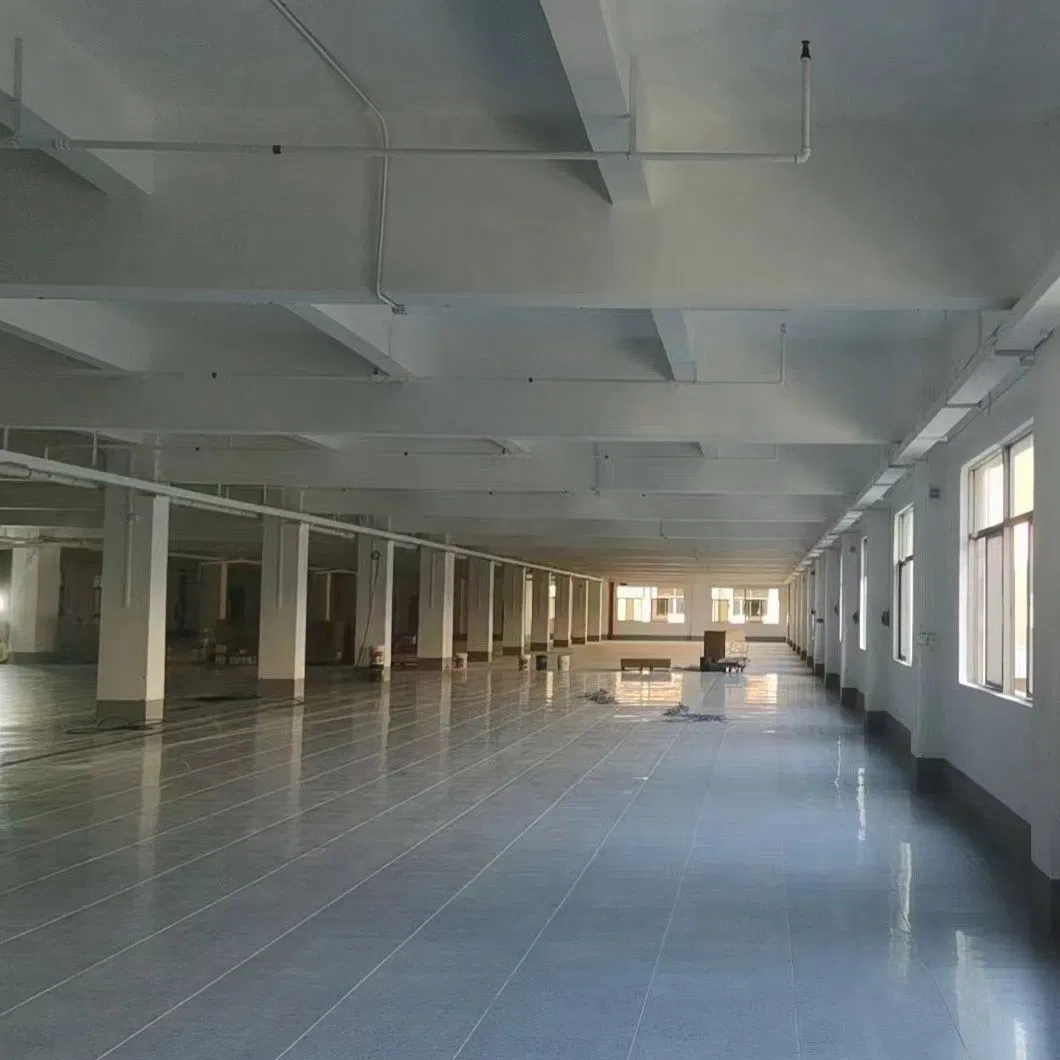

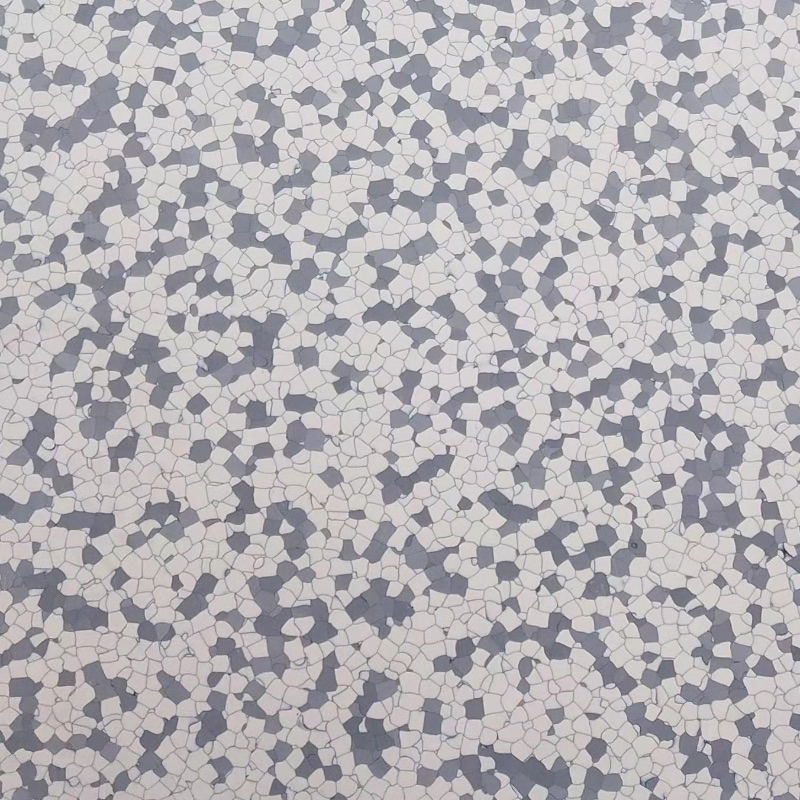

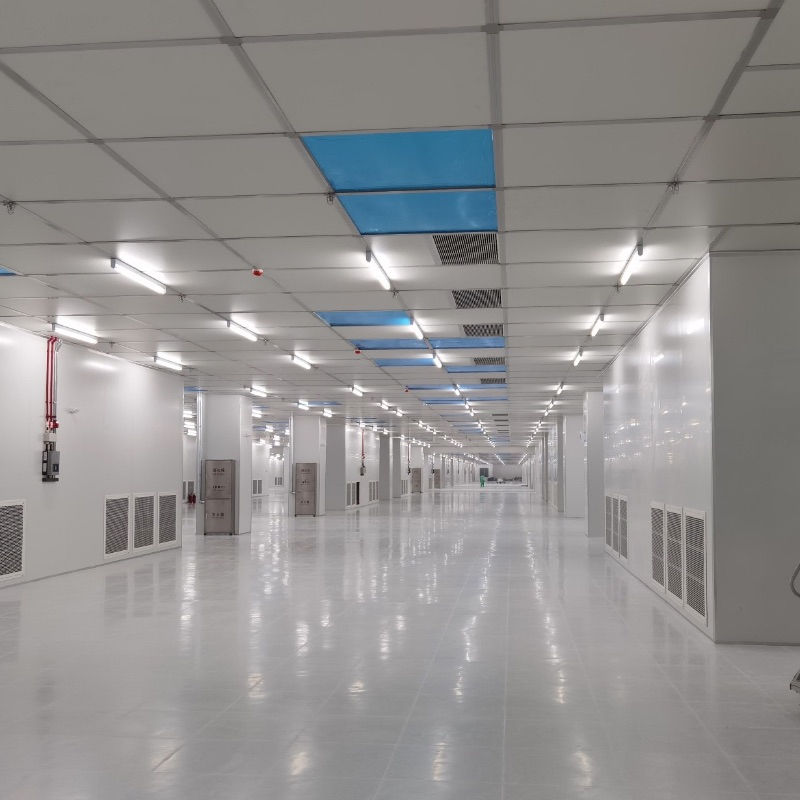

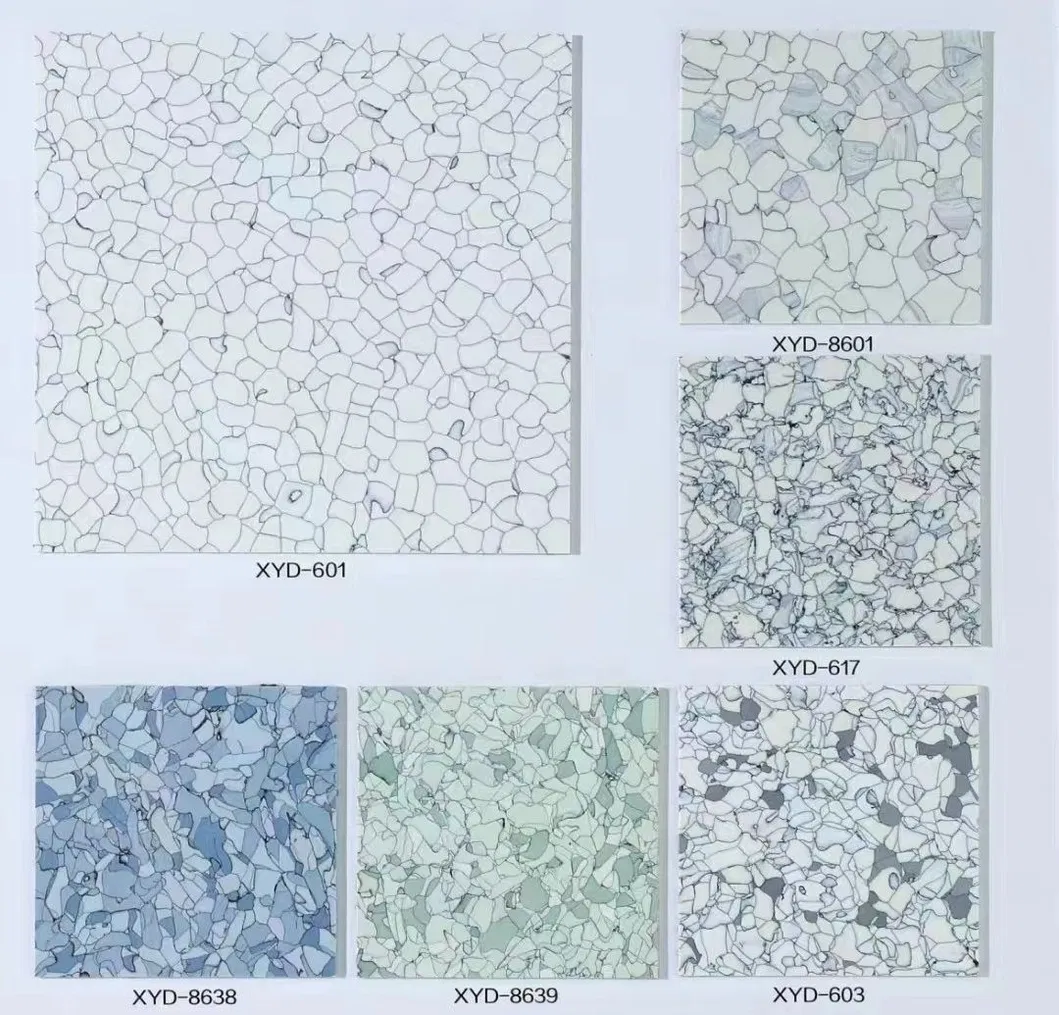

Designed with a network pattern for an aesthetically pleasing appearance, suitable for labs, offices, and cleanrooms.

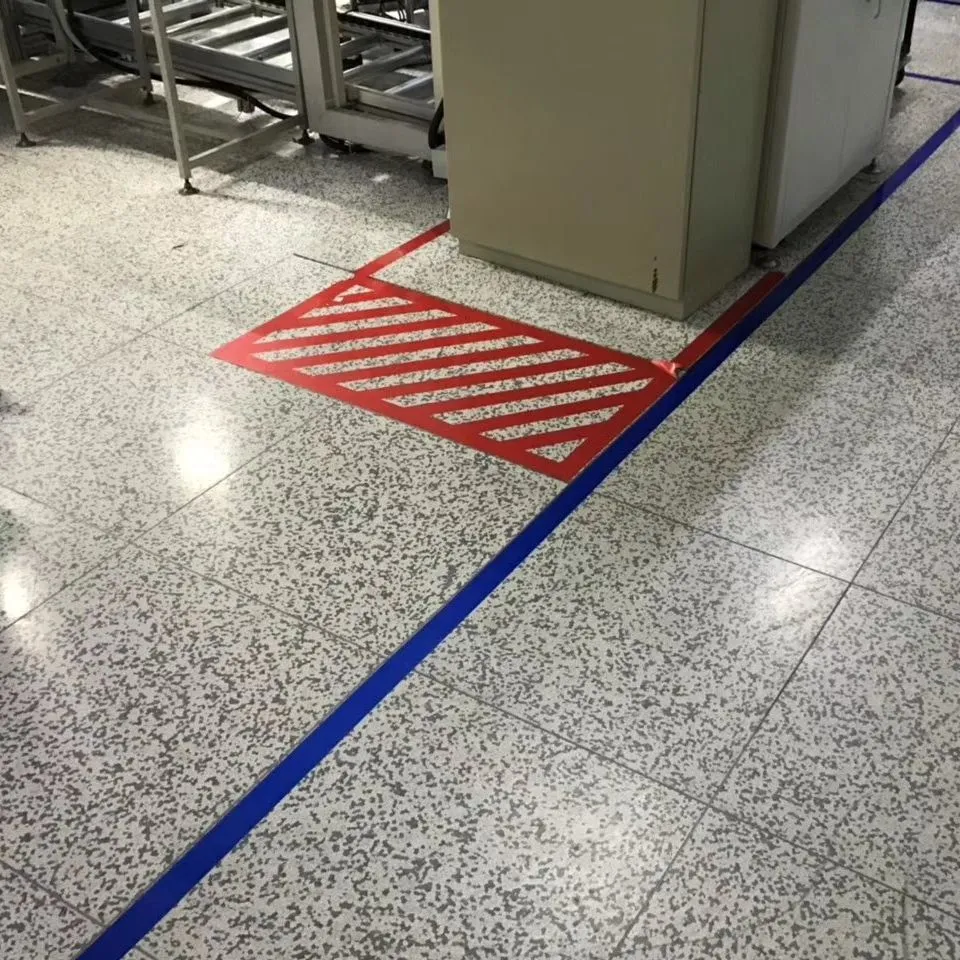

Prevents static accumulation, crucial for electronics manufacturing, data centers, and healthcare facilities.
Quick to install and easy to clean, contributing to long-term cost-effectiveness across various industries.
| Property | Standard | Value |
|---|---|---|
| Thickness | ISO 24346(EN428) | 2.0, 2.5, 3.0mm |
| Electrical Resistance | EN 1081 | 10^4 - 10^9 Ω |
| Static Voltage | AATCC-134 | < 100V |
| Body Voltage | ANSI ESD STM97.2 | < 100V |
| Fire Resistance | EN13501-1 / GB8624 | Class Bfl-S1 |
| Slip Resistance | DIN 51130 | R9 |
| Residual Indentation | ISO 24343-1 | Approx. 0.01mm |
| Chemical Resistance | EN ISO 26987 | Pass |
Utilizing a new generation of plasticizer DOTP, which is suitable for sensitive environments. The production employs "RHPP" technology—a physical rolling method in high-pressure environments that increases density and produces a stain-resistant film. This ensures the carbon fibers remain intact, providing permanent conductive properties.
