Advanced Integrated Mbr Sewage Treatment System for Efficient Water Purification

Customization:	Available
Type:	Integrated A2o Plant
Method:	Biological Treatment

Basic Information

Model NO.:JHM-MBR01

Usage:Industrial, Home, Agriculture, Hospital

Certificates:ISO, SGS

Material:Pes, Pan, PVDF

Membrane Type:Hollow Fiber Membrane

Customized:Approve

Feature:High Efficiency

HS Code:8421999000

Production Capacity:50000 PCS Per Month

Product Description

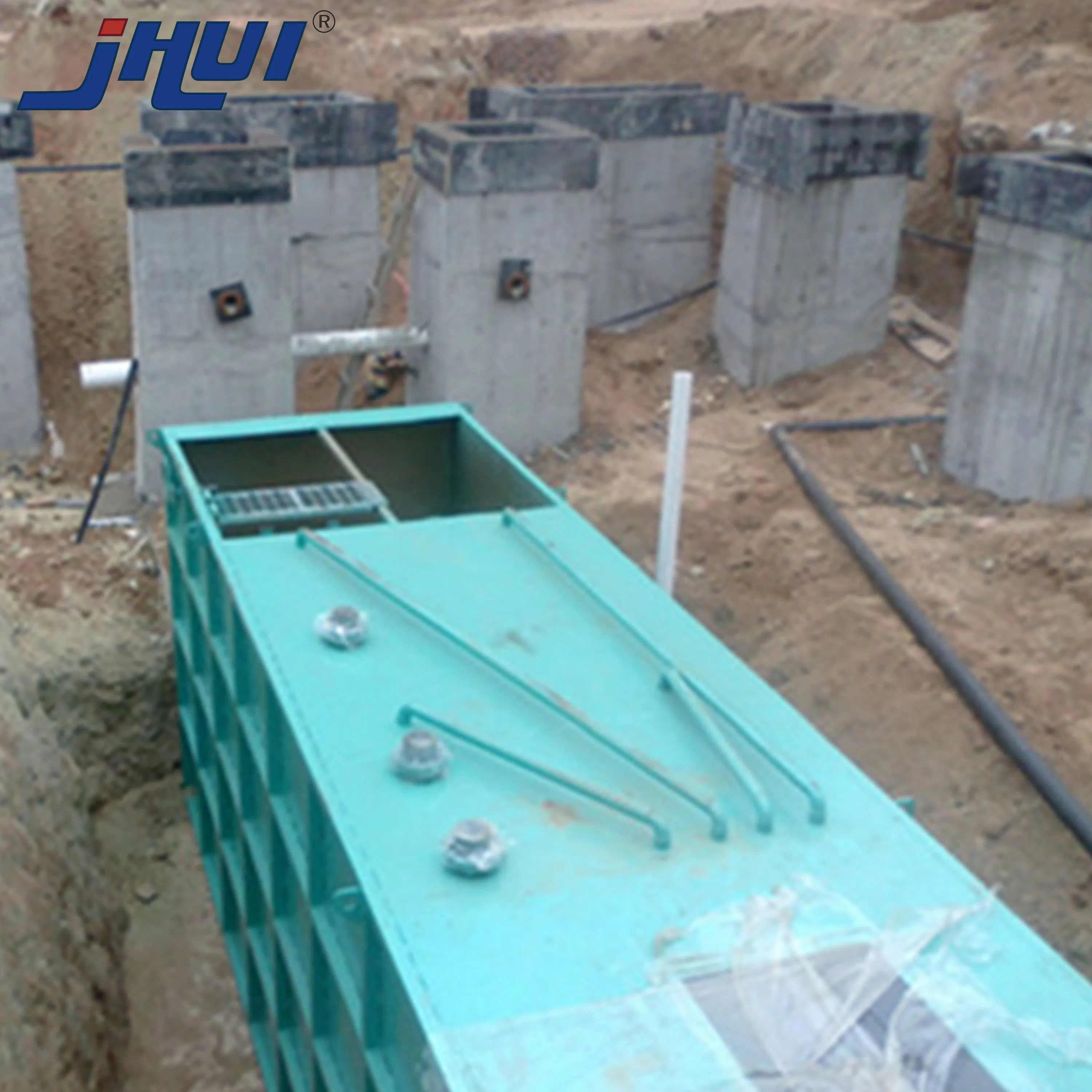

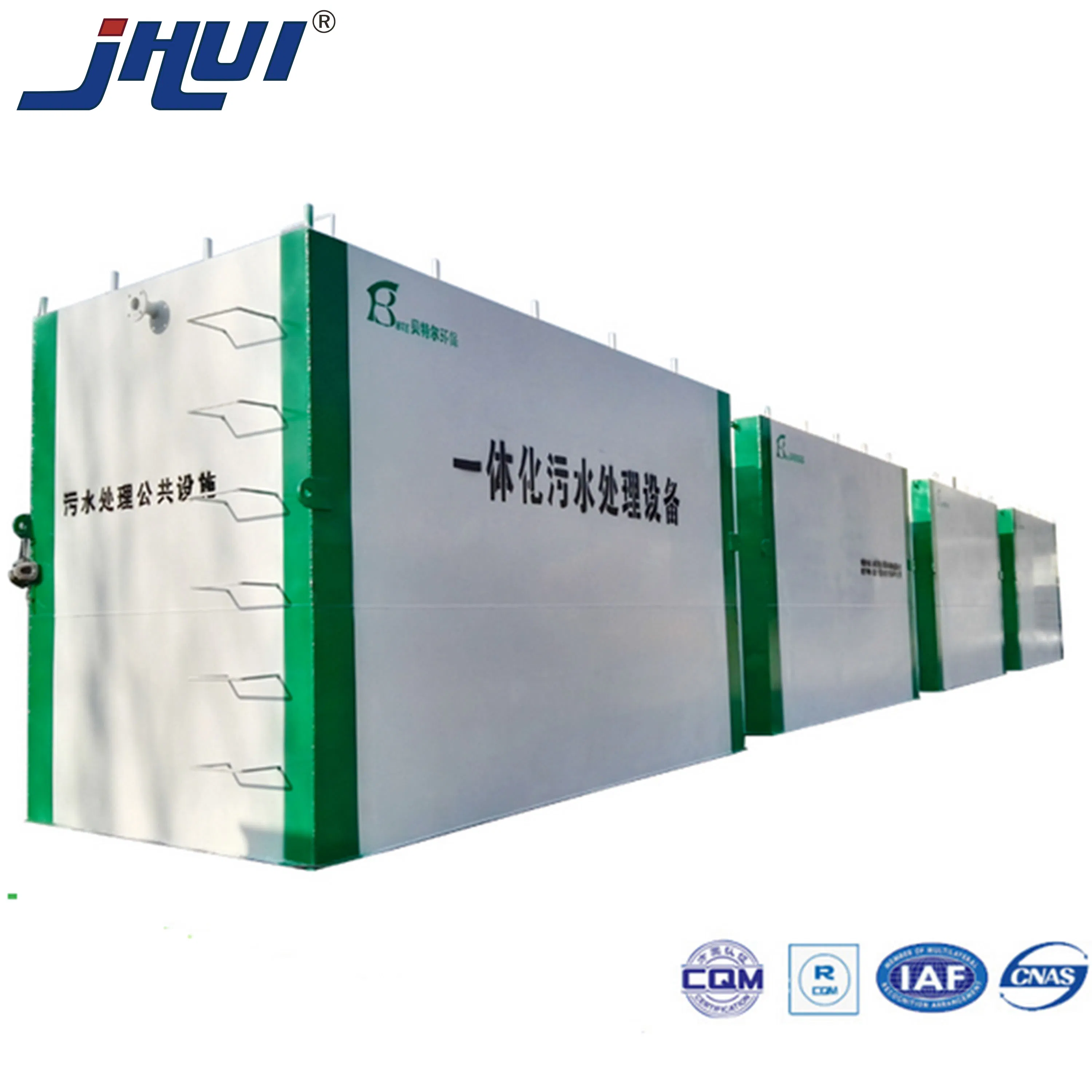

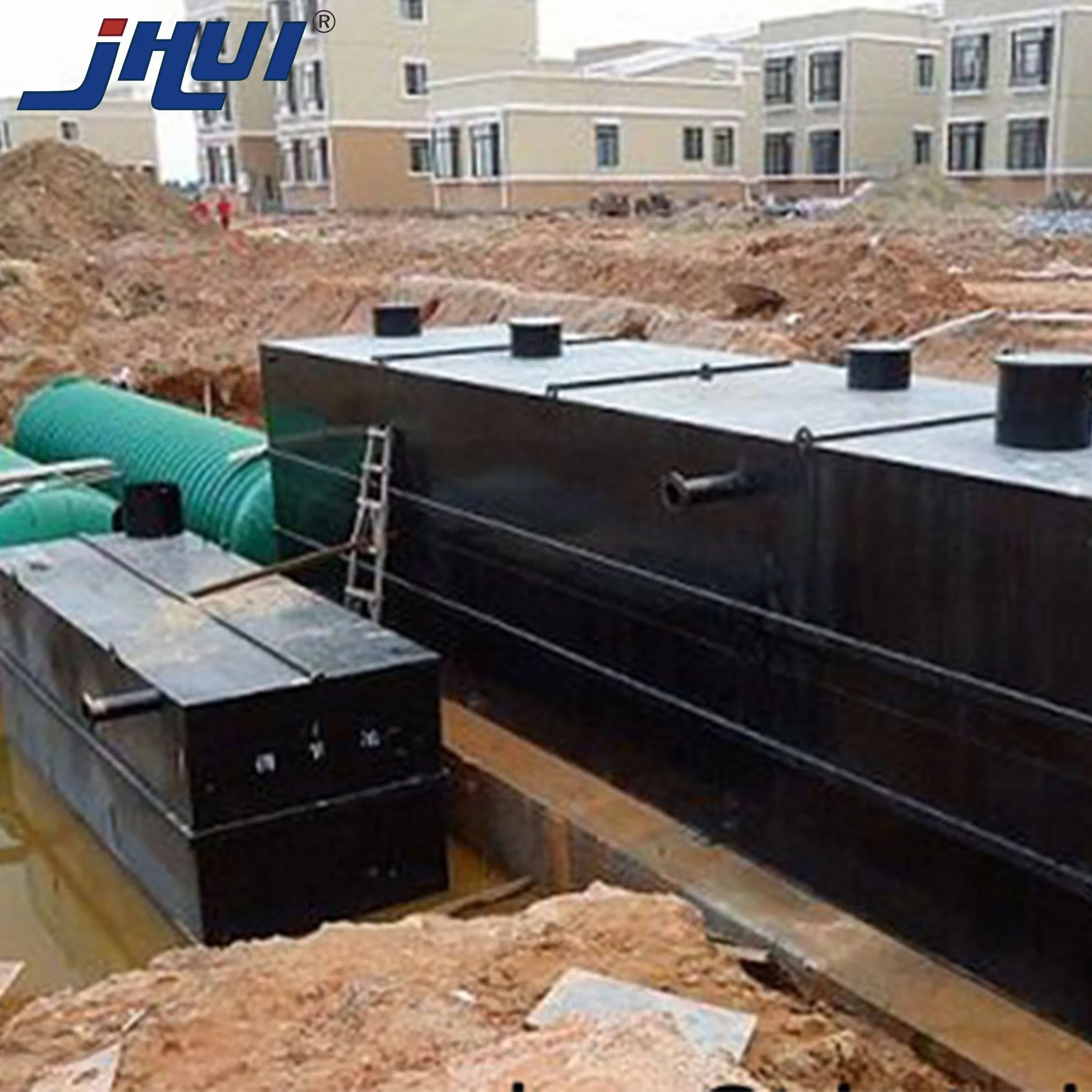

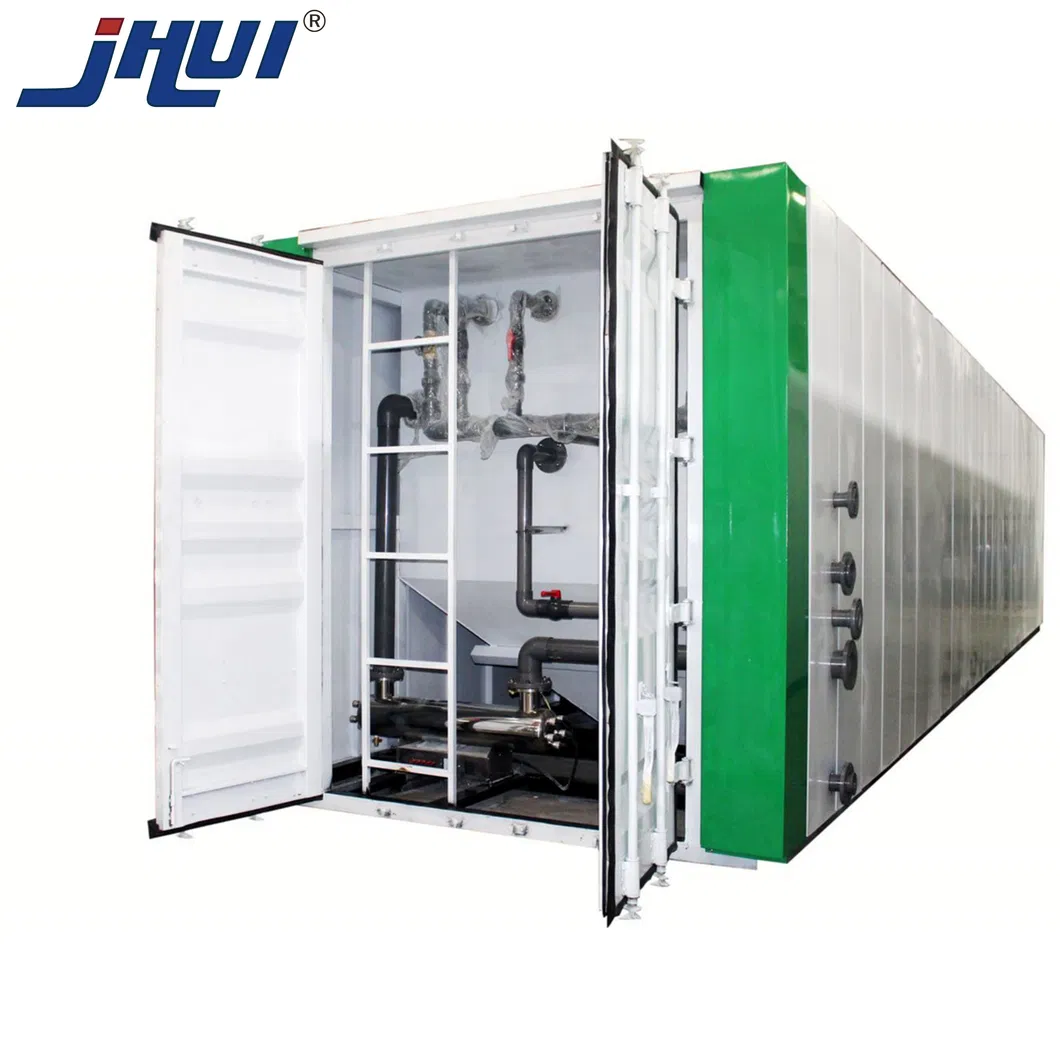

Integrated MBR Sewage Treatment System

Membrane Bio-Reactor (MBR) is a new processing technology that introduces a membrane unit into traditional biological sewage treatment. The membrane separation unit replaces the traditional secondary sedimentation pool function, allowing for the efficient removal of organic matter, nitrogen, and phosphorus. It is currently one of the most advanced water treatment technologies available.

Based on enhanced hollow fiber UF membranes, our high-end MBR membrane group features high mechanical strength, stable water quality, high flux operation, and a long service life, making it the ideal core equipment for the MBR process.

Product Parameters

Model	MBRIII3	MBRIII6	MBRIII10	MBRI15	MBRII20	MBRIIIZ35
Element size (AbD mm)	60045040	60076040	630100036	630150036	630200036	844219849
Effective area (m²)	3m²	6m²	10m²	15m²	20m²	35m²
Pore size (µm)	0.03 ~ 0.1µm
Material	PVDF (PET lining)
TMP (Mpa)	0.02 ~ 0.05Mpa
Water temp	10 ~ 45ºC
Working life	≥ 5 years under normal usage

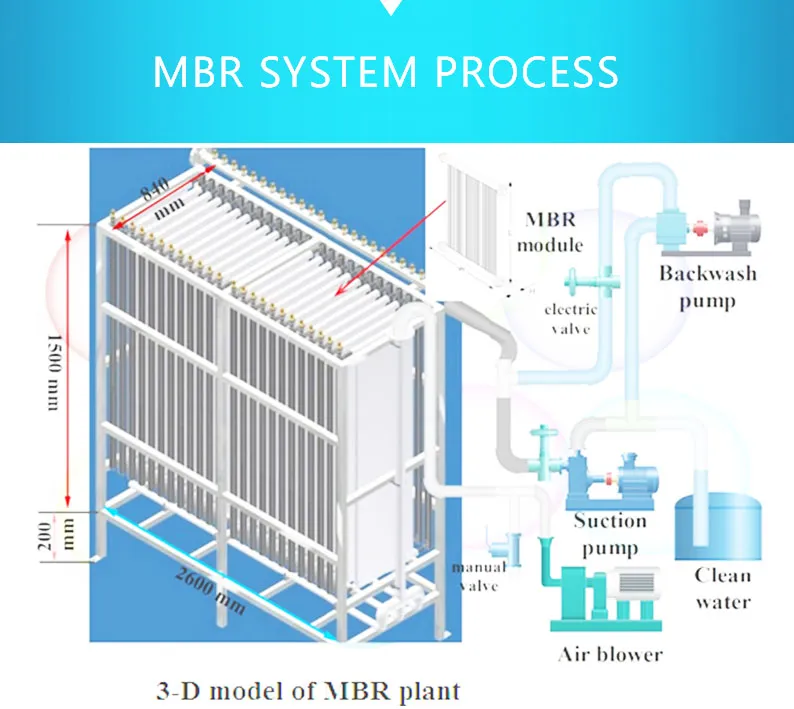

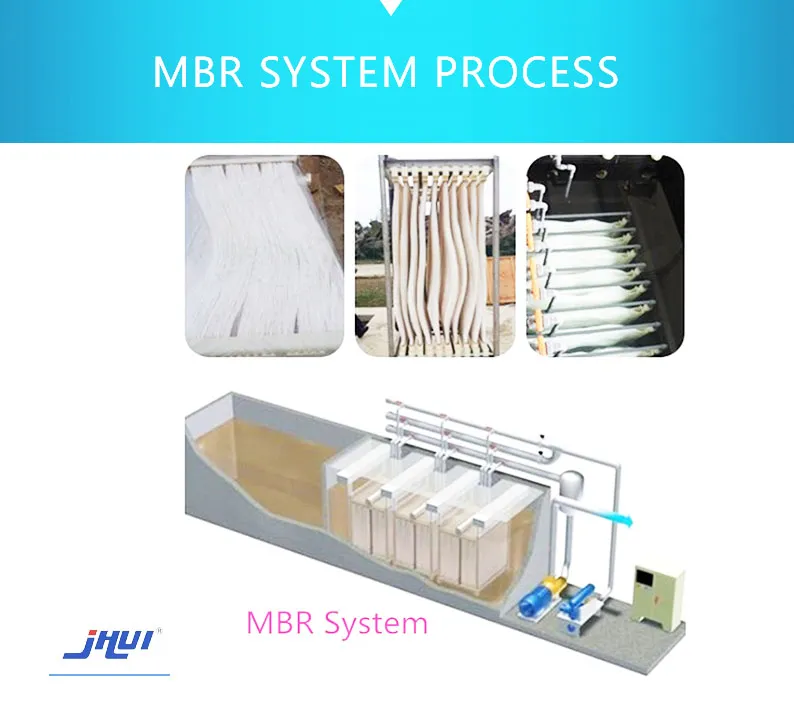

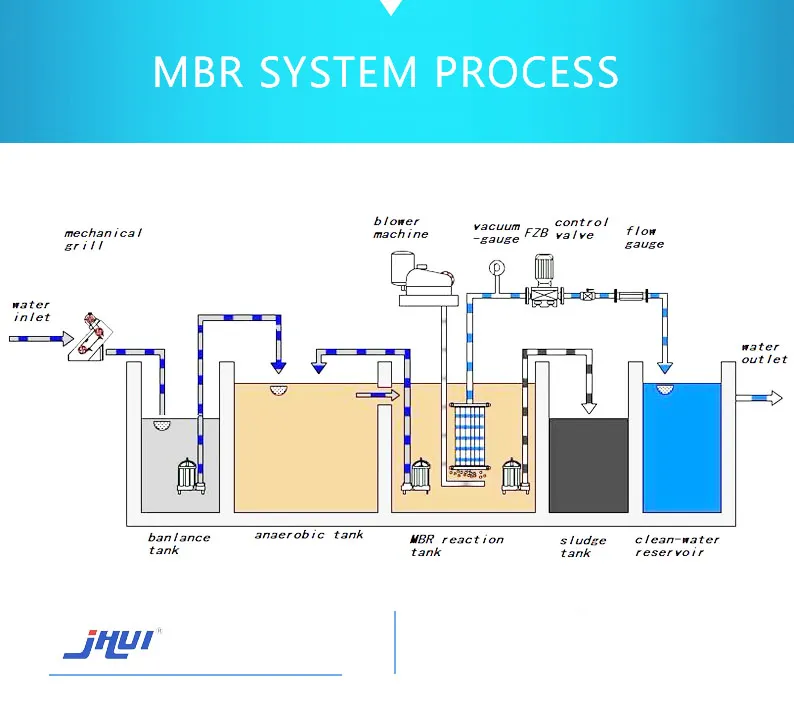

System Process & Design

Our professional technician department studies and designs the Integrated MBR system based on specific requirements to ensure optimal filtration and efficiency.

Applications

Food & Beverage: Process water preparation and sewage treatment.
Pharmaceutical: Aseptic water preparation and preparation water.
Chemical & Petrochemical: Wastewater treatment and water reuse.
Power Industry: Boiler recharge and circulating cooling water.
Electronics: Ultrapure water for semiconductors and integrated circuits.
Desalination: Production and domestic water for coastal areas and ships.
Municipal: Drinking water purification and standard-raising.

Water Treatment Product Range

UF ultrafiltration membrane & systems
MBR hollow fiber membrane & systems
Integrated equipment systems (AO, AAO, MBBR, etc.)
Reverse osmosis (RO) membrane & systems
Moving bed biofilm reactor (MBBR)
Disc and tube air diffusers

International Presence

Our solutions have been showcased at major international water exhibitions including events in Russia, Malaysia, Vietnam, Thailand, Pakistan, Indonesia, and India.

Frequently Asked Questions

Q1: What is the main advantage of MBR over traditional treatment? A: MBR replaces secondary sedimentation tanks with membrane filtration, resulting in a much smaller footprint, superior effluent quality (zero suspended solids), and higher resistance to organic loading fluctuations.

Q2: What is the typical lifespan of the MBR membrane? A: Under normal operating conditions and with proper maintenance/cleaning, the hollow fiber membranes typically last 5 years or more.

Q3: Can the system be customized for specific industrial wastewater? A: Yes, the system configuration, membrane material (PVDF/PES/PAN), and total filtration area can be customized based on the specific influent water characteristics and required output standards.

Q4: What are the maintenance requirements for the membranes? A: Regular maintenance includes backwashing and occasional chemical cleaning (CIP) using acid or alkaline solutions to remove scaling and organic fouling.

Q5: Is the produced water safe for reuse? A: Absolutely. The effluent typically has a turbidity of less than 0.3 NTU and SDI less than 4, making it suitable for irrigation, industrial cooling, or as feed water for RO systems.

Q6: What is the pore size of your hollow fiber membranes? A: Our standard MBR membranes feature a pore size ranging from 0.03 to 0.1 µm, which effectively filters out bacteria and most pathogens.
