| Model NO. | Fan Filter Unit |
| Standard | Nonstandard |
| Material | Stainless Steel |
| Product Name | Dust Free Room Clean Room |
| Size | Customized Size |
| Standby Power Loss | < 1.2W |
| Average Air Speed | About 0.45 M/S |
| Service | Free Operating Training, Provide Installation Video |
| Transport Package | Export Wooden Packing |

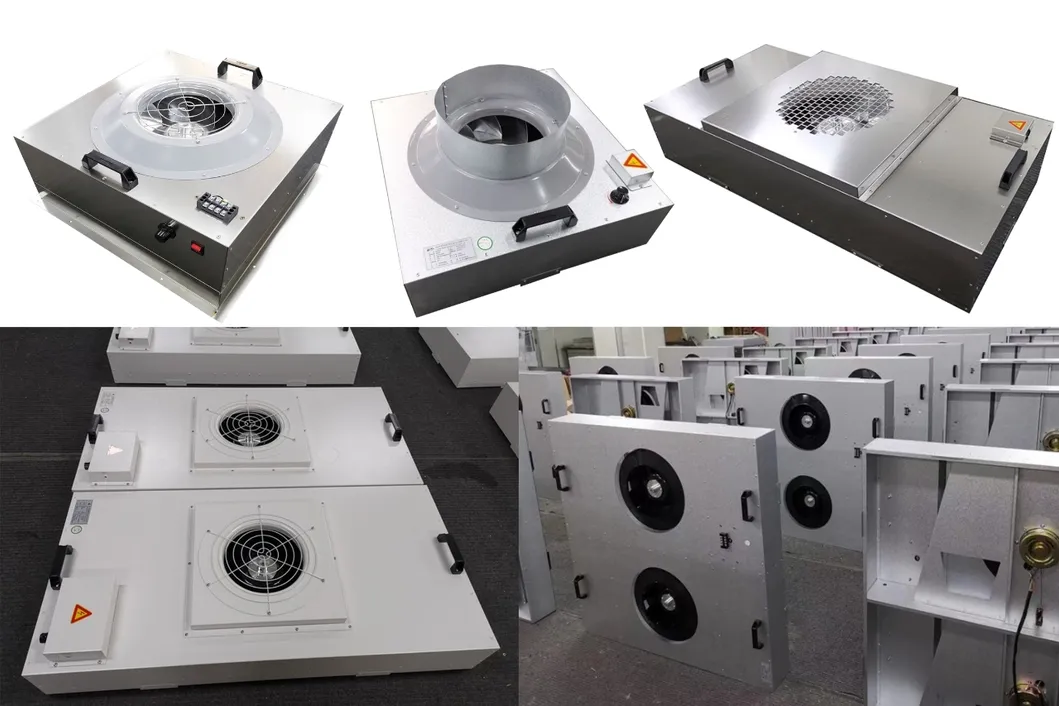

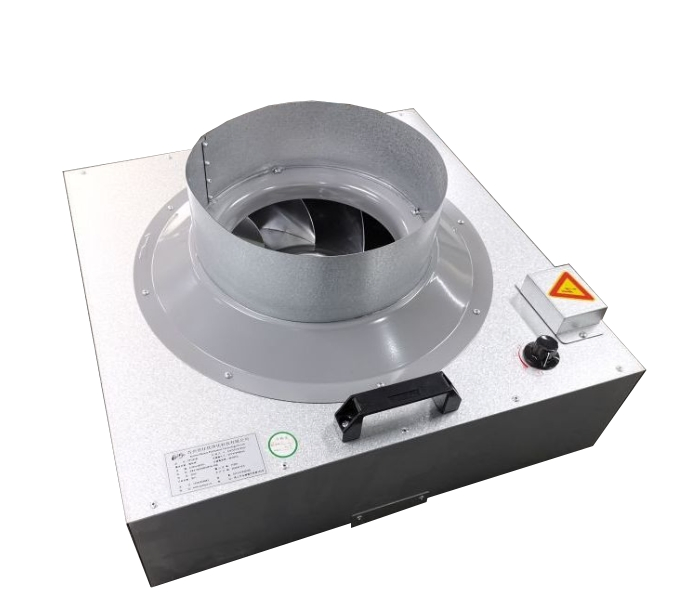

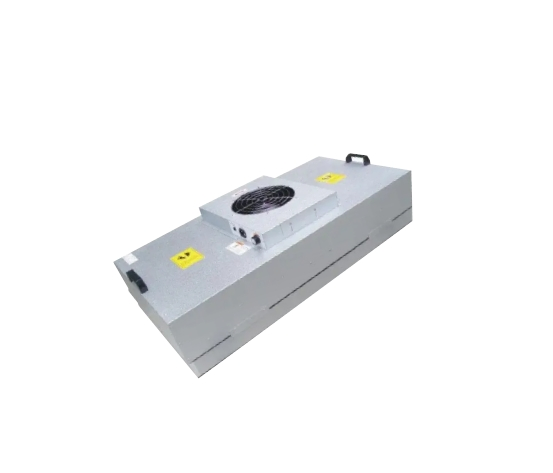

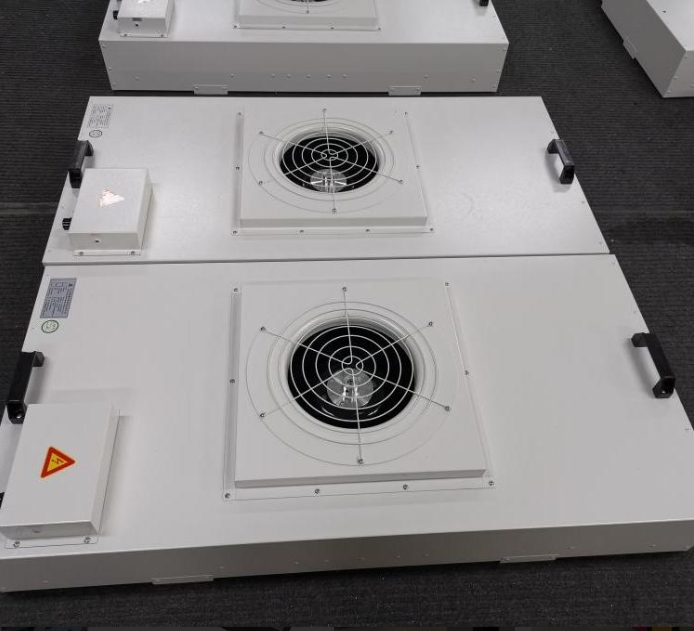

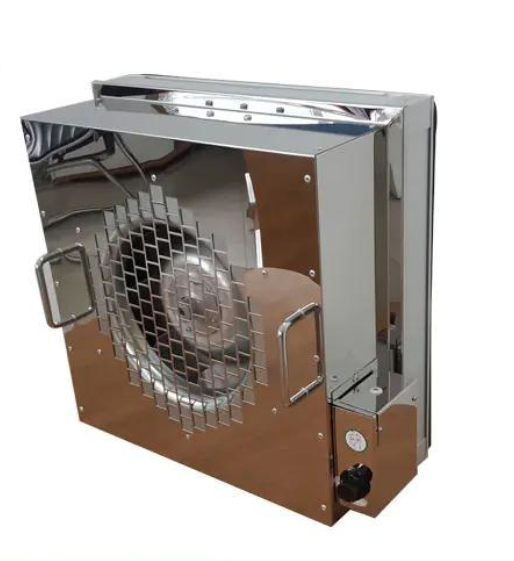

A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid.
Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
| MODEL | SHP-FFU2*2 | SHP-FFU2*4 | SHP-FFU4*4 |
|---|---|---|---|
| SIZE(W*L*H)mm | 600*600*350 | 575*1175*350 | 1175*1175*350 |
| Material | Galvanumed steel / Painted steel / Stainless steel | ||
| Air Velocity | 0.36-0.6m/s (Three Speed Adjustable) | ||
| HEPA FILTER | 99.99%@0.3um (H13) / 99.999%@0.3um (H14) / ULPA | ||
| FAN MOTOR | Airfoil turbo Fan Motor (aluminum) | ||
| Power Supply | AC/DC (110V, 220V), 50/60HZ, 1PHASE | ||
Our specialized enterprise is a forward-thinking high-tech entity focused on comprehensive cleanroom solutions. Our services cover the entire project lifecycle, including engineering design, construction, product development, manufacturing, and after-sales support.

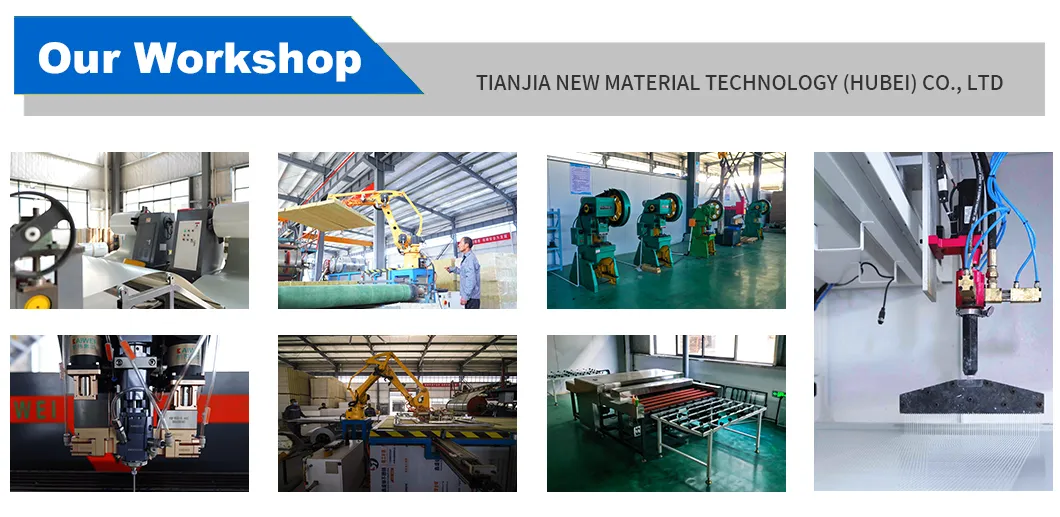

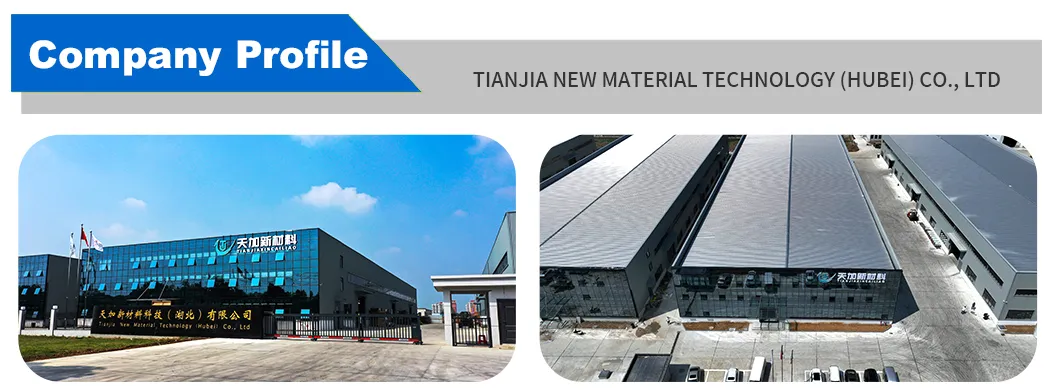

Operating from a 7,000 m² state-of-the-art manufacturing facility, we are equipped with advanced production lines and supported by a highly skilled technical team. With fixed assets valued at USD 10 million and annual sales reaching USD 20 million, we demonstrate strong manufacturing capability and a firm commitment to quality and innovation.
We specialize in the production of high-quality cleanroom panels, including rock wool panels, glass magnesium panels, honeycomb panels, and sulfur-magnesium boards. Our products are widely applied in industries such as pharmaceuticals, electronics, food processing, and cosmetics.
