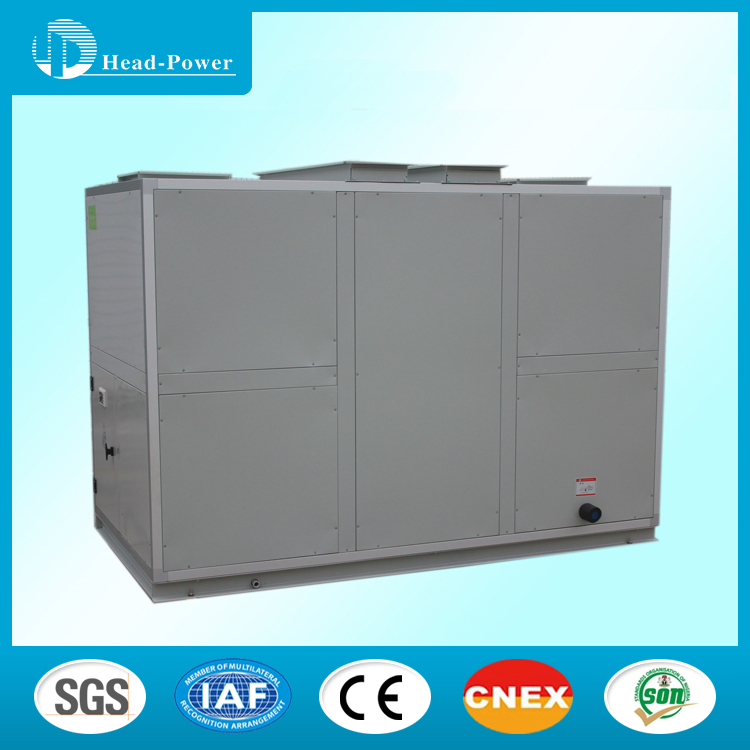

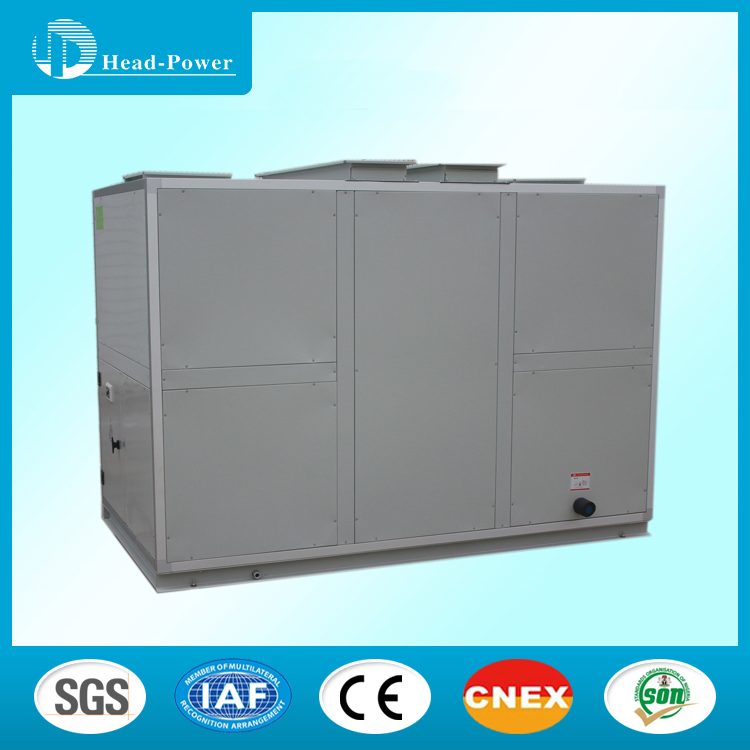

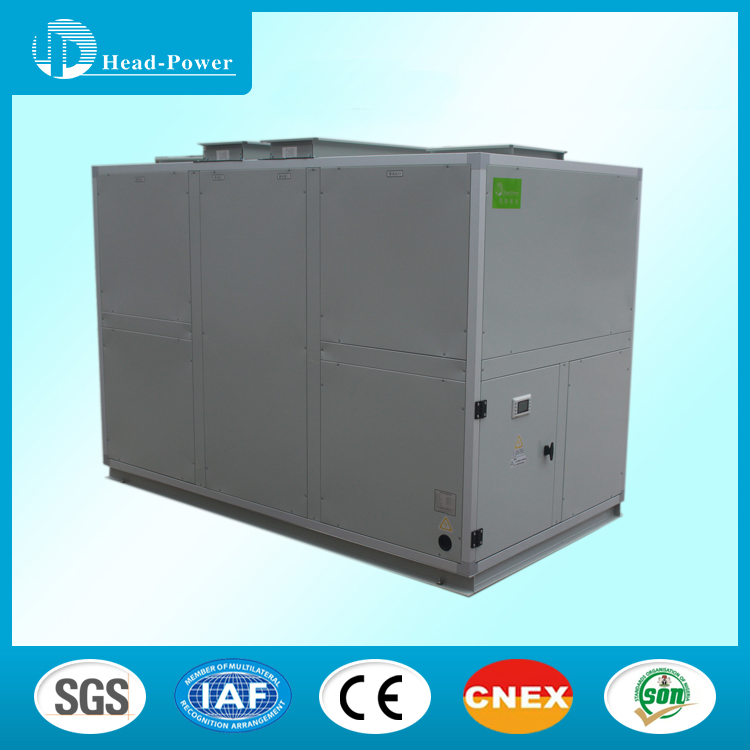

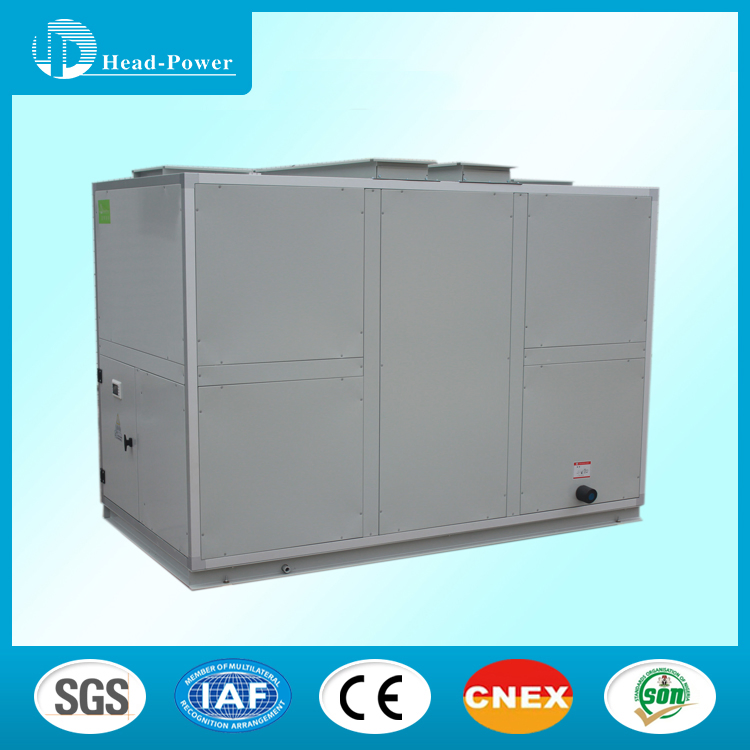

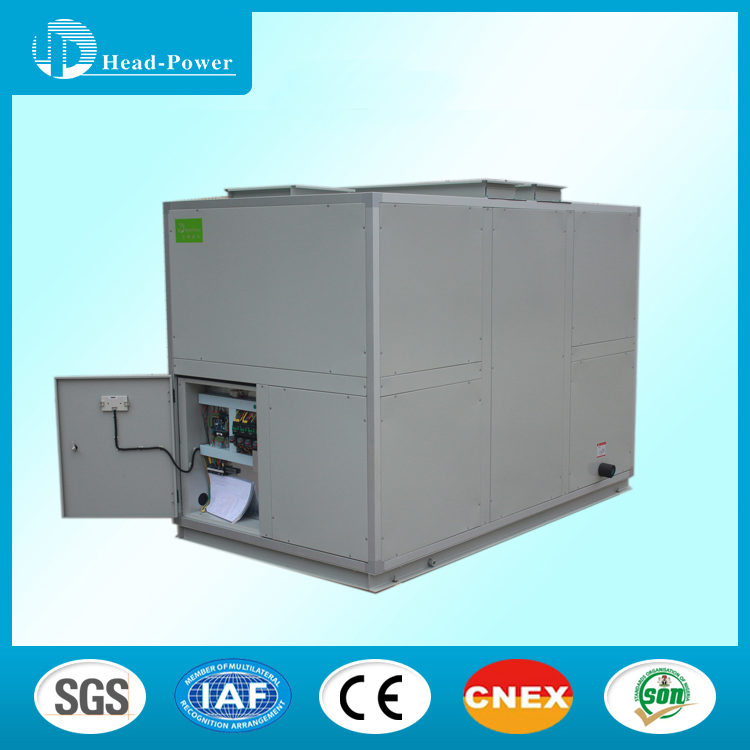

Advanced Heat Recovery Air Handling Units Solutions for Pharmaceutical Cleanrooms

Customization:	Available
Type:	Heat Recovery Unit
Air Tube Material:	Customized

Send Inquiry

Product Description

Basic Specifications

Name: Total Heat Recovery Fresh Air Handling Unit Commer

Corrosion Durability: Ultrahigh

Operating Voltage: 380/400 VAC

Noise Level: Ultra Low

Application Fields: Airports, Stations, Exhibition Halls, Stadiums

Mounting: Ceiling Mount

Lifetime: 10~15 years

Certification: ISO, CE, Soncap

Condition: New

Cooling Capacity: 9-167kw

Refrigerant: R22/R407C/R410A/R134A

Transport Package: Plastic+Foam+Wooden Case

★

Product Overview

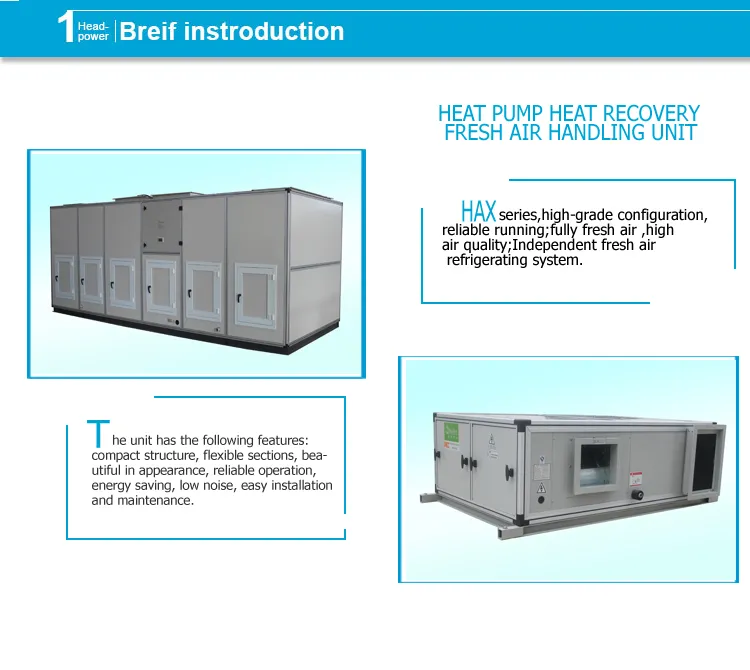

Cleanroom HVAC Heat Pump Heat Recovery Commercial HVAC Air Handling Units
Advanced Heat Recovery Air Handling Units Solutions for Pharmaceutical Cleanrooms. This modernized professional solution is committed to technological innovation, continuously forging ahead to meet social development needs with rich experience in refrigeration dehumidifier design and manufacturing.

All products have passed ISO 9001 and ISO 14001 certification. Several equipments carry CE and CCS Certificates. The system incorporates numerous invention patents and utility model patents, participating actively in setting HVAC industry standards.

⚙

Key Features

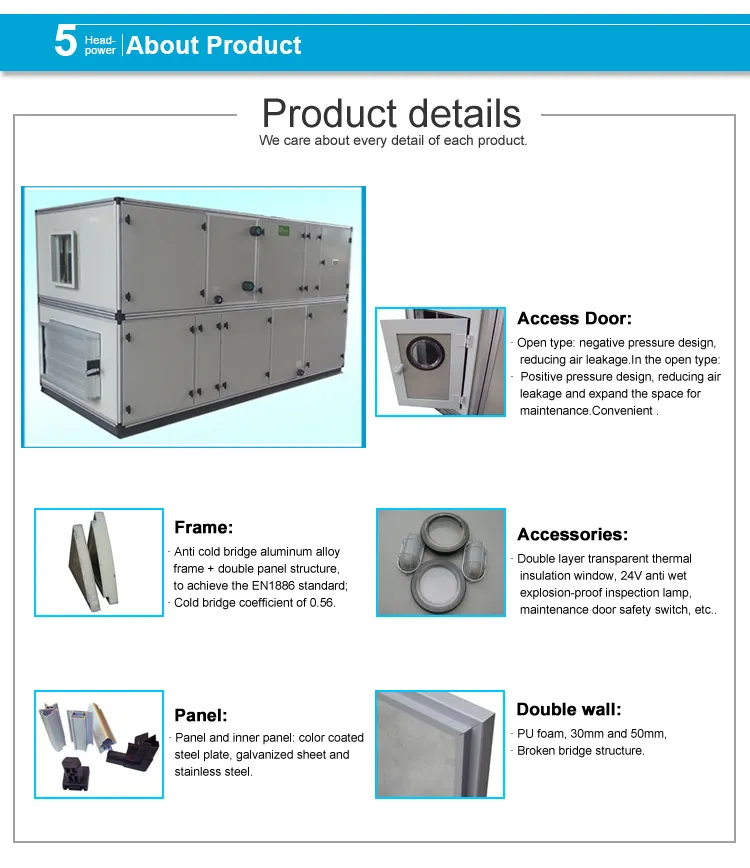

Double skin galvanized steel sheet with aluminium alloy frame and 30mm thick PU insulation.
Primary use for heat recovery and ventilation, integrated with supply/exhaust fans, motors, heat recovery wheels, and filters.
Energy-saving design: Exchanges heat with exhaust air to pre-cool or pre-heat fresh air, significantly improving indoor air quality.
Optional cooling or heating coils at the supply air section.
Silica-gel heat recovery wheel offering full heat recovery with high efficiency up to 80%.
Standard washable nylon prefilter or G4 plate filter; Bag filter is optional.
Air volume range: 1000 m³/h ~ 20000 m³/h.
Standard power supply: 380~415V/3PH/50Hz.

📊

Technical Parameters

Model Number		HAX015	HAX025	HAX030	HAX040	HAX050	HAX060	HAX070	HAX080	HAX100	HAX120	HAX150
Cooling Capacity	KW	9	12	16	19	23	28	33	36	46	56	69
Heating Capacity	KW	9.5	12.6	16.7	20	24.3	30	35	39	49	60	73
Fresh Air Flow	m³/h	1500	2500	3000	4000	5000	6000	7000	8000	10000	12000	15000
Ext. Static Pressure	Pa	80	100	120	150	180	180	220	240	240	250	300
Motor Power	KW	0.3	0.55	0.75	0.75	1.1	1.5	2.2	2.2	3	4	4
Heat Exchange Efficiency		>87%
Noise Level	dB(A)	48	50	50	51	52	52	53	53	55	56	58
Weight	kg	310	370	390	550	590	650	780	820	890	920	980

Frequently Asked Questions

1. What is the efficiency of the heat recovery system?

The system utilizes a silica-gel heat recovery wheel that provides high efficiency full heat recovery, reaching up to 80-87% depending on the model and conditions.

2. In which environments can this Air Handling Unit be installed?

It is designed for large-scale public and industrial spaces such as airports, train stations, exhibition halls, stadiums, and pharmaceutical cleanrooms.

3. What kind of maintenance is required for the filters?

The unit comes standard with a washable nylon prefilter or G4 plate filter, making it easy and cost-effective to maintain high indoor air quality.

4. What is the expected lifespan of the unit?

Thanks to the double-skin galvanized steel sheet and high-quality aluminum alloy frame, the unit has a durable operating life of 10 to 15 years.

5. Does the unit support different types of refrigerants?

Yes, the AHU is compatible with multiple refrigerants including R22, R407C, R410A, and R134A to meet various environmental and cooling requirements.

6. How does the unit contribute to energy saving?

By exchanging heat between the exhaust air and incoming fresh air, the unit pre-cools or pre-heats the fresh air, significantly reducing the load on the main HVAC system.
