Prefabricated/Prefab Galvanized Steel Structure Warehouse for Industry

Basic Information

Model NO.

HY-033

Life Span

Designed for 50 Years

Main Frame

Light Steel Q345 Q235

Usage

Warehouse, Workshop, Apartment, Office Building

Surface Treatment

Painted or Galvanized

Certification

ISO9001

Standard

GB, ASTM

Connection Form

Bolt Connection

Production Capacity

60,000 Ton /Year

Warranty

More Than 50 Years

Product Description

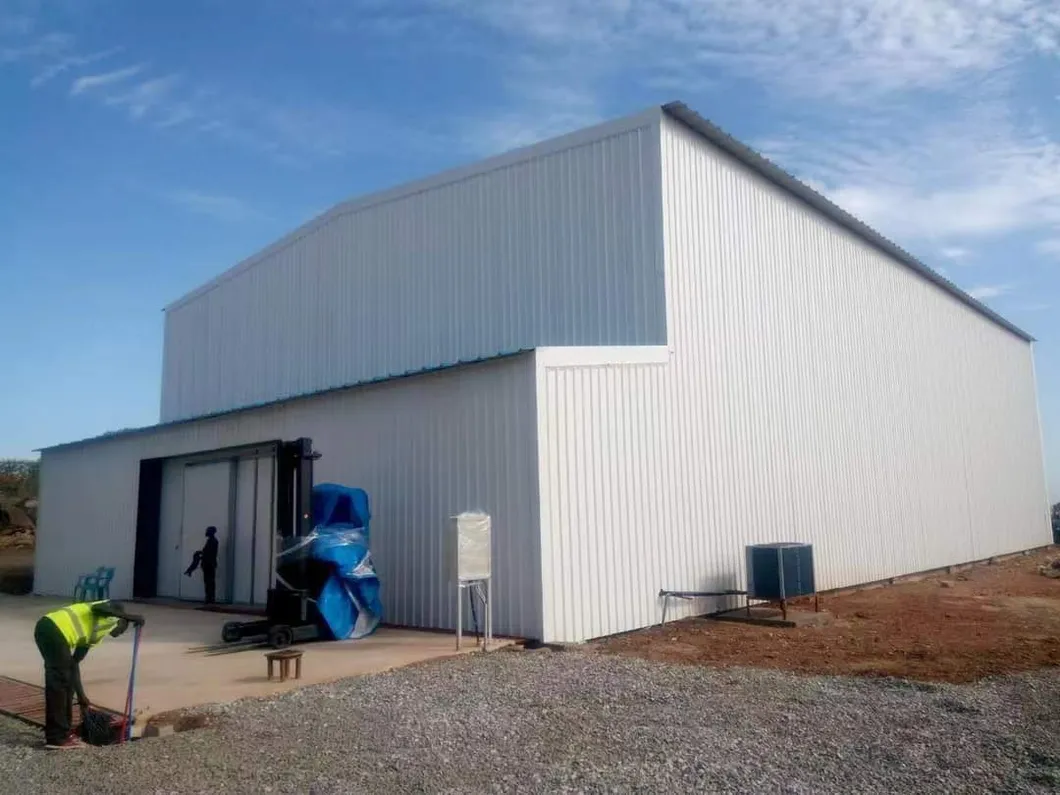

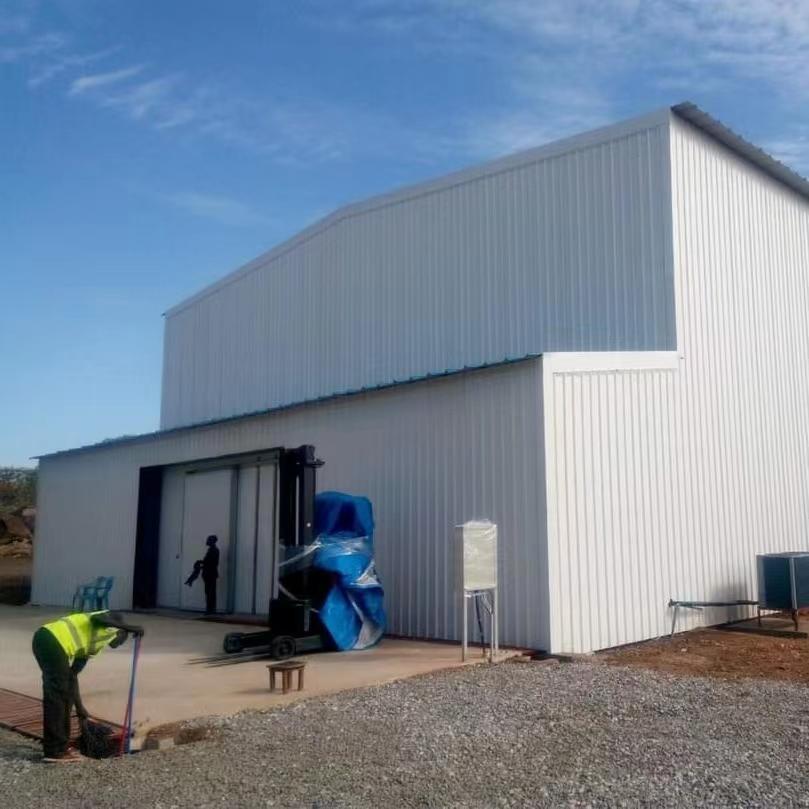

Prefabricated Galvanized Steel Structure Warehouse for Industrial Use

Specification: 65m * 43m * 11.5m

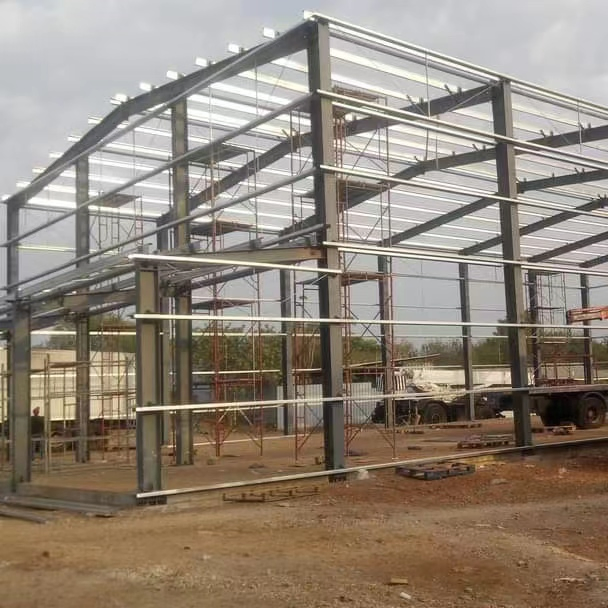

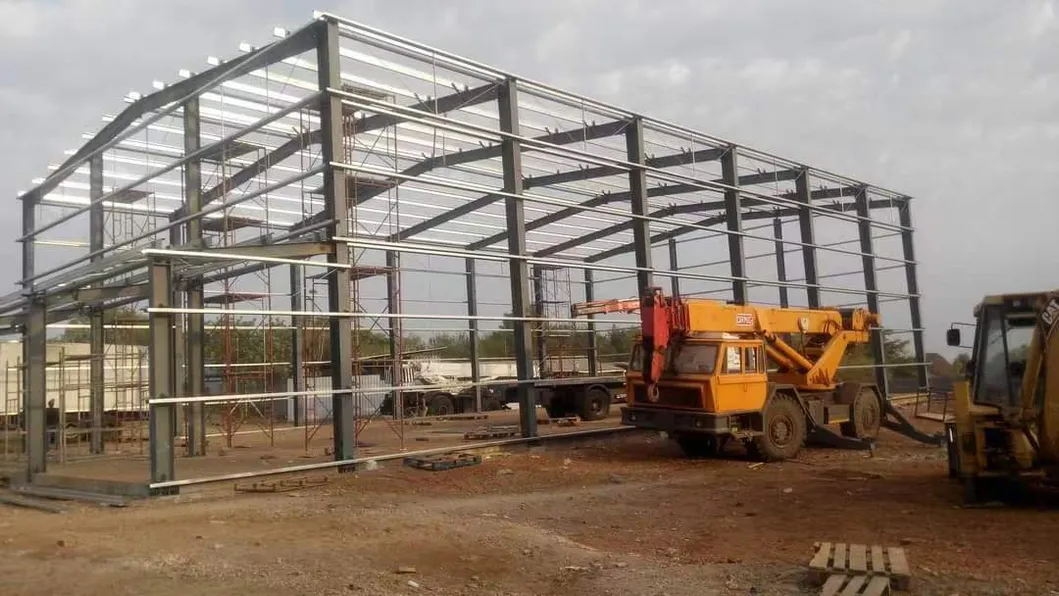

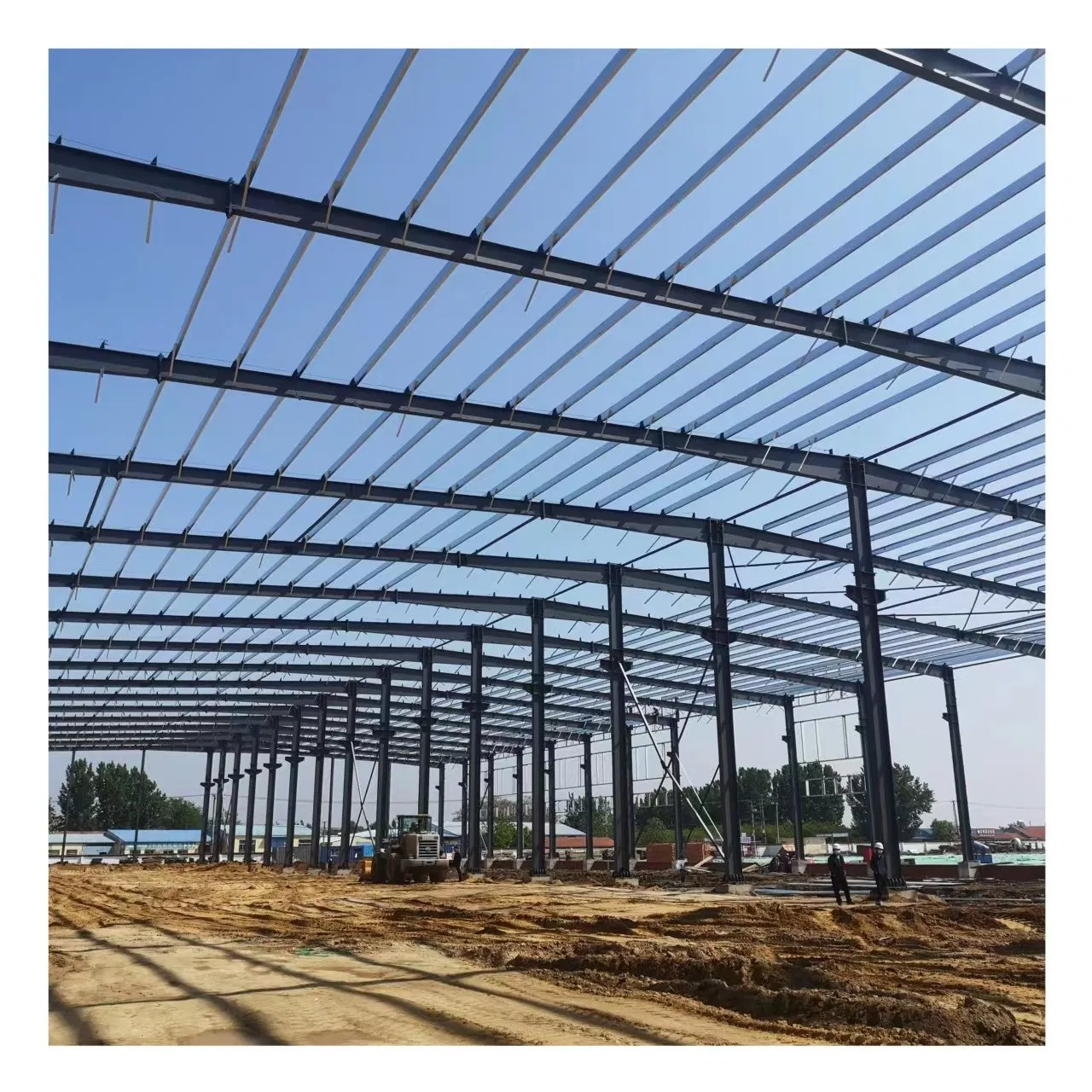

Primary Steel Structure: H section steel with anti-rusting grey painting, bolted onsite.
Secondary Framing: C Purlin, Tie Bar, Roof & Wall Support forming a stable secondary frame.
Bracing System: Round Steel φ12 with knee bracing for improved durability.

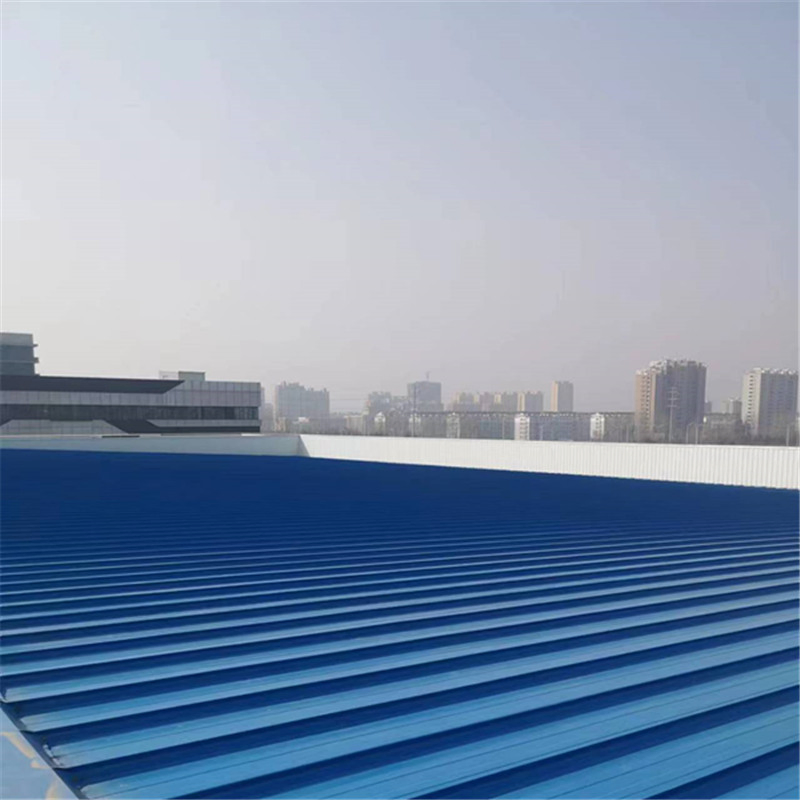

Enclosure: 0.5mm White Single Steel Sheet for Roof and Wall Panels.

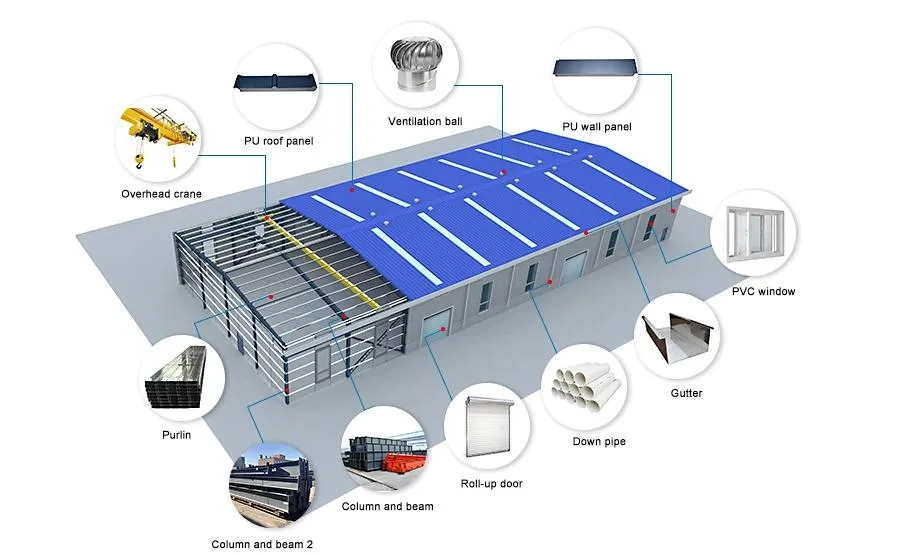

Material Specifications List
Main Column & Beam	Q235B, Q355B Welded or Hot-Roll H Section Steel
Purlin	Q235B, C and Z Type Steel
Bracing	Q235B, Round Bar, Angle Steel or Steel Pipe
Roof & Wall	Metal sheet (PE+Galvanized+Aluminium), Sandwich Panel, Glass wool
Door & Window	Rolling/Shutter Door, Sandwich Panel Door; PVC or Aluminium Windows

Steel structure buildings utilize custom-designed components to ensure lighter weight and high strength. These systems are highly flexible and durable, incorporating skylights, ventilators, and mezzanine floors based on client needs.

Product Parameters & Materials

Main Frame (columns and beams) made of welded H-style steel.

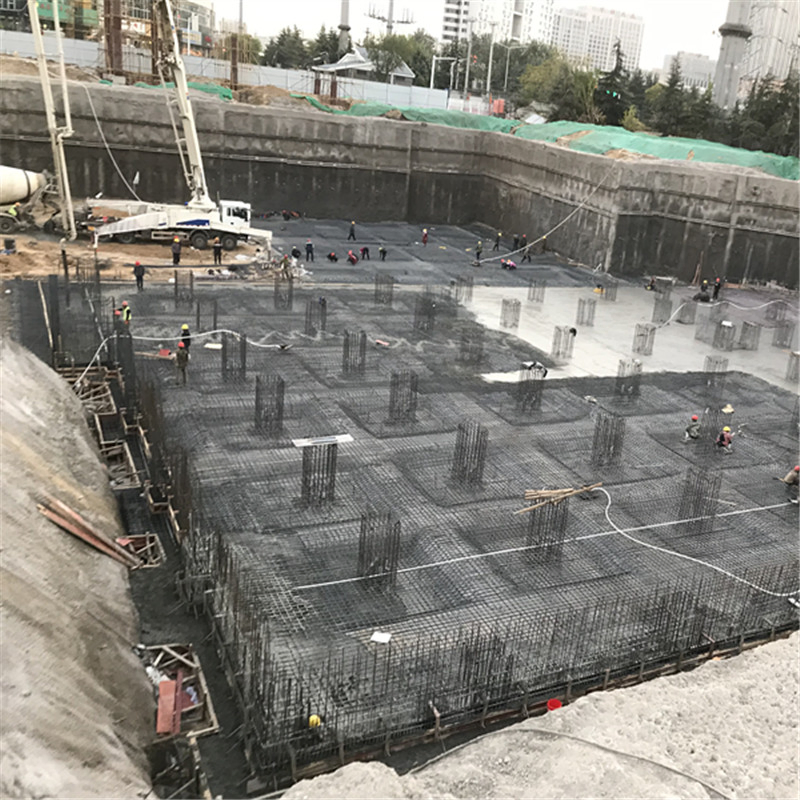

Columns connected to the foundation by pre-embedded anchor bolts.
High-intensity bolts for all primary member connections.
Self-tapping nails for connecting wall/roof panels to purlins.
Flexible door and window placement (sliding, roll-up, or normal).

Custom Design Capacity

To provide an accurate design, please provide the following details:

Building Size: Length, width, height, and eave height.
Doors and Windows: Specific sizes and quantities.
Local Climate: Wind speed, snow load, and seismic requirements.
Wall and Roof Materials: Choice of sandwich panels or corrugated sheets.

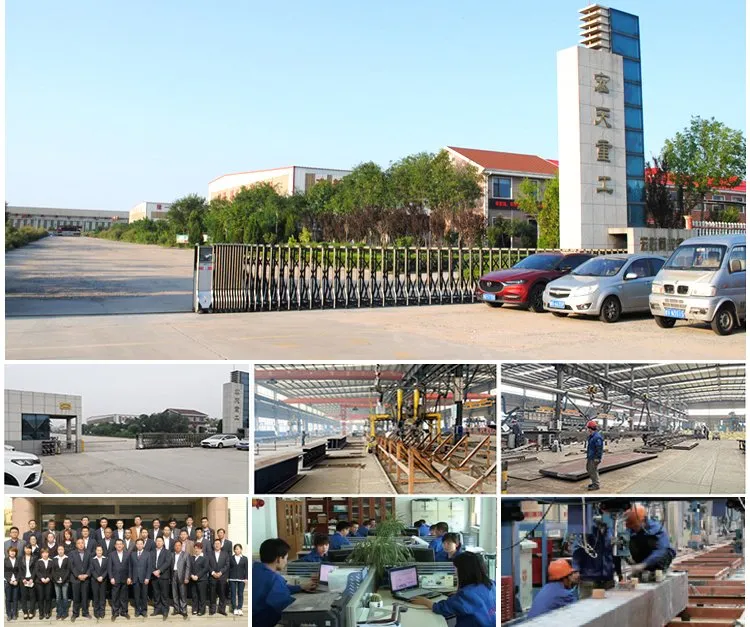

Professional Manufacturer Profile

Established in 2001, we are a professional manufacturer engaged in the research, development, and service of steel structure projects, light steel villas, and container houses. We have obtained ISO9001 and ISO 14001 certificates, ensuring strict quality control and customer satisfaction.

Our products are exported to Europe, America, Southeast Asia, and Africa. We have built a reliable reputation based on professional services and competitive pricing.

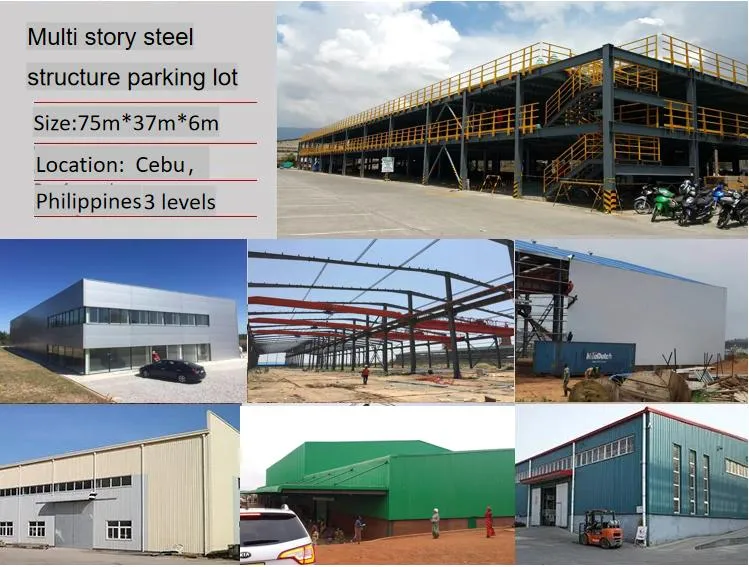

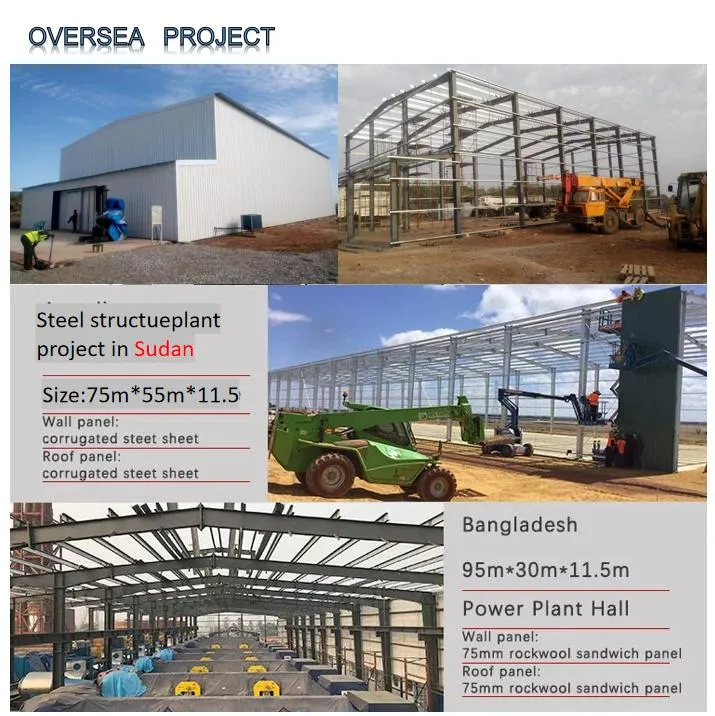

Global Projects & Logistics

With over 16,000 buildings delivered worldwide, our footprint covers Australia, North America, the Middle East, and Asia.

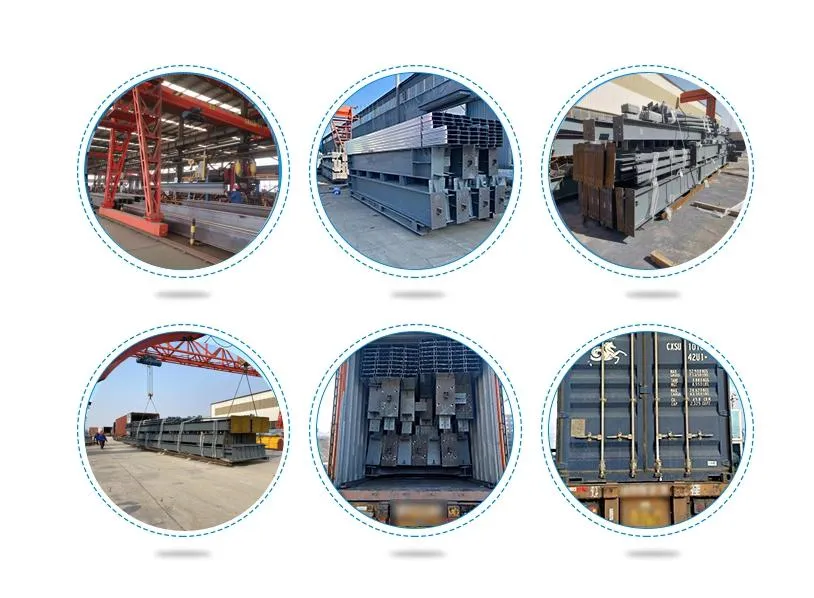

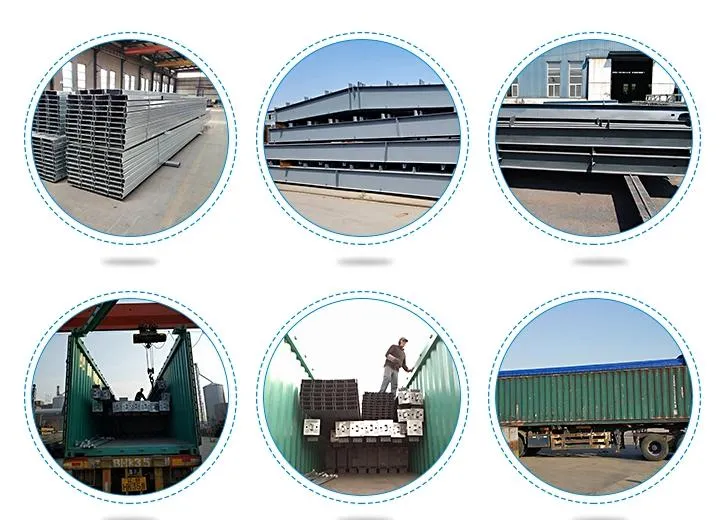

Packaging & Shipping

We use patent-designed steel pallets for 40 HQ containers to better protect the frame and ensure fast loading/unloading. This method reduces shipping container quantity, saving ocean freight costs.

Quality Certifications

Frequently Asked Questions

1. Are you a manufacturing factory or a trading company?

We are a manufacturing factory established in 2001. You are welcome to visit our facility to see our quality control processes and professionalism firsthand.

2. Is your pricing competitive?

Yes. Our goal is to provide the best price for the same level of quality, and the best quality for the same price. We focus on cost reduction while guaranteeing product excellence.

3. Do you provide installation services or engineers?

We provide detailed installation drawings and video guides for free. Upon request, we can also send engineers as installation directors or a full team to manage the site.

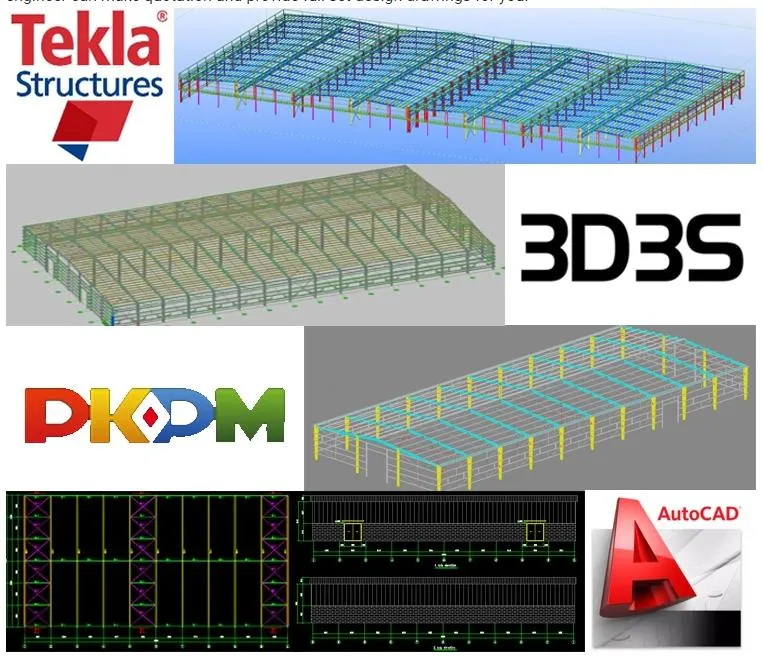

4. Do you offer custom design services?

Yes, we provide full solution drawings using AutoCAD, PKPM, 3D3S, and Tekla Structures. We can design complex industrial buildings, offices, and commercial malls.

5. What is the standard delivery time?

Delivery time depends on the order volume. Generally, it takes approximately 30 days to reach the nearest Chinese seaport after receiving the deposit.

6. How can I get a quotation for my specific project?

You can reach out through our official communication channels. Provide your project dimensions and requirements, and we will reply with a detailed quote within 8 hours.
