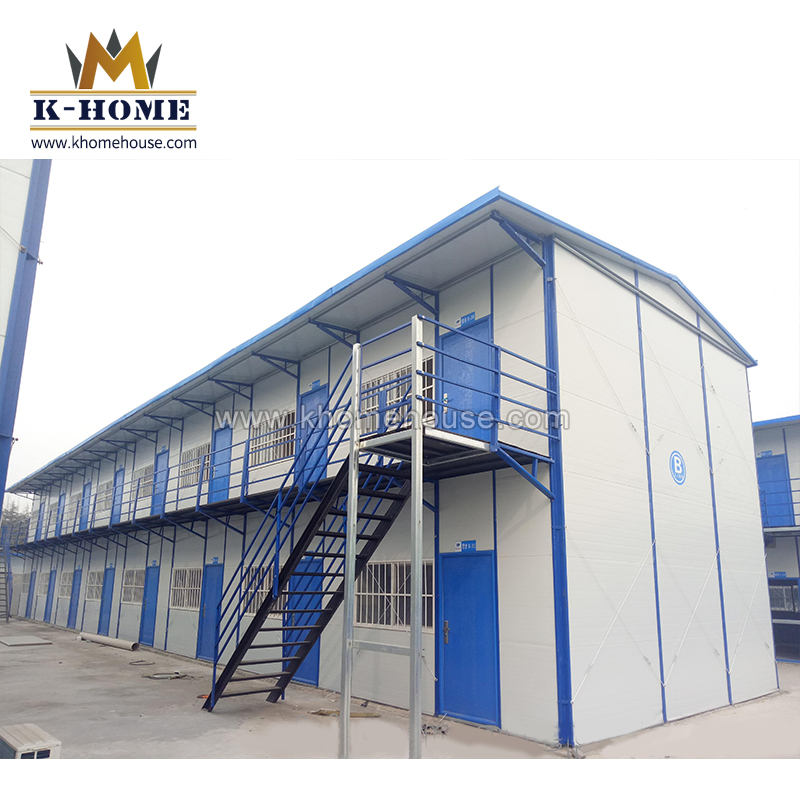

Modular on-Site Temporary Prefabricated Worker Housing

Customization: Available
Certification: CE, ISO9001, CE, ISO
Customized Or Not: Customized

Product Description

Basic Specifications

Model NO.
KHP01
Material
Sandwich Panel
Wall Material
PU /EPS/Rock Wool Sandwich Panel
Steel Frame
4mm Thickness Steel Pillar 3mm Steel
Wall Panel
60mm EPS/Rockwool/PU Sandwich Panel
Floor
PVC Flooring Sheet/Laminated Floor PCS
Color
Ral Color
Door
Steel Door/Sandwich Panel Door
Connection
Screws, Bolts
Usage
Dormitories, Warehouse, Temporary Offices, Workshop
Customized
Available
Package
Water Proof
HS Code
7308900000
Capacity
5000 PCS/Month

Product Description

Modular housing
Prefab worker housing
Construction site dormitory

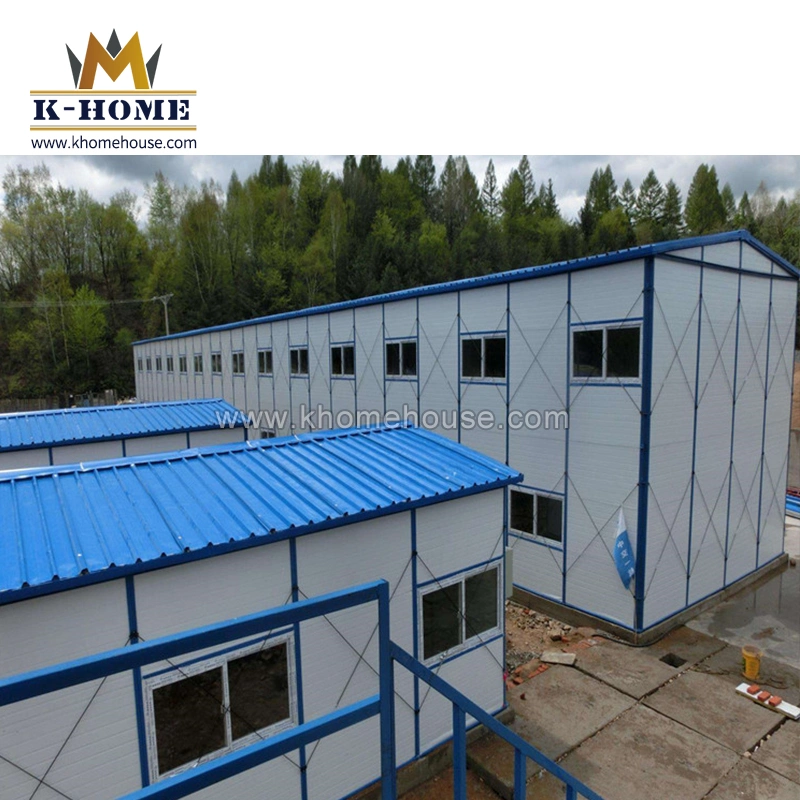

Modular On-Site Temporary Prefabricated Worker Housing

The construction site prefab labor dormitory house is made of light steel as steel structure and sandwich panels for wall and roof. The insulation of sandwich panel can be polystyrene, polyurethane, rock wool and fiber glass. As a standardized construction product, it features:

  • No construction garbage caused; environment protective materials adopted.
  • Repeated use and low cost.
  • Flexible size and easy to assemble/disassemble.
  • Safe, durable, and elegant appearance.

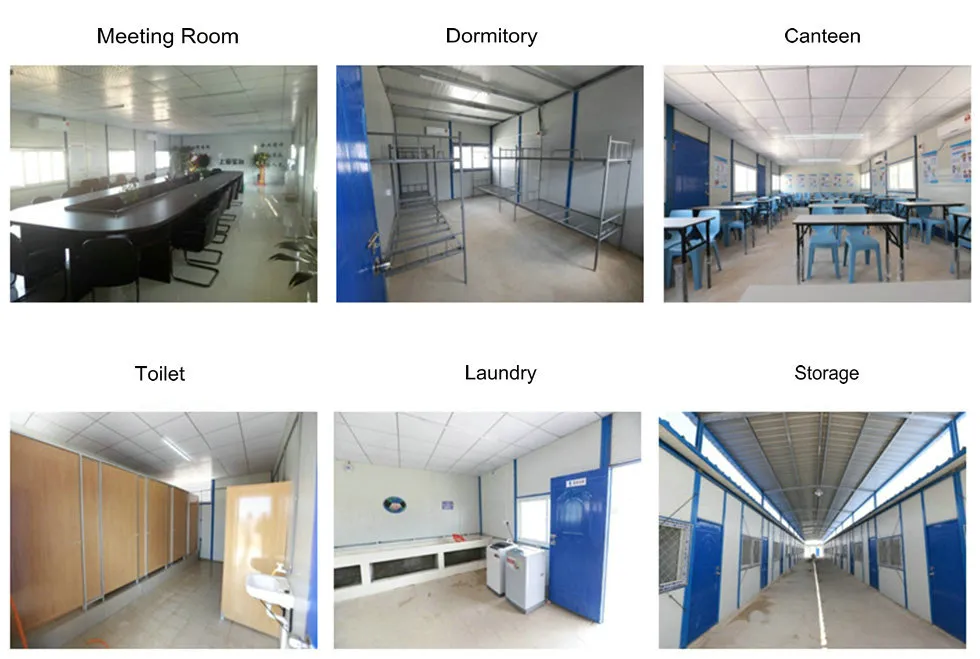

  • Suitable for dormitories, canteens, recreation rooms, and washing rooms.

Technical Parameters

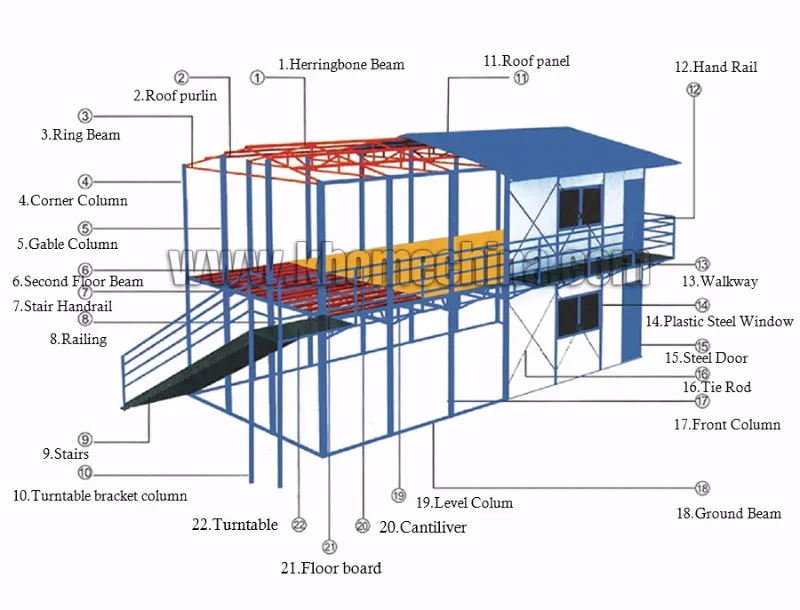

Main Steel Structure
No. Width Length Height Options
1 3K NK 3P 6P 9P
2 4K NK 3P 6P 9P
3 5K NK 3P 6P -
Note: K = 1820mm, P = 950mm. Sizes can be customized.

Standard Prefabricated Performance:

  • Wind resistance: Grade 11 (≤111.5km/h)
  • Earthquake resistance: Grade 7
  • Roofing live load: 0.5kn/m²
  • Heat transmission coefficient: 0.35Kcal/m²hc
  • First floor load capacity: 150 kg/m²
  • Installation speed: 4 workers can finish 100sqm in 8 hours.

Structure Specifications

Steel Structure Components
1.1Steel column120X120X2.5
1.2Steel structure beamC120X50X20X2.0
1.3Roofing PurlinC140X50X20X2.0
1.4Wall PurlinC120X50X20X2.0
1.5Anchor BoltsM16
1.6Ordinary Bolts4.8S, Galvanized
Roof and Wall Material Options
Roofing-PU / Fiber glass / EPS 100mm, 40kg-60kg, heather transfer ≤0.021-0.028W/mk
Exterior wall-PU / Rockwool / EPS 100mm, 40kg-60kg density available

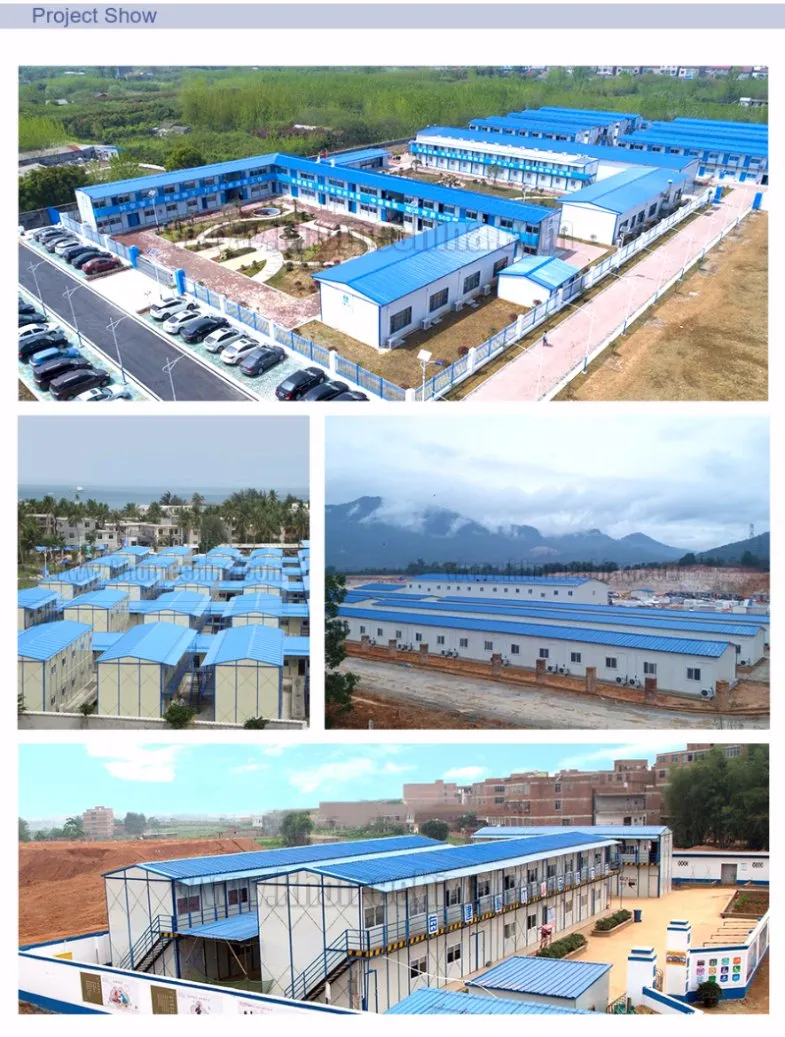

Project Showcase

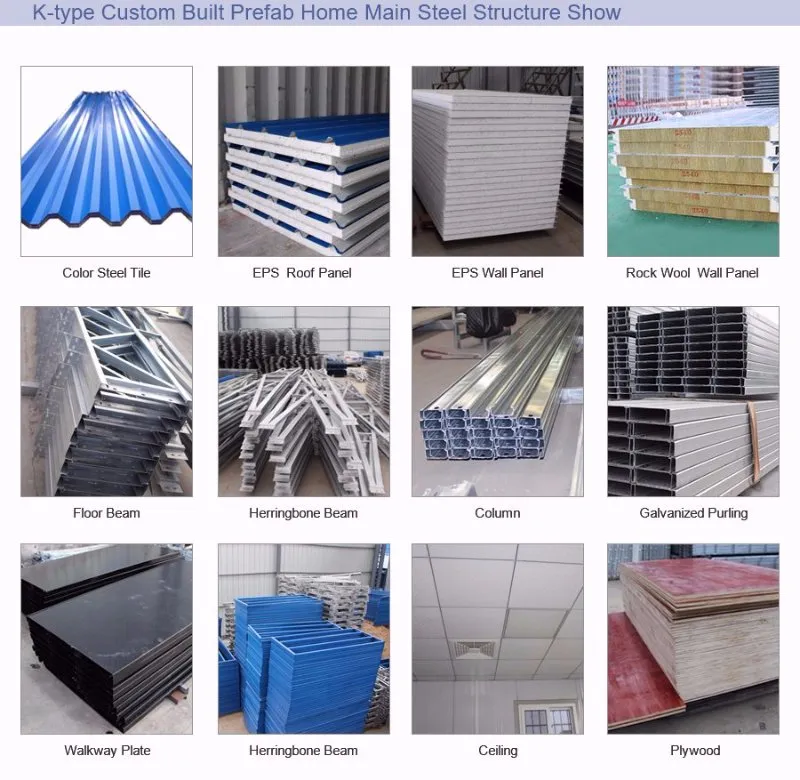

Building Detail 1
Building Detail 2
Building Detail 3

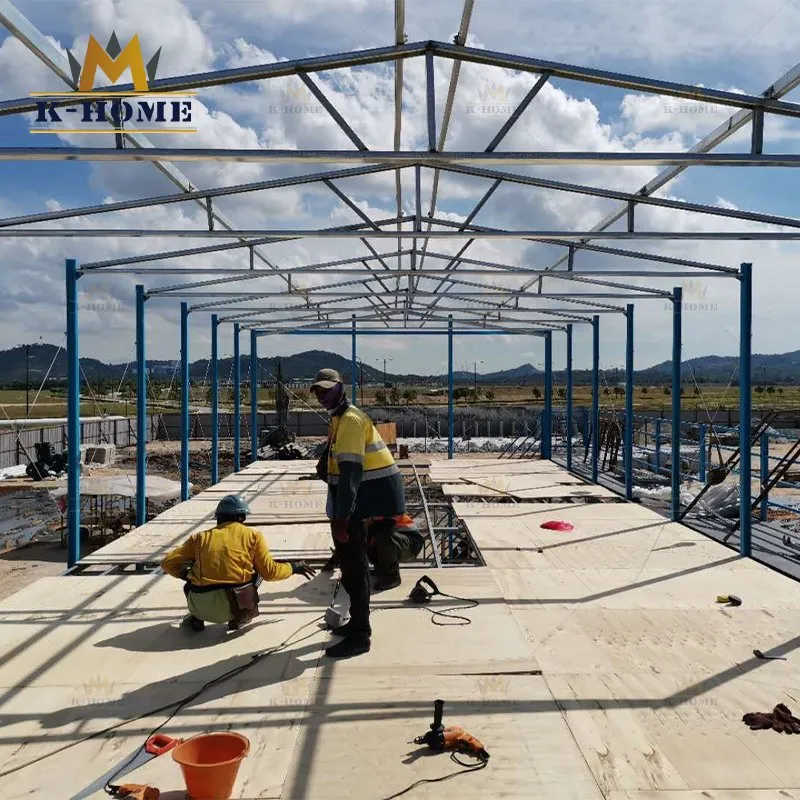

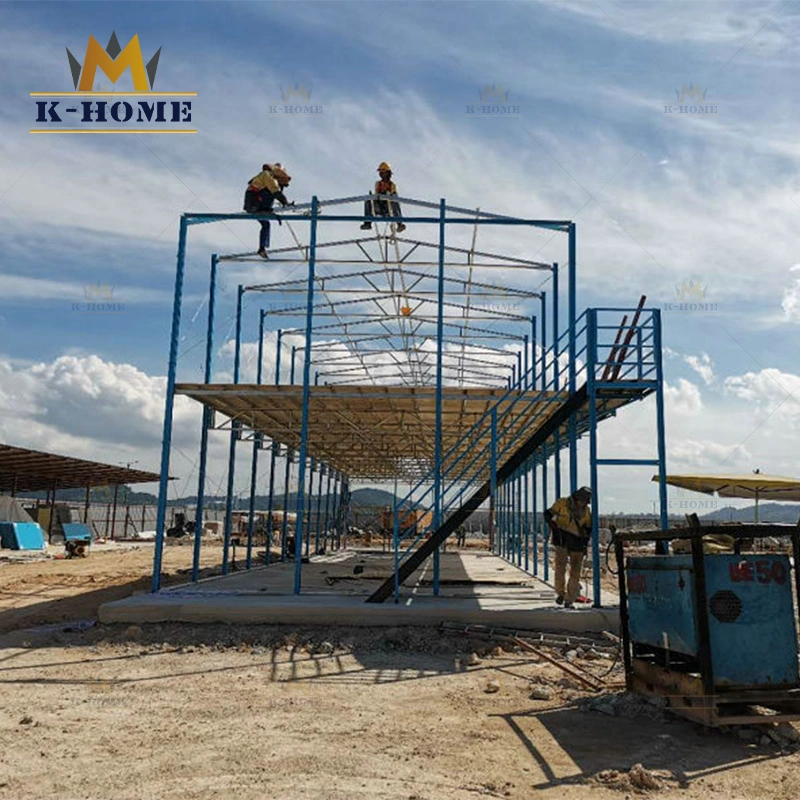

Site Installation
Finished Dormitory

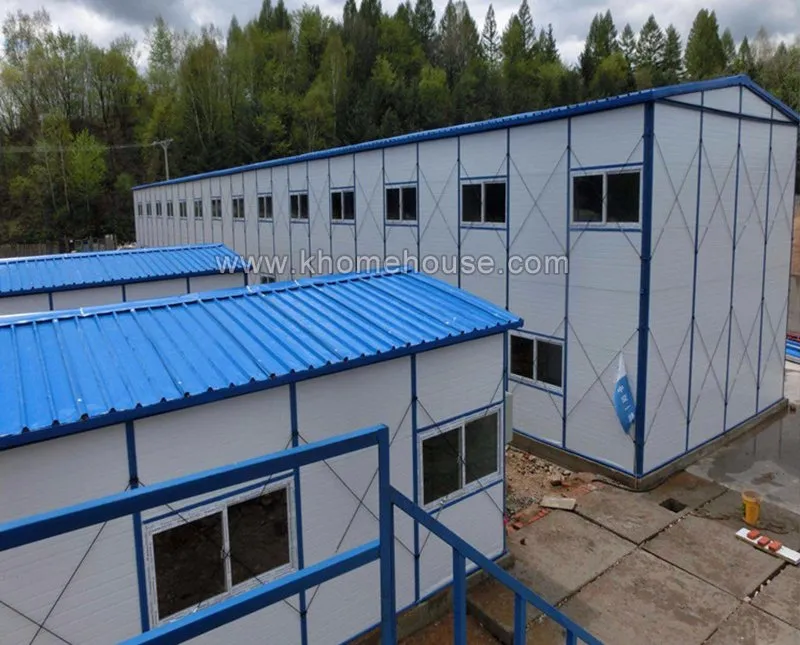

Worker Quarter Exterior

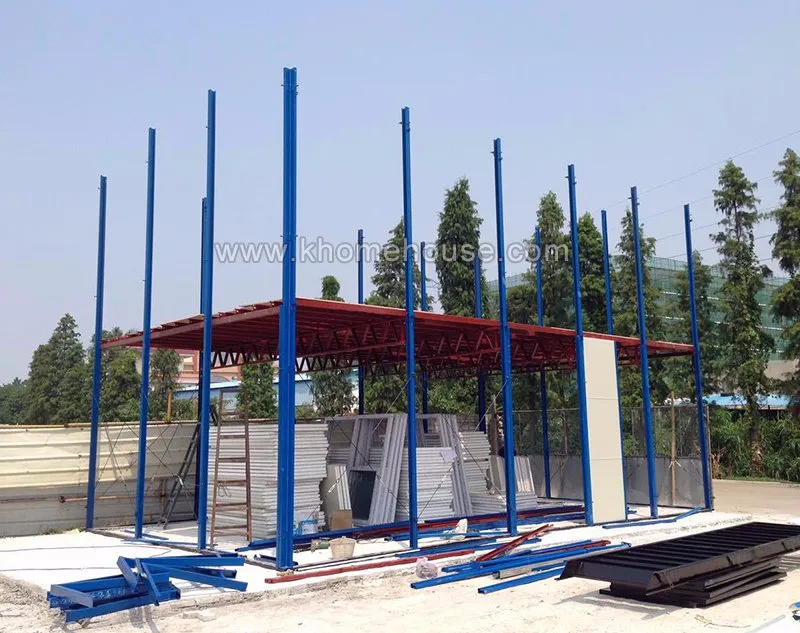

Steel Framing

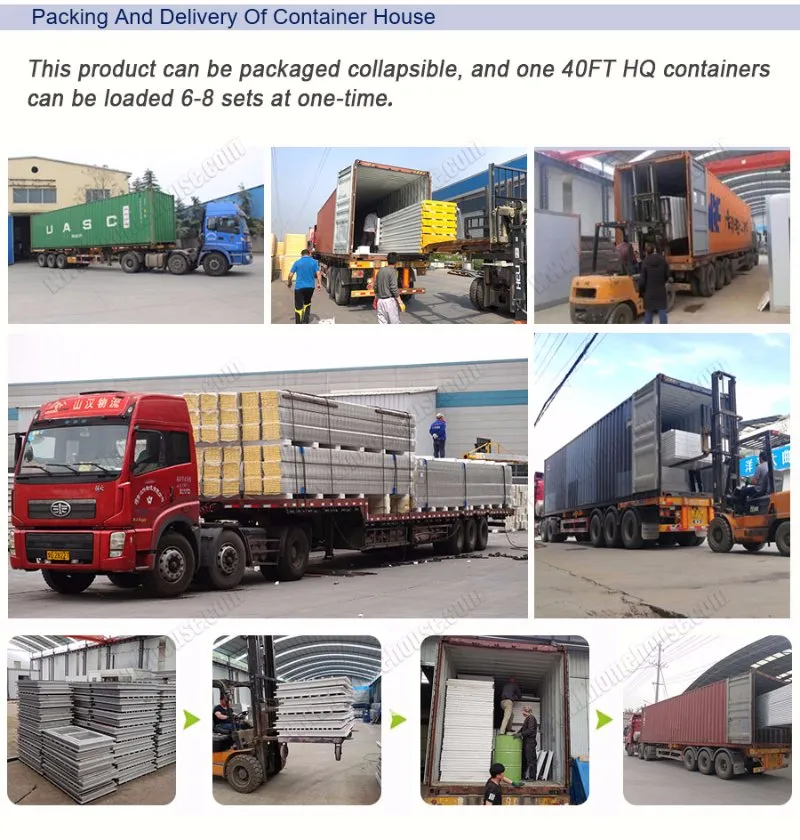

Site Project Overview

Frequently Asked Questions

What products do you offer?
We focus on prefabricated houses, such as labor camps, container houses, steel structure warehouses, and modular villas for more than 12 years.
What is your payment term?
For standard products, a 30% deposit is required, with the balance paid before delivery. Customized products depend on the specific design.
What is your MOQ (minimum order quantity)?
For standard products, we do not have a minimum order quantity requirement.
How is your after-sales service?
We provide 24-hour after-sales service. For installation, we provide detailed drawings and videos. Engineering supervision and training can also be arranged upon request.
What information is needed for a quote?
Please provide existing drawings and material specifications. If no drawing exists, let us know the intended usage and house size for a custom design.
Can the houses be recycled?
Yes, most components are recyclable. The shelf life is over 20 years without generating building garbage during the process.
