Modular Clean Room Partition Wall and Ceiling System

Customization:	Available
Certification:	CE, ISO9001, GMP
Noise:	0-20db

Send Inquiry

Product Description

Basic Specifications

Model NO.HM MCR

ApplicationIndustrial

Control ModeRemote Control

UsageDust/Smoke Removal, Adding Negative Ion, Humidification

Transport PackageSea Worthy Packing

SpecificationAs Required

HS Code8422303001

Production Capacity30 Per Year

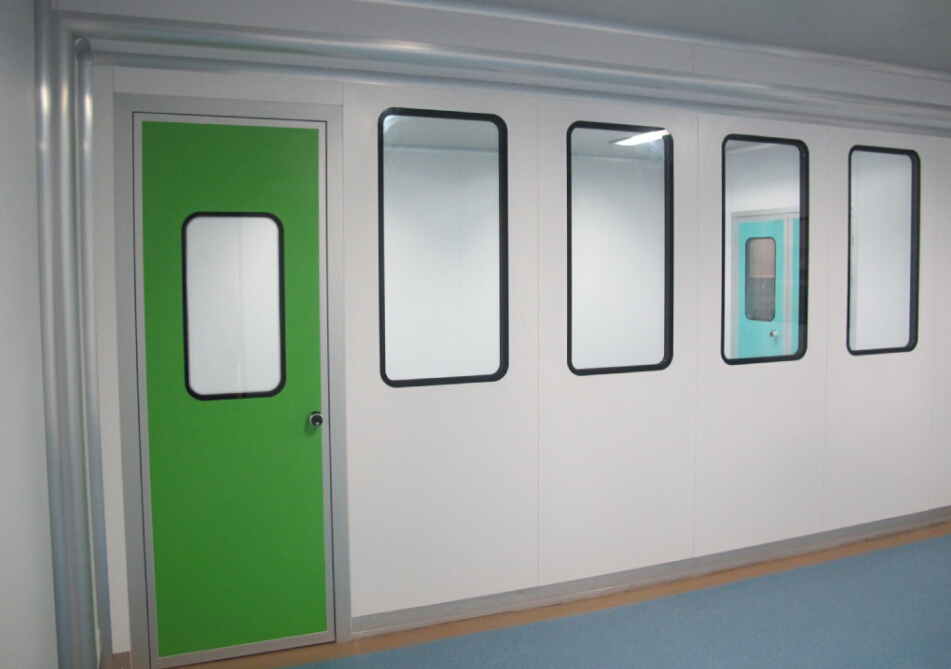

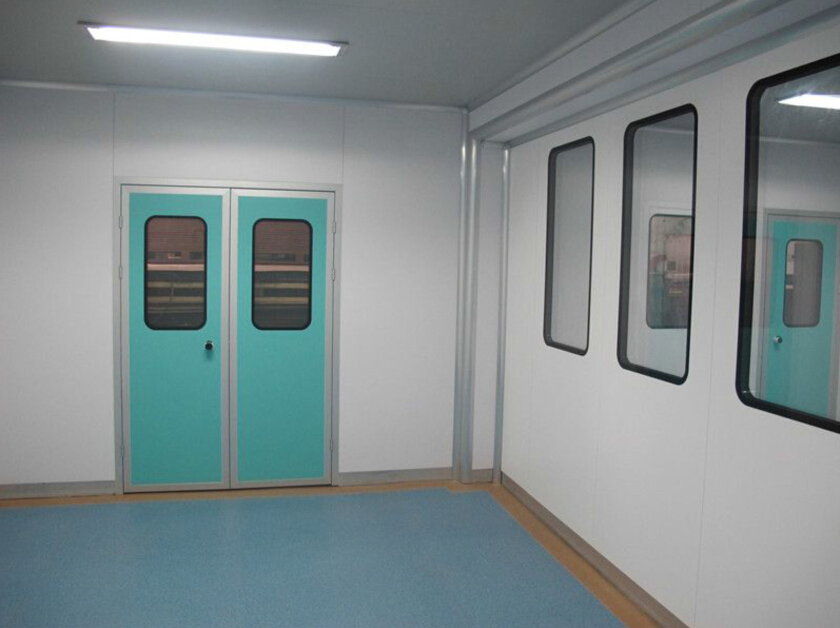

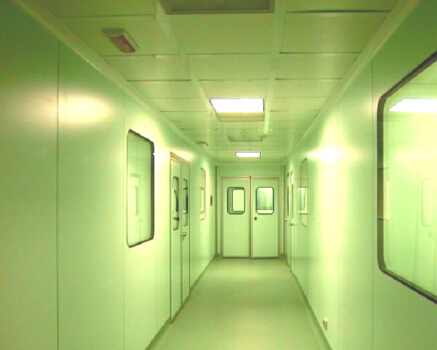

Modular Clean Room System

Modular Partition Wall and Ceiling System

Our modular construction system is designed for easy and fast installation. It features a full flush system encompassing wall-to-wall, wall-to-floor, and wall-to-ceiling radius corners, ensuring a high-quality and strong surface finish.

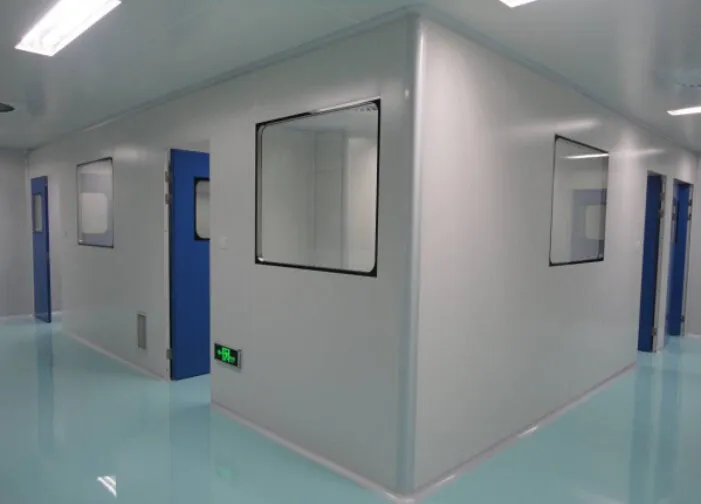

High Class HPL Paneling System

High density and hardness; high resistance to scratches and abrasion.
High resistance to impact and bump; no dents.
Excellent resistance to humidity, water, and steam.
Fire resistance (Class A or B) and low smoke density.
Cleanable with all major cleaning agents and detergents.
Non-corrosive, no paint peel-off, no dust or rust.
Anti-bacterial and antistatic properties; no microorganism growth.
Long life time and maintenance-free.

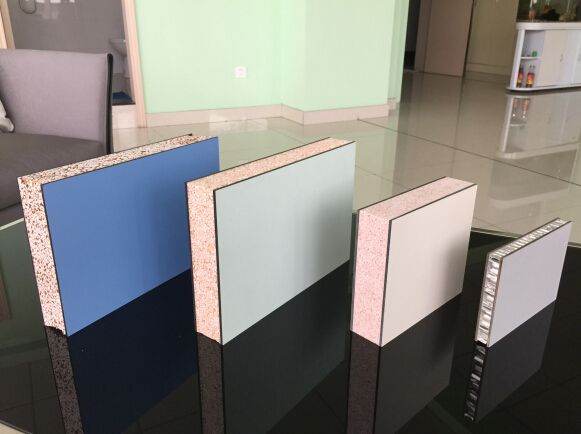

HPL Sandwich Panel Specification:

- Skin: Double-sided HPL sheet (3mm or 4mm thickness).
- Standard Colors: White/Ivory (various colors available).
- Thickness: 50 mm standard (custom 100 mm available).
- Core Materials: TPS, EPS, PU, AH, etc.

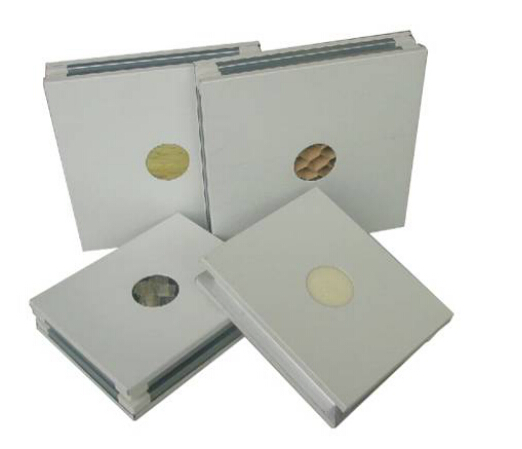

Modular PPGI Paneling System

PCR Series: A modular flush system for walls, windows, and doors. Featuring Pre-Painted Galvanized Iron (PPGI) steel skin (0.5mm - 0.6mm) and a strong four-sided steel frame support.

ECR Series: Eco-type PPGI system with 50mm thickness. Jointed by male & female types without a four-sided steel frame, providing a cost-effective solution.

Insulation Core Materials

Material	Density	Fire Resistance	Thermal Conductivity
Thermal-setting Polystyrene (TPS)	30-40kg/m3	Class B, A	0.030-0.036 W/mK
Expanded Polystyrene (EPS)	12-15kg/m3	Class E, D	0.035-0.040 W/mK
Rock Wool (RW)	100-120kg/m3	Class A	0.037-0.050 W/mK
Polyurethane Foam (PU)	35-40 kg/m3	Class E, D	0.022-0.028 W/mK
Aluminum Honeycomb (AH)	35 kg/m3	Class A	0.045-0.056 W/mK

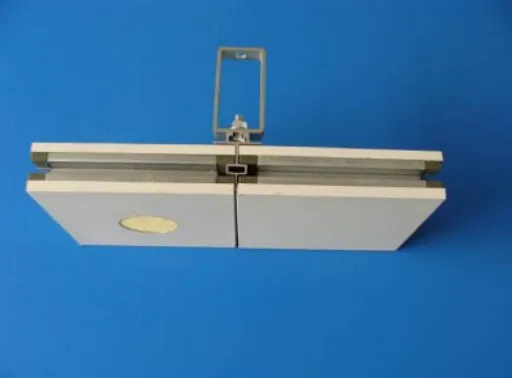

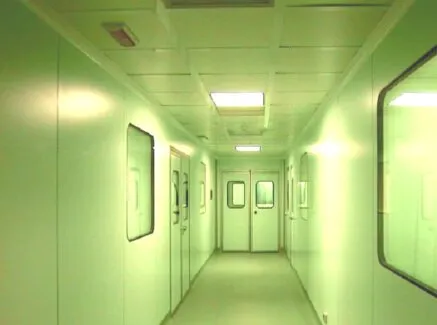

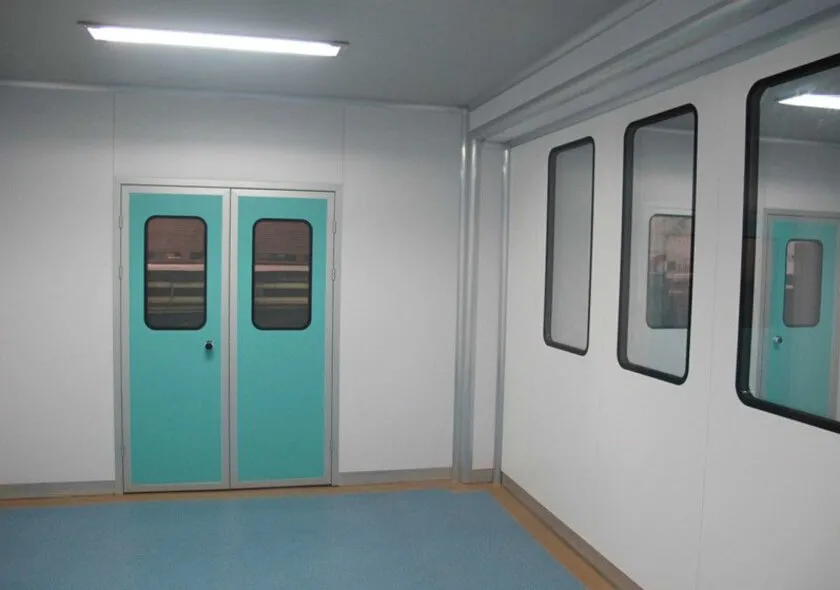

Walkable & Non-walkable Ceilings

We offer concealed "H" type hanger systems for walkable ceilings and unconcealed T-grid hanger systems for non-walkable ceilings, catering to different industrial maintenance requirements.

Engineering & Manufacturing Excellence

Specializing in design, manufacturing, and turn-key project solutions for clean room systems, water systems, and pharmaceutical machinery. Our solutions combine international technology with advanced manufacturing advantages to ensure high cost-effectiveness and reliability.

Our manufacturing base operates under strict quality standards, holding ISO 9001 and EU CE certifications. Our systems are designed to comply with global regulations including WHO GMP, EU cGMP, US FDA, and UK MHRA.

Frequently Asked Questions

What are the main advantages of the HPL paneling system?

The HPL system offers high density and scratch resistance, is waterproof/steam-proof, and has anti-bacterial properties. It is also fire-resistant (Class A or B) and easy to clean with standard detergents.

What is the difference between PCR and ECR series panels?

The PCR series features a modular flush system with a four-sided steel frame for extra strength, while the ECR series is an eco-type system jointed by male and female connections without a surrounding steel frame.

Which insulation core materials can I choose for my clean room panels?

We offer various core materials including Thermal-setting Polystyrene (TPS), Rock Wool (RW), Aluminum Honeycomb (AH), and Polyurethane Foam (PU) to meet different fire rating and thermal requirements.

Are your modular clean room systems compliant with international standards?

Yes, our systems are designed to meet WHO GMP, EU cGMP, US FDA, UK MHRA, and PIC/S standards, and our manufacturing process is ISO 9001 certified.

Can the clean room ceiling support the weight of maintenance staff?

We provide both walkable and non-walkable ceiling options. The walkable ceiling uses a concealed "H" type hanger system designed specifically to support maintenance activities.
