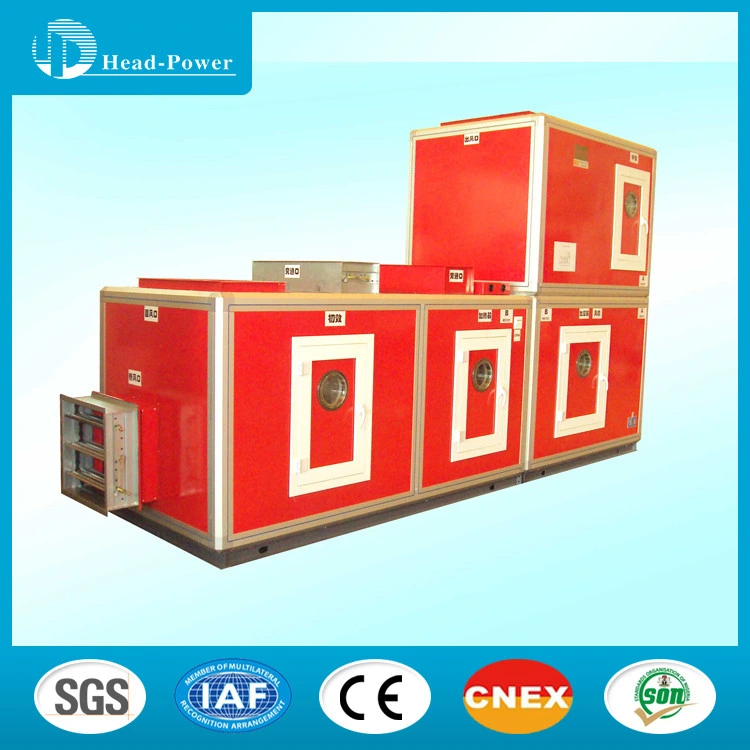

Modular Air Conditioning System for Hospital Clean Room

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet,Glass, Steel, Plastic Duct, etc;

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZK Series

Corrosion Durability

Ultrahigh

Operating Voltage

380/400 VAC

Noise Level

Ultra Low

Application Fields

Electronic Instruments, Precision Machinery, Hotel

Mounting

Floor Standing

Lifetime

15~20 years

Certification

ISO, CE

Condition

New

Transport Package

Stretch Film + EPE + Wooden

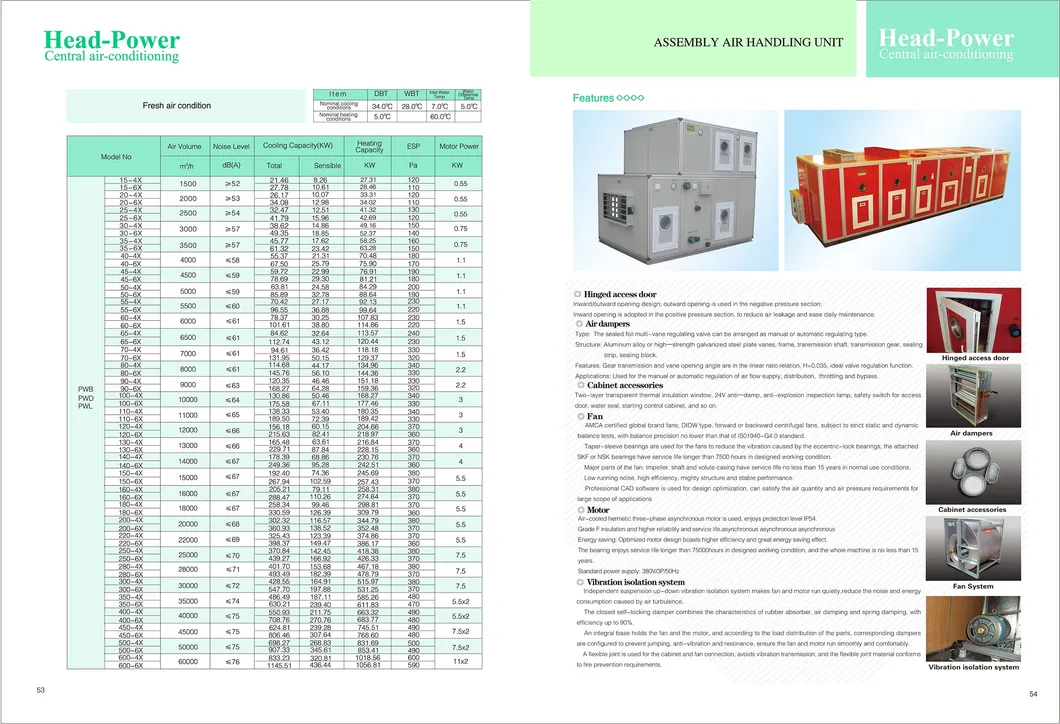

Specification

3000*3000*1500

Production Capacity

5000PCS/Year

Product Description

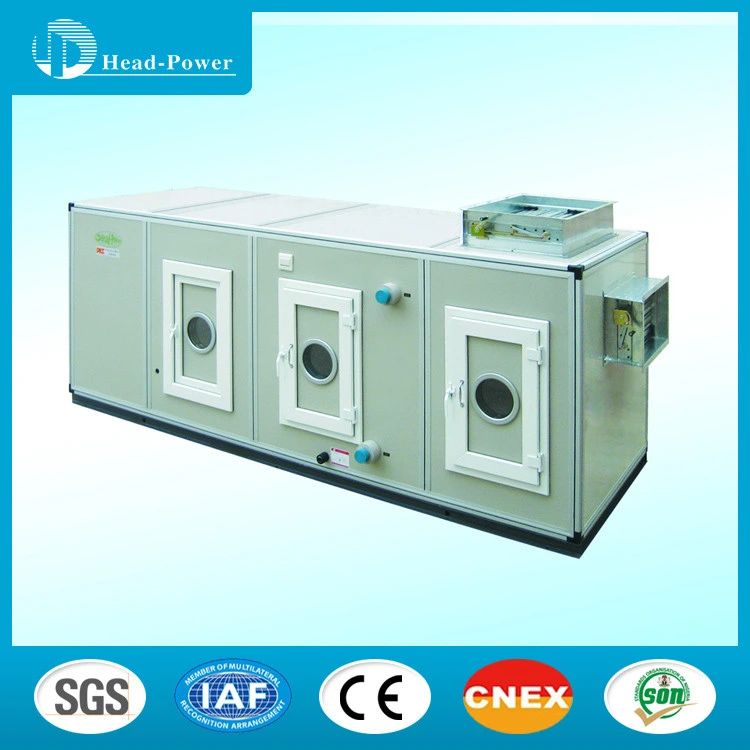

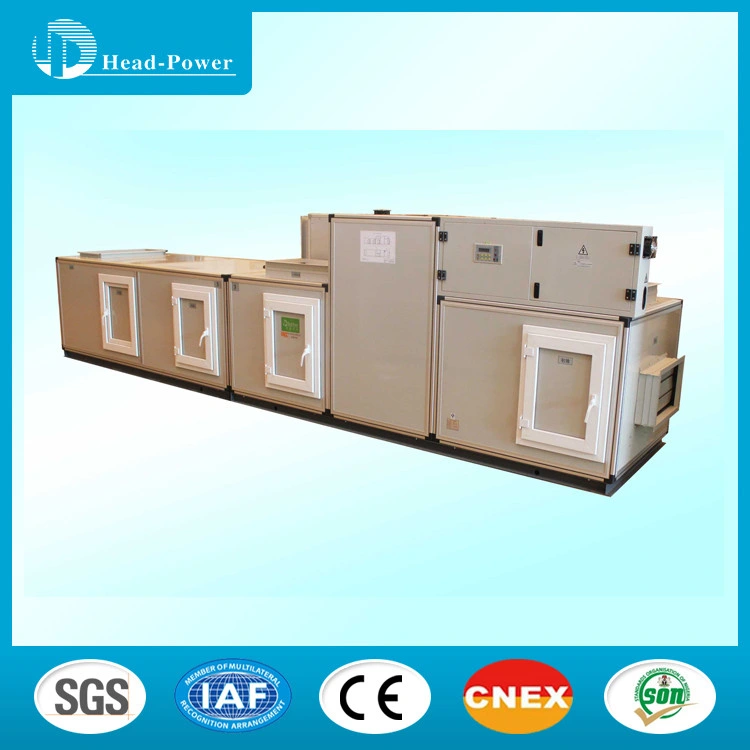

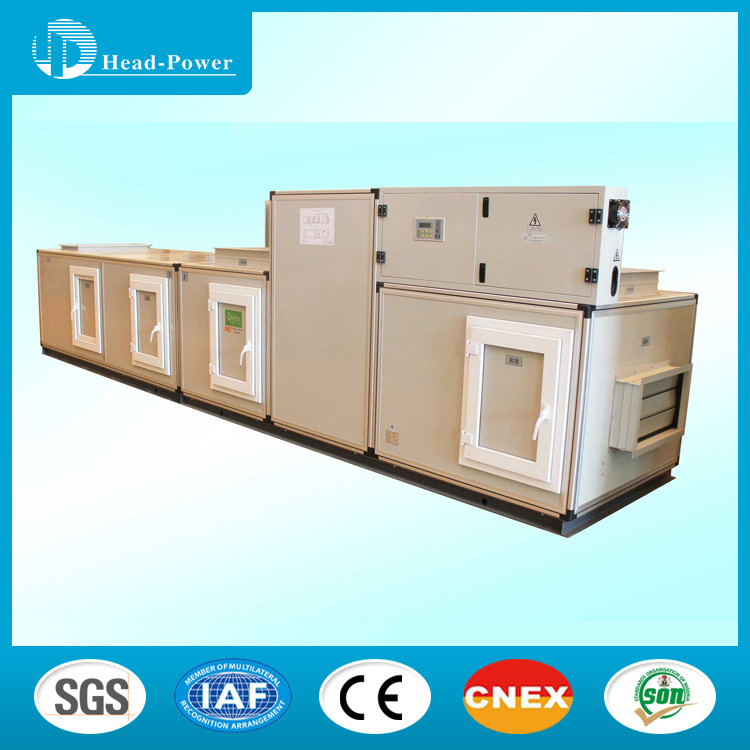

Modular Air Conditioning System For Hospital Clean Room

Frame and Panel Aluminium alloy frame, anti cold bridge design; Double skin panel, 30mm and 50mm thick for option, material is color steel, beautiful appearance.

Access Door Outward opening for negative pressure section, inward opening for positive pressure section, reduce air leakage. Access window is optional.

Fan System DIDW backward or forward curved blade centrifugal fan; Impeller, shaft and casing have service lifespan for not less than 15years; low running noise, high efficiency.

Motor & Drive Famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt, anti vibration rubber or spring damper.

Heater/Heat Exchanger Electric or steam heaters available. Chilled/hot water, steam heating coil, copper tubes with aluminium fins. Tested by 2.5MPa air pressure.

Drain Pan Suitable slope drain pan, easy for water drainage, stainless steel or painted galvanized steel material.

Filtration System Nylon/metal mesh prefilter, primary filter G3~G4 (55%~75%), bag filter for secondary filter F7~F9 (80%~95%), HEPA filter optional.

Air Damper Galvanized steel or aluminium alloy material, manual or electronic regulation.

Humidifier Options Wet film, high pressure spray, steam, electrode, or electric heating humidifiers.

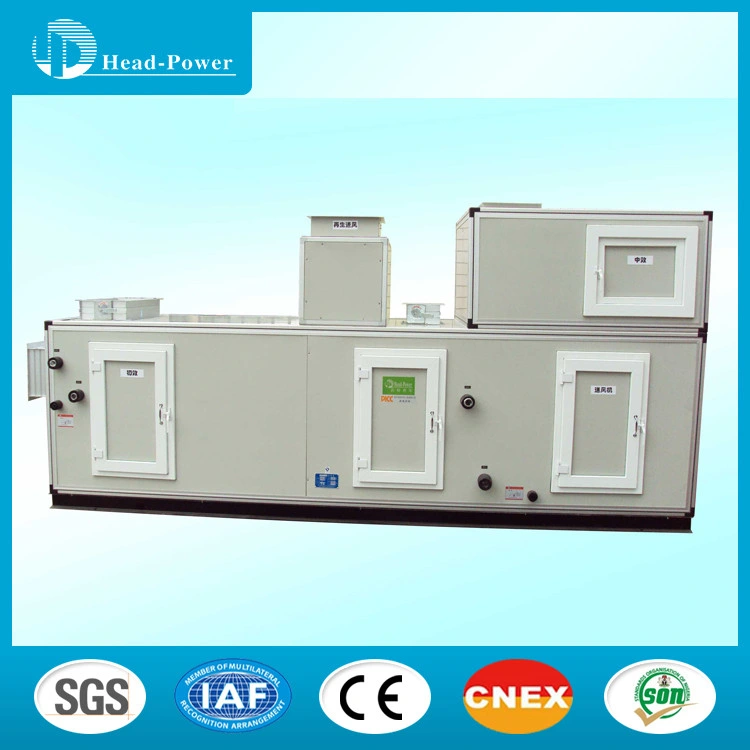

Wheel Dehumidifier Specially used for industrial humidifying, can deal with humidity lower than 50% with high efficiency.

Heat Recovery Plate type aluminium or wheel heat recovery, high efficiency, energy-saving for precooling or preheating.

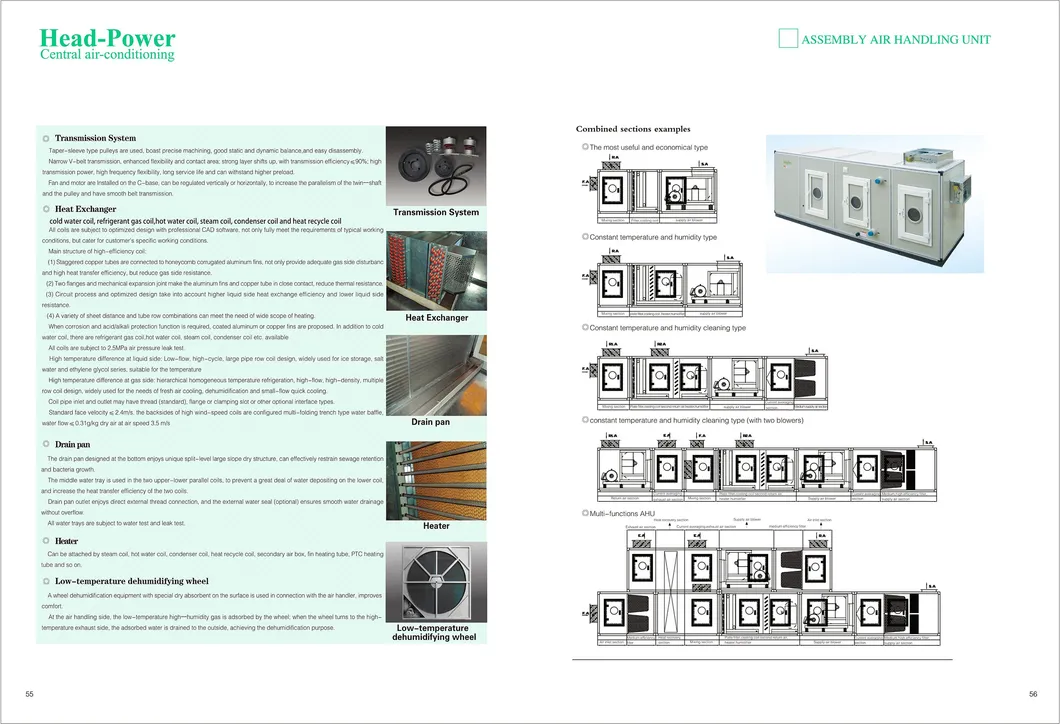

Flexible Combination All sections can be combined flexibly according to requirement.

Visual Display

Applications

Industrial fields including: Electronic factory, pharmaceutical factory, precision instrument factory, petrochemical factory, tobacco factory, and cooling for various production processes.

Frequently Asked Questions

What is the expected lifespan of the ZK Series air conditioning system?

The system is designed for high durability, with the fan system and major components having a service lifespan of 15 to 20 years under normal operating conditions.

What levels of air filtration does this system provide?

The system supports multiple stages of filtration: primary filters (G3-G4), secondary bag filters (F7-F9), and optional HEPA or special function filters for clean room requirements.

Can the system handle environments with very low humidity requirements?

Yes, the system can be equipped with a wheel dehumidifier that is specifically designed to handle humidity levels lower than 50%, offering higher efficiency than standard cooling dehumidification.

What are the power requirements for this modular unit?

The standard operating voltage for the ZK Series modular air conditioning system is 380/400 VAC.

Is the system energy efficient?

Yes, the system includes a heat recovery section (plate type or wheel) which provides high heat recovery efficiency, significantly saving energy by precooling or preheating the air.

What materials are used to prevent corrosion?

The unit features an aluminium alloy frame with an anti-cold bridge design and double skin panels made of color steel. Heat exchangers use copper tubes with aluminium fins and stainless steel or galvanized frameworks for ultrahigh durability.
