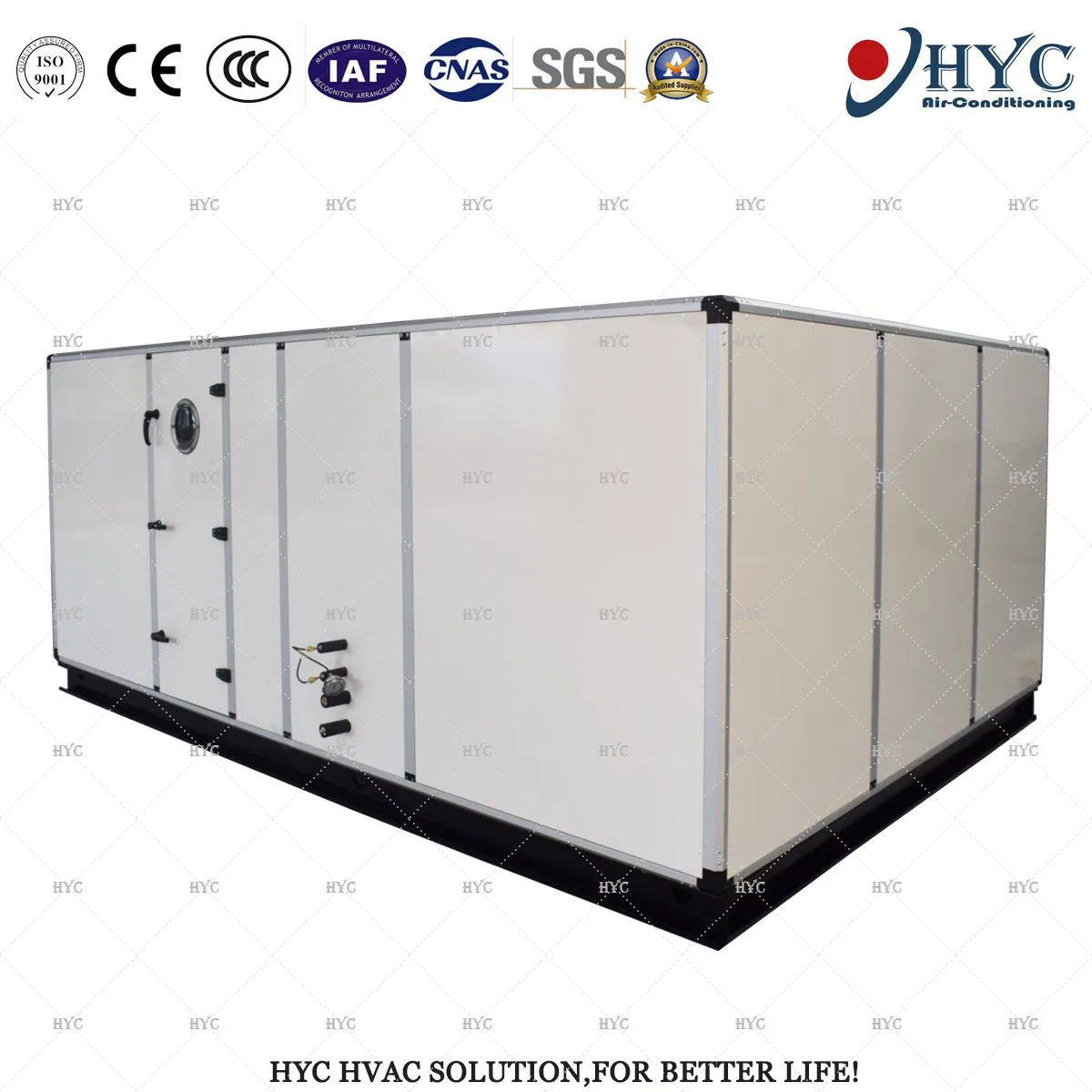

Corrosion Durability
Higher
Operating Voltage
220V, 380-415V, 50/60Hz
Application Fields
Apartment, Office Building, Villa, Industrial
Certification
ISO, CE, CCC
Coil Material
Blue Hydrophilic Aluminum Fin/Copper
Panel Material
Double Skin with Polyurethane Fitting
Transport Package
Film/Wooden Package
WIDE AIR FLOW RANGE
Air flow ranges from 2700 to 120000m3/h, which is able to fulfill various application requirements.

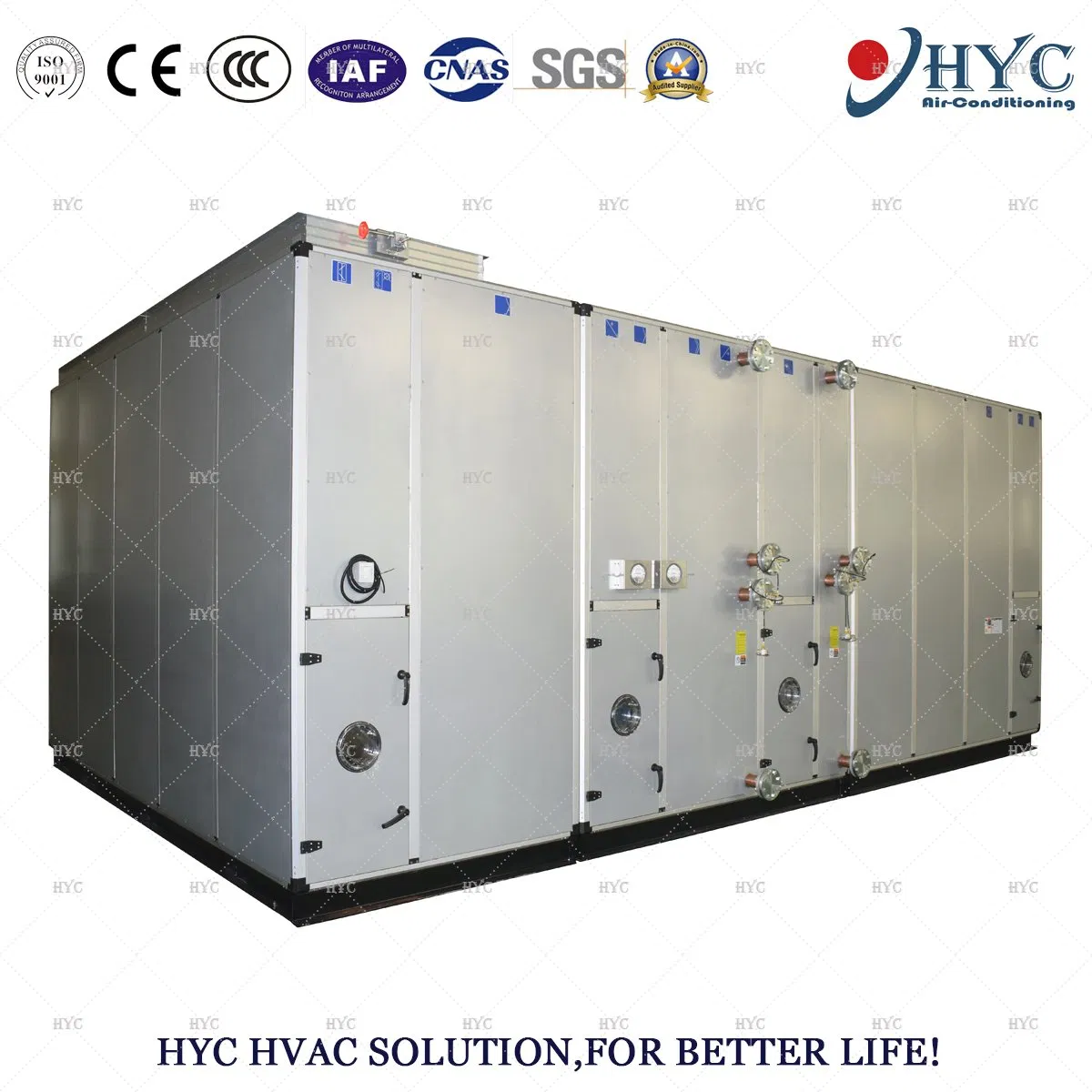

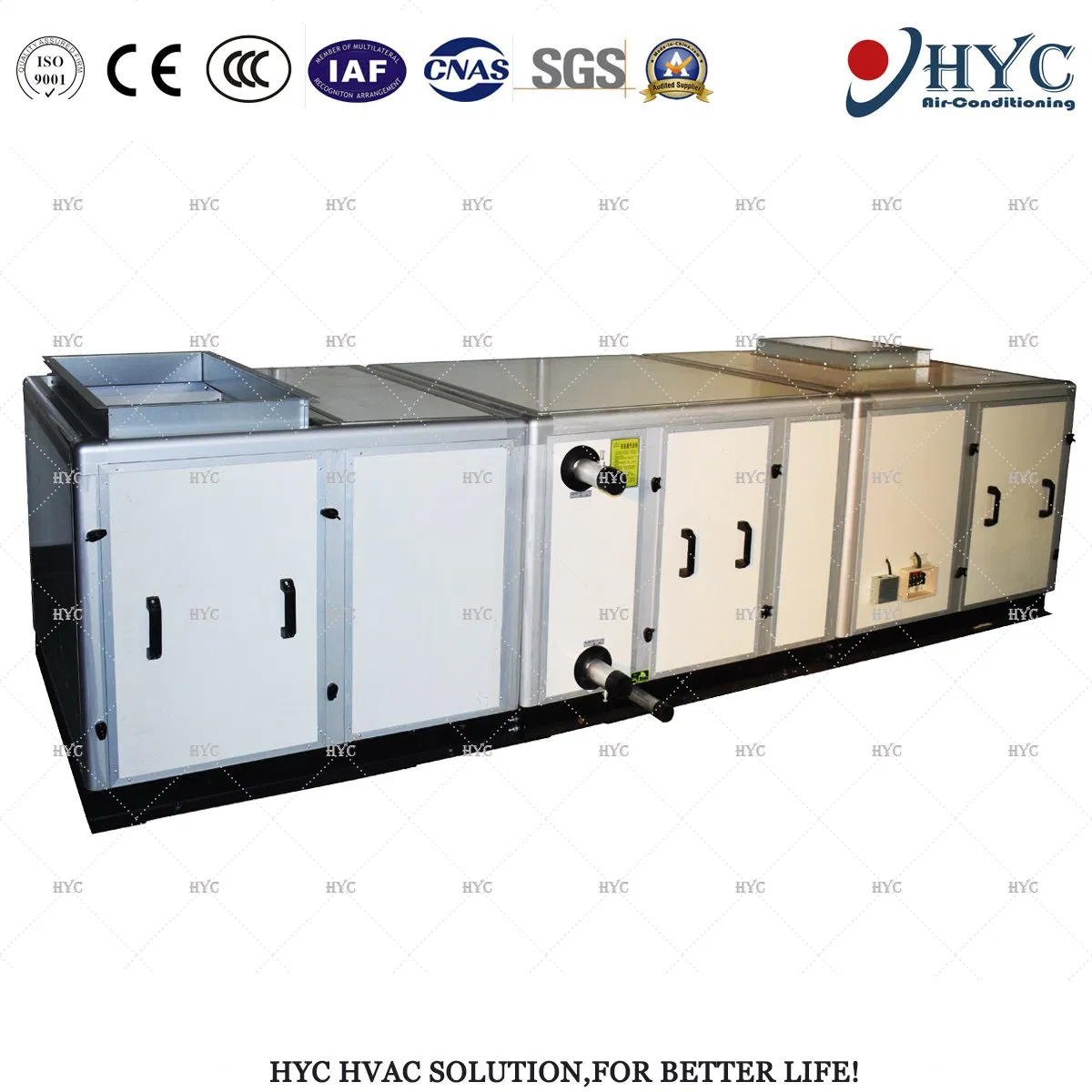

PANEL STRUCTURE DESIGN
Panel is made of powder coated double steel (outer and inner both) with high pressure polyurethane foam fitting in between, offering a rigid and robust structure. Frame is made of aluminum alloy, making the unit strong and lightweight.
LOW AIR LEAKAGE & NOISE
High pressure PU foam and special insulation guarantee minimal energy loss. Dynamically balanced fan assembly with spring isolators reduces vibration and noise.

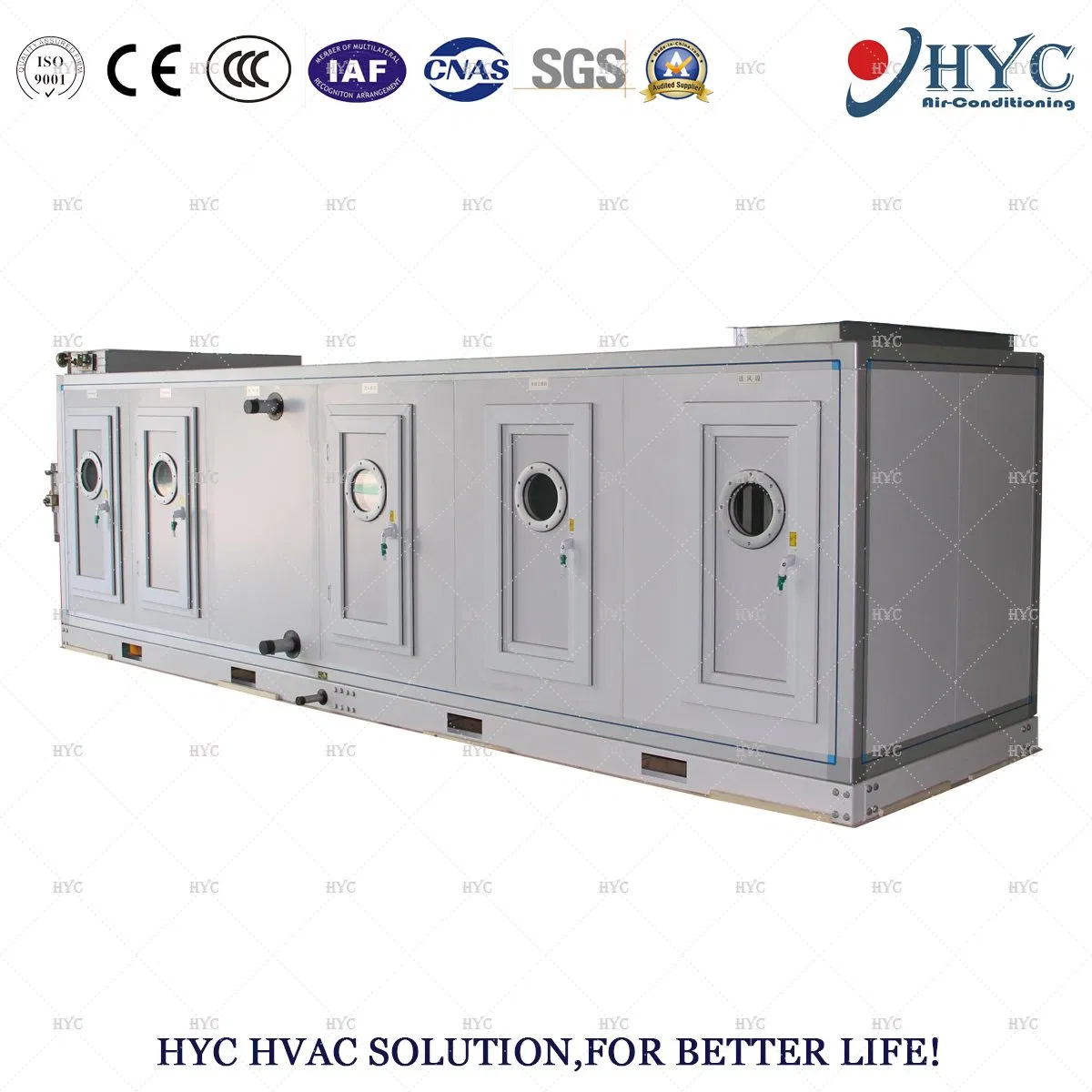

MODULAR DESIGN
Computer-selected coil design proved through lab testing. Modular methods make it flexible for different site conditions and easy to assemble.

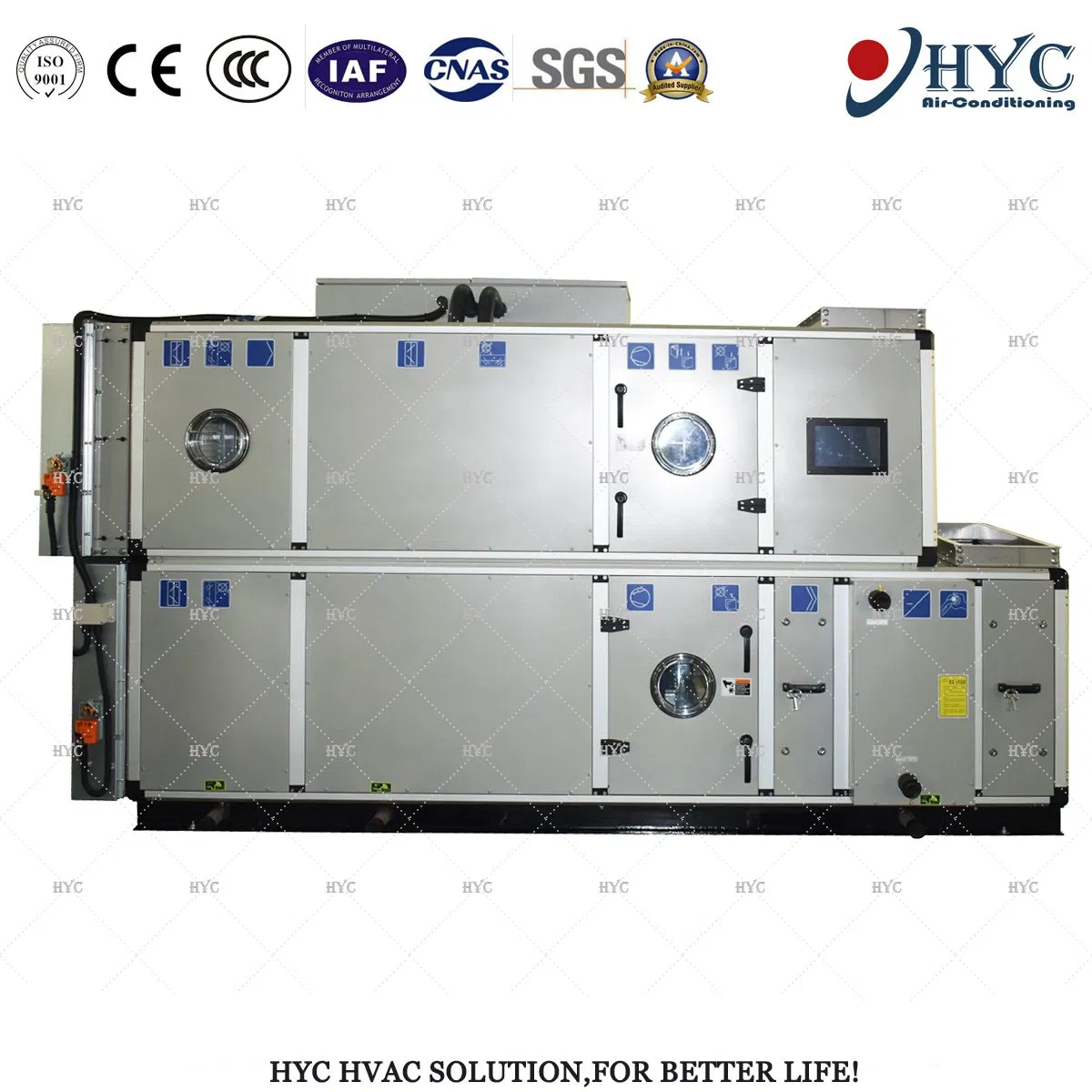

Function Sections
Cabinet
Mixing box section
Fresh/exhaust air section
Pre-Sec-Hepa filter
Coil section
Fan section
Humidification
Electrical heater
Sound attenuator
Heat recovery
Technical Performance Data
| Air flow (m³/h) |
4 ROW |
6 ROW |
8 ROW |
| TC (kW) | SC (kW) | Water Flow | Resistance |
TC (kW) | SC (kW) | Water Flow | Resistance |
TC (kW) | SC (kW) | Water Flow | Resistance |
| 2110 | 8.50 | 7.77 | 0.38 | 1.0 | 13.40 | 10.19 | 0.62 | 3.4 | 16.45 | 11.52 | 0.76 | 6.1 |
| 3640 | 19.43 | 15.32 | 0.91 | 6.0 | 26.65 | 18.83 | 1.26 | 14.9 | 31.19 | 20.85 | 1.46 | 24.8 |
| 5180 | 30.29 | 22.77 | 1.43 | 16.1 | 39.87 | 27.49 | 1.88 | 36.3 | 45.86 | 30.19 | 2.15 | 59.3 |
| 7990 | 46.08 | 34.70 | 2.18 | 18.9 | 61.01 | 42.04 | 2.87 | 40.9 | 63.69 | 63.51 | 3.06 | 9.2 |
| 10410 | 63.40 | 46.51 | 3.01 | 37.8 | 73.82 | 52.32 | 3.53 | 10.9 | 87.09 | 58.20 | 4.18 | 18.1 |
| 12820 | 79.63 | 57.84 | 3.68 | 59.7 | 94.23 | 65.74 | 4.47 | 18.3 | 110.10 | 72.83 | 5.26 | 30.3 |
| 17380 | 108.73 | 78.64 | 5.18 | 54.1 | 127.58 | 88.96 | 6.08 | 18.4 | 149.32 | 98.66 | 7.18 | 30.4 |
| 20670 | 117.51 | 88.60 | 5.63 | 13.3 | 156.33 | 107.68 | 7.51 | 29.4 | 180.23 | 118.43 | 8.60 | 46.1 |
| 30470 | 173.25 | 130.48 | 8.31 | 13.4 | 230.47 | 158.60 | 11.10 | 29.6 | 266.12 | 174.64 | 12.67 | 46.3 |

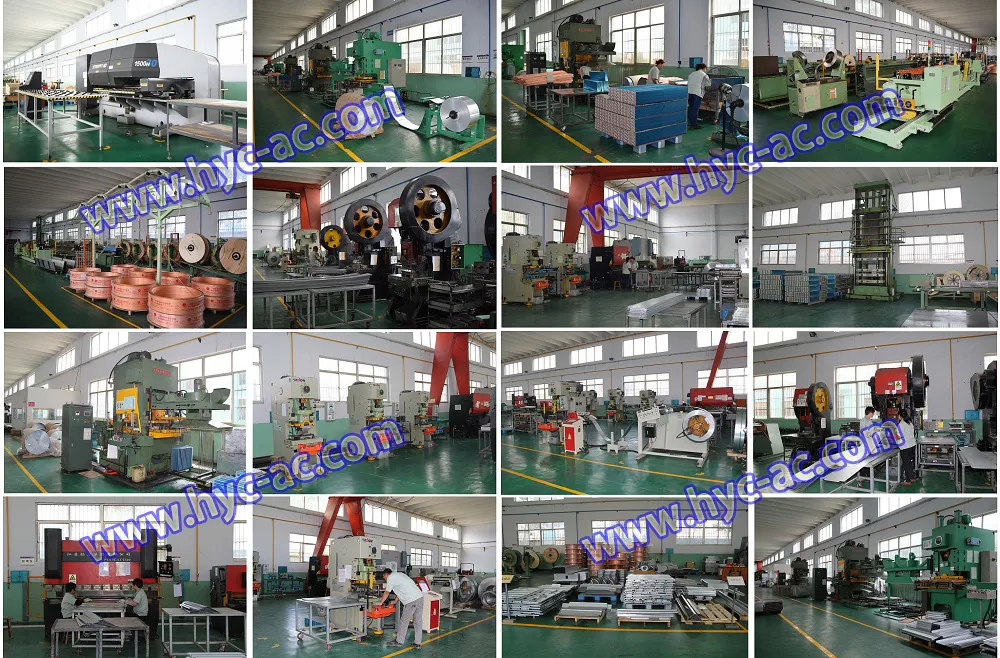

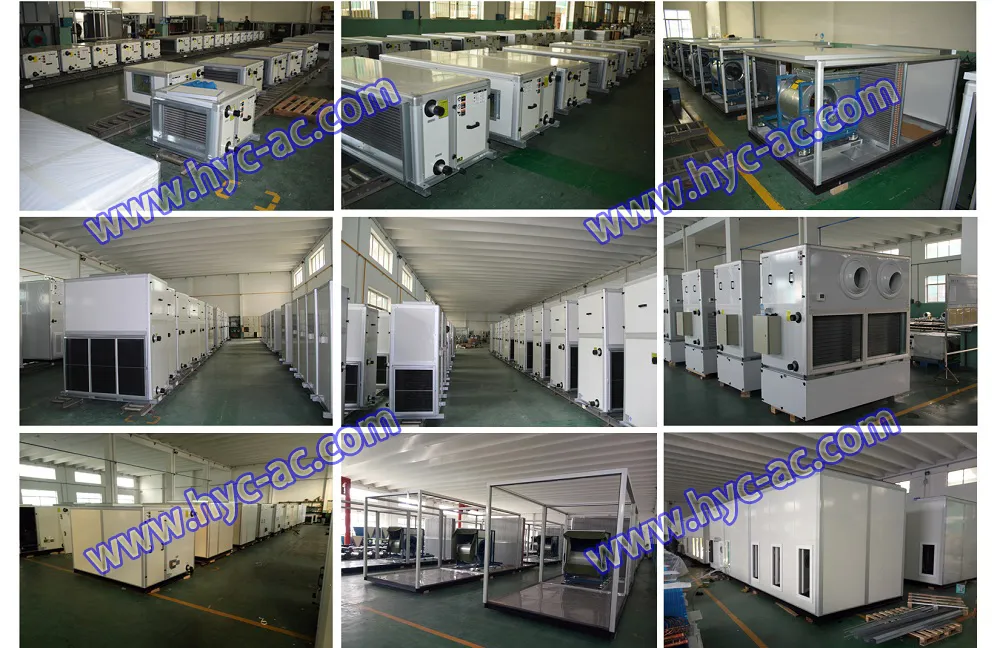

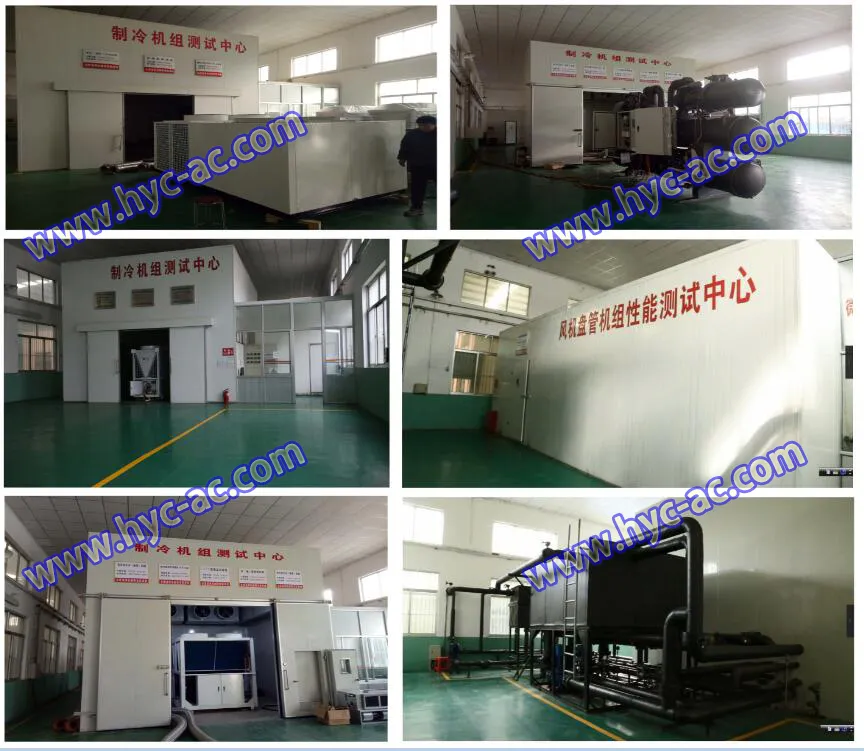

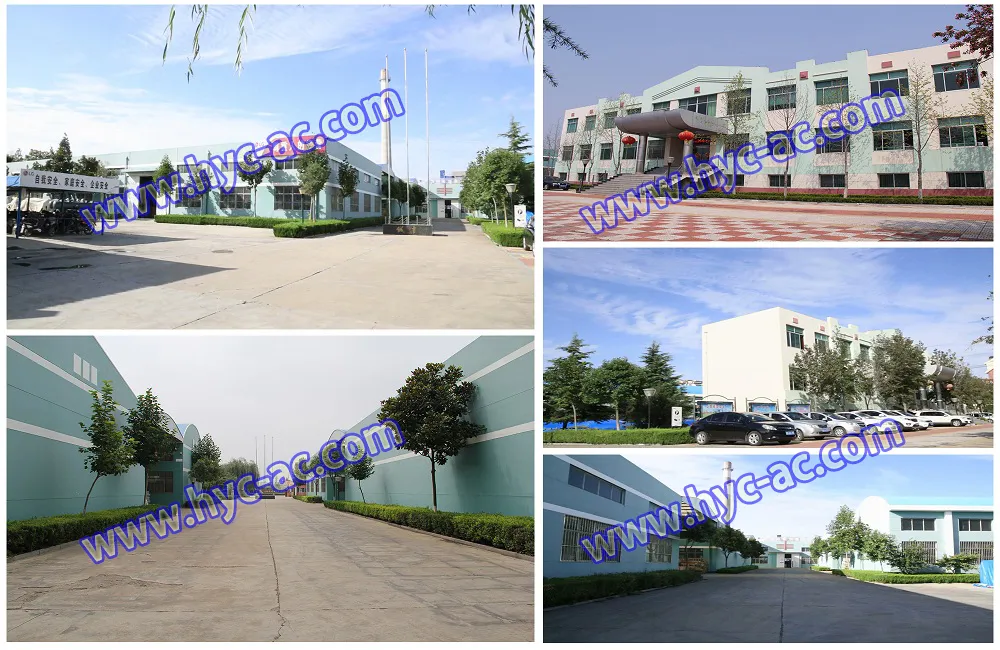

Facility and Production
Frequently Asked Questions
Q1: What is the typical air flow range for the HAH modular system?
A: The system provides a wide air flow range from 2700 up to 120000 m3/h, making it suitable for a variety of applications from villas to industrial buildings.
Q2: How is the noise level kept low during operation?
A: Noise is minimized through rigidly bolted panels and a dynamically balanced fan assembly equipped with spring isolators to reduce vibrations.
Q3: What materials are used for the panel construction?
A: The panels feature a double-skin structure made of powder-coated steel with high-pressure polyurethane (PU) foam insulation for maximum energy efficiency.
Q4: Can the unit be customized for specific site requirements?
A: Yes, the modular design allows for tailor-made configurations to suit different site conditions and functional requirements.
Q5: What is the expected lifetime of this equipment?
A: The equipment is designed for high durability with a service lifetime exceeding 20 years under proper maintenance.
Q6: What certifications does the air conditioning system hold?
A: The product is fully certified with ISO, CE, and CCC standards, ensuring international quality and safety compliance.
