Customization: Available
After-sales Service: Installation Guidance/After-Sales Warranty
Application: Apartment
Send Inquiry

Product Description

📊Basic Specifications
Model NO.JY529
MaterialContainer
FrameGB Q355b Hot-DIP Galvanizing
Wall Panel75mm EPS Sandwich Panel
Roof Panel50mm EPS Sandwich Panel
Unfolded SizeL5900*W6410*H2480mm
Collapsed SizeL5900*W2250*H2480mm
Net Weight3600kg
FeaturesEarthquake Resistant, Waterproof, Thermal Insulation
🏠Product Description

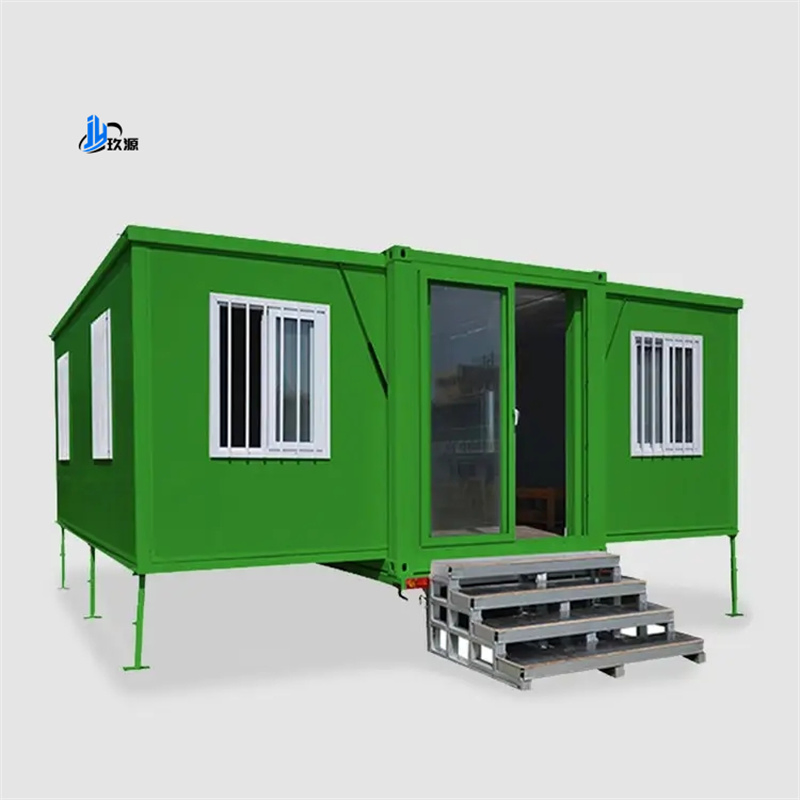

Double-Wing Folding Container House
Revolutionizing Modular Space Solutions
The Double-Wing Expandable Container House redefines portable architecture with its patented hydraulic expansion system. By deploying dual side wings in 90 minutes, it achieves 280% floor area expansion compared to standard containers. Ideal for remote mining camps, disaster relief operations, and luxury glamping resorts, this hybrid structure combines mobility with permanent building durability.
Core Innovations:
  • Aerospace-grade Q345 steel frame withstands -40°C to 70°C extremes
  • IP67-rated electrical system with pre-wired solar conduits
  • 3D-printed joint connectors enable 3-story vertical stacking
  • IoT-enabled smart lock system (optional)
📋Technical Parameters
Component Composition Specification
Main frame (galvanized) Top and side beams 80*80*2.0mm square tube
Bottom side beam 80*100*2.0mm square tube
Steel column 160*160*3.5mm square tube
Protective coating Electrostatic powder coating
Wall & Roof Panels External wall panel 75mm thick EPS color steel composite panel
Roof plate 50mm thick EPS color steel composite board + butyl tape
Ground System Main frame floor 18mm Cement fiber floor
Ground decoration 1.6mm PVC floor covering
Doors & Windows Windows / Doors Aluminum alloy hollow sliding window / KFC door
Electrical system Circuit & Lighting 220V, 50HZ; LED Flat panel lamps
Sanitary Toilet section Toilet, shower head, cabinet and basin included
🖼️Detailed Photos & Samples

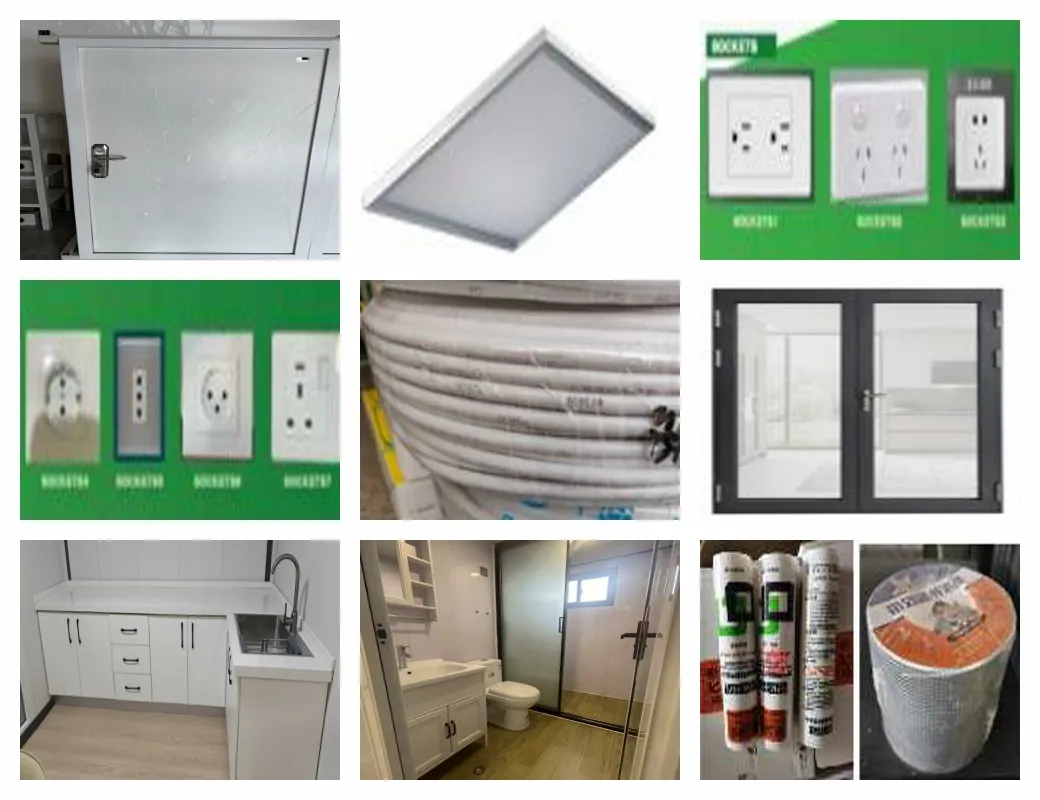

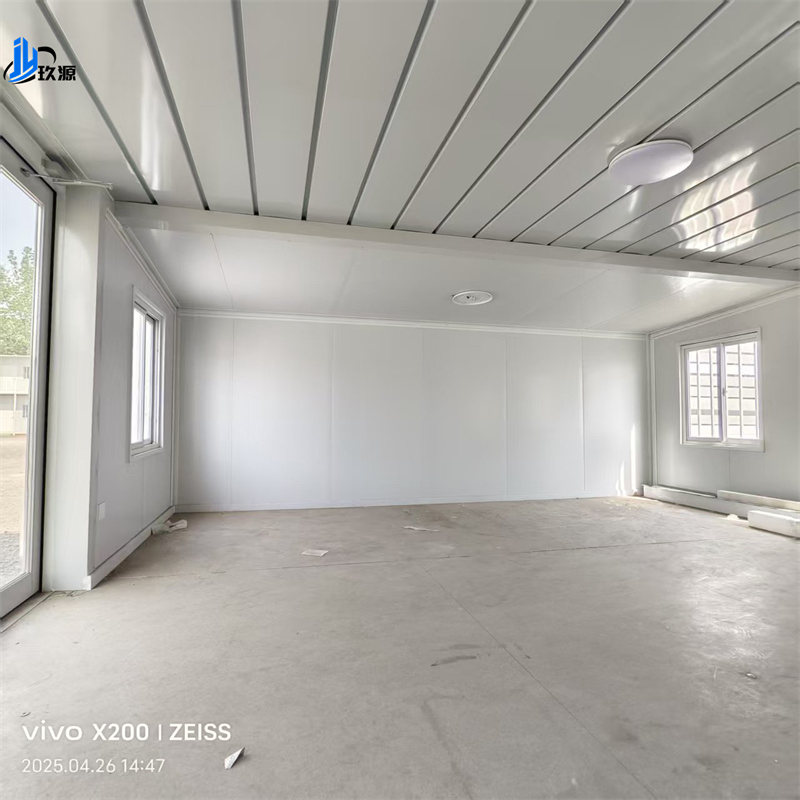

Internal View

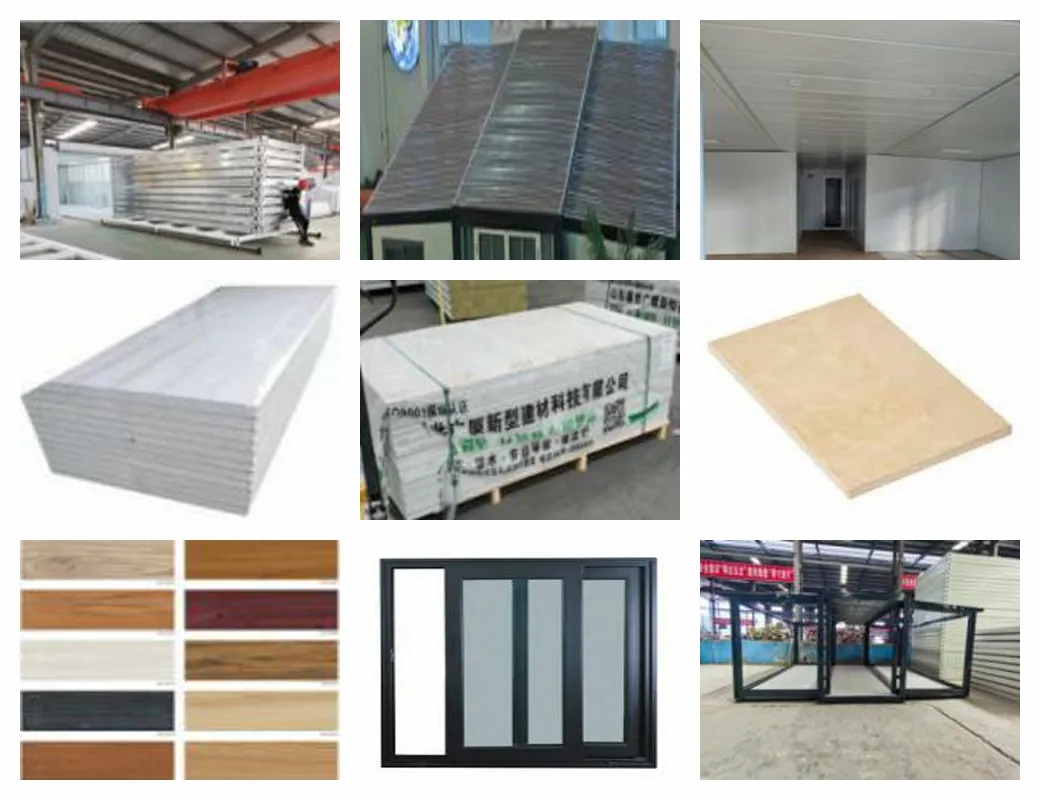

Structure Detail

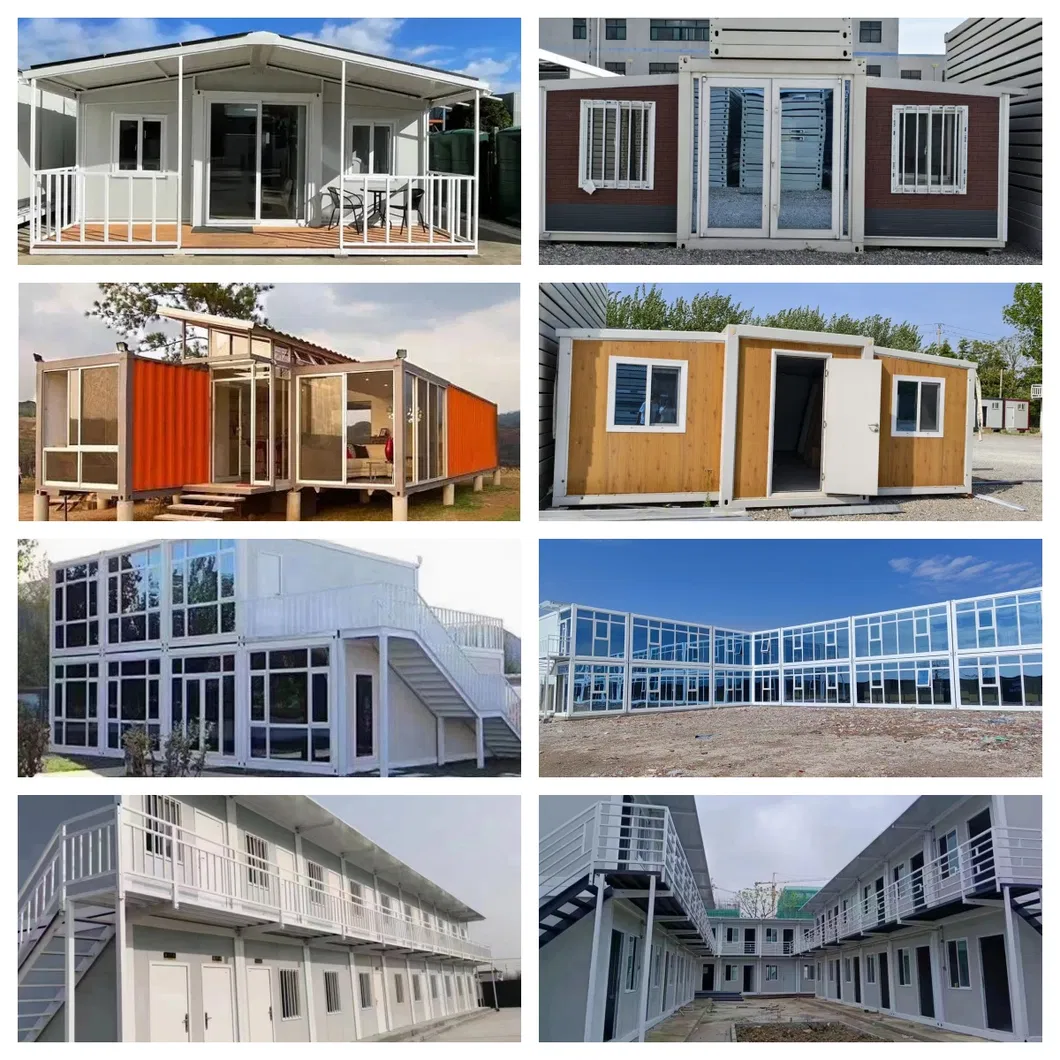

Sample Display

Sample Display
🛠️3-Step Quick Installation
1
Site Preparation: Calibrate the foundation with a laser level to ensure a flat surface.
2
Mechanical Unfolding: Activate the hydraulic expansion system using the standard electric wrench to deploy side wings.
3
System Activation: Connect pre-installed water and electricity interfaces and complete the air tightness test.

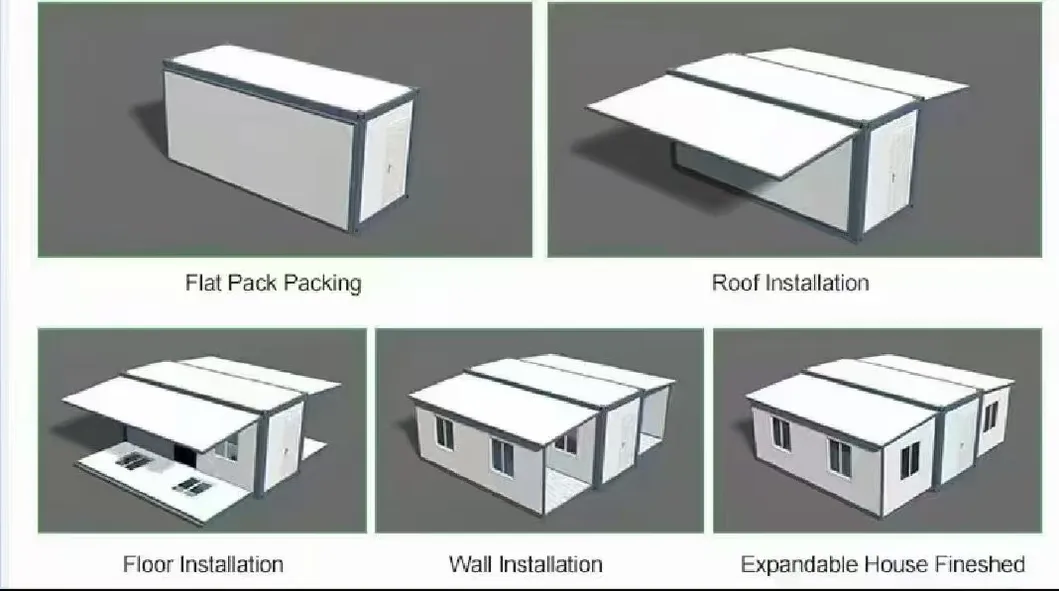

Installation Guide Diagram
🚀Our Engineering Advantages
Precision Engineering
Laser cutting accuracy of 0.5mm ensures perfect fit and rapid onsite assembly.
Supply Chain Efficiency
Internal CNC bending centers reduce standard delivery lead times by 30%.
Smart Manufacturing
The MES tracking system monitors the quality and integrity of every structural weld seam.
❓Frequently Asked Questions
How long does it take to set up the container?
The double-wing expansion process can be completed in approximately 90 minutes once the site is prepared.
What is the expansion ratio of this unit?
The house provides a 284.89% expansion ratio, significantly increasing the usable floor area from the transport state.
What weather conditions can it withstand?
The aerospace-grade steel frame is designed to withstand extreme temperatures ranging from -40°C to 70°C, and it is earthquake and wind resistant.
Is the electrical system pre-installed?
Yes, the unit comes with a pre-wired IP67-rated electrical system, including lighting and sockets, which can be customized to local standards.
Can these units be stacked for multi-story use?
Yes, the structure supports 3-story vertical stacking thanks to specialized joint connectors.
How are these houses transported?
They are shipped as 40# High Containers (40HQ). Two units can typically fit into one 40HQ container.
