Heavy Gauge Peb Industrial Steel Structure Pre-Engineered Building Construction

Customization:	Available
Size:	According to Customers' Requirement
MOQ:	200m2

Send Inquiry

Product Description

Basic Specifications

Model NO.

SSW1496

Application

Farm Storage

Color

White/Grey/Blue/Red

Color Reference

Ral

Engineering Team

20 Members

Quality Control

Daily Inspection

Life Cycle

50 Years

Construction Period

60 Days

Steel Grade

High Strength Steel

Component

Steel Column, Beam, Truss

Production Capacity

2000ton/Month

Specification

SGS / ISO/ BV

★

Product Overview

What is a Pre-Engineered Steel Building?

Pre-engineered steel buildings are structural concepts utilizing primary members, secondary members, and roof/wall sheeting connected to various building components. These structures can be integrated with skylights, turbo vents, crane systems, and mezzanine floors based on specific requirements. They are custom-designed to be lighter in weight yet high in strength.

Versatile Applications

Pre-engineered buildings (PEBs) offer flexible solutions with low cost and fast erection. Key applications include:

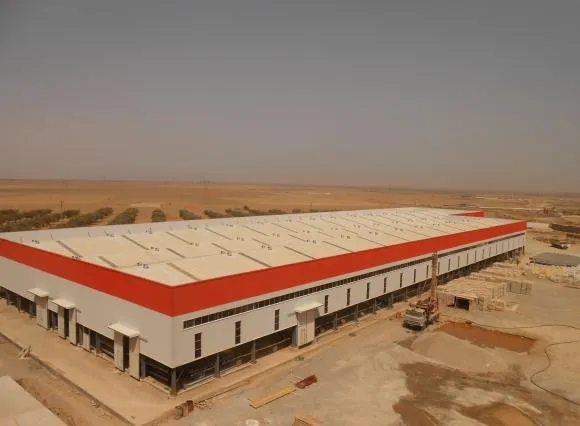

Industrial: Factories, Workshops, Warehouses, Cold Storages, Assembly Plants.

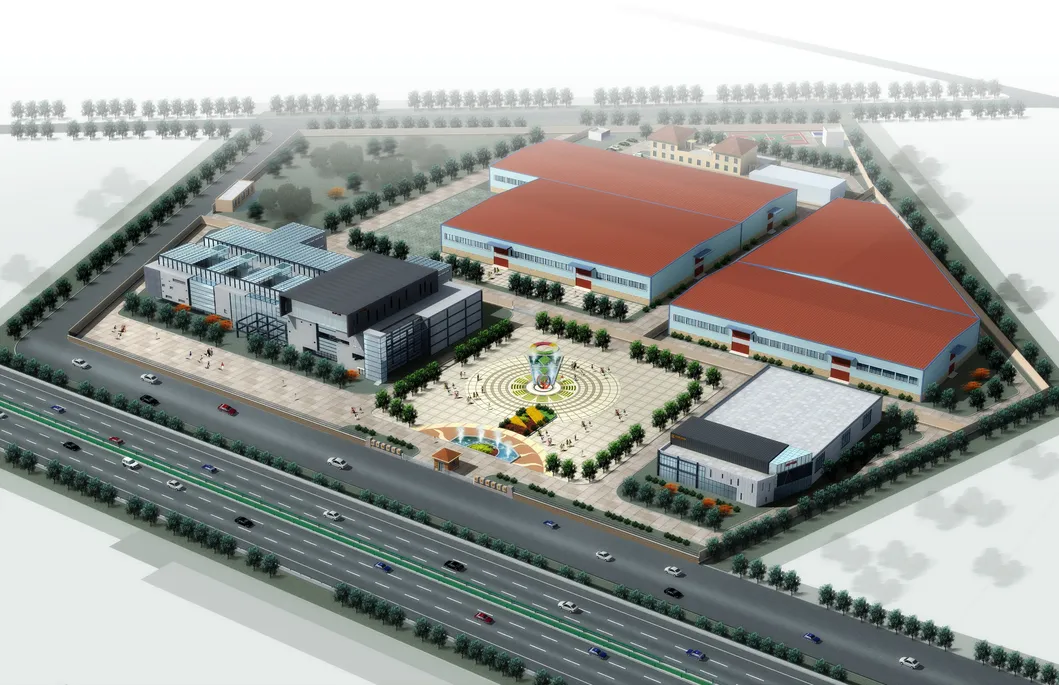

Commercial: Showrooms, Supermarkets, Shopping Centers, Exhibition Halls, Logistic Centers.
Public: Schools, Hospitals, Stadiums, Museums.
Others: Farms, Aircraft Hangars, Airport Terminals.

Key Advantages

1. Cost Savings: Price per square meter can be 25%-30% lower than conventional buildings.
2. Quick Erection: All components are factory-fabricated, reducing construction time by up to 60%.
3. Flexibility: Easy to expand in the future with low transportation costs.
4. Energy Efficiency: A green solution featuring CO2 reduction and recyclability.

⚙

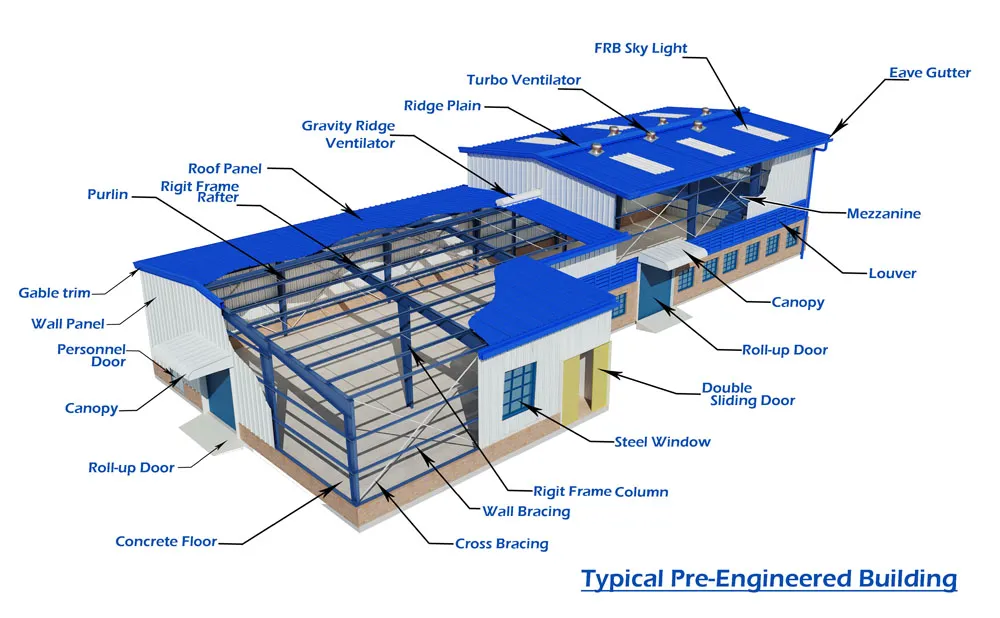

Structural Components

A standard PEB consists of:

Primary Members: Main load-carrying frames (columns and rafters).
Secondary Members: Purlins, girts, and eave struts (Cold-formed steel, min yield 345 MPa).
Roof & Wall Panels: Galvanized steel panels with corrosion-resistant coating.
Accessories: Anchor bolts, fasteners, gutters, doors, and windows.

Manufacturing & Quality Control

Our fabrication process follows strict international guidelines:

Material Receiving: Dimensional and Visual QC inspection of raw steel.

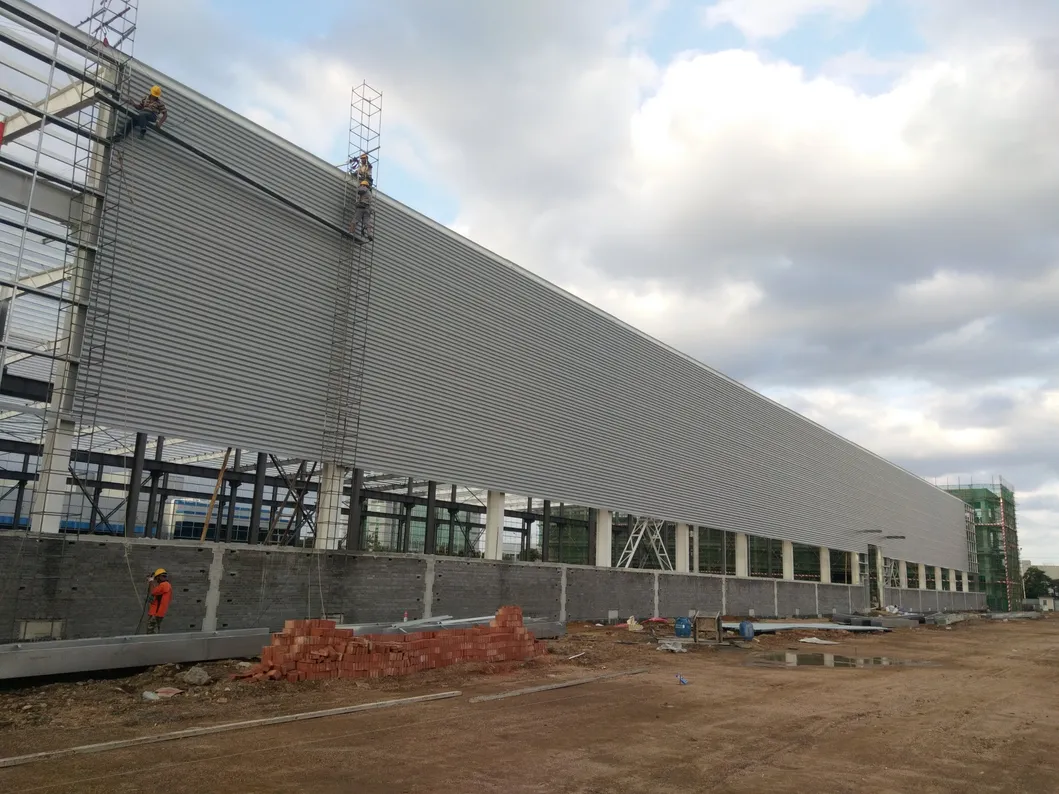

Preparation: CNC fire-cutting and automated drilling for precision.

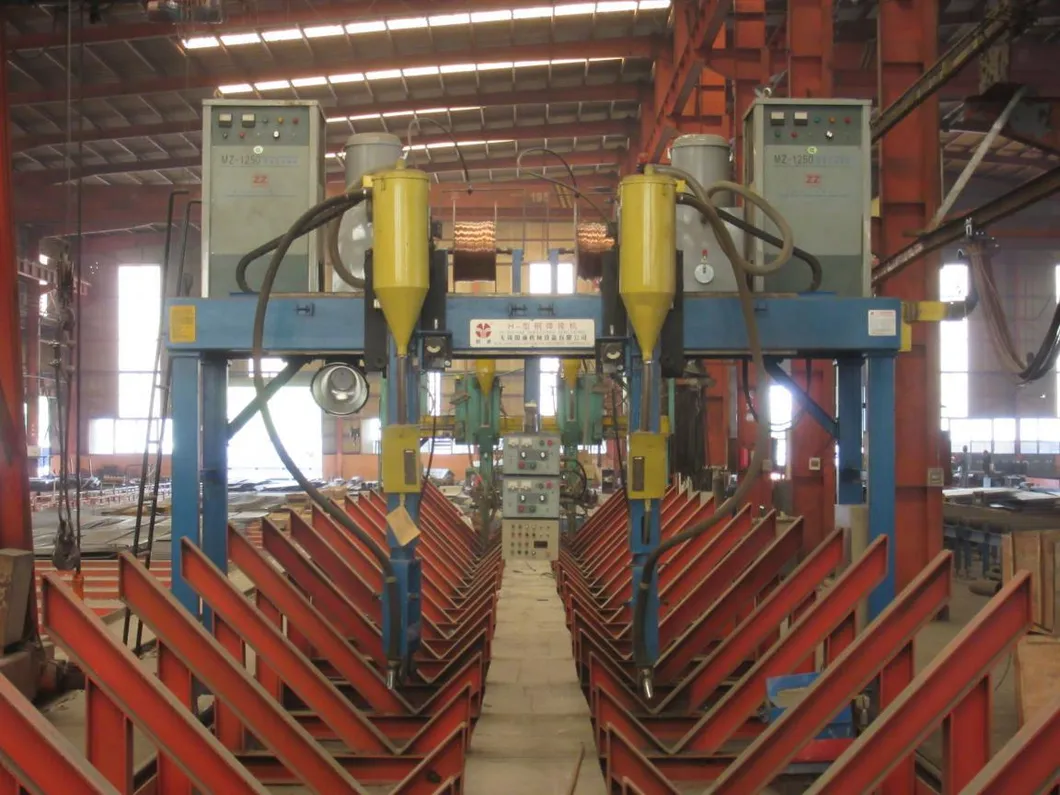

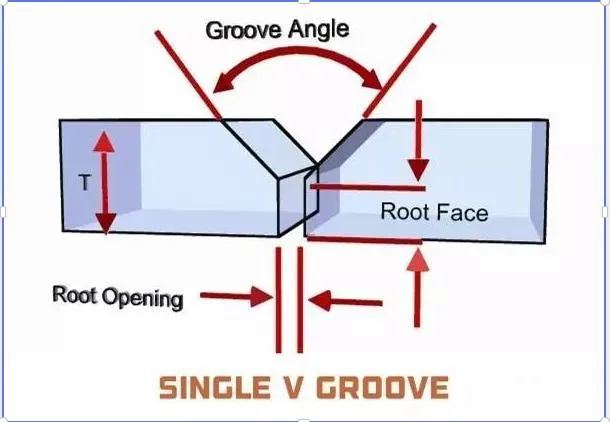

Welding: Submerged Arc and MIG welding according to GB50661-2011 standards.

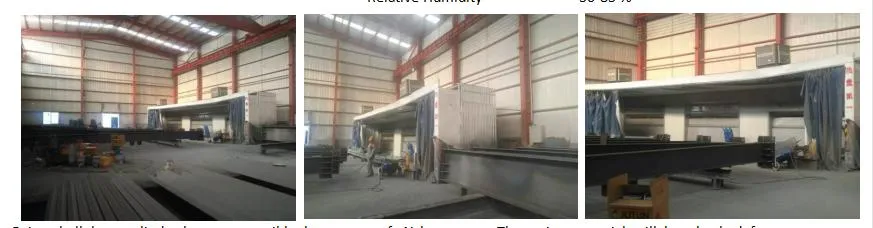

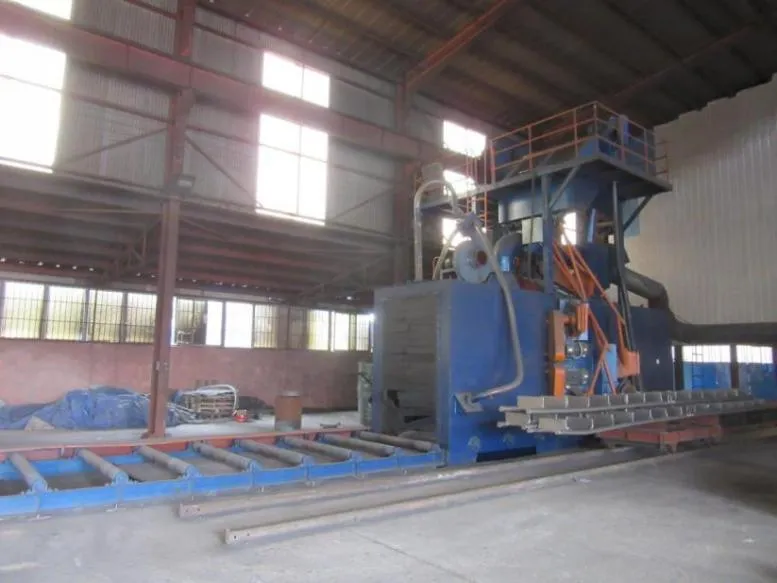

Surface Treatment: Automated shot blasting (Grade SA 2.5) followed by airless spray painting.

📋

Technical Standards

All designs comply with the latest international codes:

GB50009-2012: Load code for building structures.
GB50205-2001: Acceptance of steel structure construction quality.
GB50017-2017: Design of steel structures.
JGJ81-2002: Technical specification for welding.

Deflection Type	Structural Members	Limitation
Vertical Deflection	Portal frame rafter (standard)	L/180
Vertical Deflection	Mezzanine floor main beam	L/400
Lateral Deflection	Wall panel	L/100
Lateral Deflection	Wind columns	L/250

Material Specifications

Component	Specification	Yield Strength
Built-up Plates	GB/T1591	Fy = 34.5 kN/cm²
Hot Rolled Beams	GB/T11263	Fy = 23.5 kN/cm²
Cold Formed Purlins	GB/T 2518	Fy = 45.0 kN/cm²
High Strength Bolts	GB/T 1228	Fu = 72 to 83 kN/cm²

Frequently Asked Questions

What is the typical lifespan of these steel buildings?

The designed life cycle for our pre-engineered steel structures is 50 years, ensuring long-term durability and structural integrity.

How much can I save by choosing a pre-engineered building?

Generally, PEBs can reduce costs by 25% to 30% per square meter compared to conventional steel buildings due to efficient design and faster site erection.

How long does the construction process take?

The typical construction period is approximately 60 days, depending on the project scale. All components are factory-ready, which reduces onsite time by 60%.

Are the steel structures resistant to corrosion?

Yes. All steel components undergo automated shot blasting (Grade SA 2.5) and are finished with high-quality primer and top coats to meet specific project environment requirements.

Can these buildings support heavy crane systems?

Absolutely. Our pre-engineered buildings can be custom-designed to include structural reinforcements specifically for top-running cranes and other heavy industrial machinery.

Which quality certificates do these buildings comply with?

Our products are manufactured according to ISO9001 and CE standards, and undergo rigorous inspections by SGS and BV to ensure compliance with international building codes.
